Webtube HD Casing, Hardware and FCC Approval

November 24th, 2010 Leave a comment Go to comments

WebTube HD – one of the first Android set-top box – now commercialized in Germany, Austria and Switzerland (Retail price: 249 Euros), just passed FCC approval.

The interesting part of the FCC Approval is that we do get the external and internal pictures, so we can get a better look at the hardware.

First let’s have a look at Webtube HD Casing.

As we already knew, this media player is designed and manufactured by InnoDigital Co. Ltd. The news is that it will be distributed by Yonsei Corporation Ltd, a rather recent Japanese Company apparently only setup to promote Webtube HD. (Japanese name: ブラウザBOX)

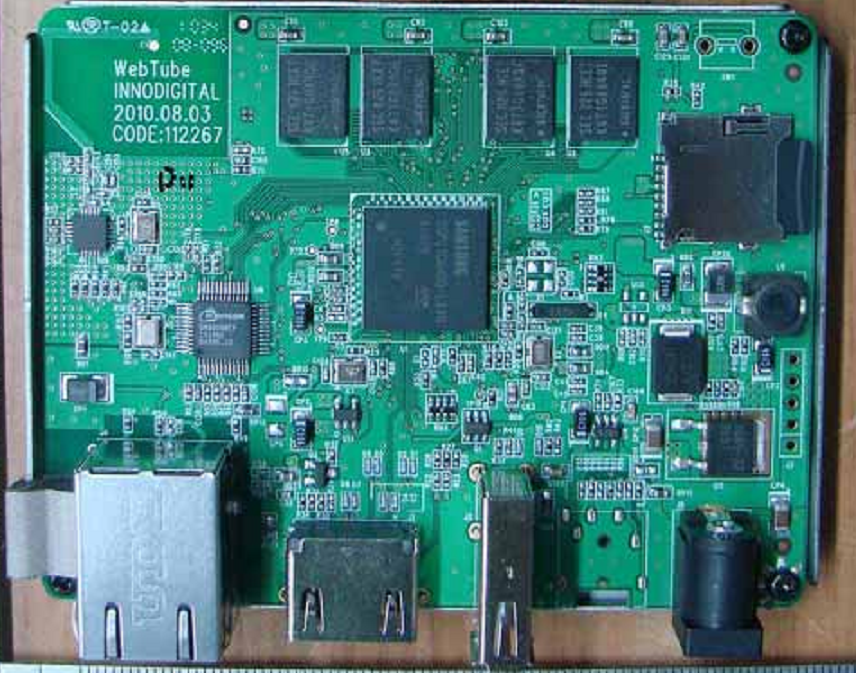

See Webtube HD internal pictures for FCC approval below.

We already knows the following HW specs from Webtube HD website:

OS : Android Memory : 512 Mbyte DDR / 2 Gbyte Flash Memory
USB(option) : 1 port (for option) Audio : MPEG-1 layers 1,2 and 3(MP3)
Video : MPEG4, H.264 High Definition(720p), NTSC/PAL RCU : 15keys RF type
Dimension : 90mm×70mm×16mm (L×H×D) Power Type : 5V/2A Adaptor Type
Options : Wi-Fi dongle / RF Keyboard

The main thing we do not know is the board SoC. This picture has probably been blurred on purpose, but It seen to be a Samsung Chip to me.

If this is correct, we are looking for a chipset from Samsung that can support H.264 decode and output 720p with probably some 3D support for Android.  So I guess Webtube HD is based on Samsung SOPC100 (Custom Asic similar to S5PC100?), a processor with an ARM Cortex A8 core running at 883 Mhz like People of Lava’s Android TV.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

Categories: Android, Hardware, Samsung SOPC100 Tags: innodigital, media player, samsung, set-top box, stb, tv, webtube-hd, yonsei
  1. November 24th, 2010 at 13:53 | #1

    This PDF on a Japanese Website also seems to confirm it’s using Samsung SOPC100:
    http://www.peercom.jp/pdf/WebTube.pdf
