Advantech Announces COMs, SBCs, Motherboards and Embedded PCs based on Intel Atom N2000 and D2000 Series

December 28th, 2011 Leave a comment Go to comments

Advantech has updated its product range by adding Computer On Modules (COMs). single board computers (SBCs), industrial motherboards and embedded box PCs based on the latest Intel Atom N2000 and D2000 Series processors to its offerings. These low-power embedded platforms provide energy-efficient solutions, and serve a wide range of applications targeted at handheld devices, POS, kiosks, digital signage, medicine, and factory automation.

Computer On Modules: SOM-7565 and SOM6765

The Advantech COM-Express Mini SOM-7565, with a mere 84 x 55 mm board size, benefits the low power consuming handheld devices market.

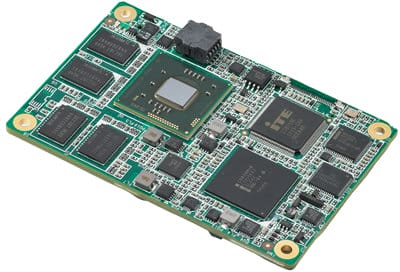

Intel N2600 Computer on Module

Advantech SOM-7565

SOM-7565 Key Features:

  • PICMG COM R2.0 compliant module for Intel Atom processors N2600
  • Intel gfx support for DirectX 9 and Open GL 3.0
  • Supports 18-bit LVDS, eDP/HDMI/DVI/DisplayPort
  • Onboard 2 GB DDR3 800 memory and 4 GB SSD
  • Supports 3 PCIe x1, LPC, SMBus, I2C Bus, SATAII, 8 USB2.0, and GbE
  • Supports Advantech iManager 2.0 and software APIs

The COM-Express Compact SOM-6765 upgrades the platform to dual core (with D2700 version), and has an extremely low TDP design of approximately 10W.

Intel N2600 System on ModuleSOM-6765 Key Features:

  • PICMG COM Express R2.0 type 2 Compact module
  • Built in Intel Atom dual core N2600 and D2700 processors
  • Single 204-pin SODIMM up to 4 GB DDR3 1066 MHz
  • Supports 18/24-bit LVDS and CRT dual display, DirectX 9, Open GL3.0
  • 2 x PCIe x1, 4 x PCI Master, LPC, SMBus, I2C Bus, 2 x SATAII, EIDE, 8 x USB 2.0
  • Advantech iManager 2.0

SOM-6765 will be available in January 2012 and SOM-7565 in February 2012. As usual with Advantech, pricing is not made public, and if you are interested you should contact their sales office in your country.

Single Board Computers: MIO-5250 and MIO-2261

The low power, compact and high reliability MIO-5250 MI/O-Compact (Multiple I/O), and the MIO-2261 MI/O-Ultra extension boards provide flexibility via the MIOe connector.

Advantech MIO-5250 Intel Atom D2700 Single Board Computer SBC MIO-5250 Key Features:

  • MI/O-Compact series: 146 x 102 mm (5.7″ x 4″)
  • Intel N2600 1.6GHz / D2700 2.13 GHz dual core processors + NM10
  • DDR3 1066MHz up to 4 GB
  • DirectX 9, MPEG2 H/W acceleration, H.264/ VC1/ WMV9 (H/W Decode/Acceleration)
  • Multiple displays: 24-bit LVDS1, 48-bit LVDS2, VGA, HDMI
  • 2 x Intel 82583V Gigabit Ethernet
  • HD Audio (amplifier can be supported from MIOe interface)
  • 4 COMs: 2 x RS-232 + 2 x RS-232/422/485
  • 6 x USB2.0/ SATAII/ 8-bit GPIO/ SMBUS
  • mSATA: supports either miniPCIe expansion or mSATA
  • CFast: supports CFast via Serial ATA bus and speed is almost 4.5 times CompactFlash(PATA bus)
  • Full size MiniPCIe + SIMholder: SIM holder supports cellular modules too
  • iManager technology
  • Extended MIOe interfaces: DisplayPort, PCIe x 1, LPC, SMBus, USB 2.0, audio line-out
  • OS: Win7 , WinXP, WinXP Embedded, WinCE and Linux support

All models have a low profile fanless design with an optional heat spreader solution.

There is no detailed information for the MIO-2261 MI/O-Ultra Series, except the following key features:

  • 100 x 72 mm (3.9″x 2.8″)
  • Intel Atom dual core processor, DDR3 up to 4 GB
  • Dual Independent display: 24-bit LVDS+ VGA
  • GbE/ COM x 2/ SATA x 1/ USB 2.0 x 2/ GPIO / SMbus/ mSATA
  • Low power consumption

MIO-5250 will be available in Q1 of 2012. No availability was announced for the MIO-2261.

Industrial Motherboard: AIMB-214

The AIMB-214 mini-ITXindustrial motherboard has a low power consumption and features the integrated Intel Graphics Media Accelerator 3600/3650 with DX9.0 support on a single chip solution.

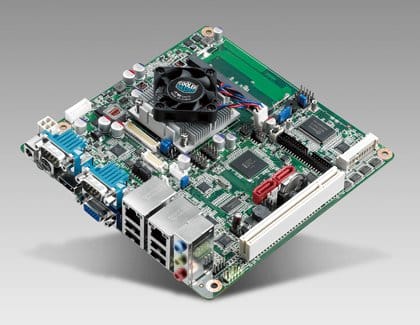

Intel Atom processor N2600, N2800 and D2700 dual core  mini-ITX board

Advantech AIMB-214 mini-ITX Board

AIMB-214 Key Features:

  • Intel® Atom™ processor N2600, N2800 and D2700 dual core
  • One 204-pin SODIMM up to 4 GB DDR3 1066 MHz SDRAM
  • Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and Cfast
  • Lower total cost of ownership with DC12V support and support 18/24-bit LVDS
  • Onboard TPM 1.2 support (optional)
  • Supports embedded software APIs and Utilities

Further information including the datasheet and photos is available on AMIB-214 page

Embedded Box PCs: ARK-2120

Advantech is also introducing the fanless ARK-2120 box PC, which supports multiple displays including VGA, HDMI and LVDS, and offers 12~24V DC input for versatile integration. Two models are available: ARK-2120L and ARK-2120F.

Intel Atom D2700/D2800 Rugged PC

Advantech ARK-2120 Embedded Box PC

Key Feature of ARK-2120:

  • Fanless, Intel Atom N2600 1.6 GHz/ D2700 2.13 GHz Compact Embedded Box PC
  • VGA, HDMI, 48-bit LVDS (ARK-2120F only), support dual independent display and DirectX 10.1
  • 1 x DDR3 memory support up to 4 GB
  • Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
  • Gigabit Ethernet: 2 for ARK-2120L and 3 for ARK-2120F
  • USB 2.0 ports: 5 for ARK-2120L and 6 for ARK-2120F
  • COMs ports: 4 for ARK-2120L and 6 for ARK-2120F
  • Supports external Cfast socket and one 2.5″ HDD spece
  • Supports 12 ~ 24V wide range DC input
  • Supports integrated LVDS inter face, I-Panel Link (ARK-2120F only)
  • IP40

ARK-2120 will be available in June 2012. Further details are available on ARK-2120L and ARK2120F product pages.

Software for Advantech Embedded Systems

Advantech also provides multi-OS support (Windows, Linux and QNX) and a variety of intelligent software API’s to facilitate application development. Advantech Industrial Cloud Built-in Services includes:

  • iManager: Built-in solution chip that provides a standardized API to achieve self-management, auto-protection and secure storage.
  • SUSIAccess: Application that configures systems, monitors devices’ health, and recovers any system that may fail
  • CloudBuilder:  This solution features auto-synchronization, an intuitive interface, and help keep software current. Advantech says it effectively provides a reliable and convenient platform to support system integrators to build industrial clouds.

Further information on those embedded systems and related software is available on Advantech EmbCore page.
