VIA Technologies Announces VIA AMOS-3002 System For Embedded Applications

VIA Technologies has just unveiled the VIA AMOS-3002, a fanless system based on VIA EPIA-P900 Pico-ITX board, targeting embedded applications such as telematics, in-vehicle control, machine to machine controller (M2M), digital signage and kiosks.

Embedded Systems based on VIA Eden X2 dual core processor and the VIA VX900H media system processor

VIA AMOS-3002 System (Click to Enlarge)

The VIA EPIA-P900 Pico-ITX board is powered by VIA Eden X2 dual core processor (1GHz) together with VIA VX900H media system processor (MSP) and VIA Chrome 9 video processor which render VIA AMOS-3002 systems capable of handling hardware video decoding for MPEG-2, WMV9 and H.264 codecs at 1080p resolution.

Two models are available: AMOS-3002-2D10A1 and AMOS-3002-2D10A1. The latter features a 2.5” SATA hard disk drive bay which is not available in AMOS-3002-2D101A1.

Here are the specifications for both VIA AMOS-3002 Models:

  • CPU – VIA Eden X2 @ 1.0GHz
  • Chipset – VIA VX900H Media System Processor
  • Memory – 1x DDR3 1066 204-pin SODIMM socket (Up to 4GB)
  • Storage:
    • 1x CFast Flash disk socket
    • 1 x 2.5” SATA hard disk drive bay (Model AMOS-3002-2D10A1 only)
  • Graphic Controller – Integrated VIA Chrome 9 HD DX9 3D/2D video processor with MPEG-2, DivX, WMV9/VC1, H.264 video decoding acceleration
  • Video Output:
    • 1x External VGA port (Up to 2560 x 1600)
    • 1x Onboard HDMI 1 port connector
    • Dual View support with independent display of VGA and HDMI
  • Ethernet – 2x Gigabit Ethernet
  • Audio I/O – 1x Line-out and 1x Mic-in
  • USB – 6x USB 2.0 ports
  • Serial Ports:
    • 1 x RS-232
    • 1x RS-232/422/485
  • GPIO – 1 x D-Sub 9-pin connector of 8-bit GPIO (4 inputs+ 4 outputs) + 5V power source
  • Expansion:
    • 1x MiniPCIe slot
    • 1x SIM slot
  • Watchdog timer
  • Power Supply – [email protected] A
  • Dimensions – 197mm (W) x 49mm (H) x 104mm (D)
  • Weight – 1.4 kg
  • Operating Temperature:
    • -10 °C up to 60°C
    • 0 °C ~ 45°C when system equipped with 2.5” hard disk drive
  • Certifications – IEC 60068-2-64, IEC 60068-2-27, CE, FCC Class A and CCC

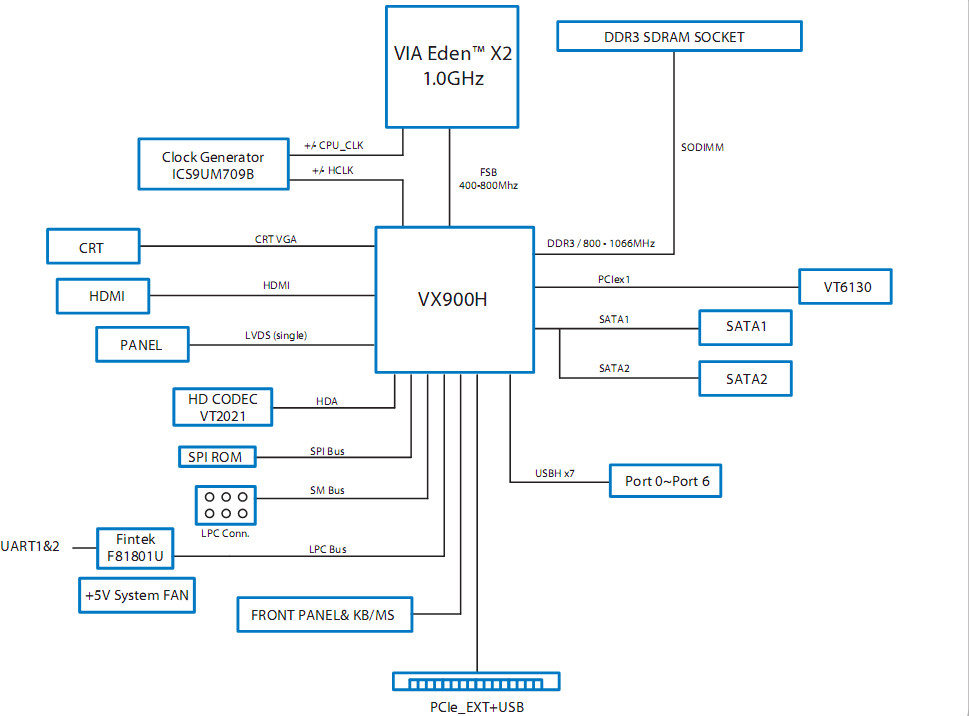

VIA Eden X2 + VX900H Block Diagram

VIA EPIA-P900 Block Diagram (Click to Enlarge)

VIA AMOS-3002 systems support Microsoft Windows XP, Windows 7, Windows Embedded Standard, Windows Embedded
Compatibility Standard 7 and Linux operating systems.

You can find more information on VIA AMOS-3002 (Pico-ITX) page as well as EPIA-P900 page.
