Building the Linux Kernel 3.0.8 For Telechips TCC8925 mini PCs (CX-01, Z900, TizzBird N1…)

Yesterday, we got Linux kernel 3.0.8 source code from Telechips, as well as some files related to Android 4.0 (Webkit + OMX). Today, I’ve had a look at the kernel source code and found a few very interesting things.

First let’s get the code from github:

git clone git://github.com/cnxsoft/telechips-linux.git

Good news! The code for the latest Telechips TCC892X is present in arch/arm/mach-tcc892x, and there is support for 3 types of boards:

  • board-m805_892x – TCC8923 M805 board
  • board-tcc8920 – TCC8920 evaluation board
  • board-tcc8920st – TCC8920 STB evaluation board

TCC8920 STB evaluation board appears to be relevant to products such as Diyomate A6, but if it’s also used for TCC8925 HDMI Dongle such as CX-01 mini PC, Zero Devices Z900 or ValuePlus TizzBird N1.

Now let’s have a look at the default config directory for arm (arch/arm/configs):

ls | grep tcc89
tcc8920st_defconfig
tcc8920st_hdb892s_defconfig
tcc8925st_dongle_defconfig
tcc8925st_donglehs_defconfig
tcc8925st_hdb892f_defconfig
tcc8925st_isdbt_module_defconfig
tcc892x_defconfig

Nice! tcc8925st_dongle_defconfig and tcc8925st_donglehs_defconfig look particularly interesting!

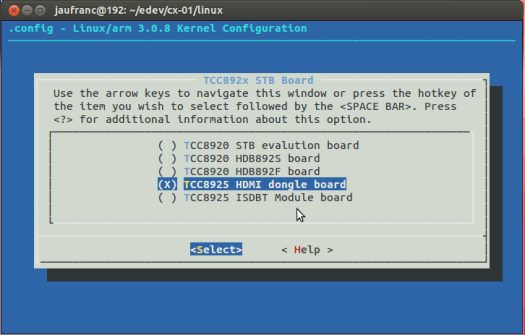

TCC892X Boards Selection

A quick comparison shows that the only difference is that tcc8925st_donglehs_defconfig sets CONFIG_HDMI_DONGLE_CLOCK_HIGH_SPEED=y.

Looking further in the source code:

#define TCC_CPU_FREQ_HIGH_SPEED         812500
#define TCC_CPU_FREQ_NORMAL_SPEED       716500

So tcc8925st_dongle_defconfig configuration file sets TCC8925 to run at 716.5 MHz and tcc8925st_donglehs_defconfig to 812.5 MHz.

The kernel configuration enables the Android stuff, so it’s probably the kernel we’ve got in the device running Android. Let’s try to build the kernel with TCC8925 clocked at 812.5 Mhz (High Speed config) assuming you’ve got the ARM toolchain already installed (run apt-get install gcc-arm-linux-gnueabihf in Ubuntu, if you don’t):

make ARCH=arm tcc8925st_donglehs_defconfig
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j2 uImage
....
Image Name:   Linux-3.0.8+
Created:      Wed Jul 18 20:22:07 2012
Image Type:   ARM Linux Kernel Image (uncompressed)
Data Size:    3136392 Bytes = 3062.88 kB = 2.99 MB
Load Address: 10008000
Entry Point:  10008000
Image arch/arm/boot/uImage is ready

Good! It can build! We now have got the kernel (zImage and uImage) in arch/arm/boot. Let’s build the kernel modules:

make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j2 uImage INSTALL_MOD_PATH=build_modules modules
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j2 uImage INSTALL_MOD_PATH=build_modules modules_install

The kernel modules are located in build_modules directory. There are only 2 kernel modules: gspca_main.ko (video driver) and scsi_wait_scan.ko.

I cannot give it a try now, as I haven’t received the hardware yet. The other thing I would like to get before hacking CX-01 mini PC is a recovery firmware, and the eventual tools to recover the device when something bad happens. I’ve contacted PandaWill to try to get it. The bootloader code would also be nice, but not an absolute must. However, I believe it’s unlikely we’ll get the bootloader source code since Telechips does not appear to have released it for the older versions of its TCC processors.
