Headless Connected Oscilloscope based on Cubieboard or Beaglebone

Warsaw ELHEP (Electronics for High Eenergy Physics Experiments) Group is currently working on MMS (Mobile Measurement System) Project. This project features what I would call a “headless connected oscilloscope”, which can be detected on the network via SSDP, send the data via Websocket, and display it on iOS, Android, or Windows Phone devices. This oscilloscope does not feature any screen, and receives/transmits data via Ethernet, Wi-Fi, or Bluetooth.

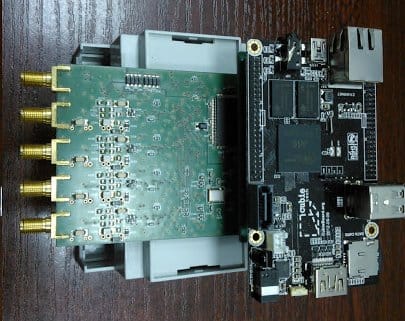

Cubieboard Oscilloscope

ARM SCOPE Board Connected to Cubieboard

The original hardware is based on three main boards:

  • CTI-VMAX – ARM9 with Wi-Fi, Bluetooth, and Ethernet connectivity.
  • ARM SCOPE v1.0.1 with  8 channel ADC.
  • ARM SCOPE v1.0.2 with 4 high speed ADC (100MSPS).

The ELHEP researchers have been looking at replacing CTI-VMAX with low cost boards, and after considering several options, they chose to design two versions of their oscilloscope: one based on Cubieboard, and the other on the Beaglebone.

Beaglebone Oscilloscope

Beaglebone with Oscilloscope CAPE and ARM SCOPE Boards

So they designed expansions boards for the Cubieboard and Beaglebone in order to connect the ARM SCOPEs.

This project involved hardware development, software development (Linux firmware in Beaglebone/Cubieboard, MMS protocol, and app development), and once everything is setup you can see the waveform on a mobile device as shown below.

MMS Project on the iPhone

MMS Project on the iPhone

Their mobile app first discovers the measurement equipment on the network (left), remotely configures the device (middle), and displays the waveform (right).

The researchers/students are still working on perfecting the project. You can find out more on MMS Project page (in Polish).
