$55 AX-14 DLNA, WiDi & Miracast Dongle Works with Android / iOS Devices, and Windows 7/8 PC

Miracast is a new standard allowing you to play videos or mirror your Android device display on a TV via Wi-Fi direct. All you need is a Wi-Fi device that can be connected to the HDMI and USB (for power) ports of your TV, and decode common video codecs. There are not many devices available on the market, but I’ve just found out about AX-14, a Wi-Di and Miracast HDMI adapter that lets you connect your Windows 7 or 8 to your TV via Wi-Di, or your Android / iOS via Miracast. The device also supports DLNA.

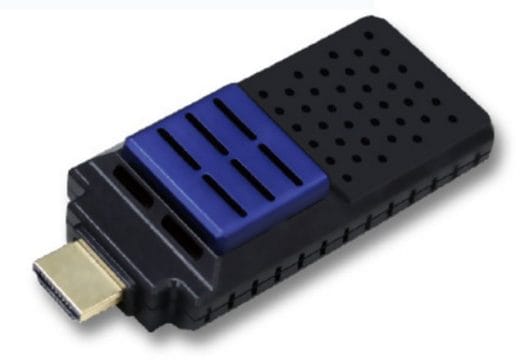

AX-01 Miracast Dongle

AX-01 Miracast Dongle

The hardware specs are said to be as follows:

  • Processor – MIPS24Kc processor (RTD1185PA) @ 500MHz
  • System Memory – 256 MB DDR3 SDRAM
  • Storage – 128 MB NAND Flash
  • Video and Audio engine with HW acceleration
  • Video Codecs & Formats – MPEG-1,MPEG-2,MPEG-4 SP/ASP( Xvid), MPEG-4 AVC(H.264), AVS, VP6, Motion JPEG, H.263 , H.264, DivX 3/4/5/6 (license only), WMV9/VC1, RV8,RV9, MOV, FLV, AVI, MinusVR, MKV, VOB …
  • Audio Codecs – MP3, WMA , WMA pro, WAV, MKA, LPCM, ADPCM, AAC, AIF/AIFF, OGG Vorbis, etc..
  • USB – 1x mini USB 2.0 for power
  • WiFi – Realtek WIFI Module supporting 802.11 b/g/n
  • Video Output – HDMI OUT (Full HD Support – 1080p)
  • Standard – Intel Wireless Display ( WiDi 3.0) / Miracast / DLNA
  • Button – Wake-up and Factory default for SW1 / AP Upgrade and WIDI Switch for SW3
  • Misc -  2x LED: green for power on , red for standby.
  • Power – 5V/0.5A. Typical power consumption is 2 watts.
  • Dimensions – 84.2 x 36.4 x 18.7 mm
  • Weight – 35g

The device is running Linux. There are 3 modes of operations selected with a user button:

  • Direct – The connection between your device and the dongle is done with Wi-Fi Direct.
  • Internet – Your device and the dongle are connected via a Wi-Fi router.
  • Mirroring – Mirrors your device display on the TV via Wi-Di or Miracast standards.

In the first 2 cases, you control the videos to be played with Joylink app for Android. This can work with Android 2.1 and greater. For iOS devices you can use iMediashare instead, and install a DLNA compatible app such as Tencent QQLive HD in Windows clients. Mirroring mode requires a Miracast or Wi-Di certified devices, which means you’ll need a device with Android 4.2 to use this mode. Wi-Di mode requires a computer with an Intel Core i3/i5/i5 processor, and graphics and network chipsets supporting Wi-Di 3.5.

AX-14 product name shows up in reseller website, but further research led me to Tekxon Technology, a Taiwanese company, that appears to be the manufacturer of the device and calls it WFD-01. Your can find a lot of information in WFD-01 page including download link to software, user manual, as well as lots of demo videos.

One of the cool videos they have shows WFD-01 Miracast dongle works with Samsung Galaxy Note 10.1 tablet. They show video playback, and display mirroring including playing a snowboard game apparently with minimal lag.

AX-14 Miracast dongle is available from several shop, but prices vary a lot. From as low as $55 on Aliexpress to about $95 on Geekbuying and some other sites. If Miracast dongles become popular, I’m pretty sure the price will eventually fall below $30 based on the hardware specifications listed above. Please bear in mind that if DLNA seems to for great, the firmware may not currently be perfect with Miracast support, as some users report that it does not work very well with Nexus 4, either because it does not work at all, or the experience is poor:

…the device itself is not the best, I’m afraid. I tried it in Miracast mode with LG Nexus 4, and it works, but the audio is out of sync with the video and the video playback is jerky. Maybe the firmware upgrade could help, but for now I can’t recommend purchasing this device if you want to use it in Miracast mode.

The comment above was made in January, and the seller promised firmware and app update to fix those issues, but I’m not sure of the status now.

If you already have an Android mini PC, I would expect a Miracast “server” app to become available at some points, so this type of device may not be necessary.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. sk
    April 11th, 2013 at 12:28 | #1

    The xiaomi box which just started selling 2 days ago supports miracast too (along with Airplay & DLNA). Sells at RMB299 from manufacturer (http://www.xiaomi.com/hezi). A great deal, except that they only sell within China. Some resellers over at Aliexpress are selling it at slightly above $100, including shipping (http://www.aliexpress.com/item/2013-new-15-OFF-presell-original-xiaomi-google-tv-box-android-system-black-color-with-wifi/795655314.html).

    Xiaomi box Specs (from reseller linked above):
    Size: 105mm x 105mm x 21mm
    Weight: 243g
    Color: black
    cpu: Cortex-A9 800Mhz
    ram: DDR3 SDRAM 1GB
    Video formats: MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4(H.264,VC-1,WMV-HD,MPEG1/2/4 1080P@30;real7/8/9 720P@30)
    Audio format: MP3,WMA,APE,Flac~MP3 64kbps~320kbps,WMA 64kbps~320kbps,APE/Flac<1500Kbps)
    Picture format: JPG,BMP,GIF,PNG
    Internet: RJ45 10M/100M/WIFI802.11b/g/n
    Interface: 5V 2A input, 3.5mm charger; USB Micro-USB; RJ45; HDMI standard HDMI1.3; 2.5mm composite video output, support for digital audio output
    Languages: support multi-languages

    A bit overpriced now, but I guess resellers will drop their prices gradually over time. Very tempting, but I've already pre-ordered an ouya, which I intend to use also as a media server.

    *Also released at the same time is the Android-based xiaomi 2S phone, as highlighted at Liliputing.

  2. April 11th, 2013 at 14:25 | #2

    @sk
    The description is not very clear, but this one looks to be a (Linux?) Set-Top Box combined with Airplay/DLNA and Miracast Display capabilities. Looks good to me.

  3. April 11th, 2013 at 15:14 | #3

    @cnxsoft
    It’s apparently using Miui, so it should be Android. There’s a promotion video of the device in Chinese below.
    http://www.youtube.com/watch?v=3H21ZO3symw

    It’s basically only usable for the Chinese market, unless it can’t hacked somehow.

  4. Onanii
    April 11th, 2013 at 19:49 | #4

    Hi cnx ,
    That’s what i was looking for,small Widi dongle hopefully it will be cheaper by the time my Freebox enable Widi

    By the way i’ve been wondering if the dongle works with android rooted device because those the Netgear Widi adapter don’t !!

    Thank you!
    Onanii

  5. April 11th, 2013 at 20:17 | #5

    @Onanii
    So you want to watch TV with your Freebox acting as a WiDi source, and a WiDi dongle connected to your TV… Is that because the phone plug is too far from the TV?

    Sorry, I don’t know if it works with rooted devices. I don’t have it.

  6. Onanii
    April 11th, 2013 at 21:26 | #6

    @cnxsoft
    Yes ,indeed , also having multiple tv!
    It’s the Mirroring part that interess me!

    Sure i can use a miniPCs because Free (my ISP) provide
    tv service through LAN and also Airplay video,
    but Widi beiing maybe future proof and not available on miniPC

    Onanii

  7. Paul
    April 13th, 2013 at 04:02 | #7

    I like that bigger variety of devices appear on the blog, way to go! Here’s “tip” (or rather request) in that regard – what about satellite receivers with builtin Android – such things for sure exist, but over one googling session I couldn’t find something individually sourceable. Would be interesting to see a post about such, with a link and pricing info ;-).

  8. April 13th, 2013 at 09:46 | #8

    @Onanii
    Wait… You mean once the Freebox will support Wi-Di it will be possible to just add a Wi-Di dongle to one or more of your TV and access different channels on it? I would assume Wi-Fi bandwidth is limited so only TV could be connected via Wi-Di, and the other would be connected directly to the HDMI output of the Freebox, right?

    @Paul
    I think Geniatech must do those, and in Europe companies like PACE must also manufacture some devices. Another way is too connect the satellite receiver via the HDMI input of your STB. There are also some Android STB with DTT but for obvious reasons (no DTT in Thailand), it’s not something I can really play with….
