Jesurun A19 and Mele M5 Android STBs Powered by AllWinner A20

After Cloudsto A20 Media PC, and GV-17, we’ve now got more choices for AllWinner A20 based Android set-top boxes with Jesurun A19 and Mele M5, both featuring 1GB RAM, and running Android 4.2, with the former fitted with 4GB NAND flash and the latter 8GB. Those are ones of the few devices featuring SATA support, and optical SPDIF. Jerusun A19 also comes with VGA output.

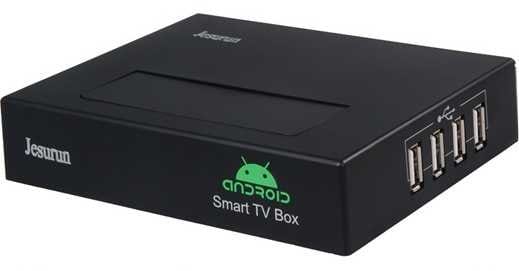

Jerusun_A19

Jesurun A19

Jesurun A19 Specifications:

  • SoC – Allwinner A20 dual core Cortex A7 up to 1.2 GHz + Mali-400 MP2 GPU
  • System Memory - 1GB DDR3 RAM
  • Storage – 4GB NAND Flash + SD card slot (up to 128GB) + SATA interface
  • Video Output – HDMI up to 3840 X 2160 (UHD), VGA and AV
  • Video Decoding – Up to 1080P@60fps
  • Audio Output – HDMI + SPDIF (Optical)
  • Connectivity – 10/100M Ethernet + Wi-Fi 802.11 b/g/n
  • USB – 4x USB ports
  • IR sensor
  • Power Adapter – 5V/2A
  • Weight – g
  • Size – 24.5 x 18.5 x 16 cm

The device comes with an IR remote, a power adapter, and an AV cable, and sells for about $98 including shipping on Focalprice.

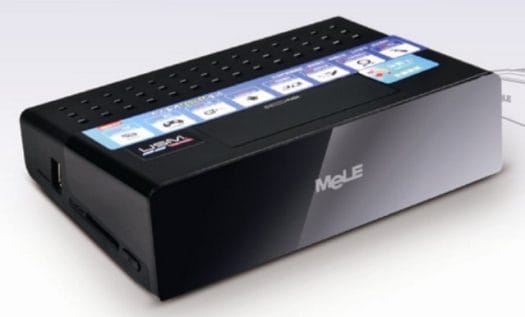

Mele M5

Mele M5

The specifications are basically the same as Jesurun A19, except the following:

  • Video Output – HDMI up to 3840 X 2160 (UHD), and AV (No VGA)
  • Storage – 8GB NAND Flash + SD card slot (up to 128GB) + SATA interface
  • USB – 3x USB Host ports + 1x micro USB OTG port (But I can find this one in the pics)
  • Weight and Dimensions – N/A

Mele M5 comes with an IR remote, a power adapter, a quick start guide, and, maybe, but I’m not sure, an HDMI cable. This product is sold directly by Mele on Aliexpress for $89.99 excluding shipping. [Update: Mele M5 is available on DealExtreme for $87.10 including shipping]

AllWinner A20 source code has been released, so both devices will likely be able to run Linux booted from SD card or internal flash. As this SoC integrates a Mali-400 MP2 GPU, you’ll be able to get 2D/3D graphics acceleration in Linux without having to resort to libhybris, which will take more time to implement, but support more devices including SoC featuring PowerVR GPUs.

Via AndroidPC.es

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Andrius
    May 10th, 2013 at 22:14 | #1

    I cannot see any VGA connector on Mele M5

  2. Pepe
    May 10th, 2013 at 23:25 | #2

    This is very interesting, perhaps the next year will be the linux year for arm devices.

  3. May 11th, 2013 at 09:27 | #3

    @Andrius
    Oops… I was so sure it had the same ports as the Mele A1000, and I’m pretty sure I saw a Mele A20 device with VGA output in one of Charbax videos, but obviously not this model. They must have shown Mele A100 Dual in the video I saw (See Mele product line – http://www.cnx-software.com/pdf/Shenzhen%20Mele%20products%20lines%202013%20apr.pdf), and this one has one VGA port.

  4. mj
    May 11th, 2013 at 15:55 | #4

    The Tmall page shows the back of the M5. There are AV RCA connector, but no VGA
    http://detail.tmall.com/item.htm?spm=a1z10.1.w3-18400322068.3.vS6lT5&id=19718167430

    There are a few other interesting images (Mele factory, all the tests they do, how good is their build quality…)

  5. pingpong
    May 17th, 2013 at 06:48 | #5

    The Jesurun had VGA and composite. Isn’t possible to make linux work here ?

    Will Mele’s F10 work on -any- android ?

  6. May 17th, 2013 at 09:17 | #6

    @pingpong
    Yes for Linux, but be patient.

    As long as you have a USB Host port, it should work on any Android devices.

  7. arokux
    September 9th, 2013 at 19:28 | #7

    Hi,

    anybody with Mele M5 here? What kind of connectors are on the board? Can you please post some high resolution images of the board? Feel free to create a page on the sunxi-wiki, http://www.linux-sunxi.org

    Thanks
    Arokux
