$79 Plug Makes Creating Your Own Cloud Easy

The “Plug” is a device with an Ethernet connection, and a USB port that allows you to connect up to 8 USB drives, and access those in a unified fashion from all your devices. It’s a bit like dropbox, except you are in charge, and the price per GB is much cheaper than cloud services. The Cloud Guys have launched a kickstarter campaign that has already received over $220,000 in pledges after just over two days.

The Plug technical specifications are as follows:

  • OpenWRT based Embedded Linux
  • x86 compatible processor
  • Port for your hard drive –  USB 2.0
  • Port for Internet – Ethernet port 10/100 Mbps
  • Average transfer speed: 30 Mbps
  • Supported file systems: NTFS, HFS+, Ext3/Ext4, FAT32
  • Number of drives supported (using an external USB hub): 8
  • LED Display: Power/ Action
  • Dimensions – 270mm (W) x 110mm (D) x 20mm (H) (This must be wrong as it seems way too big compared to the picture shown in the video) 70 mm (L) x 35 mm (W) x 25 mm (H).
  • Weight – 200gOperation Environment – -17 to 35 °C
  • Storage Environment – -17 to 49 °C
  • US or EU power adapter 110V/220V (included)
  • Ethernet cable (included)

When you watch the promo video above, it does seem like a neat solution, but functionalities do not look that much different from what you could achieve with something like OwnCloud. The developers, however, explain it’s different, as “Plug manages all of your data for you. Not only the contents of a specific folder”.

Nevertheless, it appears to be a good solution for people that are not technically inclined. You just need to install an app on your devices, connect the Plug to your router via an Ethernet cable, connect an hard drive to the USB port of the plug, power the device, and you’re good to go.

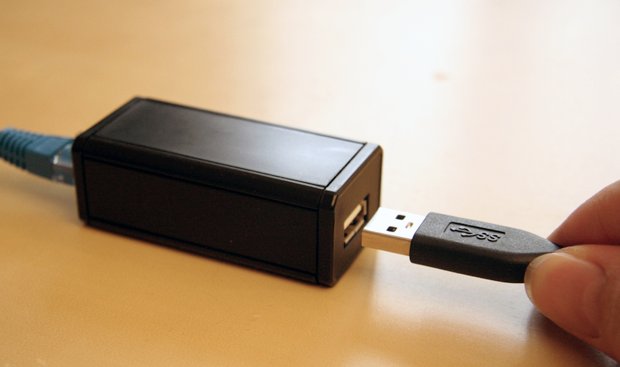

Cloud_Guys_Plug

Main advantages of this system according to the developers:

  • It’s cheaper: Plug is not a service. You pay once, it’s yours.
  • It’s larger: Plug is designed to store your entire digital life.
  • It’s faster: if you’re at Home, transfer speed is 60x faster.
  • It’s safer: you can backup all of your content, not only part of it. Privately for free. Remotely for less than $5/month.
  • It’s yours: it’s your own storage. Not a company’s, not a government’s.

The last point may partly explain the success of their campaign as PRISM media coverage may have people thinking about not storing their data on third party services. Communication between devices takes place via a private and encrypted VPN (asymmetric encryption based on RSA-2048/SHA-1 keys).

All your files are storages in the hard drive, unless you want to make them available Offline. You can also share folders with others. One important limitation is that the Plug only supports one user, and multiple users (aka family) support is planned for later, a few months after shipment.

You can pledge $69, plus $10 for shipping to anywhere in the world, to get the Plug (hopefully) delivered to your door in December 2013. Beside the Kickstarter page, there should eventually be more information available on http://meetplug.com.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Joe Bucks
    July 13th, 2013 at 12:17 | #1

    Don’t the Pogoplug devices do the same thing,and at a cheaper price?
    http://pogoplug.com/devices

  2. onebir
    July 13th, 2013 at 13:59 | #2

    I’d be interested to see how to do something like this with a Cubieboard (or maybe even Raspberry Pi); similar (/lower) price but a lot more flexibility. Seems like owncloud may be a bit resource intensive for cubieboard though:
    https://groups.google.com/forum/#!topic/cubieboard/pDFaXZdpXLw

  3. July 13th, 2013 at 14:22 | #3

    @Joe Bucks
    They address that in their FAQ – http://www.kickstarter.com/projects/cloud-guys/plug-the-brain-of-your-devices#project_faq_62136

    “PogoPlug, Iomega, or Synology devices are Network Attached Storage (NAS) devices. They add a new folder or virtual hard drive in your computer, and make it accessible from all your devices. Owncloud works the same.

    This hard drive or folder is yet-another-memory, a separate place where you have to copy, move, your files into. So at the end of the day, if you use these solutions you still have to constantly manage and figure out where is your data.

    The main innovation in Plug is that it manages all of your data for you. Not only the contents of a specific folder.

    The Plug app replaces the entire file system of your computers. It handles everything: from the pictures in your “My Pictures” folder, to the files on your Desktop. So it really does feel like all your devices have the same memory: you can download something on your Mac, and open it on your PC.

    Everything is in Plug, and the Plug app makes synchronization invisible to you.”

    You could as well as move all your files in Pogoplug. In Linux it should be easy, but for Windows devices, this may require a bit more configuration, for example for special folders (My Pictures, My Documents…).

    I guess it’s difficult to really understand the differences without trying both solutions.

  4. Sander
    July 13th, 2013 at 15:38 | #4

    No powerplug on the Plug device. I wonder how that works.
    If the Plug is on a DSL or cable connection, and you’re outside, you’ll only get a few Mbps access speed your “TBs”.
    Sounds expensive for such a device. It looks more like a 19 USD DX.com gadget

  5. Sander
    July 13th, 2013 at 15:46 | #5

    PS:

    how is this better than plugging your harddisk into your router/modem? Is is the software that Plug providers?

  6. July 13th, 2013 at 16:15 | #6

    @Sander
    They provide a power adapter, but they don’t seem to show power cables in any of their videos.
    Dimensions in the specs are odd, much bigger than the actual device shown. From outside I’d actually get 512 Kbps maximum, so it would be quite slow for me.

    It’s an x86 processor (AMD Geode? VIA x86?, don’t know) so $19 would be hard. :)
    Everything is encrypted, and a low-end ARM router would not be able to provide this level of encryption at a decent throughput (I think).

    I’m also quite confused as to why the device went viral.

  7. onebir
    July 13th, 2013 at 17:03 | #7

    @Sander
    The article mentions that a power adapter’s included (which is a shame POE would be nice, but not enough for 8 HDDs?).

    @cnxsoft
    It sounds like it configures a RAID with all the HDDs?

  8. July 13th, 2013 at 17:28 | #8
  9. Gryphraff
    July 13th, 2013 at 22:18 | #9

    @Joe Bucks:

    Pogoplug is a similar service, but it it relies on a third-party backend (Pogoplug Corporate) to actually do anything. When Pogoplug screws up, your device doesn’t work. You can re-flash a ‘plug, but that defeats the purpose.

    You can do something very similar to this product on a Raspberry Pi, or on a Synology box – but both those solutions are more for tech people. This looks to be plug it in and go.

  10. deets
    July 14th, 2013 at 08:37 | #10

    Seems like a bad tradeoff to favor bandwidth which is relatively expensive and slow for storage which is relatively cheap and fast. Especially home internet connection upload bandwidth. Also no data redundancy although expect them to offer cloud backup for a price. It’s not clear how the cache discriminates so if you want to take files somewhere you don’t have internet then you still have to manage your own data, lest you be screwed over by their algorithm. But I’d rather see more work being done on Syncany and SparkleShare.

  11. deets
  12. July 15th, 2013 at 09:12 | #12

    @deets
    Thanks! Addonics NAS Adapter with Intel 486 SX @ 150 MHz. Good find!

    You can buy the hardware for $40. http://www.shopaddonics.com/Itemdesc.asp?ic=NASU2&eq=&Tp=
    Of course, you’d miss their complete software stack which is the key selling point here.

    However, after kickstarter, they target a $150 retail price for “The Plug” which looks way too high.

  13. FransM
    July 15th, 2013 at 13:41 | #13

    @onebir
    I’ve been working on something for the pi, but effectively more or less gave up.
    pi is armv6, which gets less and less support from mainstream Linux distro’s (no fedora 19 for armv6, Ubuntu dropped v6 support more than a year ago).
    Also a single usb is not really nice performance wise.

    There is much better hardware with only a slightly higher pricepoint.
    Still peeking at what hw I will continue to work on; maybe dig up my mele as it has sata

  14. onebir
    July 15th, 2013 at 14:12 | #14

    @FransM
    Ah, SATA rara avis of ARM devices ports. I’m alway a bit suspicious of USB HDs; always seem to run into minor problems with mine (not mounting/unmounting). Quite possibly some incompetence on my part…

    If you can come up with something for mele, it should work with some spare processing power &/ memory on Cubieboard2/Truck :)

  15. FransM
    July 15th, 2013 at 16:30 | #15

    @onebir
    I worked on amahi and also briefly played with it on the mele iirc (it has been a while).
    Basically if the board can run Ubuntu/arm it is possible to get amahi on it.
    See http://www.cnx-software.com/2012/07/04/amahi-6-1-for-ubuntu-12-04-released/

  16. Condo
    July 15th, 2013 at 21:16 | #16

    @Joe Bucks
    I thought the same thing. A modded PogoPlug definitely would But a normal pogoplug requires cloud space, at a cost. I have a pogoplug for $20 and it’s sitting unopened. I should open it and check the speeds. There are also tutorials all over the place on how to put linux on it.

  17. July 16th, 2013 at 13:55 | #17

    @cnxsoft

    Hi there,

    Thanks for your comment. We are the creators of Plug.
    We’ve just figured out that the dimensions announced on Kickstarter *were* wrong.
    Real dimensions of our device are 70 mm (L) x 35 mm (W) x 25 mm (H).

    Thanks for providing us the insight!

  18. July 16th, 2013 at 14:11 | #18

    Hi everybody,

    We are the creators of Plug. We love to see our project on CNX!

    Plug is much more than a Raspberry Pi with Owncloud, a Synology NAS or a PogoPlug: it’s a solution to make all your devices use *exactly* the same memory.

    Innovation is not much in hardware. As you pointed out, similar hardware can be found on the net easily. Selling you another linux board would be pointless now that Raspberry Pi is on the market.
    The innovation of Plug is in software.

    We went back to the basics:
    – If you buy storage, it’s because you want to put more things in your computer — or to back it up.
    – If you buy connected storage (NAS) or Cloud services, it’s because you have trouble getting the same content on all your devices.

    So we created a new type of file system for Windows, MacOS and Linux. And we integrated our app very deep in the OS.
    – When you connect a drive to Plug, it doesn’t create a new hard drive in your computer. It makes Linux or Mac OS or Windows think that your computer storage is bigger.
    You can put more things in your Documents folder, more junk on your Desktop, more pictures in your Pictures folder, etc…
    It DOES feel like you can put more things in your computer.

    – If you have multiple devices, all of them display the same files. Not in a specific directory. In their entire OS.
    We’re not in 2003. So copy & paste, even to DropBox or OwnCloud, is NOT cool.

    It’s a difficult innovation to nail down, because our job is to make your computer work just as if you had no Plug. Unlike other Cloud services or NAS apps, you don’t have any shiny interface to play with in Plug.
    But we’re convinced that the best UX should be invisible to the user.

    At the end of the day, Plug users can buy a 128GB MacBook Air, Plug 2TB to their Plug, and put 2TB of data in their MacBook Air.

    Tell us what you think!

  19. July 16th, 2013 at 14:20 | #19

    @MeetPlug
    Thanks for passing by… I’ve updated the post with the right dimensions.

  20. joker
    July 16th, 2013 at 16:51 | #20

    @MeetPlug

    love this :)
    But we’re convinced that the best UX should be invisible to the user.

  21. July 16th, 2013 at 17:05 | #21

    @MeetPlug
    I think the overall idea is great, so you can just insert a drive, and your storage space is “automatigally” increased. It just took me a little while to understand that it’s actually entirely transparent to the user.

    I’d assume you only extend the user’s directories (like My Documents, Desktop), and any files installed in system directories like “C:\Windows”, or “C:\Program Files” always stay on the actual internal drive, or this could negatively affect performance.
