Wandboard Quad Unboxing, Getting Started with Android and Linux (via The Yocto Project)

After my review of the Wandboard Dual in February, I’ve now received Wanboard Quad development board  powered by Freescale i.MX6 Quad Cortex A9 processor, with 2 GB RAM, HDMI output, Gigabit Ethernet, and SATA. The board is available from several distributors including Mouser ($139), DigiKey ($144.38) and FutureElectronics ($125). I’ll start by showing some unboxing pictures of the board, as well as pictures of Wandboard Dual and Quad side-by-side. Then I’ll explain how to install Android and Linux on the board, build the images from source, run some benchmarks, and test different features.

Wandboard Quad Unboxing

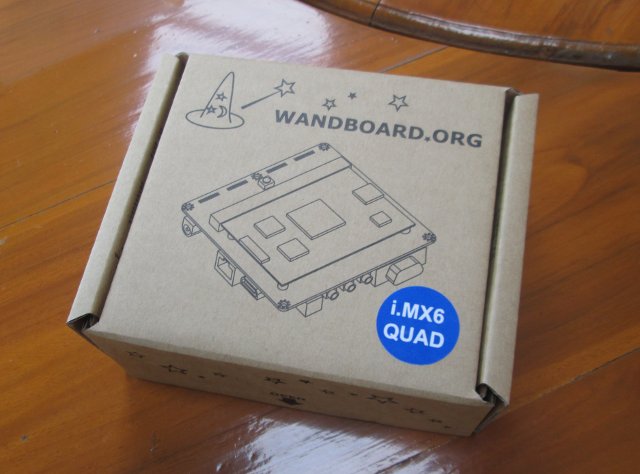

Ive received the board via UPS in a large box that contained the package below. This is exactly the same as Wandboard Dual, except for the sticker.

Wandboard_Quad_package
There’s just the board inside the package, and it would just look like Wandboard Dual with all connectors on the top, and the EDM module at the back, were it not for the massive heatsink to keep i.MX 6Quad cool. One other key difference is that the SATA connector is populated, and you can connect an hard drive. Since there’s no paper documentation, you may want to download and read Wandboard Quad user’s manual and schematics PDF for details.

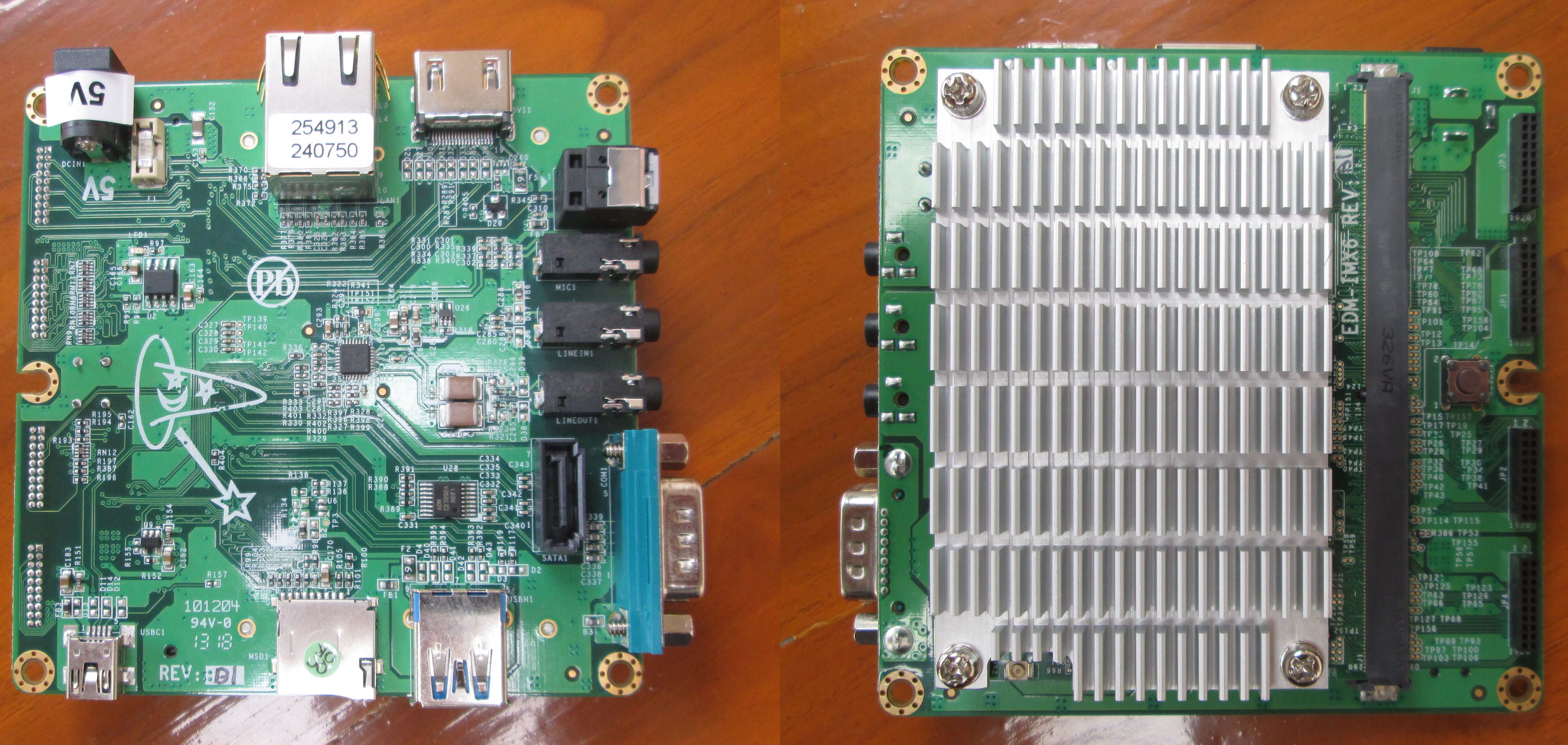

Wandboard Quad (Click to Enlarge)

Wandboard Quad (Click to Enlarge)

I’ve taken a few picture with Wandboard Quad and Wandboard Dual side and side, and as expect both baseboards are virtually the same.

Wandboard Dual vs Wandboard Quad (Click to Enlarge)

Wandboard Quad (Left) vs Wandboard Dual (Right)  (Click to Enlarge)

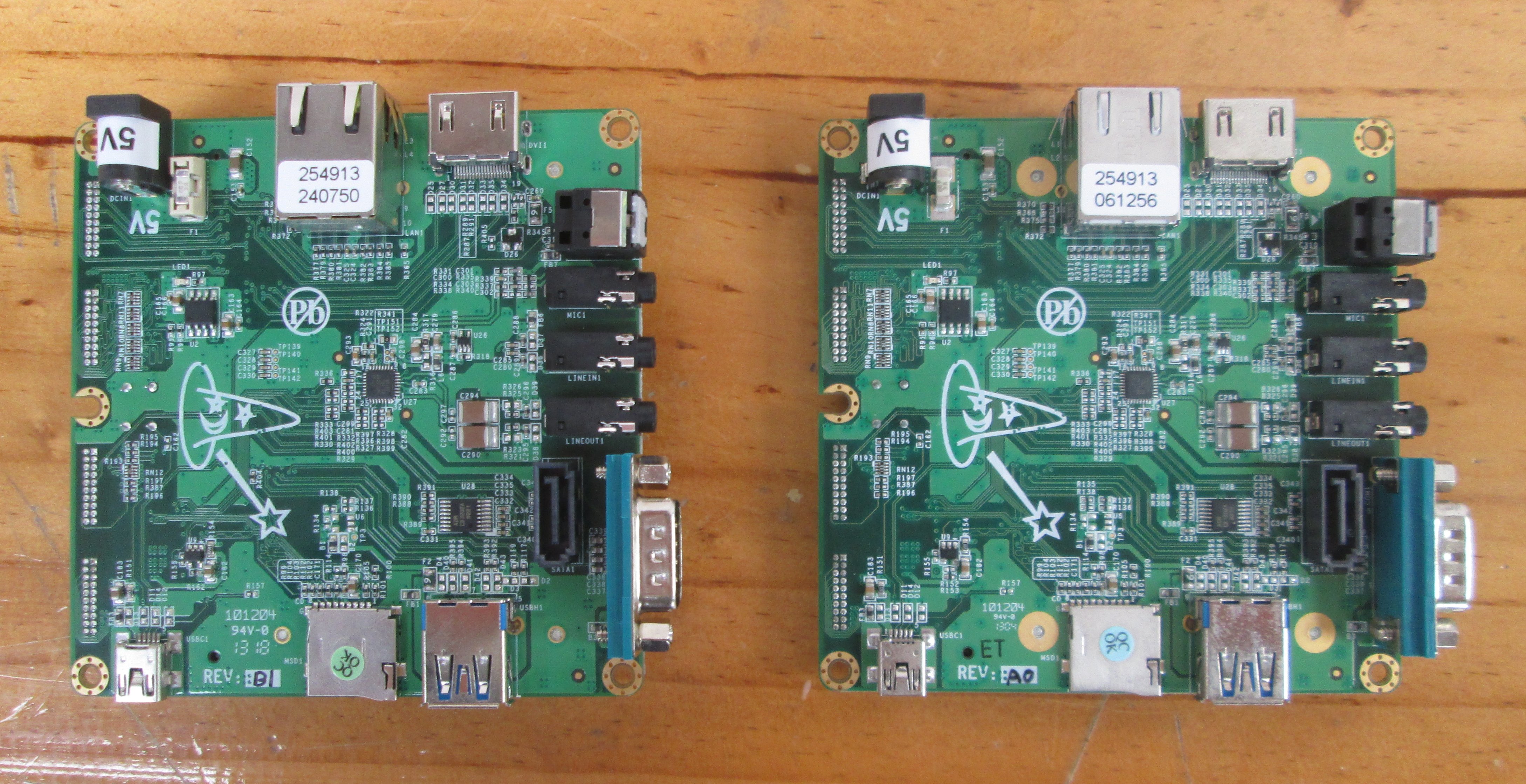

The older board (Revision A0) has been replaced with Revision B1 that fixes SPDIF wiring, updates MIPI voltage updated, slightly change USB circuitry, and adds an additional resistor pad option for playing with different I2C channels for audio/HDMI. Another difference is that the fuse is now easily replaceable without soldering involved. I assume all new Wandboard Solo/Dual/Quad now ship with Rev B1. Note that if you’ve got an older revision, there’s an hardware fix for SPDIF.

EDM Boards - Wandboard Dual vs Wandboard Quad (Click to Enlarge)

EDM Boards – Wandboard Dual vs Wandboard Quad (Click to Enlarge)

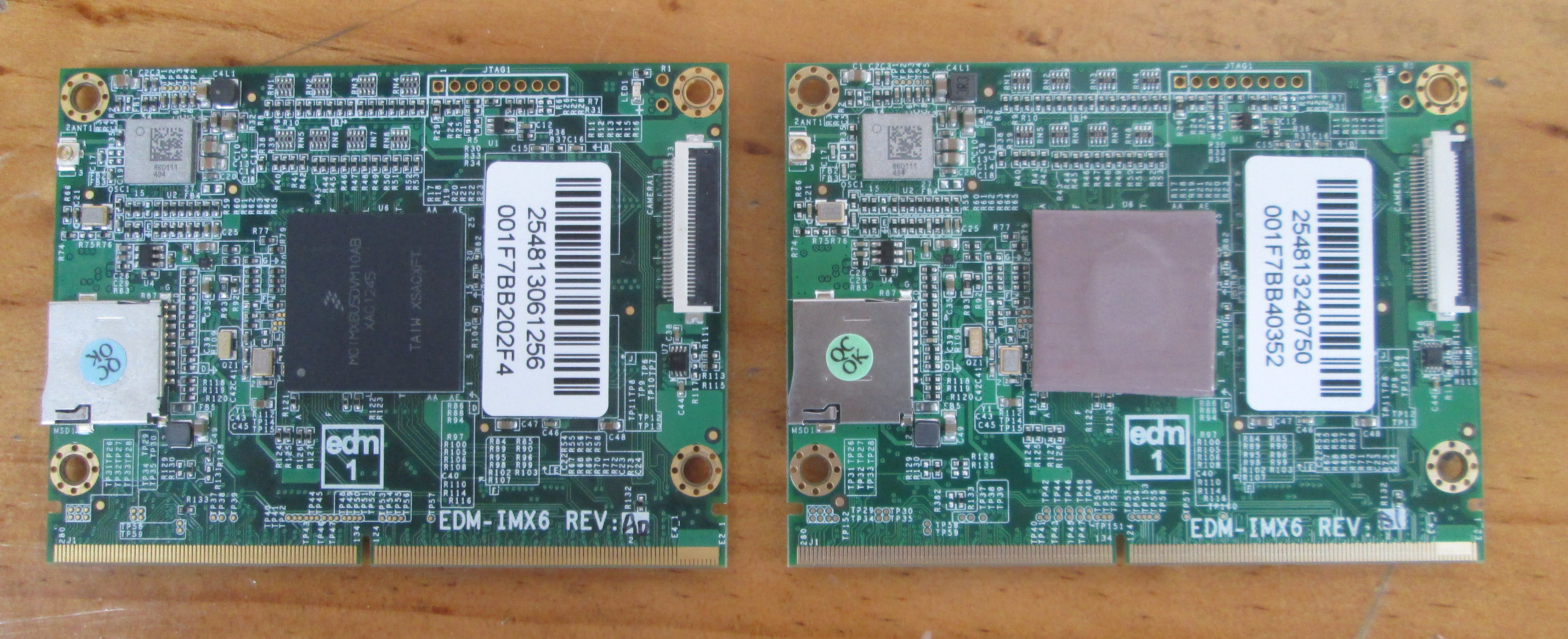

I’ve removed the heatsink, and taken the EDM module out of the baseboard, and there’s very little difference between the dual and quad modules.

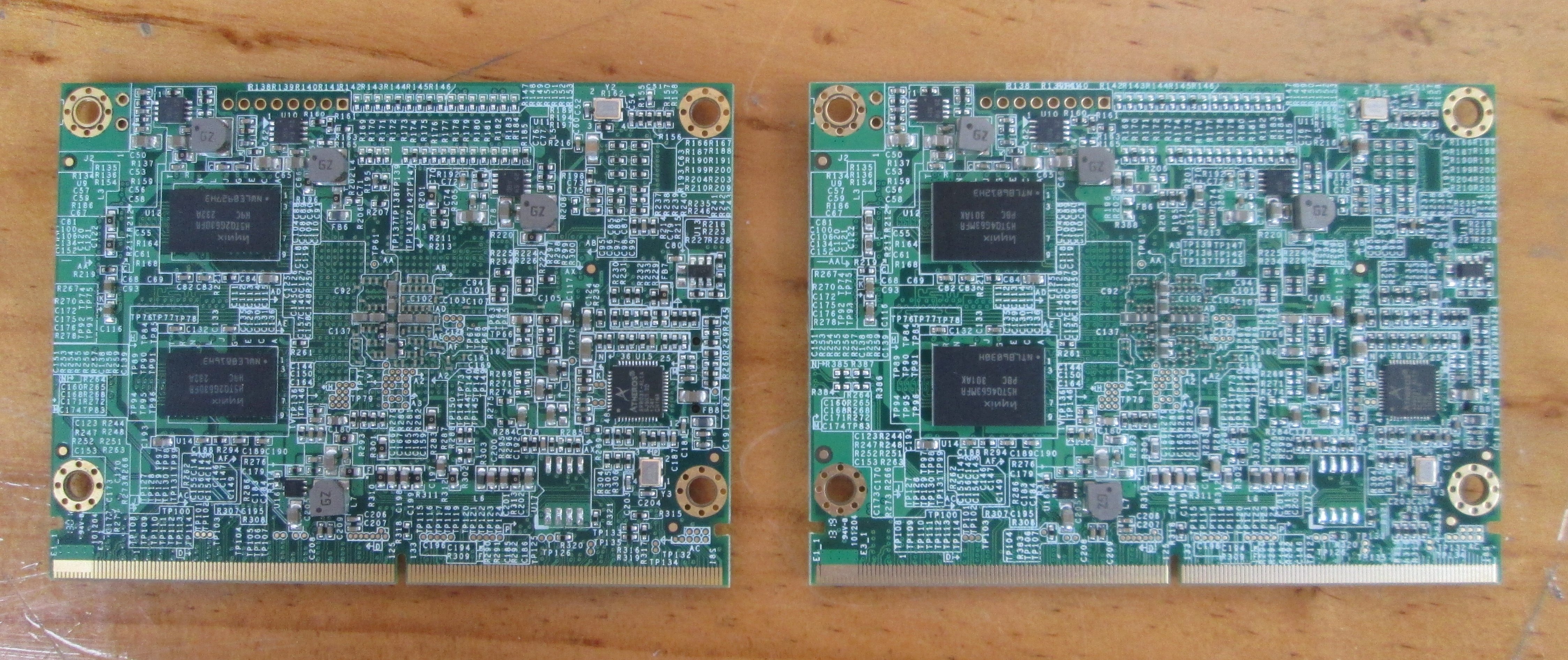

EDM Module - Wandboard Dual (Left) vs Wandboard Quad (Right)

EDM Module – Wandboard Dual (Left) vs Wandboard Quad (Right)

On the back of the module, the key differences are the memory chips: Hynix H5TQ4G63MFR (4Gbit) on the quad version, and Hynix H5TQ2G63BFR (2Gbit) on the dual version. On another note, I can often see people ask if they can buy the EDM module separately, and the answer is yes. The distributors I’ve mentioned at the top of the post sell the modules in pack of 10.

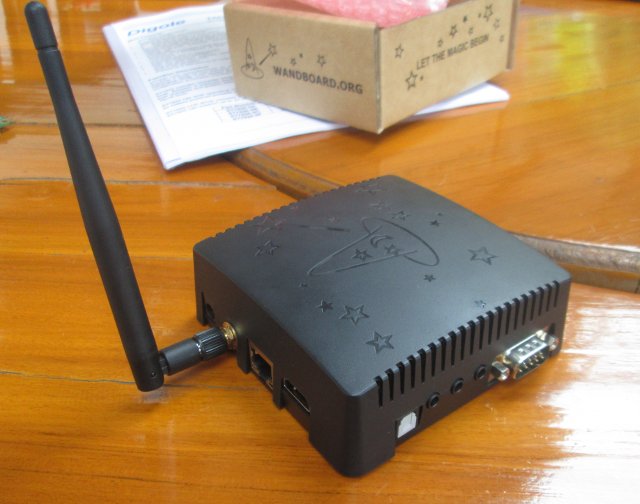

I also tried the casing and Wi-Fi antenna I got with my Wandboard Dual board, and assembly is not a problem despite the extra heatsink. The antenna cable will touch the heatsink, but I’ve been told it’s not an issue, as it’s isolated.
Wandboard_Quad_Enclosure

Installing Android 4.2.2 on Wandboard Quad

Let’s prepare a micro SD card with the latest Android 4.2.2 image. For optimal performance, make sure you use a Class 10 SD card (I’m using ADATA 16GB Class 10 micro SD for testing).

The installation is just the same as with Wandboard Dual, just a different image. Download and extract the file:

wget http://www.wandboard.org/images/downloads/android-4.2.2-wand-quad-20130621.zip
unzip android-4.2.2-wand-quad-20130621.zip

There are 4 files in the archive: The image itself, a short changelog, win32diskimager, and “Source_and_Build_Simple_Howtos.txt”, an how-to explaining how to build Android from source, install Google Play, and flash the image to an SD card.

Insert a micro SD card in your Linux PC (8GB or greater), umount the partition, and flash the image:

sudo umount /dev/sdc*
sudo dd if=/dev/zero of=/dev/sdc
sudo dd if=android-4.2.2-wand-quad-20130621.img of=/dev/sdc bs=1M
sync

The second line is optional, but I had to do this, or Ubuntu would just remount the partitions, and the final dd would fail. I just run “sudo dd if=/dev/zero…” for a few seconds and press control+C.

If you need Google Play, there are a few more steps. Remove and re-insert the micro SD card, download and extract gapps-jb-20130301-signed.zip, and copy Google Play to the micro SD:

cd ~/
mkdir gapps-jb
cd gapps-jb
unzip gapps-jb-20130301-signed.zip
sudo cp ~/gapps-jb/system/* /media/system/ -rf
sync

If you’re using Windows, you can use Win32DiskImager to flash the image, and adb.exe to transfer Google Play framework to the board, but since you’re using a Linux based system, I really recommend you install Linux, either in dual boot configuration with Windows, or as a virtual machine (e.g. Virtual Box).

Create an Android 4.2.2 Image from source for Wandboard Quad

I haven’t tried this myself, but those are the steps mentioned in the How-to:

cd ~
mkdir -p wandboard/myandroid
cd wandboard/myandroid
curl https://dl-ssl.google.com/dl/googlesource/git-repo/repo > ./repo
chmod a+x ./repo
./repo init -u git://www.wandboard.org/android/manifest.git -m default.xml
./repo sync -j4

Now copy google gapps-jb-20130301-signed.zip to ~/wandboard/Build, and start the build:

source build/envsetup.sh
lunch wandboard-userdebug

Lunch will take a while :), and once this is done you are ready to create an SD card with the right partitions:

cd ~/wandboard/myandroid/device/fsl/common/tools/
sudo ./fsl-sdcard-partition.sh /dev/sdX

and copy the binaries:

chmod 6755 ~/wandboard/myandroid/out/target/product/wandboard/system/xbin/su
sudo umount /dev/sdX*
sudo dd if=~/wandboard/myandroid/out/target/product/wandboard/u-boot-6quad.bin of=/dev/sdX bs=1K seek=1 skip=1
sudo dd if=~/wandboard/myandroid/out/target/product/wandboard/boot.img of=/dev/sdX1
sudo dd if=~/wandboard/myandroid/out/target/product/wandboard/recover.img of=/dev/sdX2
sudo mount -t ext4 /dev/sdX5 /mnt
sudo cp -a ~/wandboard/myandroid/out/target/product/wandboard/system/* /mnt/
sudo unzip ~/wandboard/gapps-jb-20130301-signed.zip -d /tmp/
sudo cp -a /tmp/system/* /mnt/
sudo sync
sudo umount /dev/sdX

You’ve now built and installed Android 4.2.2 image for Wandboard Quad from source all by yourself.

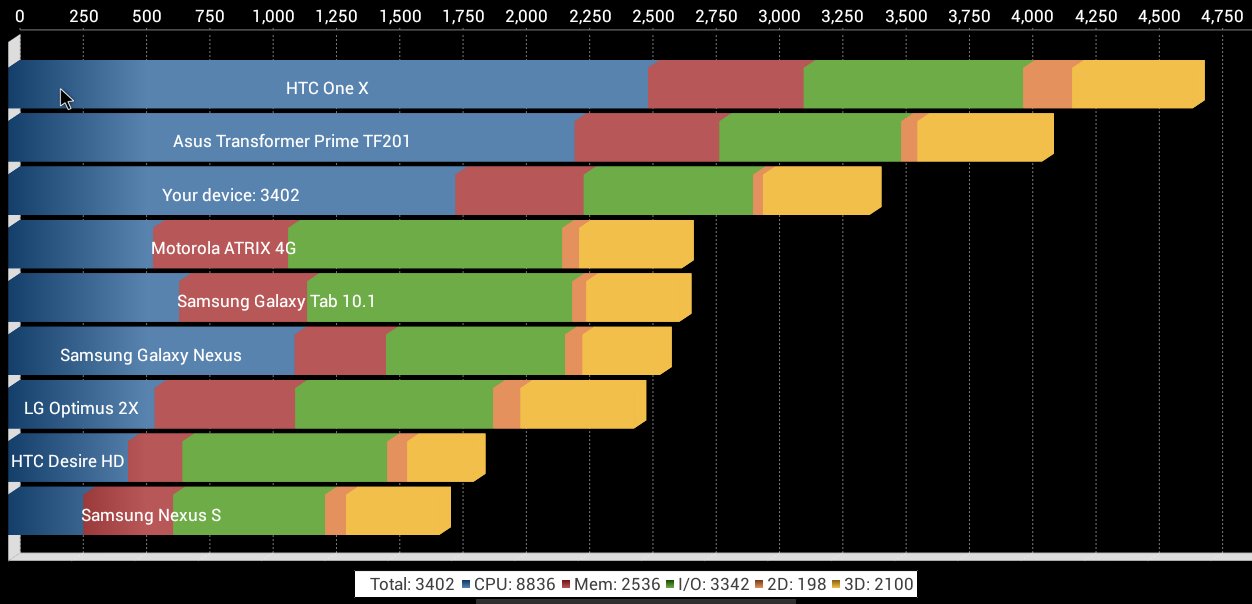

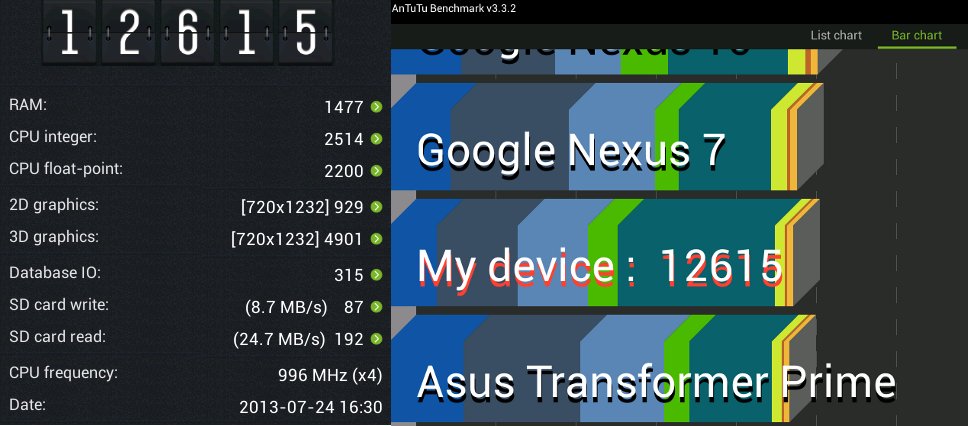

Android 4.2.2 in Wandboard Quad and Antutu & Quadrant Benchmarks

Let’s insert the micro SD in the EDM module slot (under the heatsink), connect an HDMI, Ethernet and serial NULL modem cable, some input device (Mele F10 receiver in the picture below), and the power supply. The most natural way may be to put the heatsink on the table, and have easy access to the connectors as shown below.

Wandboard Quad Will Overheat in This Position

Wandboard Quad Will Overheat in This Position

But don’t do that, it will prevent proper heat dissipation, and your board will overheat and hang. Instead make sure the heatsink points to the ceiling as shown below. In this configuration, I’ve measured 52 degrees Celcius at idle time, and 56 degrees Celcius during benchmarks by pointing an IR Thermometer to the heatsink.

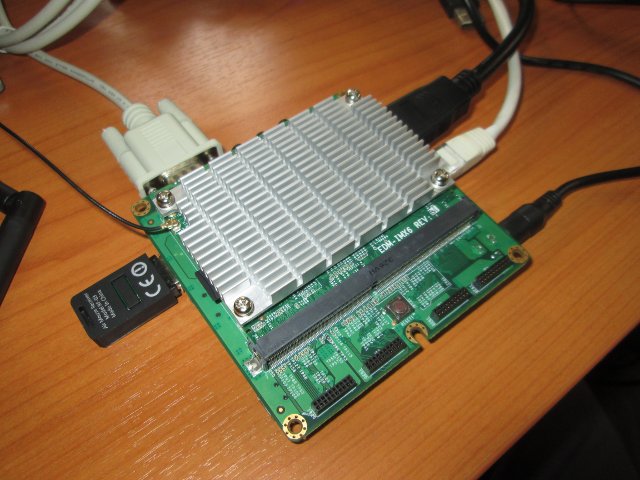

Wandboard_Quad_Connection

If you don’t have a DB9 serial port on your PC, you’ll need an RS232 to USB converter to access the serial console. via programs such as Putty or Minicom.  This is what the boot log looks like for Wandboard Quad.

U-Boot 2009.08-00680-g31492f7 (Jun 21 2013 - 15:01:11)

CPU: Freescale i.MX6 family TO1.2 at 792 MHz
Thermal sensor with ratio = 182
Temperature:   31 C, calibration data 0x5834f469
mx6q pll1: 792MHz
mx6q pll2: 528MHz
mx6q pll3: 480MHz
mx6q pll8: 50MHz
ipg clock     : 66000000Hz
ipg per clock : 66000000Hz
uart clock    : 80000000Hz
cspi clock    : 60000000Hz
ahb clock     : 132000000Hz
axi clock   : 264000000Hz
emi_slow clock: 132000000Hz
ddr clock     : 528000000Hz
usdhc1 clock  : 198000000Hz
usdhc2 clock  : 198000000Hz
usdhc3 clock  : 198000000Hz
usdhc4 clock  : 198000000Hz
nfc clock     : 24000000Hz
Board: i.MX6Q-WandBoard: unknown-board Board: 0x63012 [WDOG ]
Boot Device: SD
DRAM:   2 GB
MMC:   FSL_USDHC: 0,FSL_USDHC: 1,FSL_USDHC: 2
In:    serial
Out:   serial
Err:   serial
Gotr MAC = 00:1F:7B:B4:03:52
Net:   got MAC address from IIM: 00:1f:7b:b4:03:52
FEC0 [PRIME]
Hit any key to stop autoboot:  0
kernel   @ 10808000 (2775196)
ramdisk  @ 11800000 (186440)
kernel cmdline:
        use uboot command line:
        console=ttymxc0,115200 init=/init video=mxcfb0:dev=hdmi,1280x720M@60,if

Starting kernel ...

[    0.000000] Linux version 3.0.35+ (root@lucid-q9650) (gcc version 4.6.x-goog3
[    0.000000] CPU: ARMv7 Processor [412fc09a] revision 10 (ARMv7), cr=10c53c7d
[    0.000000] CPU: VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] Machine: Freescale i.MX 6Quad/DualLite/Solo Wandboard
[    0.000000] EDWARD :  ram console init at phys 0x3ff00000
[    0.000000] EDWARD : GPU_Reserved Memory equals to 184549376
[    0.000000] EDWARD :  gpumem init at phys 0x15000000
[    0.000000] Memory policy: ECC disabled, Data cache writealloc
[    0.000000] CPU identified as i.MX6Q, silicon rev 1.2
[    0.000000] PERCPU: Embedded 7 pages/cpu @816d8000 s5696 r8192 d14784 u32768
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pa2
[    0.000000] Kernel command line: console=ttymxc0,115200 init=/init video=mxc0
[    0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Dentry cache hash table entries: 262144 (order: 8, 1048576 bytes)
[    0.000000] Inode-cache hash table entries: 131072 (order: 7, 524288 bytes)
[    0.000000] Memory: 80MB 511MB 980MB = 1571MB total
[    0.000000] Memory: 1583444k/1583444k available, 251564k reserved, 331776K hm
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     DMA     : 0xfbe00000 - 0xffe00000   (  64 MB)
[    0.000000]     vmalloc : 0xd9800000 - 0xf2000000   ( 392 MB)
[    0.000000]     lowmem  : 0x80000000 - 0xd9000000   (1424 MB)
[    0.000000]     pkmap   : 0x7fe00000 - 0x80000000   (   2 MB)
[    0.000000]     modules : 0x7f000000 - 0x7fe00000   (  14 MB)
[    0.000000]       .init : 0x80008000 - 0x8003d000   ( 212 kB)
[    0.000000]       .text : 0x8003d000 - 0x80731000   (7120 kB)
[    0.000000]       .data : 0x80732000 - 0x8077f960   ( 311 kB)
[    0.000000]        .bss : 0x8077f984 - 0x808ca628   (1324 kB)
[    0.000000] SLUB: Genslabs=13, HWalign=32, Order=0-3, MinObjects=0, CPUs=4, 1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000] NR_IRQS:624
[    0.000000] MXC GPIO hardware
[    0.000000] sched_clock: 32 bits at 3000kHz, resolution 333ns, wraps every 1s
[    0.000000] arm_max_freq=1GHz
[    0.000000] MXC_Early serial console at MMIO 0x2020000 (options '115200')
[    0.000000] bootconsole [ttymxc0] enabled
[    0.000000] Console: colour dummy device 80x30
[    0.243222] Calibrating delay loop... 1581.05 BogoMIPS (lpj=7905280)
[    0.331568] pid_max: default: 32768 minimum: 301
[    0.336467] Mount-cache hash table entries: 512
[    0.341798] CPU: Testing write buffer coherency: ok
[    0.447483] CPU1: Booted secondary processor
[    0.527482] CPU2: Booted secondary processor
[    0.607489] CPU3: Booted secondary processor
[    0.646998] Brought up 4 CPUs
[    0.662829] SMP: Total of 4 processors activated (6324.22 BogoMIPS).
[    0.687305] print_constraints: dummy:
[    0.691296] NET: Registered protocol family 16
[    0.699695] print_constraints: vddpu: 725  1300 mV at 700 mV fast normal
[    0.707187] print_constraints: vddcore: 725  1300 mV at 1150 mV fast nor
[    0.714891] print_constraints: vddsoc: 725  1300 mV at 1200 mV fast norm
[    0.722536] print_constraints: vdd2p5: 2000  2775 mV at 2400 mV fast nor
[    0.730287] print_constraints: vdd1p1: 800  1400 mV at 1100 mV fast norm
[    0.737942] print_constraints: vdd3p0: 2625  3400 mV at 3000 mV fast nor
[    0.747977] ram_console: got buffer at 3ff00000, size 100000
[    0.753762] ram_console: found existing buffer, size 21339, start 21339
[    0.818042] console [ram-1] enabled
[    0.901332] L310 cache controller enabled
[    0.905466] l2x0: 16 ways, CACHE_ID 0x410000c7, AUX_CTRL 0x02070000, Cache sB
[    0.949061] bio: create slab  at 0
[    0.956508] mxs-dma mxs-dma-apbh: initialized
[    0.961465] print_constraints: VDDA: 2500 mV
[    0.966145] print_constraints: VDDIO: 3300 mV
[    0.971684] SCSI subsystem initialized
[    0.976016] libata version 3.00 loaded.
[    0.980320] spi_imx imx6q-ecspi.0: probed
[    0.984703] spi_imx imx6q-ecspi.1: probed
[    0.989693] usbcore: registered new interface driver usbfs
[    0.995460] usbcore: registered new interface driver hub
[    1.001158] usbcore: registered new device driver usb
[    1.006324] Freescale USB OTG Driver loaded, $Revision: 1.55 $
[    1.026995] imx-ipuv3 imx-ipuv3.0: IPU DMFC NORMAL mode: 1(0~1), 5B(4,5), 5F)
[    1.046992] imx-ipuv3 imx-ipuv3.1: IPU DMFC NORMAL mode: 1(0~1), 5B(4,5), 5F)
[    1.055056] Advanced Linux Sound Architecture Driver Version 1.0.24.
[    1.062464] Bluetooth: Core ver 2.16
[    1.066342] NET: Registered protocol family 31
[    1.070912] Bluetooth: HCI device and connection manager initialized
[    1.077475] Bluetooth: HCI socket layer initialized
[    1.082467] Bluetooth: L2CAP socket layer initialized
[    1.087726] Bluetooth: SCO socket layer initialized
[    1.093168] cfg80211: Calling CRDA to update world regulatory domain
[    1.100771] Switching to clocksource mxc_timer1
[    1.118543] NET: Registered protocol family 2
[    1.123255] IP route cache hash table entries: 65536 (order: 6, 262144 bytes)
[    1.131684] TCP established hash table entries: 262144 (order: 9, 2097152 by)
[    1.143019] TCP bind hash table entries: 65536 (order: 7, 786432 bytes)
[    1.150846] TCP: Hash tables configured (established 262144 bind 65536)
[    1.157669] TCP reno registered
[    1.160924] UDP hash table entries: 1024 (order: 3, 32768 bytes)
[    1.167192] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes)
[    1.174160] NET: Registered protocol family 1
[    1.179025] RPC: Registered named UNIX socket transport module.
[    1.185066] RPC: Registered udp transport module.
[    1.189975] RPC: Registered tcp transport module.
[    1.194791] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    1.201597] Unpacking initramfs...
[    1.219939] Freeing initrd memory: 180K
[    1.223935] _regulator_get: etb supply vcore not found, using dummy regulator
[    1.231794] _regulator_get: etm.0 supply vcore not found, using dummy regular
[    1.239313] _regulator_get: etm.1 supply vcore not found, using dummy regular
[    1.246906] _regulator_get: etm.2 supply vcore not found, using dummy regular
[    1.254477] _regulator_get: etm.3 supply vcore not found, using dummy regular
[    1.262258] Static Power Management for Freescale i.MX6
[    1.267691] wait mode is disabled for i.MX6
[    1.272156] cpaddr = d9880000 suspend_iram_base=d98f4000
[    1.277764] PM driver module loaded
[    1.281590] IMX usb wakeup probe
[    1.284998] the wakeup pdata is 0xd614b000
[    1.289678] add wake up source irq 75
[    1.297067] IMX usb wakeup probe
[    1.300461] the wakeup pdata is 0xd6275080
[    1.305174] rfkill: BT RF going to : on
[    1.309135] wandboard_bt_on
[    1.312042] mxc_bt_rfkill driver success loaded
[    1.316913] cpu regulator mode:ldo_enable
[    1.321287] i.MXC CPU frequency driver
[    1.344148] highmem bounce pool size: 64 pages
[    1.348976] ashmem: initialized
[    1.363024] NTFS driver 2.1.30 [Flags: R/O].
[    1.367973] fuse init (API version 7.16)
[    1.372577] msgmni has been set to 2445
[    1.377300] NET: Registered protocol family 38
[    1.381995] cryptodev: driver loaded.
[    1.385842] io scheduler noop registered
[    1.389853] io scheduler deadline registered
[    1.394279] io scheduler cfq registered (default)
[    1.400306] mxc_sdc_fb mxc_sdc_fb.0: register mxc display driver hdmi
[    1.406915] mxc_hdmi mxc_hdmi: Detected HDMI controller 0x13:0xa:0xa0:0xc1
[    1.413971] fbcvt: 1280x720@60: CVT Name - .921M9
[    1.485514] imx-ipuv3 imx-ipuv3.1: IPU DMFC DP HIGH RESOLUTION: 1(0,1), 5B(2)
[    1.496398] mxc_sdc_fb mxc_sdc_fb.1: Can't get fb option for mxcfb1!
[    1.502937] mxc_sdc_fb mxc_sdc_fb.2: Can't get fb option for mxcfb2!
[    1.510055] imx-sdma imx-sdma: loaded firmware 1.1
[    1.519332] imx-sdma imx-sdma: initialized
[    1.523846] Serial: IMX driver
[    1.527081] imx-uart.0: ttymxc0 at MMIO 0x2020000 (irq = 58) is a IMX
[    1.533706] console [ttymxc0] enabled, bootconsole disabled
[    1.533706] console [ttymxc0] enabled, bootconsole disabled
[    1.544972] fbcvt: 1280x720@60: CVT Name - .921M9
[    1.545204] imx-uart.2: ttymxc2 at MMIO 0x21ec000 (irq = 60) is a IMX
[    1.556853] ion: failed to create debug files.
[    1.560133] loop: module loaded
[    1.603277] No sata disk.
[    1.603496] vcan: Virtual CAN interface driver
[    1.603507] CAN device driver interface
[    1.603524] FEC Ethernet Driver
[    1.605421] fec_enet_mii_bus: probed
[    1.606381] PPP generic driver version 2.4.2
[    1.606651] PPP Deflate Compression module registered
[    1.606661] PPP BSD Compression module registered
[    1.607038] PPP MPPE Compression module registered
[    1.607049] NET: Registered protocol family 24
[    1.607078] PPTP driver version 0.8.5
[    1.607557] usbcore: registered new interface driver asix
[    1.607694] usbcore: registered new interface driver cdc_ether
[    1.607819] usbcore: registered new interface driver smsc75xx
[    1.607948] usbcore: registered new interface driver smsc95xx
[    1.608068] usbcore: registered new interface driver MOSCHIP usb-ethernet drr
[    1.608139] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    1.608302] fsl-ehci fsl-ehci.0: Freescale On-Chip EHCI Host Controller
[    1.608407] fsl-ehci fsl-ehci.0: new USB bus registered, assigned bus number1
[    1.635469] fsl-ehci fsl-ehci.0: irq 75, io base 0x02184000
[    1.655457] fsl-ehci fsl-ehci.0: USB 2.0 started, EHCI 1.00
[    1.656002] hub 1-0:1.0: USB hub found
[    1.656021] hub 1-0:1.0: 1 port detected
[    1.656233] add wake up source irq 72
[    1.656281] fsl-ehci fsl-ehci.1: Freescale On-Chip EHCI Host Controller
[    1.656310] fsl-ehci fsl-ehci.1: new USB bus registered, assigned bus number2
[    1.685466] fsl-ehci fsl-ehci.1: irq 72, io base 0x02184200
[    1.705456] fsl-ehci fsl-ehci.1: USB 2.0 started, EHCI 1.00
[    1.705949] hub 2-0:1.0: USB hub found
[    1.705965] hub 2-0:1.0: 1 port detected
[    1.706186] Initializing USB Mass Storage driver...
[    1.706369] usbcore: registered new interface driver usb-storage
[    1.706378] USB Mass Storage support registered.
[    1.706628] usbcore: registered new interface driver usbserial
[    1.706638] usbserial: USB Serial Driver core
[    1.706741] USB Serial support registered for GSM modem (1-port)
[    1.706940] usbcore: registered new interface driver option
[    1.706949] option: v0.7.2:USB Driver for GSM modems
[    1.707055] USB Serial support registered for Qualcomm USB modem
[    1.707196] usbcore: registered new interface driver qcserial
[    1.707206] ARC USBOTG Device Controller driver (1 August 2005)
[    1.852007] android_usb gadget: Mass Storage Function, version: 2009/09/11
[    1.852022] android_usb gadget: Number of LUNs=1
[    1.852031]  lun0: LUN: removable file: (no medium)
[    1.852505] Gadget Android: controller 'fsl-usb2-udc' not recognized
[    1.852520] android_usb gadget: android_usb ready
[    1.852528] Suspend udc for OTG auto detect
[    1.852540] USB Host suspend begins
[    1.852546] will suspend roothub and its children
[    1.852567] ehci_fsl_bus_suspend begins, DR
[    1.852589] ehci_fsl_bus_suspend ends, DR
[    1.852604] host suspend ends
[    1.852614] USB Gadget resume begins
[    1.852620] fsl_udc_resume, Wait for wakeup thread finishes
[    1.865467] dr_controller_run: udc out low power mode
[    1.865478] USB Gadget resume ends
[    1.865486] fsl-usb2-udc: bind to driver android_usb
[    1.865779] mousedev: PS/2 mouse device common for all mice
[    1.866561] i2c /dev entries driver
[    1.867088] Linux video capture interface: v2.00
[    1.867400] mxc_v4l2_output mxc_v4l2_output.0: V4L2 device registered as vid6
[    1.867583] mxc_v4l2_output mxc_v4l2_output.0: V4L2 device registered as vid7
[    1.867815] usbcore: registered new interface driver uvcvideo
[    1.867823] USB Video Class driver (v1.1.0)
[    1.868063] imx2-wdt imx2-wdt.0: IMX2+ Watchdog Timer enabled. timeout=60s ()
[    1.868167] Bluetooth: Virtual HCI driver ver 1.3
[    1.868313] Bluetooth: HCI UART driver ver 2.2
[    1.868322] Bluetooth: HCI H4 protocol initialized
[    1.868330] Bluetooth: Generic Bluetooth USB driver ver 0.6
[    1.868459] usbcore: registered new interface driver btusb
[    2.000029] cpuidle: using governor ladder
[    2.000037] cpuidle: using governor menu
[    2.000178] sdhci: Secure Digital Host Controller Interface driver
[    2.000187] sdhci: Copyright(c) Pierre Ossman
[    2.000325] _regulator_get: sdhci-esdhc-imx.2 supply vmmc not found, using dr
[    2.000539] mmc0: SDHCI controller on platform [sdhci-esdhc-imx.2] using DMA
[    2.001609] _regulator_get: sdhci-esdhc-imx.1 supply vmmc not found, using dr
[    2.003900] mmc1: SDHCI controller on platform [sdhci-esdhc-imx.1] using DMA
[    2.003957] sdhci sdhci-esdhc-imx.0: no write-protect pin available!
[    2.004996] _regulator_get: sdhci-esdhc-imx.0 supply vmmc not found, using dr
[    2.007207] mmc2: SDHCI controller on platform [sdhci-esdhc-imx.0] using DMA
[    2.007423] mxc_vdoa mxc_vdoa: i.MX Video Data Order Adapter(VDOA) driver prd
[    2.008055] VPU initialized
[    2.008950] mxc_asrc registered
[    2.028113] revserved_memory_account:viv_gpu registerd
[    2.028637] Thermal calibration data is 0x5834f469
[    2.028646] Thermal sensor with ratio = 182
[    2.045599] Anatop Thermal registered as thermal_zone0
[    2.045761] anatop_thermal_probe: default cooling device is cpufreq!
[    2.047103] usbcore: registered new interface driver usbhid
[    2.047112] usbhid: USB HID core driver
[    2.047452] logger: created 256K log 'log_main'
[    2.047595] logger: created 256K log 'log_events'
[    2.047733] logger: created 256K log 'log_radio'
[    2.047876] logger: created 256K log 'log_system'
[    2.048097] zram: num_devices not specified. Using default: 1
[    2.048106] zram: Creating 1 devices ...
[    2.049223] mxc_hdmi_soc mxc_hdmi_soc.0: MXC HDMI Audio
[    2.049375] mxc_spdif mxc_spdif.0: MXC SPDIF Audio
[    2.051340] _regulator_get: 1-000a supply VDDD not found, using dummy regular
[    2.052353] sgtl5000 1-000a: sgtl5000 revision 17
[    2.052518] print_constraints: 1-000a: 850  1600 mV at 1200 mV normal
[    2.115469] usb 2-1: new full speed USB device number 2 using fsl-ehci
[    2.264122] asoc: sgtl5000  imx-ssi.1 mapping ok
[    2.270995] asoc: mxc-spdif  imx-spdif-dai.0 mapping ok
[    2.278087] asoc: mxc-hdmi-soc  imx-hdmi-soc-dai.0 mapping ok
[    2.284777] ALSA device list:
[    2.287891]   #0: sgtl5000-audio
[    2.291304]   #1: imx-spdif
[    2.294238]   #2: imx-hdmi-soc
[    2.297488] GACT probability NOT on
[    2.301089] Mirror/redirect action on
[    2.304928] u32 classifier
[    2.307763]     Actions configured
[    2.311289] Netfilter messages via NETLINK v0.30.
[    2.316214] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[    2.323308] ctnetlink v0.93: registering with nfnetlink.
[    2.328838] NF_TPROXY: Transparent proxy support initialized, version 4.1.0
[    2.335914] NF_TPROXY: Copyright (c) 2006-2007 BalaBit IT Ltd.
[    2.342486] xt_time: kernel timezone is -0000
[    2.347853] IPv4 over IPv4 tunneling driver
[    2.353225] GRE over IPv4 demultiplexor driver
[    2.358434] ip_tables: (C) 2000-2006 Netfilter Core Team
[    2.364286] arp_tables: (C) 2002 David S. Miller
[    2.367196] mmc0: new high speed SDHC card at address 59b4
[    2.374713] mmcblk0: mmc0:59b4 SD    14.7 GiB
[    2.374735] TCP cubic registered
[    2.375732] NET: Registered protocol family 10
[    2.380337] Mobile IPv6
[    2.380375] ip6_tables: (C) 2000-2006 Netfilter Core Team
[    2.380627] IPv6 over IPv4 tunneling driver
[    2.385549] NET: Registered protocol family 17
[    2.385583] NET: Registered protocol family 15
[    2.385591] can: controller area network core (rev 20090105 abi 8)
[    2.385692] NET: Registered protocol family 29
[    2.385702] can: raw protocol (rev 20090105)
[    2.385709] can: broadcast manager protocol (rev 20090105 t)
[    2.385799] Bluetooth: RFCOMM TTY layer initialized
[    2.385810] Bluetooth: RFCOMM socket layer initialized
[    2.385817] Bluetooth: RFCOMM ver 1.11
[    2.385825] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[    2.385832] Bluetooth: BNEP filters: protocol multicast
[    2.385841] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[    2.386018] L2TP core driver, V2.0
[    2.386037] PPPoL2TP kernel driver, V2.0
[    2.386043] L2TP IP encapsulation support (L2TPv3)
[    2.386246] L2TP netlink interface
[    2.386271] L2TP ethernet pseudowire support (L2TPv3)
[    2.386279] lib80211: common routines for IEEE802.11 drivers
[    2.386288] lib80211_crypt: registered algorithm 'NULL'
[    2.386295] Registering the dns_resolver key type
[    2.409277] input: 2.4G  Wireless Receiver  as /devices/platform/fsl-ehci.1/0
[    2.409737] generic-usb 0003:1915:AF11.0001: input,hidraw0: USB HID v1.11 Ke0
[    2.413382] input: 2.4G  Wireless Receiver  as /devices/platform/fsl-ehci.1/1
[    2.414356] generic-usb 0003:1915:AF11.0002: input,hidraw1: USB HID v1.11 Mo1
[    2.417676] generic-usb 0003:1915:AF11.0003: hidraw2: USB HID v1.11 Device [2
[    2.552828] VFP support v0.3: implementor 41 architecture 3 part 30 variant 4
[    2.560739] ThumbEE CPU extension supported.
[    2.569902] Bus freq driver module loaded
[    2.574049] Bus freq driver Enabled
[    2.577677] mxc_dvfs_core_probe
[    2.585161] DVFS driver module loaded
[    2.588987]  mmcblk0: p1 p2 p3 < p5 p6 p7 p8 > p4
[    2.589589] drivers/rtc/hctosys.c: unable to open rtc device (rtc0)
[    2.600390] Freeing init memory: 212K
[    2.605682] USB Gadget resume begins
[    2.609405] fsl_udc_resume, Wait for wakeup thread finishes
[    5.404922] init: cannot find '/system/etc/install-recovery.sh', disabling ''
[    5.775969] android_usb: already disabled
[    5.780231] android_usb: already disabled
[    5.784572] mtp_bind_config
[    5.787479] adb_bind_config
[    5.791834] adb_open
root@android:/ #

As with Wandboard Dual, Android is really smooth as long as you use a fast SD card, the system appears to be stable, but there’s still more work to make it a fully functional image, as I encountered a few issues:

  • No HDMI audio on my system
  • Bluetooth can be enabled, but it failed to find my smartphone, and the system is not currently compatible with Sixaxis (to connect PS3 controllers)
  • Video hardware decoding does not work (at least for H.264 and MPEG2).

However, Antutu and Quadrant benchmarks show some impressive progress compared to other i.MX6 Quad / Android 4.0 solutions I tested a few months ago.

Wandboard_Quad_Antutu

In this benchmark, Wandboard Quad is equivalent to Google Nexus 7 based on Tegra 3, and interestingly 3D performance is impressive, whereas it was dismal in Hi802/GK802 mini PC when I tested it, so there seems to have been some dramatic software improvements both with Android (4.0 vs 4.2), and Vivante drivers. The table below shows the performance difference between Wandboard Dual/Android 4.1.2, Hi802/Android 4.0.4 and Wandboard Quad/Android 4.2.2.

Antutu 3.x Tests Wandboard Dual
Android 4.1.2
Hi802
Android 4.0.4
Wandboard Quad
Android 4.2.2
Total 6190 8516 12615
RAM 1032 1619 1477
CPU Integer 1299 2490 2514
CPU float-point 1120 1838 2200
2D Graphics [720x1232] 477 [1280x672] 733 [720x1232] 929
3D Graphics [720x1232] 1771 [1280x672] 1272 [720x1232] 4901
Database IO 280 245 315
SD card write 97 115 87
SD card read 114 204 192
CPU frequency (x2) (x4) 996 MHz (x4)
Date 2013-06-10 2013-01-18 2013-07-24

Quadrant benchmark shows Wandboard Quad (3402) to be a bit slower than Transformer Prime mainly due to the processor benchmark. Wandboard Dual got 2305 points.

Wandboard_Quad_Quadrant

Following the good GPU results, I tried a 3D game that may be challenging to render smoothly: Real Racing 3. The game  is actually very smooth, and at first it looks much better than the RK3188 platforms I’ve tried, but closer inspection shows the game has decided to use a lower quality level… Nevertheless, 3D performance appears to be now much better than when i.MX6 Quad was first release with Android 4.0.4.

Building Linux with the Yocto Project on Wandboard Quad

There are now more and more Linux distributions for Wandboard (Quad): Ubuntu 11.10, Ubuntu 12.04, images built with the Yocto Project or buildroot, Timesys Linux (Wandboard Quad support is work in progress), and recently an XBMC Linux image has popped up. Wandboard boards are also part of mainline U-boot, and will be supported, at least partially, in Linux 3.12.

Since I have already shown how to install Ubuntu 11.10, and build the kernel from the SDK for Wandboard Dual, and using Ubuntu 11.10 or 12.04 on Wandboard Quad is basically the same with a different image, I’ll try something different today with the Yocto Project which allows you to build images fully customized for your project. I’ll mainly follow the instructions on elinux.org.

First let’s get the repo tool:

mkdir ~/bin
curl https://dl-ssl.google.com/dl/googlesource/git-repo/repo > ~/bin/repo
chmod a+x ~/bin/repo

Add it to the path, and retrieve the source code from Freescale Yocto BSP on github.

PATH=${PATH}:~/bin
mkdir fsl-community-bsp
cd fsl-community-bsp
repo init -u https://github.com/Freescale/fsl-community-bsp-platform -b master
repo sync

Note that we use the development branch (master), because Wandboard Quad was not available for Yocto 1.4 (dylan) release.

Now set the machine to Wandboard Quad, setup the environment, and start the build for a minimal image:

MACHINE=wandboard-quad
. ./setup-environment build
bitbake core-image-minimal

Since all of the sources are downloaded from the Internet and built from scratch (including things like the toolchain), it may take a while depending on your Internet connection, and the performance of your build machine. The full process took three hours on my machine (AMD FX8350 with 16GB RAM). Subsequent builds are much faster.

Once the build is complete you can find the image in ./tmp/deploy/images/core-image-minimal-wandboard-quad.sdcard (28 MB). Just flash it to a micro SD card (32 MB or greater) to try it out:

sudo umount /dev/sdX*
sudo dd.sh if=./tmp/deploy/images/core-image-minimal-wandboard-quad.sdcard of=/dev/sdX
sync

Replace /dev/sdX by your actual micro SD card device name, e.g. /dev/sdc. I have a USB hard drive attached to my build machine, so I always run lsblk, before running dd in order to double check the device, and avoid losing my precious data, and hating myself for the rest of my life… Once this is done, you probably want to resize the rootfs partition to make full use of your SD card storage capacity with tools such as gparted.

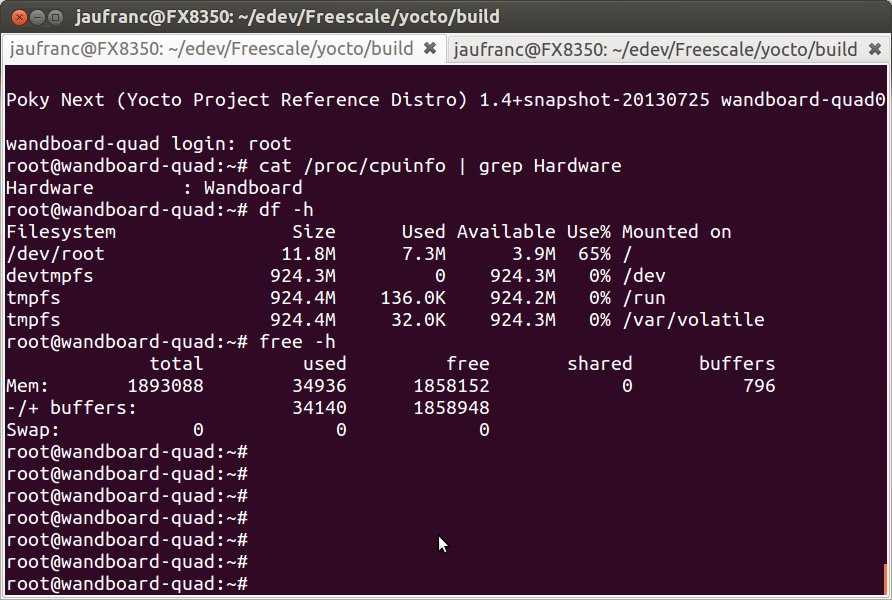

Finally insert the micro SD card into your Wandboard Quad, boot it up, and access the terminal via an HDMI monitor, or a serial console:

Wandboard_Quad_Yocto_Minimal

Here’s the boot log for the minimal image built with Yocto:

U-Boot 2013.07 (Jul 25 2013 - 16:46:15)

CPU:   Freescale i.MX6Q rev1.2 at 792 MHz
Reset cause: WDOG
Board: Wandboard
DRAM:  2 GiB
MMC:   FSL_SDHC: 0, FSL_SDHC: 1
*** Warning - bad CRC, using default environment

In:    serial
Out:   serial
Err:   serial
Net:   FEC [PRIME]
Warning: FEC using MAC address from net device

Hit any key to stop autoboot:  0
mmc0 is current device
reading boot.scr
** Unable to read file boot.scr **
reading uImage
2585532 bytes read in 130 ms (19 MiB/s)
Booting from mmc ...
reading imx6q-wandboard.dtb
** Unable to read file imx6q-wandboard.dtb **
## Booting kernel from Legacy Image at 12000000 ...
   Image Name:   Linux-3.0.35-4.0.0-wandboard+ge2
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    2585468 Bytes = 2.5 MiB
   Load Address: 10008000
   Entry Point:  10008000
   Verifying Checksum ... OK
   Loading Kernel Image ... OK

Starting kernel ...

[    0.000000] Linux version 3.0.35-4.0.0-wandboard+ge259a0f (jaufranc@FX8350) 3
[    0.000000] CPU: ARMv7 Processor [412fc09a] revision 10 (ARMv7), cr=10c53c7d
[    0.000000] CPU: VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] Machine: Wandboard
[    0.000000] Memory policy: ECC disabled, Data cache writealloc
[    0.000000] CPU identified as i.MX6Q, silicon rev 1.2
[    0.000000] PERCPU: Embedded 7 pages/cpu @d100e000 s5248 r8192 d15232 u32768
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pa6
[    0.000000] Kernel command line: console=ttymxc0,115200 root=/dev/mmcblk0p2 w
[    0.000000] PID hash table entries: 2048 (order: 1, 8192 bytes)
[    0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
[    0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
[    0.000000] Memory: 80MB 1792MB = 1872MB total
[    0.000000] Memory: 1892900k/1892900k available, 204252k reserved, 1409024K m
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     DMA     : 0xf4600000 - 0xffe00000   ( 184 MB)
[    0.000000]     vmalloc : 0xea800000 - 0xf2000000   ( 120 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xea000000   ( 672 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)
[    0.000000]       .init : 0xc0008000 - 0xc0037000   ( 188 kB)
[    0.000000]       .text : 0xc0037000 - 0xc06521c0   (6253 kB)
[    0.000000]       .data : 0xc0654000 - 0xc06a3620   ( 318 kB)
[    0.000000]        .bss : 0xc06a3644 - 0xc06e59fc   ( 265 kB)
[    0.000000] SLUB: Genslabs=13, HWalign=32, Order=0-3, MinObjects=0, CPUs=4, 1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000] NR_IRQS:624
[    0.000000] MXC GPIO hardware
[    0.000000] sched_clock: 32 bits at 3000kHz, resolution 333ns, wraps every 1s
[    0.000000] arm_max_freq=1GHz
[    0.000000] MXC_Early serial console at MMIO 0x2020000 (options '115200')
[    0.000000] bootconsole [ttymxc0] enabled
[    0.000000] Console: colour dummy device 80x30
[    0.208392] Calibrating delay loop... 1581.05 BogoMIPS (lpj=7905280)
[    0.296694] pid_max: default: 32768 minimum: 301
[    0.301671] Mount-cache hash table entries: 512
[    0.307043] CPU: Testing write buffer coherency: ok
[    0.312215] hw perfevents: enabled with ARMv7 Cortex-A9 PMU driver, 7 countee
[    0.412833] CPU1: Booted secondary processor
[    0.492832] CPU2: Booted secondary processor
[    0.572845] CPU3: Booted secondary processor
[    0.612245] Brought up 4 CPUs
[    0.628068] SMP: Total of 4 processors activated (6324.22 BogoMIPS).
[    0.634972] devtmpfs: initialized
[    0.655918] print_constraints: dummy:
[    0.659934] NET: Registered protocol family 16
[    0.668528] print_constraints: vddpu: 725  1300 mV at 1150 mV fast norma
[    0.676100] print_constraints: vddcore: 725  1300 mV at 1150 mV fast nor
[    0.683844] print_constraints: vddsoc: 725  1300 mV at 1200 mV fast norm
[    0.691499] print_constraints: vdd2p5: 2000  2775 mV at 2400 mV fast nor
[    0.699260] print_constraints: vdd1p1: 800  1400 mV at 1100 mV fast norm
[    0.706914] print_constraints: vdd3p0: 2625  3400 mV at 3000 mV fast nor
[    0.796780] hw-breakpoint: found 6 breakpoint and 1 watchpoint registers.
[    0.803612] hw-breakpoint: 1 breakpoint(s) reserved for watchpoint single-st.
[    0.810958] hw-breakpoint: maximum watchpoint size is 4 bytes.
[    0.816856] L310 cache controller enabled
[    0.820883] l2x0: 16 ways, CACHE_ID 0x410000c7, AUX_CTRL 0x02070000, Cache sB
[    0.851923] bio: create slab  at 0
[    0.856749] print_constraints: VDDA: 2500 mV
[    0.861314] print_constraints: VDDIO: 3300 mV
[    0.866226] vgaarb: loaded
[    0.869678] SCSI subsystem initialized
[    0.874045] spi_imx imx6q-ecspi.0: probed
[    0.878321] spi_imx imx6q-ecspi.1: probed
[    0.883084] usbcore: registered new interface driver usbfs
[    0.888730] usbcore: registered new interface driver hub
[    0.894218] usbcore: registered new device driver usb
[    0.912244] imx-ipuv3 imx-ipuv3.0: IPU DMFC NORMAL mode: 1(0~1), 5B(4,5), 5F)
[    0.920350] mxc_mipi_csi2 mxc_mipi_csi2: i.MX MIPI CSI2 driver probed
[    0.926827] mxc_mipi_csi2 mxc_mipi_csi2: i.MX MIPI CSI2 dphy version is 0x31a
[    0.934543] MIPI CSI2 driver module loaded
[    0.938781] Advanced Linux Sound Architecture Driver Version 1.0.24.
[    0.945994] Bluetooth: Core ver 2.16
[    0.949695] NET: Registered protocol family 31
[    0.954165] Bluetooth: HCI device and connection manager initialized
[    0.960539] Bluetooth: HCI socket layer initialized
[    0.965438] Bluetooth: L2CAP socket layer initialized
[    0.970564] Bluetooth: SCO socket layer initialized
[    0.975889] cfg80211: Calling CRDA to update world regulatory domain
[    0.982403] Switching to clocksource mxc_timer1
[    1.000788] NET: Registered protocol family 2
[    1.005376] IP route cache hash table entries: 16384 (order: 4, 65536 bytes)
[    1.013071] TCP established hash table entries: 65536 (order: 7, 524288 byte)
[    1.021352] TCP bind hash table entries: 65536 (order: 7, 786432 bytes)
[    1.029173] TCP: Hash tables configured (established 65536 bind 65536)
[    1.035722] TCP reno registered
[    1.038888] UDP hash table entries: 256 (order: 1, 8192 bytes)
[    1.044755] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[    1.051472] NET: Registered protocol family 1
[    1.056122] RPC: Registered named UNIX socket transport module.
[    1.062078] RPC: Registered udp transport module.
[    1.066797] RPC: Registered tcp transport module.
[    1.071521] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    1.078183] _regulator_get: etb supply vcore not found, using dummy regulator
[    1.085787] _regulator_get: etm.0 supply vcore not found, using dummy regular
[    1.093199] _regulator_get: etm.1 supply vcore not found, using dummy regular
[    1.100617] _regulator_get: etm.2 supply vcore not found, using dummy regular
[    1.108015] _regulator_get: etm.3 supply vcore not found, using dummy regular
[    1.115648] Static Power Management for Freescale i.MX6
[    1.120900] wait mode is disabled for i.MX6
[    1.125256] cpaddr = ea880000 suspend_iram_base=ea874000
[    1.130676] PM driver module loaded
[    1.847958] link up failed, DB_R0:0x007b8000, DB_R1:0x08200000!
[    1.853896] IMX PCIe port: link down!
[    1.857976] IMX usb wakeup probe
[    1.861825] IMX usb wakeup probe
[    1.865314] cpu regulator mode:ldo_enable
[    1.869544] i.MXC CPU frequency driver
[    1.898814] highmem bounce pool size: 64 pages
[    1.916534] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    1.923317] msgmni has been set to 945
[    1.928582] alg: No test for stdrng (krng)
[    1.932822] io scheduler noop registered
[    1.936760] io scheduler deadline registered
[    1.941135] io scheduler cfq registered (default)
[    1.946603] mxc_sdc_fb mxc_sdc_fb.0: register mxc display driver hdmi
[    1.953113] mxc_hdmi mxc_hdmi: Detected HDMI controller 0x13:0xa:0xa0:0xc1
[    1.997049] imx-ipuv3 imx-ipuv3.0: IPU DMFC DP HIGH RESOLUTION: 1(0,1), 5B(2)
[    2.076434] Console: switching to colour frame buffer device 240x67
[    2.117314] mxc_sdc_fb mxc_sdc_fb.1: register mxc display driver ldb
[    2.123708] _regulator_get: get() with no identifier
[    2.148551] imx-sdma imx-sdma: loaded firmware 1.1
[    2.157354] imx-sdma imx-sdma: initialized
[    2.284130] Serial: IMX driver
[    2.287319] imx-uart.0: ttymxc0 at MMIO 0x2020000 (irq = 58) is a IMX
[    2.293800] console [ttymxc0] enabled, bootconsole disabled
[    2.293800] console [ttymxc0] enabled, bootconsole disabled
[    2.305380] imx-uart.2: ttymxc2 at MMIO 0x21ec000 (irq = 60) is a IMX
[    2.315939] loop: module loaded
[    2.353035] No sata disk.
[    2.355864] FEC Ethernet Driver
[    2.360899] fec_enet_mii_bus: probed
[    2.365307] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    2.371952] add wake up source irq 75
[    2.378053] fsl-ehci fsl-ehci.0: Freescale On-Chip EHCI Host Controller
[    2.384756] fsl-ehci fsl-ehci.0: new USB bus registered, assigned bus number1
[    2.417017] fsl-ehci fsl-ehci.0: irq 75, io base 0x02184000
[    2.436998] fsl-ehci fsl-ehci.0: USB 2.0 started, EHCI 1.00
[    2.443334] hub 1-0:1.0: USB hub found
[    2.447110] hub 1-0:1.0: 1 port detected
[    2.451236] add wake up source irq 72
[    2.454935] fsl-ehci fsl-ehci.1: Freescale On-Chip EHCI Host Controller
[    2.461590] fsl-ehci fsl-ehci.1: new USB bus registered, assigned bus number2
[    2.496993] fsl-ehci fsl-ehci.1: irq 72, io base 0x02184200
[    2.516984] fsl-ehci fsl-ehci.1: USB 2.0 started, EHCI 1.00
[    2.523151] hub 2-0:1.0: USB hub found
[    2.526914] hub 2-0:1.0: 1 port detected
[    2.531156] Initializing USB Mass Storage driver...
[    2.536175] usbcore: registered new interface driver usb-storage
[    2.542194] USB Mass Storage support registered.
[    2.547083] ARC USBOTG Device Controller driver (1 August 2005)
[    2.553047] udc: request mem region for fsl-usb2-udc failed
[    2.558733] fsl-usb2-udc: probe of fsl-usb2-udc failed with error -16
[    2.565538] mousedev: PS/2 mouse device common for all mice
[    2.571351] i2c /dev entries driver
[    2.575533] Linux video capture interface: v2.00
[    2.580525] mxc_v4l2_output mxc_v4l2_output.0: V4L2 device registered as vid6
[    2.588139] mxc_v4l2_output mxc_v4l2_output.0: V4L2 device registered as vid7
[    2.595739] mxc_v4l2_output mxc_v4l2_output.0: V4L2 device registered as vid8
[    2.603419] Bluetooth: HCI UART driver ver 2.2
[    2.607876] Bluetooth: HCI H4 protocol initialized
[    2.612807] sdhci: Secure Digital Host Controller Interface driver
[    2.618998] sdhci: Copyright(c) Pierre Ossman
[    2.623469] _regulator_get: sdhci-esdhc-imx.2 supply vmmc not found, using dr
[    2.631991] mmc0: SDHCI controller on platform [sdhci-esdhc-imx.2] using DMA
[    2.636985] mxc_hdmi mxc_hdmi: Read EDID again
[    2.644345] _regulator_get: sdhci-esdhc-imx.1 supply vmmc not found, using dr
[    2.654457] mmc1: SDHCI controller on platform [sdhci-esdhc-imx.1] using DMA
[    2.661558] sdhci sdhci-esdhc-imx.0: no write-protect pin available!
[    2.668745] _regulator_get: sdhci-esdhc-imx.0 supply vmmc not found, using dr
[    2.678811] mmc2: SDHCI controller on platform [sdhci-esdhc-imx.0] using DMA
[    2.686066] mxc_vdoa mxc_vdoa: i.MX Video Data Order Adapter(VDOA) driver prd
[    2.694185] VPU initialized
[    2.697965] mxc_asrc registered
[    2.716596] Thermal calibration data is 0x5834f469
[    2.721402] Thermal sensor with ratio = 182
[    2.736993] Anatop Thermal registered as thermal_zone0
[    2.742277] anatop_thermal_probe: default cooling device is cpufreq!
[    2.749271] usbcore: registered new interface driver usbhid
[    2.750806] mmc0: new high speed SDHC card at address 1234
[    2.760366] usbhid: USB HID core driver
[    2.764430] mmcblk0: mmc0:1234 SA04G 3.63 GiB
[    2.764657] usbcore: registered new interface driver snd-usb-audio
[    2.765125] mxc_hdmi_soc mxc_hdmi_soc.0: MXC HDMI Audio
[    2.765258] mxc_spdif mxc_spdif.0: MXC SPDIF Audio
[    2.767185] _regulator_get: 1-000a supply VDDD not found, using dummy regular
[    2.767473] sgtl5000 1-000a: sgtl5000 revision 17
[    2.767643] print_constraints: 1-000a: 850  1600 mV at 1200 mV normal
[    2.787591] asoc: sgtl5000  imx-ssi.1 mapping ok
[    2.790847] asoc: mxc-spdif  imx-spdif-dai.0 mapping ok
[    2.793461] asoc: mxc-hdmi-soc  imx-hdmi-soc-dai.0 mapping ok
[    2.794075] ALSA device list:
[    2.794081]   #0: sgtl5000-audio
[    2.794086]   #1: imx-spdif
[    2.794090]   #2: imx-hdmi-soc
[    2.794586] TCP cubic registered
[    2.794593] NET: Registered protocol family 17
[    2.794667] Bluetooth: RFCOMM socket layer initialized
[    2.794673] Bluetooth: RFCOMM ver 1.11
[    2.794678] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[    2.794682] Bluetooth: BNEP filters: multicast
[    2.794689] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[    2.794843] lib80211: common routines for IEEE802.11 drivers
[    2.794875] Registering the dns_resolver key type
[    2.874998] VFP support v0.3: implementor 41 architecture 3 part 30 variant 4
[    2.882789] ThumbEE CPU extension supported.
[    2.884347]  mmcblk0: p1 p2
[    2.890346] Bus freq driver module loaded
[    2.894364] Bus freq driver Enabled
[    2.899781] mxc_dvfs_core_probe
[    2.903116] DVFS driver module loaded
[    2.907670] drivers/rtc/hctosys.c: unable to open rtc device (rtc0)
[    2.918368] EXT3-fs: barriers not enabled
[    2.923188] kjournald starting.  Commit interval 5 seconds
[    2.926109] EXT3-fs (mmcblk0p2): using internal journal
[    2.926121] EXT3-fs (mmcblk0p2): mounted filesystem with writeback data mode
[    2.926150] VFS: Mounted root (ext3 filesystem) on device 179:2.
[    2.932361] devtmpfs: mounted
[    2.932419] Freeing init memory: 188K
[    2.953634] usb 2-1: new high speed USB device number 2 using fsl-ehci
[    2.970111] mmc1: queuing unknown CIS tuple 0x80 (50 bytes)
[    2.984096] mmc1: queuing unknown CIS tuple 0x80 (7 bytes)
[    2.991638] mmc1: queuing unknown CIS tuple 0x80 (4 bytes)
[    3.026019] mmc1: queuing unknown CIS tuple 0x02 (1 bytes)
[    3.042163] mmc1: new SDIO card at address 0001
INIT: [    3.109731] hub 2-1:1.0: USB hub found
[    3.113576] hub 2-1:1.0: 4 ports detected
version 2.88 booting[    3.147331] mxc_hdmi mxc_hdmi: No modes read from edid
[    3.152473] mxc_hdmi mxc_hdmi: create default modelist

[    3.517416] input: 2.4G  Wireless Receiver  as /devices/platform/fsl-ehci.1/0
[    3.528392] generic-usb 0003:1915:AF11.0001: input,hidraw0: USB HID v1.11 Ke0
[    3.544186] input: 2.4G  Wireless Receiver  as /devices/platform/fsl-ehci.1/1
[    3.556254] generic-usb 0003:1915:AF11.0002: input,hidraw1: USB HID v1.11 Mo1
[    3.570923] generic-usb 0003:1915:AF11.0003: hidraw2: USB HID v1.11 Device [2
[    3.658073] usb 2-1.3: new full speed USB device number 4 using fsl-ehci
Starting udev
[    4.161586] udevd[1317]: starting version 182
Starting Bootlog daemon: bootlogd.
Configuring network interfaces... [    5.610861] eth0: Freescale FEC PHY driver)
udhcpc (v1.21.1) started
Sending discover...
[    8.607207] PHY: 1:01 - Link is Up - 100/Full
Sending discover...
Sending select for 192.168.0.106...
Lease of 192.168.0.106 obtained, lease time 7200
/etc/udhcpc.d/50default: Adding DNS 192.168.0.1
done.
hwclock: can't open '/dev/misc/rtc': No such file or directory
Thu Jul 25 10:09:00 UTC 2013
INIT: Entering runlevel: 5misc/rt
hwclock: can't open '/dev/misc/rtc': No such file or directory
Starting syslogd/klogd: done
Stopping Bootlog daemon: bootlogd.

Poky Next (Yocto Project Reference Distro) 1.4+snapshot-20130725 wandboard-quad0

wandboard-quad login:

If you want an image with a desktop environment, you can run bitbake core-image-sato instead (See SATO UI screenshot). In theory, It’s also possible to build a custom image with XFCE by adding sources/meta-openembedded/meta-xfce to the list of layers, as well as packagegroup-xfce-base, packagegroup-xfce-extended and packagegroup-xfce-multimedia to the list of package groups, either via the command line, or hob, Yocto’s graphical user interface, but for some reasons the build failed when I tried to build an XFCE image via hob for the Wandboard Dual a few weeks ago. I believe the pre-built Yocto image for Wandboard Quad does indeed include XFCE (TBC).

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. The Cageybee
    July 25th, 2013 at 18:57 | #1

    That’s some heatsink. The imx6 is a bit of a fail when it comes to heat. I’m yet to see a device that runs at the quote max speed of 1.2Ghz presumably due to heat.

  2. July 25th, 2013 at 21:16 | #2

    Hi,

    The heatsink is made this size to have an easy to assemble solution and avoid the creation of additional holes in the PCB. It therefore uses the identical holes as the EDM module.

  3. m][sko
    July 25th, 2013 at 21:32 | #3

    wandboard :
    Hi,
    The heatsink is made this size to have an easy to assemble solution and avoid the creation of additional holes in the PCB. It therefore uses the identical holes as the EDM module.

    Are there any imx6 quadcore soc for mobile phones?
    Because soc from Wandboard is sooo big

  4. anon
    July 26th, 2013 at 01:23 | #4

    Could somebody please benchmark the SATA connection with some serious SSD, all I have seen is people have tested those with some bargain-bin three+ generations old SSDs, that are not even close to the performance on the current generation stuff.

    Yes, the i.MX6 SATA is only 3.0Gbps, but even so, do not use some lousy/ancient JMicron/SandForce crud that nobody should buy/use these days.

    Have not found a single ARM SATA benchmark that uses any of the fast SSDs around these days, hard to get an mental image of the raw data bandwidth speeds that can be achieved with the ARM platform (and is the internal data busses the bottleneck). :-(

    ps. hopefully Samsung has fixed their incompatibilities between Exynos 5 series and Samsung 840 SSDs on Exynos 5420, that was a silly thing to not verify before putting it on sale. :-)

  5. Sak
    July 26th, 2013 at 02:28 | #5

    Thanks for all the info about wandboard quad version. I just got the board and about to play with it myself and this article save me a lot of time.

  6. onebir
    July 26th, 2013 at 03:39 | #6

    @anon
    Agreed, but it’d also be good to know this runs in a ‘nettop’ configuration with Linux on a SATA HDD? & how does it compare with low end Atom mini PCs, which are available in a similar price bracket, for various applications? Is there any prospect of getting a more recent mainstream distro going on it?

  7. mehre
    July 26th, 2013 at 13:04 | #7

    hi,

    interesting board, but i would like to get more info about it.
    - is this real SATA (not usb2sata) and as others already asked: what about a sata benchmark?
    - it is also important to know anything about power consumtion. how much watts does the board consume in idle mode and how much under full load?
    - can we run linaro as well on this board (i think we can, but may there be any problems with drivers?)
    - what about using the gpu for transcoding (actually i am not aware of any arm soc that supports hardware accelerated transcoding under linux using ffmpeg – this would be great for a small htpc)

    this said, i would really like to see a comparision table of all devices you test that contains infos about: power consumtion, cpu speed (benchmark), gpu speed (benchmark), disk speed (benchmark if sata connector is available), linux (linaro) support, linux drivers (what works and what does not work), connectors (vga,hdmi,sata,ethernet,wlan,…) – this would give an interesting overview, if you would update this table whenever you get a new device.

  8. July 26th, 2013 at 15:31 | #8

    @mehre
    1. Yes, it’s real SATA. You can also check the schematics so it’s easy to verify.
    I don’t have spare SATA drives, let alone on the latest SSD…

    2. I haven’t made the cable for measurement with a multimeter, so even though it’s not ideal (e.g. power supply dissipation) I’ve done a quick test using a “kill-a-watt” equivalent instead:
    * Android Idle: 3.2 to 3.8 Watts
    * Antutu CPU: 6.6 Watts
    * Antutu RAM: 5 Watts
    * Antutu 2D (Bouncing Androids): 5.2 Watts
    * Antutu 3D – 7 to 8 Watts

    3. Linaro rootfs should be easy, but you’ll lose GPU and VPU support without some extra work.
    4. Trancoding: In theory it should be possible. In April, I started writing a post about gstreamer on i.MX6, but did not complete it, because some parts could not work. You may want to check at this post to see what’s possible with gstreamer at http://boundarydevices.com/gstreamer-camera-streaming-on-i-mx6/

    A comparison table is always nice, but this can be very challenging to maintain and update in details. Just a post like the one above took me over 10 hours to complete.

  9. mehere
    July 26th, 2013 at 16:20 | #9

    @cnxsoft
    thanks for the info!

    yeah, i understand it’s hard to maintain such a comparision table. actually you could avoid the update challange if you just a column with date of your test and just fill in what you know for each new device. this table would be incomplete and outdatet, but i think it would be useful anyway. if specs of a device fits and a user is interested in the device he could search for this missing info and in best case he reports back to you ;) – if not it saves time anyway for instance if i need a device with 1GB ethernet i could rule out many devices…

    just think about it

  10. anon
    July 26th, 2013 at 17:33 | #10

    @onebir
    Unfortunately you cannot boot directly off the iMX6 SATA, but if you write the uboot on other devices (NAND/MMC/SD), then the rest can be on the SATA device, at least that is with the Boundary Device i.MX6 boards, and why would the Wandboard makers change that?

    Of course you need to check it from them to be sure, personally I do not have any i.MX6 boards/devices.

    About distros, of course you can install pretty much any of the distros on i.MX6 devices, all you want to do is find an armhf version (that pretty much all are currently), and i.MX6 platform is a lot more open for Linux community, so you can find all kind of help all over for them, much better than for those Asian ARM manufacturers.

    Only major thing that is not so great thing going for the i.MX6 is of course the awful Vivante GPU that has no FLOSS drivers/support, just nasty binary hacks. :-(

  11. onebir
    July 26th, 2013 at 18:11 | #11

    @anon
    Thanks! Sounds like the days of a media capable ~$100 ARM-Linux nettop are not yet with us…

  12. July 26th, 2013 at 18:17 | #12

    @anon
    Some i.MX6 boards (e.g. Sabrelite) have a small 1 or 2MB SPI NOR Flash, and I guess you could boot from that to SATA. In some ways, it’s a little like the BIOS for x86.

  13. S
    July 26th, 2013 at 18:20 | #13

    You do mention that sound over HDM doesn’t work but were you able to get multi channel sound via SPDIF in android and/or linux?

  14. anon
    July 26th, 2013 at 20:21 | #14

    @cnxsoft
    Yes, you can indeed store the u-boot into that SPI NOR Flash (it uses SPI signaling, thus is the same thing as slow SD mode that uses 1-bit lanes to each way, not 4 parallel bits of normal SD usage, let alone 8-bit MMC), so it shows as an SD card to Linux kernel, so same difference from software’s point of view.

    At least on those Boundary Device boards the u-boot location is determined with dip switches, have not looked up how it is done in Wandboard, but I would think the exact same way (there are actual physical signals for selecting that in the processor itself).

  15. July 26th, 2013 at 20:36 | #15

    @anon
    I think I’ve read you can do the same with Wandboard, but not with dip switches though, with a soldering iron…

  16. Michal S
    July 26th, 2013 at 21:27 | #16

    @anon

    Only major thing that is not so great thing going for the i.MX6 is of course the awful Vivante GPU that has no FLOSS drivers/support, just nasty binary hacks.

    Well there is some progress witch vivante open source drivers. Check https://github.com/laanwj/etna_viv and https://github.com/laanwj/mesa . There is even quake 1 demo on youtube :)

  17. onebir
    July 26th, 2013 at 22:58 | #17

    @Michal S
    Maybe a periodic rundown on the status of the various open source ARM GPU drivers would be a worthwhile article here?

  18. anon
    July 26th, 2013 at 23:45 | #18

    @Michal S
    Oh wow, had not googled for anything Vivante-related for a while (maybe in 2012?), so did not even know about that one, very cool…

    Still at pre-alpha it seems (and no GC2000 support for the i.MX6 Quad), so actually very close to what the limadriver was planning to do.

    It is still pretty sad that the lima stuff is still not getting too much attention from others developers beyond Luc himself… Too bad I have no time for it either, maybe after I finish my clustering stuff, then I can start to really getting into driver coding again. :-)

    Of well, all those different framebuffer-based drivers sure would need to pull into a singular effort to get them pushed into the mainline kernel, that would certainly help things along a lot, no need for 3D acceleration at start, that could always come later on.

  19. July 27th, 2013 at 10:03 | #19

    @anon
    @onebir
    If you want to check out the status for different “ARM” GPU (As of February), you can refer to http://www.cnx-software.com/2013/02/14/open-arm-gpu-drivers-fosdem-2013-video-and-call-to-arm-management/

  20. July 27th, 2013 at 10:05 | #20

    @S
    I haven’t check that, as I don’t have hardware. I’ve tried to buy a home theater system from Chinese websites once, but strangely I could not find any. Maybe it’s too large to ship, but somehow I expected to find a system with small speakers.

  21. NoNoCat
    July 28th, 2013 at 01:05 | #21

    > In this configuration, I’ve measured 52 degrees Celcius at idle time,
    > and 56 degrees Celcius during benchmarks by pointing an IR Thermometer to the heatsink.

    That is a blank aluminium heatsink.
    Due to reflection properties you don’t get proper readings with IR thermos!
    Only works with BLACK heatsinks.
    As a quick and dirty solution you might try to use some black isolation tape
    and stick it flat onto large surfaces – but can be tricky with such a fin heatsink…
    (note that the IR thermo takes AVERAGE of a rather large field of view so you better
    put it very very close)

    Another factor is WHERE at that large heatsink you pointed.
    You should do it in the center.

    Yeah tricky and complex ;-)

  22. July 28th, 2013 at 09:46 | #22

    @NoNoCat
    Thanks. I had read about that, and tried some black tape. But the temperature readings were about the same. Obviously with this type of heatsink it’s difficult to properly transfer the heat to the black tape since it’s not in full contact.

    I actually moved the thermometer over the heatsink, and could just see 1 or 2 degrees differences between different places. And 55 degrees looked like OK, based on “hand” measurements :)

    The thing I don’t know is if bright surfaces over or under report the temperature readings.

  23. onebir
    July 28th, 2013 at 10:47 | #23

    @cnxsoft
    There are some home theatre setups on Aliex now, but like you say often the shipping is v expensive:
    http://www.aliexpress.com/premium/home-theater.html?g=y&SearchText=home%2Btheater&CatId=635&isrefine=y

  24. NoNoCat
    July 28th, 2013 at 18:47 | #24

    Well that is weird that this does not change – maybe the heatsink is coated somehow and not actually a blank one? Is it conductive when you measure resistance with a multimeter (without pushing too hard!)?
    I get lower readings with the IR thermo I have here on blank type of heatsinks and it rises drastically when I use tape on a small flat(!) area. Not on top of the fins of course.

    Maybe you can try to check the internal temp sensor of the chip to see if it is reasonable. It is a file somewhere in /sys/devices/virtual/thermal … or so that you can cat.
    The die temp should be higher than heatsink temp of course.

  25. mehere
    July 28th, 2013 at 20:57 | #25

    @cnxsoft

    after all i think i will buy this board even i wanted to wait for the CompuLab Utilite because of it’s better connectivity and it’s nicer design, but checking prices of other CompuLab devices i think the price will be much higher as i guess the base version for 99$ will be only single core with 512MB or 1GB RAM.

    after some research i think the i.mx6 boards will be the first arm-boards that can be used for vpu transcoding on linux and i hope it really works – fingers crossed

    i still have some questions:

    you said “Linaro rootfs should be easy, but you’ll lose GPU and VPU support without some extra work”
    shouldn’t it work if i use the kernel+kernel modules provided by freescale together with linaro rootfs to get VPU support? or do i need anything else compiled for linaro in order to get VPU support?

    actually they provide an Ubuntu 12.04 LTS preview image, with 3D multimedia enabled, so i assume VPU transcoding should work with this image (would be nice, maybe you can test this?)

    there seems to be only a sata data connector on board, so an externel power supply for the sata device is required?

  26. July 28th, 2013 at 21:32 | #26

    @mehere
    I don’t really know how to get GPU and VPU support.

    If it’s just 3D multimedia in Ubuntu 12.04, then it does not look like VPU is enabled, so no transcoding yet.

    I think there’s a discussion on the mailing list about powering up the hard drive.

  27. Michal S
    July 28th, 2013 at 22:37 | #27

    anon :
    Still at pre-alpha it seems (and no GC2000 support for the i.MX6 Quad), so actually very close to what the limadriver was planning to do.
    It is still pretty sad that the lima stuff is still not getting too much attention from others developers beyond Luc himself… Too bad I have no time for it either, maybe after I finish my clustering stuff, then I can start to really getting into driver coding again.

    IMO adding GC2000 could be quick. It differs from 800 and 880 by few registers and extra pixel. GC880 even worked with GC800 driver because there is backward compatibility in hardware! I don’t have GC2000 and laanwj is working on other stuff. Finish your clustering stuff and join :)

  28. mehere
    July 28th, 2013 at 22:49 | #28

    @cnxsoft

    well, i just read this:
    http://www.wandboard.org/index.php/downloads

    The following images are marked as preview and use Freescale latest LTIB-4.0.0 drivers. 3D, multimedia have been enabled. Performance on WBSOLO is quite nice compared with the older image.

    Ubuntu 12.04 LTS images.

    and according to this
    http://boundarydevices.com/ltib-4-0-0-images/
    vpu and gpu support should work with ltib drivers…
    i just don’t know if they user the X-Windows drivers for the ubuntu preview image or the version without x-windows support

    maybe you can test the preview image and write an article about it or even better record a nice video and show us how powerfull (or not) ubuntu is running on this nice board – i did not found any videos so you can be the first… ;) and testing if gstreamer transcoding works, would be a nice bonus for your readers ;)

    at least it looks very promising!

  29. July 29th, 2013 at 11:38 | #29

    @NoNoCat
    The other day, I did put the black tape on top of the fins (there’s no large enough flat zone), and waited a few minutes for heat to transfer… It’s probably not a good idea…

    The heastsink is definitely conductive (Multimeter shows 0 Ohm)

    I measure temperature again today with the IR thermometer without tape (38 degree Celsius), and also checked the value in /sys/devices/virtual/thermal/thermal_zone0/temp which strangely is also 38. I wonder if that number is in Celsius or we need to convert it.

    There are actually 4 more temperature “points” in the directory:
    cat /sys/devices/virtual/thermal/thermal_zone0/*temp
    38
    100
    90
    80

    temp (38), as well as trip_point_0_temp, trip_point_1_temp, and trip_point_2_temp, but those last 3 never change。

  30. NoNoCat
    July 29th, 2013 at 16:28 | #30

    What is the Ambient temp in your area?
    The deviation should get larger with higher heatsink temp – lower temps are usually fine as the ambient is reflected in the aluminium!
    Maybe your IR Thermo is calibrated for aluminium reflectivity (better models allow for adjusting that) – but that would make most other materials readings wrong ;-)
    May I know which type it is?

    Yep that temp reading is in Celsius.
    trip_point_* are the thresholds when thermal throttling takes place and it clocks down to reduce heat and protect itself. All modern CPUs do that (which btw. may affect benchmarks especially on mobile devices without good heatsinks).

  31. NoNoCat
    July 29th, 2013 at 16:34 | #31

    Ah forget it I just saw that you put a link to the thermometer model you used.
    Hmmm
    Emissivity: 0.95 (pre-set)

    Aluminium is in the 0.07 – 0.7 range depending on surface treatment.
    Very strange that you get good readings with that thing.

  32. July 29th, 2013 at 16:59 | #32

    @NoNoCat
    Just as reference, when I point the device to my head it read 35 degrees, boiling water: 97 degrees, freezer: -14 degrees. So it may not be extremely accurate, but I guess it give a good range.

    We’ve got “cool” weather today, about 26 degrees C in the room.

  33. July 30th, 2013 at 15:02 | #33

    Arch Linux ARM is now available too – http://archlinuxarm.org/platforms/armv7/freescale/wandboard

  34. July 30th, 2013 at 22:32 | #34

    There is as well XBMC support upcoming in the wandboard forums.

  35. August 10th, 2013 at 11:37 | #35

    @anon
    It’s not exactly want you want, but ODROID-XU board has been benchmarked with OCZ’s Vertex3 128GB SSD via a USB3 to SATA adapter. Command lines and results:

    Test Root File System : Linaro Ubuntu with Linux Kernel 3.4.5
    Read Test Command : dd if=./test of=/dev/null bs=1M count=1000 iflag=nocache oflag=nocache
    Write Test Command : dd if=/dev/zero of=./test bs=1M count=1000 iflag=nocache oflag=nocache conv=fdatasync

    Test result
    Write Speed : 190 MB/S
    Read Speed : 151 MB/S

    Source: http://com.odroid.com/sigong/blog/blog_list.php?bid=153

  36. September 16th, 2013 at 02:36 | #36

    Hi!
    I added sources/meta-openembedded/meta-xfce to sources/base/conf/bblayers.conf.

    Where do i need to add the package groups: packagegroup-xfce-base, packagegroup-xfce-extended and packagegroup-xfce-multimedia ? so that bitbake core-image-minimal includes it?

    thx

  37. September 16th, 2013 at 11:31 | #37

    @wakko
    I’m not exactly sure as I used hob when I tried. I later found out hob is not supported for wandboard yet (via Wandboard mailing list).

  38. shawnbai
    March 5th, 2014 at 14:38 | #38

    Hi, cnxsoft,

    Thanks for this post.
    I’m about to buy a WBQUAD for fun, very excited.

    One more question I’m wondering.
    The retailer tells me there is no power supply adapter shipped together with the wbquad box, so I must buy a power supply by myself.
    But I do not know what kind to buy? I know it should be 10W 5V, but how many pins should be? 2-pin? or 3-pin adapter?

    Could you give me some guidance on this to help me out ?
    Thank you, thank you so much in advance.

    BR,
    Shawn

  39. March 5th, 2014 at 15:04 | #39

    @shawnbai
    Check http://wiki.wandboard.org/index.php/UnofficialFAQ#What_type_of_power_supply_should_I_use.3F
    “or power, you will need a regulated 5V 2A DC power supply with a positive center pin. The barrel connector should be 5.5 mm outer diameter with greater than 2.1mm inner diameter. ”

    2 or 3 pin (with ground) probably does not matter. I don’t have ground in my mains sockets.

  40. shawnbai
    March 5th, 2014 at 15:16 | #40

    @cnxsoft

    Thank you for your reply.
    Actually, I’ve checked that website out a few days ago.
    I’m puzzled about the “power supply with a positive center pin”.
    Does that mean only 3-pin power supply should be used instead of 2-pin?
    Also, it seems the barrel connector’s diameter shold meet that requirement too, doesn’t it ?

    From what you said, it seems both 2-pin and 3-pin are OK, could you share me with a website for your power supply please?

    Thank you.

  41. March 5th, 2014 at 15:23 | #41

    @shawnbai
    They told about the jack you connect into the board. The outside should be ground, and inside +5V. I guess most power supply are like that, but you can check with a multimeter to make sure. The important part is the diameter of the jack, although you should also be able to use an adapter.

    I did not buy my power supply online. It’s shown in the list @ http://www.cnx-software.com/2013/02/14/electronics-shop-in-thailand-what-will-33-buy/

  42. shawnbai
    March 5th, 2014 at 15:27 | #42

    Hi, cnxsoft,

    Do you think power supple on this website http://www.futureelectronics.com/en/Search.aspx?dsNav=Ntk:PlainTextSearch|Power+Supply|3|,Ny:True,Ro:0,Nea:True,N:573-4294927817-4294894815-4294881365 is enough for WBQUAD please?

    Thank you.

  43. shawnbai
    March 5th, 2014 at 15:31 | #43

    cnxsoft :
    @shawnbai
    They told about the jack you connect into the board. The outside should be ground, and inside +5V. I guess most power supply are like that, but you can check with a multimeter to make sure. The important part is the diameter of the jack, although you should also be able to use an adapter.
    I did not buy my power supply online. It’s shown in the list @ http://www.cnx-software.com/2013/02/14/electronics-shop-in-thailand-what-will-33-buy/

    I’m in China Mainland, as you know, the power supply used in China is not the same with the ones in Europe or America, So, I think I should take care of this issue, or, the board may be smoked …

  44. shawnbai
    March 5th, 2014 at 15:44 | #44

    @cnxsoft

    Ok, I see.
    I misunderstood just now.

    You mean you do the power supply by yourself with the cost $33.
    That sounds great.

    Maybe I also could do it, right?

  45. March 5th, 2014 at 16:43 | #45

    @shawnbai
    No. That’s not what I meant. In that page you can scroll down and see the $10 power supply I used (Viper something).

    You could probably buy the board first, then go to the shop with the board to find and try the power supply before purchase. Just make sure the ground is outside first.

  46. shawnbai
    March 5th, 2014 at 18:33 | #46

    @cnxsoft

    Yes, I have noticed that.
    Since only the jack and 5V2W must be ensured, I have found the website to buy the power supply adapter.
    On that website, 2.5 x 5.5 pin connector specification of the power supply adapter is beging sold, outer(V-), Inner(+5V), so I guss, this one is what I need.

    Thank you again, cnxsoft.

  1. July 26th, 2013 at 11:53 | #1
  2. August 21st, 2013 at 15:05 | #2
  3. January 14th, 2014 at 18:46 | #3
  4. January 16th, 2014 at 11:25 | #4
  5. April 25th, 2014 at 11:25 | #5
  6. May 2nd, 2014 at 16:51 | #6
