$49 (and up) Hex is an Arduino-compatible, Soon-to-be Open Source Nanocopter Kit

Do you remember Mecam, an upcoming $49 nanocopter with a camera? AFAIK, it’s not there yet, but a similar product with a similar price point is now “available” on Kickstarter. Hex nanocopters (quadcopter and hexacopter versions) are not voice-controlled, and do not come with a camera by default, but you can control them with iOS or Android mobile devices, and a camera can be fitted if needed. It comes as a kit, so you’ll have to assemble it yourself, and since it’s fully open source, you could even customize it to your taste.

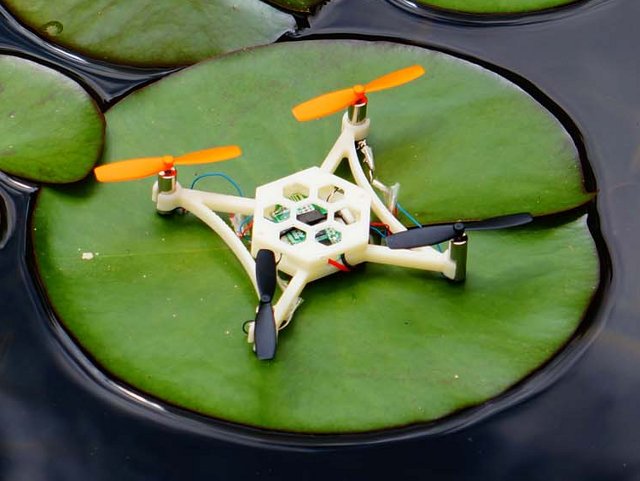

Hex_Airbot_Quadcopter

Hex specifications:

  • Propellers – Size: 56×8.5 mm, Fits shaft: 1.0 mm
  • Motors – Diameter: 7.0 mm, Length: 20 mm, Shaft diameter: 1.0 mm, Over 50,000 rotations per minute (rpm)
  • Flight Control System:
    • Flight control – Microwii Copter
    • Processor – Atmel ATMega32u4
    • Gyro and Accel – InvenSense MPU6050 (6-axis)
  • Battery – 350mAh battery (Flight Time – 7 minutes)
  • Connectivity
    • Bluetooth 4.0
    • Optional WiFi Cam (640×480)
    • Optional 5.8Ghz video transmitter module
  • FPV – Optional FPV glasses
  • Extra Payload – Quadcopter: 12g, Hexacopter: 30g.

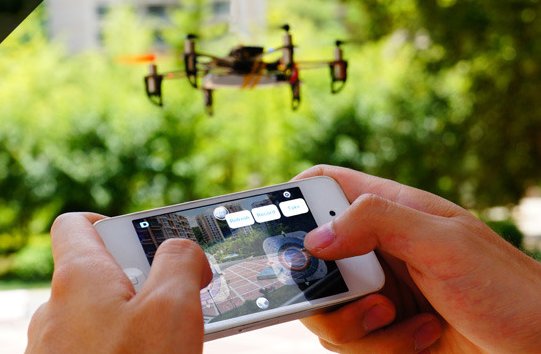

Hex_HexacopterThe app will let you control the nanocopter, record videos, capture photos, and share videos.

The application will eventually be open source, as well as all hardware, but they have not provided much details at this stage.

If you are interested in this project, you can pledge $49 for the nanocopter, $69 for the hexacopter, and $159 if you want the hexacopter with the Wi-Fi camera. The FPV glasses are available in the “Hex Spy Set” with a quadcopter for $469. Shipping is not included and ranges from $10 to $20, and delivery is expected for December 2013. Further details are also available on Hexairbot.com.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. onebir
    August 28th, 2013 at 14:45 | #1
  2. August 28th, 2013 at 16:11 | #2

    @onebir
    Nice! This should increase the flying time and/or supported payload a bit.

    I can also see many quadcopters and helicopters on DealExtreme or Aliexpress. They all seem to be controlled with a standard remote, and I don’t know how good they are.

  3. required
    August 28th, 2013 at 18:31 | #3

    onebir :
    These could get a lot better soon:
    http://www.geek.com/apps/mav-lab-creates-worlds-smallest-autopilot-for-micro-aircraft-1568557/

    ok so what we want now is for them to hunt track and kill mosquitoes on the wing.

  4. onebir
    August 28th, 2013 at 19:49 | #4

    @required
    Mosquitoes are pretty easy to trap with a leaf (/yeast sugar mix) in a dark bottle – they use exhaled CO2 to find prey. But an anti-roach drone would be something else! Roachba, anyone? :p

  5. August 28th, 2013 at 19:52 | #5

    @onebir
    I’ve tried that sugar / yeast mix in a plastic bottle before, and it failed miserably…

    We need a BugZapperCopter with a small laser.

  6. August 29th, 2013 at 21:02 | #6

    The team is makers from China :)
