Xiaomi Unveils $64 Mi Box Pro TV Box Powered by Amlogic S802 SoC

Xiaomi, now just called Mi, has announced three new products today. Two 802.11ac Wi-Fi routers: Mi Wi-Fi Router for 699 CNY ($112), and Mi Wi-Fi mini for 129 CNY ($20), and one Android TV box called Mi Box Pro featuring Amlogic S802 quad core Cortex A9r4 processor with 2GB RAM, 4GB eMMC Flash, and 802.11ac Wi-Fi that will sell in China for just 399 CNY ($64).

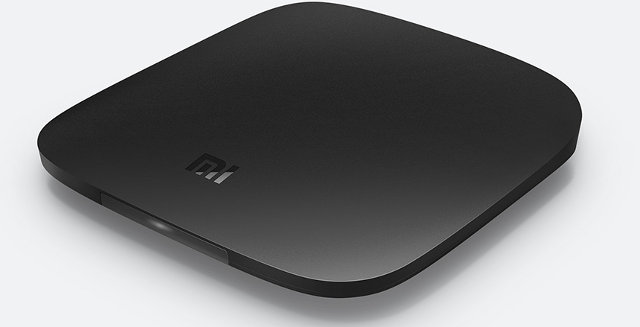

Xiaomi_Mi_Box_ProMi Pro Box specifications:

  • SoC – Amlogic S802 quad core Cortex A9r4 processor @ 2GHz with ARM Mali-450MP6 octa-core GPU
  • System Memory – 2GB RAM
  • Storage – 4GB eMMC Flash + micro SD slot up to 64 GB
  • Video & Audio Output – HDMI (Up to 4K30) and 3.5 mm AV
  • Audio / Video Playback – MKV, AVI, MP3 and MOV up to 4K resolution. AC3, Dolby and DTS audio support
  • Connectivity – Dual band 802.11 b/g/n/ac Wi-Fi up to 120 Mbps (vs 40 Mbps for 802.11n)
  • USB – 1x USB 2.0 host port + 1x USB OTG port

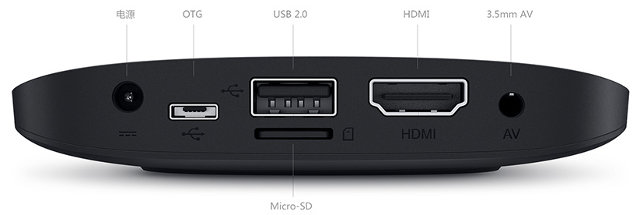

Xiaomi_Mi_Box_Pro_Rear_Panel

The box is running MIUI TV user interface, which is running on top on Android.  Compared to other Amlogic S802 TV box that has started to sell on the market, the device drops Ethernet and S/PDIF, as less internal storage and USB ports, but it adds Wi-Fi 802.11ac which should easily match 10/100M Ethernet performance, and replace the NAND flash by a faster eMMC flash. At $64 (in China), the price is amazingly competitive, as others sell for about $100 (including shipping outside China).

The device will sell in China first, but the company has plans to expand to Malaysia, Philippines, India, Indonesia, Thailand and Vietnam, followed by Russia, Turkey, Brazil and Mexico later on. You can find more information on Mi Pro Box page (In Chinese, but an English version is coming).

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. April 24th, 2014 at 02:09 | #1

    Is not a little short talking about specifications? 4GB and just 1 USB port (no bluetooth?)

    Some days ago I was in XiaoMi office (shenzhen branch) playing with one of their boxes, good looking, but in my oppinion 1 USB only is really short…

  2. Someone from the other side
    April 24th, 2014 at 02:52 | #2

    1 USB works for me, I just need it to add the USB remote :P. I Agree, the price is impressive. How is Xiaomi making their money? Do they get kickbacks from appsales or some such? Or do they simply have much better economies of scale than the garage shops?

  3. Jibril
    April 24th, 2014 at 03:24 | #3

    S802 (old version seen up today)…
    …no Ethernet
    …less USB
    …no SPDIF
    …less memory then others…

    I’ll wait Neox8s.

  4. Jibril
    April 24th, 2014 at 03:31 | #4

    …no bluetooth…

    A lot of less features…no thanks.

  5. Marius
    April 24th, 2014 at 06:32 | #5

    Well you must keep in mind that this is the price for China. Add to that about $20 at least and it’s still cheap but not that cheap anymore.
    Doesn’t matter in the end, this one will make the other ones sell cheaper.
    From what I’ve understood Xiaomi have other revenue sources such as their own app store. Kinda like Amazon I guess, they make less on hardware and more on added services after the hardware sale. I still don’t think they’re selling this one at a loss, they just don’t make that much money.

  6. April 24th, 2014 at 09:18 | #6

    No English language, No Google Play store, and the most important you are very hard to get this device even you live in china.

  7. adem
    April 24th, 2014 at 14:17 | #7

    otg can i use for ethernet but no google playstore iwaouldent buy it even if it was $5

  8. April 24th, 2014 at 15:12 | #8

    @adem
    Actually If I can get a 802.11ac router for $20, and the device also features an 802.11ac module, Ethernet does not really become necessary as the performance is the same as Wi-Fi if not better.

    The lack of Google Play support would be an issue, although Amazon Store is not good, and can be easily installed. If only they did not send an email each time you download an app.

  9. Mark
    April 24th, 2014 at 16:14 | #9

    This does support Bluetooth 4.0

  10. April 24th, 2014 at 19:58 | #10

    Amazing man. I can’t find the soc in the new generation mi box in all Chinese media though it’s announced in China. But you got it.

  11. Jibril
    April 25th, 2014 at 04:11 | #11

    Tom Cubie :
    Amazing man. I can’t find the soc in the new generation mi box in all Chinese media though it’s announced in China. But you got it.

    You are an amazing man…with the Raxda (Rockchip) and Cubie boards (AllWinner) !!!

    When do you engeneer a new board with Amlogic S802H … with relative Linux firmware support ??

  12. Jibril
    April 25th, 2014 at 04:15 | #12

    errata corrige: Radxa

  13. April 30th, 2014 at 17:38 | #13

    And another Chinese box based on S802(D), this time by Baidu – http://androidpc.es/blog/2014/04/30/baidu-presenta-su-nuevotv-box-con-soc-s802d/
