Shenzhen DigiCasting LX-N10 Is an AllWinner A31s Powered Board for Digital Signage Applications

Shenzhen DigiCasting, a Shenzhen based company specialized in digital signage solution, has recently introduced LX-N10 board specifically designed to connect to LVDS display for applications such as digital signage players. The board is powered by AllWinner A31s, comes with up to 2GB RAM, and optional 4GB eMMC, and various ports and headers.

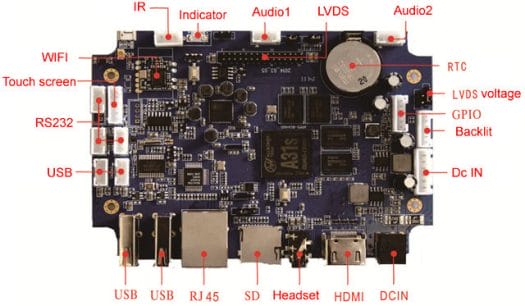

LX-N10

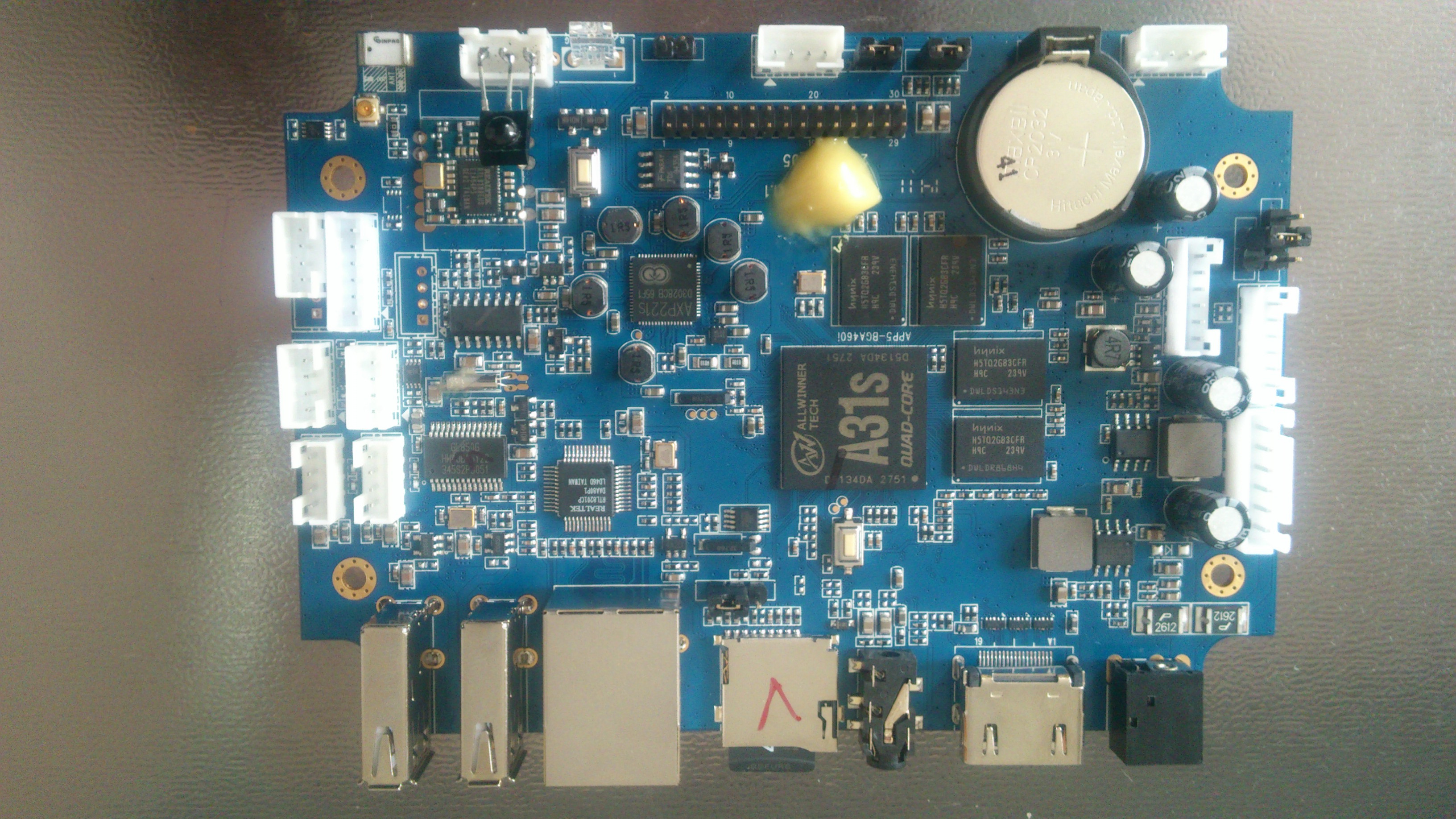

LX-N10 Digital Signage Board (Click for Higher Resolution Picture)

LX-N10 board (aka DS-108) specifications:

  • SoC – AllWinner A31s quad core ARM Cortex A7 processor @ 1.2 GHz with PowerVR SGX544MP2 GPU
  • System Memory – 1 GB DDR2 (2GB optional)
  • Storage – micro SD slot up to 32GB, and optional 4GB eMMC
  • Video Output – HDMI, LVDS + backlight + touchscreen header
  • Audio – HDMI, 3.5mm stereo jack. Built-in 4R/20W, 8R/10W amplifier
  • Connectivity – Wi-Fi 802.11 b/g/n,  10/100M Ethernet
  • USB – 2x external USB 2.0 host ports, 2x internal USB headers
  • Other Headers – GPIO (3 GPIO, 1 ADC), 3x RS-232 (2x Tx/Rx, 1x Tx/Rx/CTS/RTS), Audio 1 & 2 and IR
  • Misc – RTC + battery slot, LED
  • Power Supply – 12V
  • Dimensions – 87.7 x 123.8 mm (6 layer PCB)
  • Temperature range – -20 to 70 C
AllWinner_A31_Digital_Signage_Player

LX-N9 Player

The company provides Android 4.4.2 for the board. If you’d rather a solution with an enclosure, LX-N9 players is also available and based on LX-N10 board.

Both the board and signage player are available now. There’s no information about either on the company website, but if you want to know more you can contact them at Shenzhen DigiCasting website.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. May 20th, 2014 at 02:53 | #1

    there is only 3 gpios on the a31?

  2. May 20th, 2014 at 09:44 | #2

    @zoobab
    Sorry it’s not so clear in the post. I meant to talk about the header called “GPIO” on the board. It only has 3 GPIO + 1 ADC, and GND/VCC. I’m not sure how many GPIOs there are in A31s.
