AllWinner A33 Quad Core SoC is Pin-to-Pin Compatible with AllWinner A23

Allwinner has just announced a new quad cortex ARM Cortex A7 SoC for entry-level Android tablets. AllWinner A33  shares many of the features of AllWinner A23 dual core Cortex A7, including an ARM Mali-400MP2 GPU, and provides pin-to-pin compatibility, with the main difference being the upgrade from two to four Cortex A7 cores.

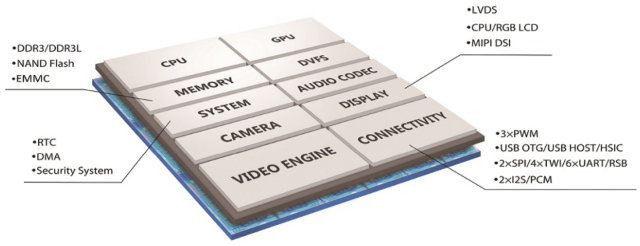

AllWinner_A31_Block_Diagram

The company has already disclosed the main specifications of their new SoC:

  • CPU – Quad core ARM Cortex A7 with 256 KB L1 Cache, 512KB L2 cache
  • GPU – ARM Mali-400MP2 with support for OpenGL ES 2.0/VG 1.1 standards
  • Memory
    • DDR3/DDR3L SDRAM controller
    • 8-bit NAND/eMMC flash controller
  •  Video
    • Decoding – 1080p60 video playback for MPEG-1/2, MPEG 4 SP/ASP GMC, H.263, H.264, WMV9/VC-1, VP8, and more
    • Encoding – 1080p60 for H.264
    • Complies with RTSP, HTTP, HLS, RTMP, MMS streaming protocols
    • Supports OpenMAX API
  • Display
    • 1 to 4 lane MIPI DSI up to 1280×800
    • RGB/CPU/LVDSLCD up to 1280×800
  • Camera – Integrated paralell camera sensor interface with support for up to 5MP CMOS sensor, 8-bit YUV sensor
  • Audio
    • Integrated Hi-Fi audio codec
    • 2x integrated differential analog mic amplifiers for headset and phone
    • “Talking Standby Mode” for ultra low power consumption during voice calls
  • USB – USB OTG. USB Host, and HSIC
  • Other I/Os – 3x PWM, 2x SPI, 4x TWI (I2C), 6x UART/RSB
  • Misc – RTC, Security system for DRM
  • PMIC – AXP223 with support for 21-channel power output, 2.1A charging. Complies with USB 3.0 supply standard

AllWinner A33 will support Android 4.4 and above, so no official multi-OS support like other higher-end AllWinner SoCs.

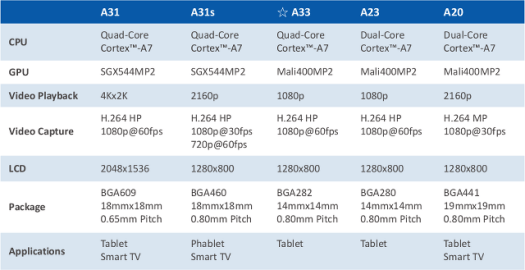

AllWinner A31, A31s, A33 and A23 Comparison

AllWinner A31, A31s, A33, A20 and A23 Features Comparison

You may have noticed AllWinner A33 is provided in a BGA282 package, and AllWinner A23 in a BGA280 package, so we’ve got two extra pins there… It could mean you can’t simply replace A23 by A33 on exiting designs, but it should be possible to make a new board that supports both A23 and A33, just like it is done today with AllWinner A10 and A20.

AllWinner A33 is sampling now, and the company expects the first commercially available tablet based on the platform to be available in July.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Harley
    June 3rd, 2014 at 22:48 | #1

    So this is then another SoC from Allvinner with CedarX VPU without open API, source code, or GPL compatible libraries?

  2. June 3rd, 2014 at 22:55 | #2

    @Harley
    Maybe there’s another difference with a23: “openmax api”

  3. Falcon1
    June 4th, 2014 at 18:26 | #3

    @cnxsoft

    A23 was deliverd with OpenMax as well.

    The OpenMax interface is a “software only” solution. The hardware CedarX did not change, much, nor did the unclear license, versioning and ownership. They just added the OpenMax interface besides their own to make it more appealing to use with Andriod as they choose OpenMax as the standard interface for Video acceleration.

    OpenMax has always been based as software Just like OpenGL, DirectX. They are software abstraction layers for hardware.

    The “open source” solution for Cedar is the Cedarus project “sunxi-vdpau” where the vdpau interface was chosen for interaction with the hardware.

    http://linux-sunxi.org/Cedrus
    https://github.com/linux-sunxi/libvdpau-sunxi
    https://www.youtube.com/watch?v=Fck_EDFcV1E

  4. June 4th, 2014 at 19:40 | #4

    @Falcon1
    But with an standard API, you should be able to integrate with whatever application you use, regardless whether the underlying library is open and closed source. I can see OpenMAX support is indeed claimed for A23 -> http://www.cnx-software.com/2013/11/04/allwinner-roadmap-until-2015-a23-a6x-a7x-a8x-and-a9x/

    So I’m really confused…

  5. June 23rd, 2014 at 14:44 | #5

    AllWinner contacted me with price info:
    “Reference Price:

    Quad-core A33 SoC+ PMIC AXP223 ≈4.99USD
    7″ Tablets powered by A33 ≈40USD ( A33, 7″,800*480, 1GB DDR3,8GB Flash)
    7.85″ Tablets powered by A33≈ 45USD ( A33, 7.85″, 1024*768, 1GB DDR3, 8GB Flash)
    8″ Tablets powered by A33 ≈ 50USD ( A33, 8″, 1280*800, 1GB DDR3, 8GB Flash)”

  6. Gnichi Mohamed
    November 20th, 2014 at 16:51 | #6

    The question remains, when we will see a dev board supporting linux for Allwinner A33!?

  7. November 20th, 2014 at 20:19 | #7

    @Gnichi Mohamed
    Unlikely because there’s no HDMI output, so it would just be a board for LVDS or/and a MIPI interface. That’s also why there’s no A23 board.
