MeLE V10 Android TV Box Features an Internal SATA Bay, HDMI In, USB 3.0 and Gigabit Ethernet

Like UyeSee T1H, MeLe V10 is a quad core Android TV box powered by Mstar 9810 with HDMI In, USB 3.0 and Gigabit Ethernet, but adds an internal SATA bay supporting either 2.5″ or 3.5″ hard drives or SSDs. It also comes with better specs by default with 2GB RAM, and a 16 GB eMMC flash.

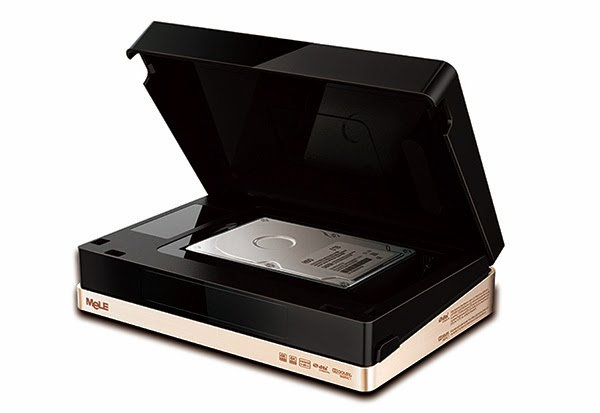

MeleV_10_TV_BoxMeLe V10 specifications:

  • SoC – Mstar MSO9180 quad core ARM Cortex A9 @ 1.5GHz with a quad (or octa-core ARM Mali-450 MP GPU @
  • System Memory – 2GB DDR3 @ 1866MHz?
  • Storage – 16 GB eMMC flash, internal SATA bay for 2.5″ or 3.5″ hard drive or SSD up to 3TB, and an SD card slot
  • Video I/O – HDMI 1.4a out up to 4K30, HDMI in, AV (CVBS)
  • Audio I/O – HDMI in/out, optical S/PDIF, AV port
  • Video Playback
    • MPEG-1/2, MPEG-4, DivX, H.264, H.265/HVC, VC-1, H.263, Real Media, MVC…
    • Up to 4K, 60Mbps (H.264)
    • 3D H.264 MVC Decoder/H.264 Encoder (720P)
  • Audio Formats and Codecs
    • MPEG, WMA, WAV, APE, OGG, FLAC, ACC, MPEG1,MPEG2(Layer I/II), MP3, AC-3, E-AC-3, AAC-LC, WMA, HE-AAC.
    • Dolby Digital Plus/Dolby TrueHD/DTS-HD MA 7.1ch pass-through
  • Connectivity – Gigabit Ethernet, 802 b/g/n Wi-Fi with external antenna
  • USB – 2x USB2.0 host ports, 1x USB 3.0 host port, 1x USB 3.0 device port.
  • Misc – IR receiver
  • Power Supply – 12V/2A
  • Dimensions – N/A
  • Weight – N/A

Mele V10_Rear_Panel

The box is said to run Android 4.4. I’m not sure which accessories are included, and it’s not available on Aliexpress yet. AndroidPC.es reports the box sells for around 160 Euros ($210) in China, and that there will be a version for international market with a different firmware. I could also find it on a little known website called iAndroidTVBox for $219. You can also find more details and pictures in Chinese on Mele BBS.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. August 28th, 2014 at 19:25 | #1

    as far as such boxes go, this sounds pretty promissing.
    Sad thing is that there probably will never be any kind of usable 3rd party os for whatever “Mstar MSO9180″ should be. :-/

  2. Harley
    August 28th, 2014 at 19:56 | #2

    Any news on Rockchip RK3288 based media players from MeLe yet?

  3. JotaMG
    August 28th, 2014 at 20:16 | #3

    Too much expensive and no Linux support !!

  4. Dan
    August 28th, 2014 at 20:17 | #4

    Specifications are very good and it’s rare to see a HDD capable box aside from the odd Realtek RTD1195 unit.

  5. Dan
    August 28th, 2014 at 20:21 | #5

    No-one cares about linux for those who would buy something like this, you can already buy real good linux devices like the CuBox-i and more.

    If this was being sold in the west running Google’s official AndroidTV OS they would sell no problem at all, this is a successor to the likes of the WDTV, Popcornhour and others off the shelf boxes.

    But tablet Android is rubbish in west (perhaps not in China) and major legit streaming apps dont work well like Netflix or not at all.

  6. Harley
    August 29th, 2014 at 14:20 | #6

    Does this Mstar 9810 SoC support hardware acceleration for XBMC?
