Arduino UNO R3 Clones Now Cost Less than $5

An original Arduino UNO R3 costs about nearly $25, and I remember clones would cost about $10 on Aliexpress, but today I’ve been informed about VISduino, an Arduino UNO R3 clone, with some cost optimizations such as cheaper components and connectors, which sells for just 15.50 CNY (~$2.50 US) on Taobao, and $4.90 on Electrodragon. But double checking on Aliexpress, I could find another popular Arduino UNO R3 clone for $4.58 including shipping, but no USB cable.

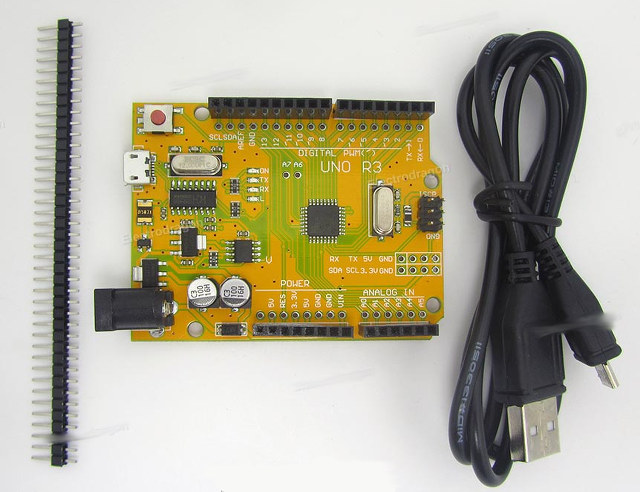

VISduino
VISduino Arduino Board Clone

Both boards cut costs by replacing ATmega16U2 by CH340 USB to serial chip, and replacing the ATMEGA328P-PU MCU (DIP) by an SMT version of the Atmel MCU such as ATMEGA328P-AU (QFP).

Other changes on VISduino include:

  • Replaced USB B-type connector by a micro USB port
  • Added extra through holes side-by-side with the Arduino headers for easier debugging.
  • Extra 2×4 pin holes with TX, RX, VCC, GND, and I2C pins

You may have to install extra drivers for CH340.

Thanks to Benjamin (Zoobab) for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
Tarjei
Tarjei
9 years ago
zoobab
9 years ago

@Tarjei
Seems to be the same design as the Visduino, only the USB connector is a big type B instead of the microusb one.

Simos
9 years ago

For Linux the USB to serial chip should be already supported. Check with

$ modinfo ch341

The USB IDs are the same with those at the driver that is found at http://wch.cn/downloads.php?name=pro&proid=65

Al
Al
9 years ago

I prefer the type b over micro, doesn’t break as easily especially for kids

with lcd shield (2x uno + 2x lcd shield) for US$13.30
http://www.aliexpress.com/item/UNO-R3-USB-Cable-1602-Keypad-Shield-for-Arduino/1800790614.html

fkpwolf
9 years ago

ehh, how to make money if this is so cheap?

Klaus
Klaus
9 years ago

I find this even more interesting: A 32bit ARM Board with 64K Flash, 20k RAM, 72MHz (STM32F103) http://www.aliexpress.com/item/STM32F103C8T6-ARM-STM32-Minimum-System-Development-Board-Module-For-Arduino/32246273606.html for $4.52 with shipping!
