Variscite DART-MX6 is a Tiny SoM with Freescale i.MX6 SoC, Wi-Fi and Bluetooth

Variscite has unveiled what they claim to be the world’s smallest i.MX6 SoM with DART-MX6, a 50x20mm system-on-module featuring Freescale i.MX6 dual or quad processor, up to 1GB RAM, up to 32GB eMMC flash, as well as a wireless module for Wi-Fi and Bluetooth connectivity. Other small i.MX6 modules include TechNexion PICO-iMX6, or SolidRun microSoM found in Hummingbird board, and DART-MX6 has indeed the smallest area among the three.

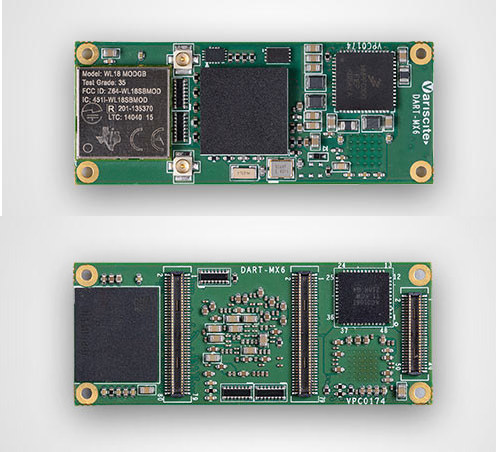

DART-MX6DART-MX6 specifications:

  • SoC- Freescale i.MX6 dual or quad core Cortex A9 processor up to 800 MHz with Vivante GC2000 3D GPU
  • System Memory –  512 to 1024 MB LPDDR2 (PoP)
  • Storage – 4 to 32GB eMMC flash, 4KB I2C EEPROM
  • Connectivity – Wi-Fi 802.11 a/b/g/n + MIMO, Bluetooth 4.0  BLE (TI WL183xMOD WiLink)
  • Audio Codec – Texas Instruments TLV320AIC3106
  • Interfaces and I/Os via 2x 80-pin and 1x 50-pin board to board connectors
    • Camera Interfaces – 1x CSI, 2x CPI
    • Display – HDMI v1.4 up to 1920 x 1080;  Dual 24-bit LVDS up to 1920 x 1200;  24-bit DSI up to 1920 x 1200
    • Connectivity – 10/100/1000Mbps Ethernet RGMII
    • Audio –  Headphone driver, digital microphone,  S/PDIF,  Line In/Out
    • Storage – 1x SD / MMC
    • USB – 1x USB 2.0 Host port , 1x USB OTG port
    • 4x UART up to 3.6 Mbps, 2x I2C, 2x SPI
    • 2x CAN bus
    • PWM
    • JTAG
    • RTC on carrier board
    • PCI-Express Gen 2.0
  • Power supply – 3.7 V DC input; Digital I/O voltage 3.3 V
  • Dimensions – 50 mm x 20 mm x 4.0 mm
  • Temperature range – Commercial (0 to 70°C), Extended (-20 to 70°C), or Industrial(-40 to 85°C)
Block diagram for DART-MX6 Module (Click to Enlarge)
Block diagram for DART-MX6 Module (Click to Enlarge)

The company provides support for the Yocto Project (Daisy with Linux 3.10.x), Ubuntu, and Android 4.4, and documentation and source can be found on DART-MX6 wiki with most links pointing to resources for their VAR-SOM-MX6 module so both are likely to be software compatible.

For evaluation and to speed early development, a development kit called VAR-DVK-DT6 can be used. It is composed of VAR-DT6CustonBoard baseboard populated with DART-MX6, a 7″ LCD display with capacitive touch, and relevant cables and accessories, as well as documentation and design package.

VAR-DT6CustomBoard baseboard with DART-MX6 SoM
VAR-DT6CustomBoard baseboard with DART-MX6 SoM

The baseboard has the following key features:

  • Video / Display – HDMI 1.4 connector, 3-pair 18-bit / 4-pair 24-bit LVDS connector + 6-pin FFC/FPC connector for capacitive touch
  • Audio – 3.5 mm jacks for headphone and Line IN, on-board digital microphone
  • Connectivity – Gigabit Ethernet (RJ45)
  • Storage – micro SD card slot
  • Camera – Serial/MIPI CMOS sensor interface
  • USB – 1x USB host port, 1x USB OTG port
  • Expansion Connectors:
    • 1x PCI express
    • Serial ports – RS232 header, micro USB debug port, 1x CAN bus
    • SPI, I2C
    • UART, PWM, CLK02, DMIC
  • Debugging – JTAG interface
  • Misc – RTC with CR1225 coincell battery, 5 buttons, one boot select switch
  • Power Supply – 5V (power barrel)
  • Dimensions – 11.8 x 8.7 x 2 cm

According to the press release, DART-MX6 and the development kit are available now, but pricing information has not been released publicly. You can request a quote and find documentation only Variscite DART-MX6 SoM and VAR-DT6Customboard pages.
