Allo SPARKY Board Supports Raspberry Pi HATs for Multimedia, IoT and VoIP Applications

Allo is a company based in Bangalore, India specializing in VoIP hardware solutions, but they’ve recently developed a single board board powered by Actions Semi S500 quad core processor that supports various Raspberry Pi HATs and can be used for multimedia, IoT, and Telecom application such as Asterix or Freeswitch PBX.

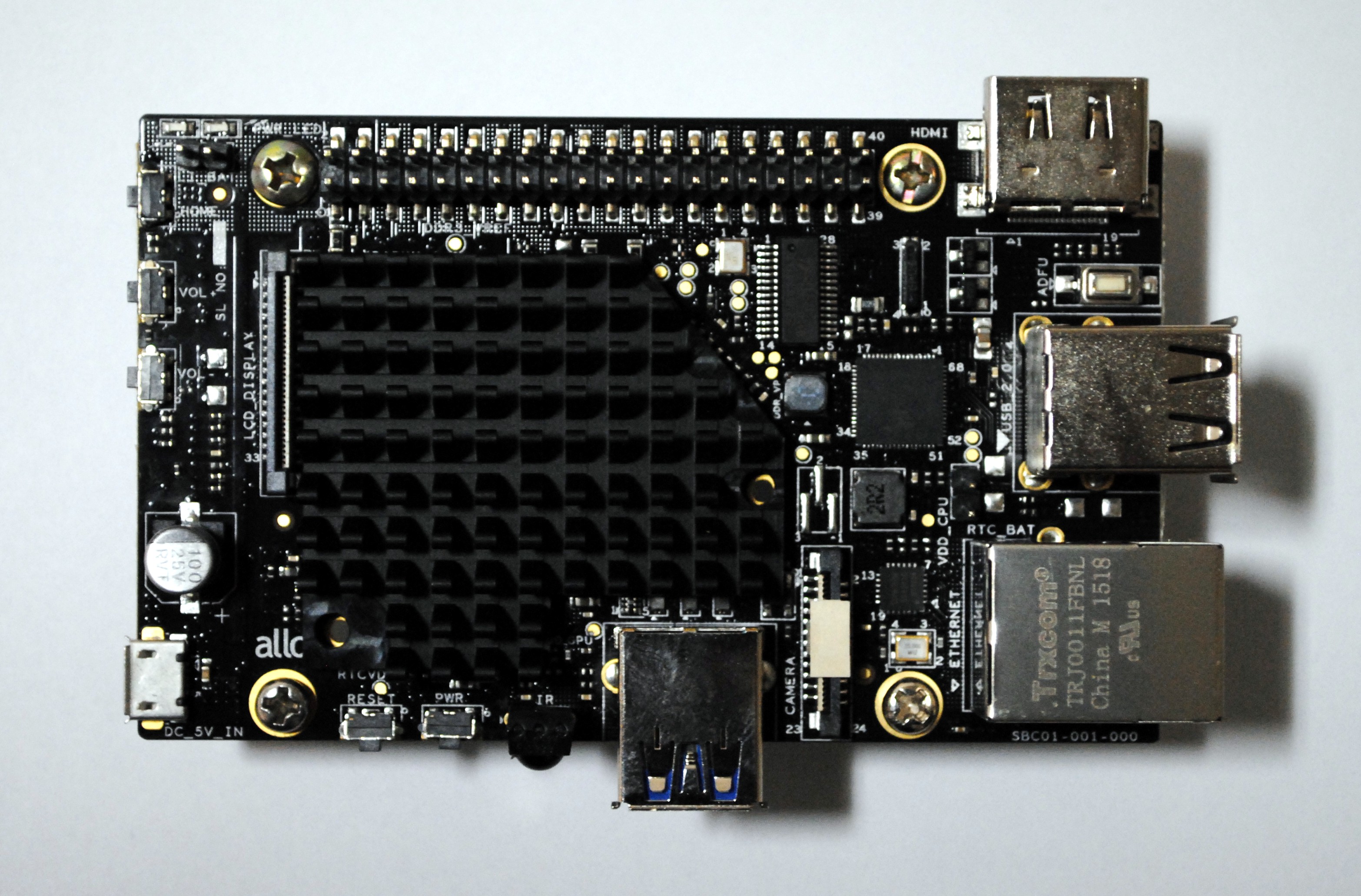

Allo_Sparky
Allo SPARKY board specifications:

  • SoC – Actions Semi S500 quad core Cortex A9r4 processor with PowerVR SGX544 GPU @ 500 MHz
  • Memory – 1 or 2GB RAM
  • Storage – Socket for 8, 16, 32 or 64GB pluggable eMMC modules,  micro SD slot up to 32GB, optional NAND flash
  • Video Output – HDMI,  34-pin LCD connector
  • Audio – HDMI, Headphone jack, built-in microphone
  • Video Codec – H.265 (HEVC) and Ultra HD (4K*2K) video playback. Encoding up to 1080p@60fps.
  • Connectivity – 10/100M Ethernet
  • USB – 2x USB 2.0 host ports, 1x USB 3.0 (OTG) port
  • Camera –  24-pin camera interface (Up to 5MP)
  • Expansion Header
    • 40-pin Raspberry PI compatible header
    • 50-pin Telecom connector
    • UEXT connector for Olimex modules. (But I can’t find it on the pictures…)
  • Misc – IR receiver, 5 buttons: power, reset, vol +/- and home.
  • Power Supply – 5V/1.5A via micro USB port
  • Dimensions – 95x58x16mm
  • Weight – 49 grams

The board is said to support 5 operating systems namely Ubuntu 14, Arch Linux ARM, OpenELEC, Fedora and Android, and various applications have been ported to the board including Rune Audio, Kodi, Squeezebox, openCV, node.js and more.

Sparky with Analog Telecom HAT Board
Sparky with Analog Telecom HAT Board

The company has also developed several HAT compliant add-ons board for the board that can also be used on the latest Raspberry Pi models:

  • TI DAC – Audio board with PCM5122 DAC, TPA3116D2 amplifier, stereo RCA connectors, and a 3.5mm stereo jack
  • Amplifier board – Features hardware to connect left and right speakers, and signals to control volume. 24V DC input
  • PMU DAC & SPDIF connector – Optical S/PDIF, coaxial S/PDIF, TPA6133A2 stereo headphone amplifier that output to RCA, 3.5mm jack, or 2x50W speakers (hardware options)
  • Analog Board (Pictures above) – With for RJ11 ports configurable as FXO or FXS
  • Session Border Controller – Transparent Firewall with SIP Deep Packet Engine supporting up to 50 simultaneous calls. Based on MIPS processor couples with 64MB RAM, 16MB flash.
  • WiFi+Bluetooth+Zigbee – Based on F23BUUM13-W2 module (RTL8723BU) for Wifi and BT, and TI CC2530F256 for Zigbee with three external antennas.
  • USB to Ethernet – USB 3.0 to dual Gigabit Ethernet ports (RJ45) using Ax88179 controller.
  • I/O board – I2C I/O expander (18GPIOs), 40-pin ZIF socket, prototyping area etc..

There are also some other add-on boards that are not HAT compatible such as the eMMC modules which are similar to what ODROID boards are using, a 5MP camera module with autofocus, and a 7″ LCD display (1024×600) with a touchpad.

Allo SPARKY single board computer will become available for less than $40 in two to three months but I could already find it on a website (in German) for 47.60 Euros including VAT. Eventually, more information about SPARK and add-on boards should be found on Allo products page, but in the meantime, you can check out Allo SPARKY brochure with an overview of the board and HAT compatible shields.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

9 Replies to “Allo SPARKY Board Supports Raspberry Pi HATs for Multimedia, IoT and VoIP Applications”

  1. Doesn’t seem that they’ve got any info up on the page. I was very interested in this new set o’ toys they’re supposedly offering (Some projects could use the Sparky, some could use an RPi with their expansion boards…) but can’t find anything on their site.

  2. agree. as i browse their product lineup. no card with 40pin gpio connector. want to try to chat with their support to find some info. but their support page seems to look like unfinished web template. anyway thx for the share. any of you hv experience with this brand ?

  3. Any kernel source tree for Actions Semi?
    That is the first thing we’re always looking for when new embedded linux platform has been come to a market!

  4. They have nothing on their website, the only information they could give me is the product brochure.

    There’s one actions semi 96boards in the works, so the source code should be there already or released a little later.
