Graperain G6818 IBOX Board is Powered by Samsung S5P6818 Octa-core Cortex A53 Processor

Shortly after writing about NanoPi2 development board based on Samsung S5P4418 processor, I checked some other more featured solutions based on the same processor, but made by competitors such as Graperain G4418 IBOX Card Computer or ARMBest Core4418 module. Whiel browsing Shenzhen Graperain Technology website, I discovered another processor by Samsung with S5P6818 octa core Cortex A53 processor found in their G6818 IBOX single board computer.

Graperain_G6818_IBOX

Board specifications:

  • SoC – Samsung S5P6818 octa-core ARM Cortex A53 processor @ 1.4 to 1.6 GHz with Mali-400MP 3D GPU
  • System Memory – 2GB DDR3 up to 800MHz (1GB optional)
  • Storage – 8GB eMMC Flash (16GB optional) + 2x micro SD slot
  • Video Output / Display I/F – micro HDMI and VGA connectors; LCD (RGB), MIPI DSI and LVDS interfaces;
  • Audio – micro HDMI, headphone jack, speaker header;
  • Connectivity – Gigabit Ethernet (RTL8211E), Wifi and Bluetooth 4.0 (Realtek RTL8723BU module)
  • USB – 2x USB 2.0 host ports, 1x micro USB OTG port
  • Camera – BT601, BT656 Camera Interface
  • Expansion
    • 2x 10-pin header with GPIO, SPI, UART, and ADC signals
    • Serial – UART0 for debugging, UART1 TTL levels
  • Misc – IR receiver; power, reset and 2 users buttons;  RTC with battery slot
  • Power
    • 5V DC via power barrel
    • 2-pin battery header for 4.2V lithium battery
    • AXP228 PMIC
  • Dimensions – 100 x 68 mm

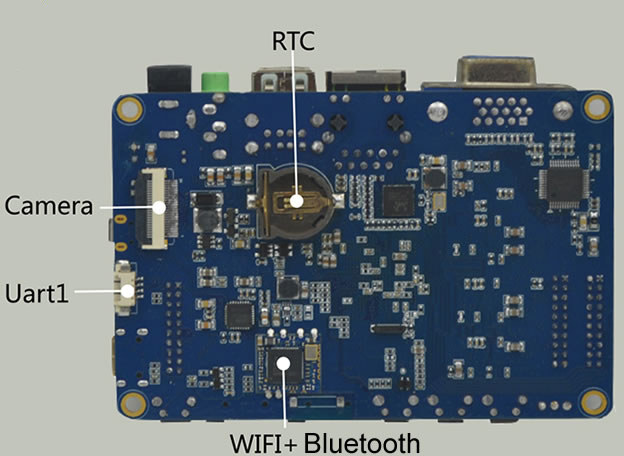

S5P6818_BoardThe company can offer 4.3″, 5″, 7″, 10.1″, 11.6″ and 15.6″ capacitive displays working with the board. There’s no information about software at all on their website, but we can probably assume it will run Linux and Android like it’s little brother S5P4418 [Update: I’ve been informed the board supports Android, Linux 3.4.39 + Qt, and Ubuntu]. Information about S5P6818 is also sparse, but the company also mentioned a system-on-module and baseboard on ARM community website,  where we get at least a block diagram.

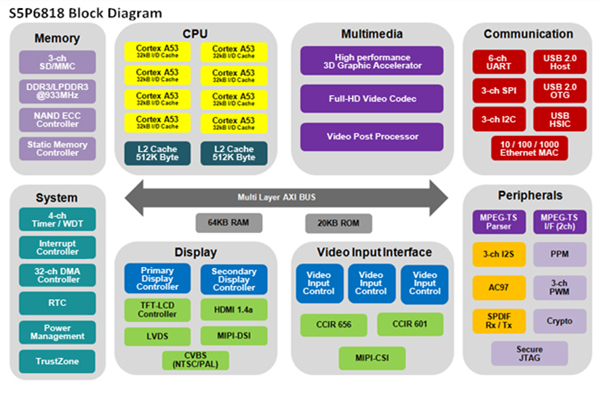

S5P6818_Block_DiagramThe company also claims S5P6818 processor is pin-to-pin compatible with S5P4418, which is conceivable since both are available in a 17×17 mm 513-pin FCBGA package according to informations on Nexell website. That means NanoPi2 could also have an S5P6818 version soon too (NanoPi3?).

I don’t have any details about pricing or availability for the Graperain board, but you can find a few more details on the company’s G6818 IBOX Card Computer page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

9 Replies to “Graperain G6818 IBOX Board is Powered by Samsung S5P6818 Octa-core Cortex A53 Processor”

  1. @Hoang Dinh
    Based on @robert link which has nice comparison tables, it’s a Mali-400(MP?) GPU.

    I don’t understand the prices clearly. I can see it to be 1,999 RMB (~$315), but there’s a table with some discounts (apparently) listing it at 799 RMB ($126).

    They’ve run the thing at -40C and +80C, so it should be an industrial grade board.

  2. “The company also claims S5P6818 processor is pin-to-pin compatible with S5P4418, which is conceivable since both are available in a 17×17 mm 513-pin FCBGA package”

    I can not see any direct connection between having the same FCBGA package and being pin-compatible…. unless you are using it to only execute 32-bit code ??

  3. seems like a real nice SOC at 28nm for big and efficient audio cpu computations ( with 3 I2S out also) . sad that the board does not seem to route these 3 audio output pairs .
