MINI MX 4K Android Media Player Unboxing and Teardown

November 23rd, 2015 Leave a comment Go to comments

I received my first Amlogic S905 TV box last week with K1 Plus, and although I have not reviewed it yet due to some issues with Google Play, I’ve run some benchmarks on the Amlogic S905 platform, which some people mentioning that results could have been impacted by the small heatsink leading to CPU throttling. The good news is that I know have a new Amlogic SD905 TV Box to play with as GearBest sent me Beelink MINI MX TV box. Today, I’ll take a few photos of the device and the board, before hopefully publishing the full review early next week.

I received the package via DHL, and thanks to its low price I did not have to pay custom duties or VAT.

Beelink_MINI_MX_Package
The package does not show any specific brand, only Mini MX 4K Movies products, as well as the specifications on the back.

Beelink MINI MX and Accessories (Click to Enlarge)

Beelink MINI MX and Accessories (Click to Enlarge)

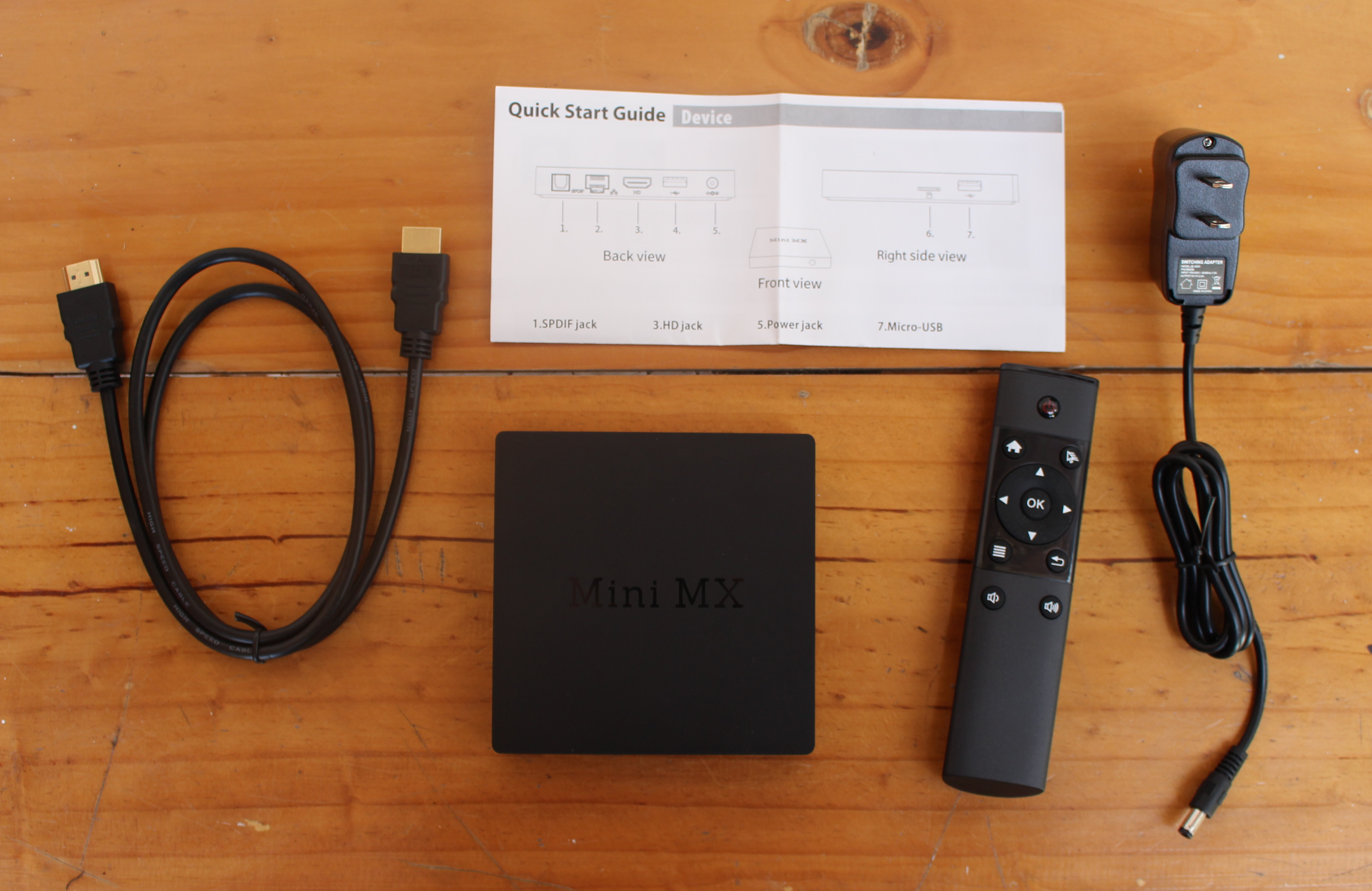

The box ships with a 5V/2A power adapter, a simple IR remote control requiring two AAA batteries, an HDMI cable, and a quick start guide in English.

Click to Enlarge

Click to Enlarge

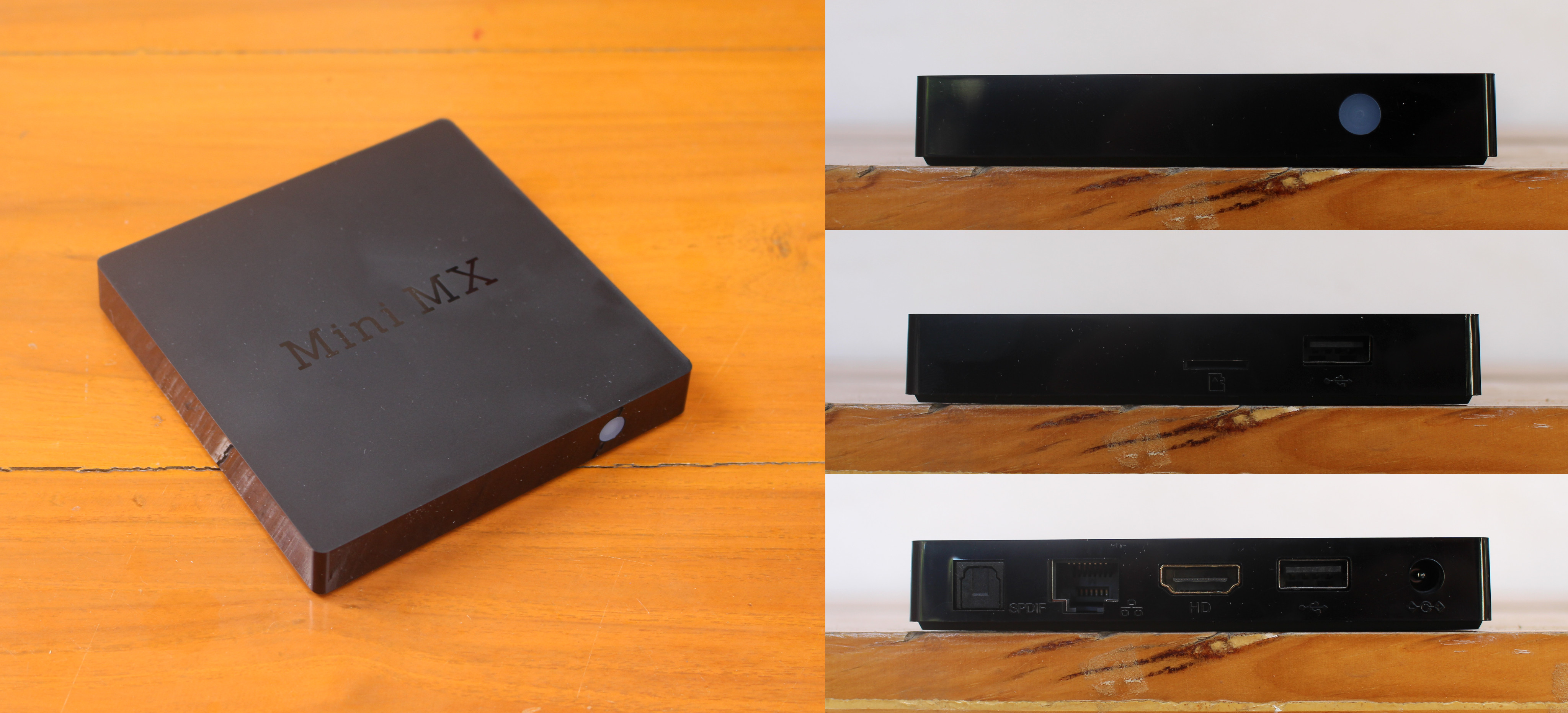

The device is quite thinner than some of the other TV boxes I’ve reviewed recently. The front panel has a small circular window for the power LED, while one of the side comes with a micro SD slot, and a USB port. The main ports can be found in the rear panel with an optical S/PDIF port, Gigabit Ethernet RJ45 connector, HDMI 2.0 output, , another USB 2.0 host port, and the power jack.

There aren’t any screws holding the two parts of the case together, so you need some rigid and sharp plastic tool to pop up the parts.
Beelink_MINI_MX_Heatsink

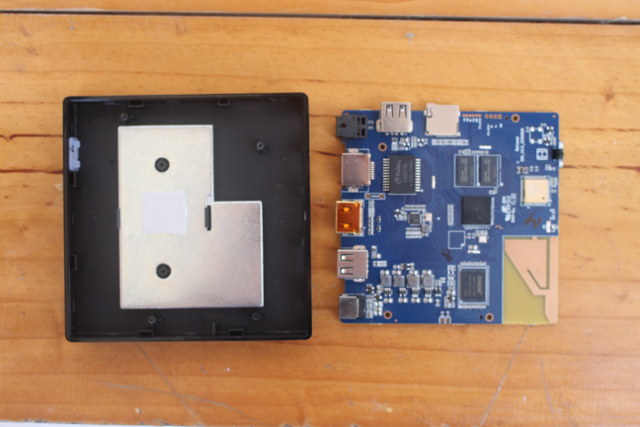

The WiFi antenna is on the board itself, so I had nothing to break this time.., and there’s no heatsink on the processor, but instead heat dissipation is done via a themal pad glued to a metallic plate fastened to the top of the case, which should provide better cooling than the tiny heatsink found in VideoStrong K1 Plus.

Click to Enlarge

Click to Enlarge

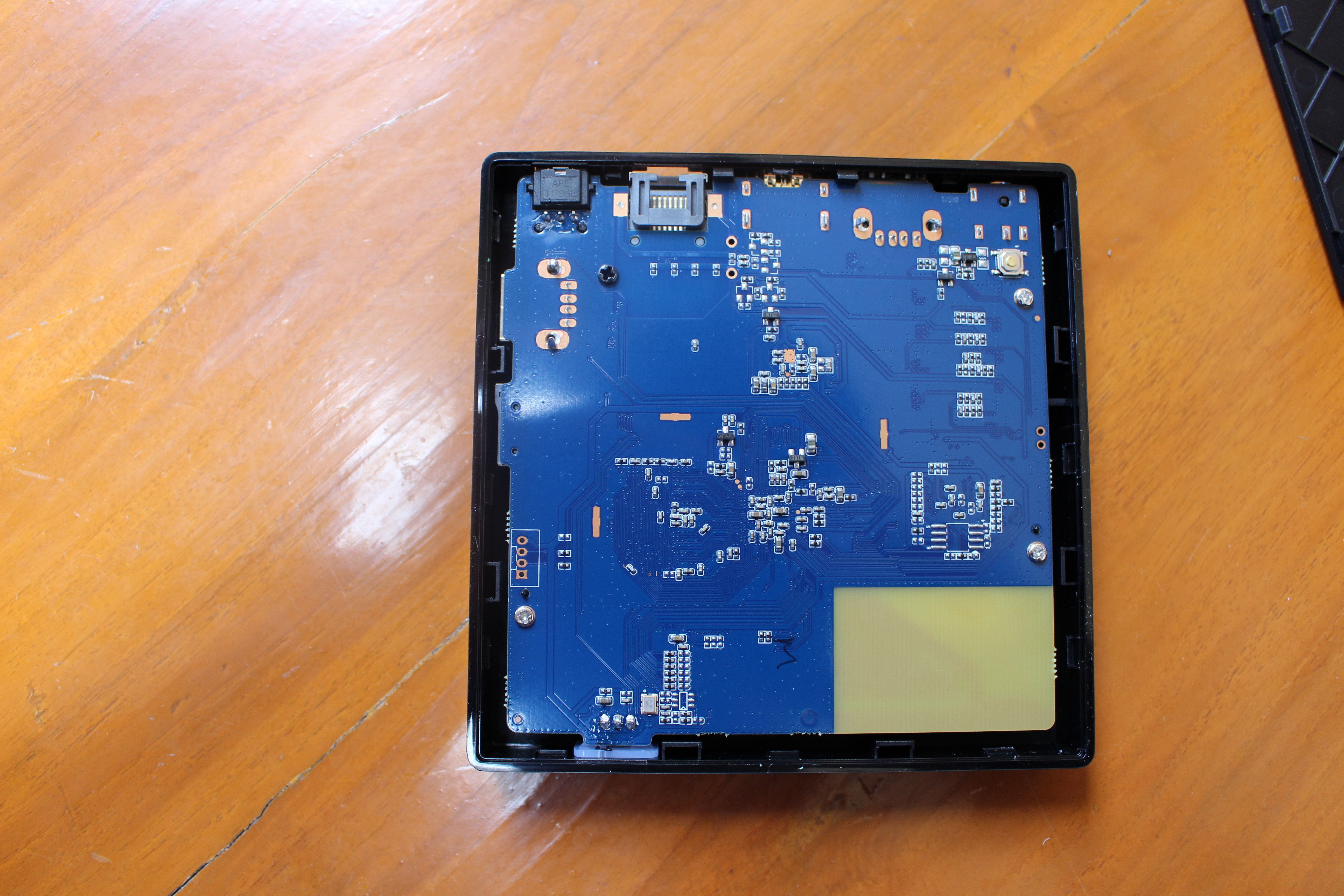

The back of the board has nothing much, expect the recovery/firmware update button on the top right of the picture, and a 4-pin header for the serial console, on the right side.

Click to Enlarge

Click to Enlarge

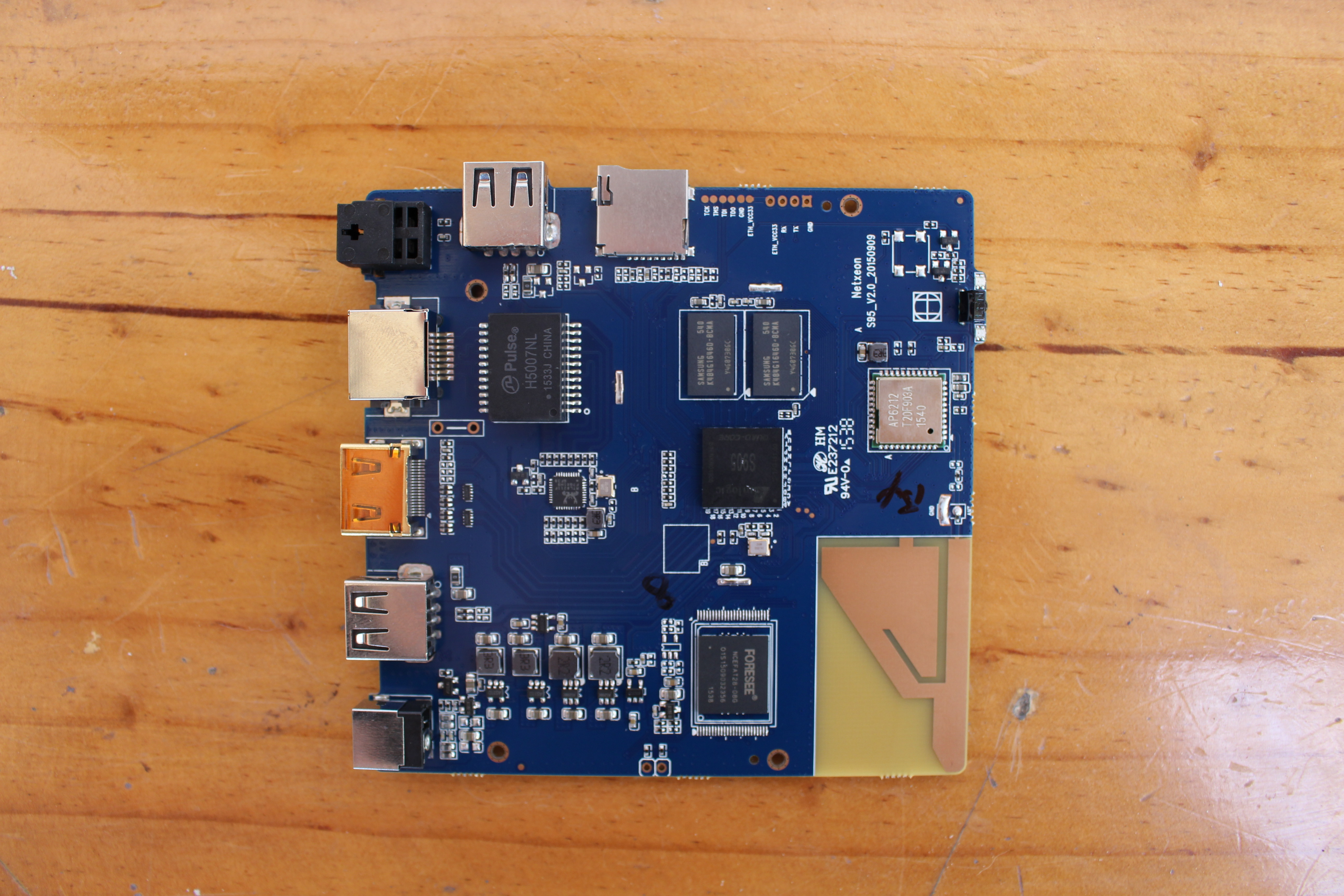

Since they own Beelink brand, it’s no surprise to reading the board was made by Netxeon, with the board name reading S95_V2.0_20150909. Two Samsung K4B4G1646D-BCMA DDR3 chips bring 1GB RAM to the device, while FORESEE NCEFAT28-08G NAND? flash takes care of the 8GB internal storage. Ampak AP6212 wireless module adds Bluetooth 4.0 and 2.4GHz WiFi 802.11 b/g/n to the device, and Pulse H5007NL magnetics and Reatek RTL8211F Ethernet transceiver confirm Gigabit Ethernet support.  Beside the 4-pin serial console header, there are also 6 solder points to connect a JTAG debugger.

I’d like to thank GearBest for sending a review sample. If you are interested, you could purchase Beelink MINI MX from their website for just $40.79 including shipping with BEELL coupon. Alternative shopping options include GeekBuying ($44.99), eBay, Amazon US ($55), and a few others.

  1. Loïc
    November 23rd, 2015 at 17:15 | #1

    Hello, I don’t know, but for me it seem to be a very good design. The housing desing is also very nice. With usb and Spdif on back. Hope HDMI will be HDMI2 and Kodi will run fluently. Does this box be a good upgrade from a Chromebox with Intel 2955U and Openelec? I want to have the ability to start the device with the remote control

  2. TheLegendOfMart
    November 23rd, 2015 at 17:21 | #2

    This is the box that I’ve had my eye on since I bricked my S805.

    Will you be reviewing it at all?

  3. November 23rd, 2015 at 17:25 | #3

    @TheLegendOfMart
    As long as they are no road blockers in the firmware I’ll review it, as I normally review all the devices I receive.

  4. November 23rd, 2015 at 18:59 | #4

    @Loïc
    Compared to a Chromebox with Intel 2955U, it looks like a downgrade to me :), unless you absolutely need 2160p @ 60 Hz.

  5. Tony
    November 23rd, 2015 at 19:51 | #5

    I badly need to order a S905 box
    For me it will be this one Mini MX or K1 plus.
    Waiting for both reviews, so will let @cnxsoft decide 🙂

    Ordering 4 by the way, so hope one of these will be of acceptable quality..

  6. Bobby Ricky
    November 24th, 2015 at 05:48 | #6

    So are these devices suffering from a hardware or firmware bug/missing feature in S905? Any news on this? Do you still recommend to hold off on purchases of S905?

  7. Paul Taraneh
    November 24th, 2015 at 05:53 | #7

    Same box as “beelink” x2 , i guess we now know who made that one (netxeon)

  8. November 24th, 2015 at 09:37 | #8
  9. November 24th, 2015 at 16:47 | #9

    Ordered two of these from GB but still awaiting delivery, really excited to see more info/review… I ordered knowing nothing about these boxes and have now a good unerstanding of the niche,! Please, more info/review!!

  10. Adrian Zanoli
    November 25th, 2015 at 06:12 | #10

    there is an on/off switch?

  11. trentbg
    November 25th, 2015 at 22:05 | #11

    @cnxsoft Good that you got this already, I ordered mine more than 10 days a go and is not even shipped yet.
    Since you mentioned issues before (probably around the HDCP 2.2 certification) can you please advise if those were addressed and this will be the final, problem free version of the device. I would really hate if I have to send it back for replacement of a potential new box in a month? Thank you.

  12. November 26th, 2015 at 09:10 | #12

    trentbg- also here still not shipped! It’s been over 2 weeks for me (GB)!

  13. November 26th, 2015 at 13:01 | #13

    @asht
    just shipped today! Exciting!

  14. Jim
    November 28th, 2015 at 08:00 | #14

    @Adrian Zanoli

    No. The device turns on once it gets power. You can then turn it off trough the os or (afaik to standby) with the remote. In case you lose the remote and want to turn it on the only way afaik is a power cyle.

  15. trentbg
    November 28th, 2015 at 09:39 | #15

    @asht
    Funny, I guess yours and mine both got shipped at the same time. I still hope that DRM issue will be addressed somehow in the future, its the last thing to made it a perfect device.

  16. eugene28
    December 2nd, 2015 at 01:24 | #16

    When you gonna publish playback review? Interested to know if DTS and DOLBY supported like in Xiaomi 3 Mi box based on same s905 chipset.

  17. December 2nd, 2015 at 09:32 | #17

    @eugene28
    If everything goes smoothly, I hope to publish it this week-end.

  18. hxm
    December 3rd, 2015 at 01:33 | #18

    I ordered that box. Hope it has the dts inside. Can’t wait until this weekend for your review ;).

  19. December 3rd, 2015 at 09:34 | #19

    @hxm
    No DTS support for PCM output (except in Kodi, but video decoding is not working well right now).
    DTS via HDMI or optical out to AV receiver does work however.

  20. unixos
    December 5th, 2015 at 09:56 | #20

    Could you share the way in you install linux on this device?

  21. December 6th, 2015 at 20:11 | #21

    @unixos
    That’s how you install Linux on MINI MX for now: http://www.cnx-software.com/2015/12/06/how-to-run-headless-linux-on-amlogic-s905-devices-such-as-mini-mx-or-k1-plus/

    It should get simpler overtime, if people get involved.
