Axiomtek ICO310 Din-rail Industrial IoT Gateway Supports Power over Ethernet (PoE)

Axiomtek ICO310 is a din-rail IIoT (Industrial IoT) embedded platform powered by Intel Celeron Braswell processors supporting up to 8GB RAM, PoE, and featuring two Gigabit LAN ports, RS-232/422/485 ports, USB 2.0 & USB 3.0 ports, one VGA port, and one DIO interface. It also support mSATA and SATA drives, and wireless module via mPCIe interfaces. Target applications include smart energy, smart factory automation, facility monitoring systems and more.

IIoT_Gateway_PoE

Axiomtek ICO310 Specifications:

  • SoC
    • Intel Celeron N3060 dual core processor @ 1.6GHz / 2.48 GHz (Turbo) with Intel HD graphics 400 with 12EU @ 320/600 MHz OR
    • Intel Celeron N3160 quad core processor @ 1.6GHz / 2.24 GHz (Turbo) with Intel HD graphics 400 with 12EU @ 320/640 MHz
  • System Memory – 204-pin SO-DIMM DDR3L-1600 socket up to 8 GB
  • Storage – 1 x mSATA,  1x SATA SSD (or HDD)
  • Video Output – VGA
  • Connectivity
    • 2x 10/100/1000Mbps Ethernet, including 1x PoE PD compliant with 802.3at standard (LAN 1)
    • 2x full size mini card slot for WiFi, 3G or LTE (one shared with mSATA)
    • 1x SIM socket
    • 3x antenna connectors
  • USB – 2x USB 2.0 ports, 2x USB 3.0 ports
  • Serial ports – 2 x RS-232/422/485 (COM 1/2) with DB9 connectors
  • Expansion – 1 x DIO DB9 8-bit programming connector (5V)
  • Misc – RTC with on-board battery, Watchdog Timer, Power, Activity, and COM ports LEDs
  • Power Supply
    • 12-24V (2.09-1.09A) via DC terminal block
    • PoE IEEE 802.3at
  • Dimensions – 155 x 110 x 48 mm (extruded aluminum and heavy-duty steel)
  • Weight – 1 to 1.5 kg
  • IP Rating –  IP40
  • Temperature Range – Operating: -20°C ~ +60°C ; storage: -40°C ~ +85°C
  • Relative Humidity – 10% ~ 95%
  • Vibration – 2g @ 5 ~ 500Hz, amplitude 0.35 mm
  • Certifications – CE, FCC

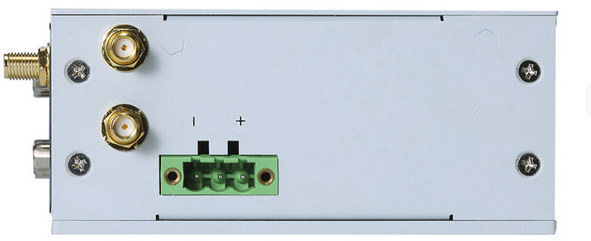

IoT_Gateway_DIO_ModBus

The IIoT computer comes with either Din-rail or  Wall mounting, and supports Windows 7 Embedded, Windows 8 Embedded, Windows 8/10, and the company can also provide a Linux BSP. The gateway can be managed with AXView 2.0 “intelligent remote management solution for IoT” and gathers data from sensors and other devices using SNMP, MQTT, or Modbus.

Solar_System_Gateway
IIoT Gateway Solar System with Axiomtek Gateway

Axiomtek ICO310 appears to be available now at an undisclosed price. More details can be found on the product page and press release.
