BBC Micro:Bit Board is Now Getting into the Hands of British Students

After several delays, BBC is now giving free Micro:Bit Bluetooth LE enabled boards to UK students with the goal of getting them interested in coding and electronics in a way that’s even easier and cheaper than using a Raspberry Pi board.

Micro-bit-board-description
Click to Enlarge

Micro:bit specifications:

  • MCU – Nordic nRF51822 Bluetooth SoC based on Cortex M0 core @ 16MHz with 16KB RAM
  • 2x user buttons, 1x reset button
  • 25x red user LEDs  in a 5×5 matrix
  • Connectivity – Bluetooth LE
  • Sensors – Compass, magnetometer, accelerometer
  • USB – 1x micro USB port for port and programming
  • Expansion – 20-pin edge connector, 5x “rings” for 3V, GND, and 3 digital/analog I/Os
  • Power – 5V via USB or battery port to connect two AAA batteries
  • Dimensions – 4cm x 5cm

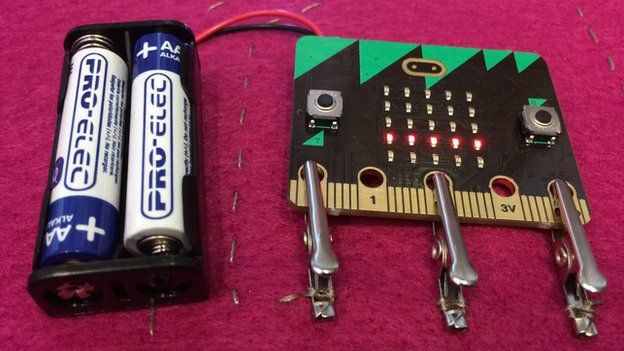

There are four ways to “code” the board: Code Kingdoms JavaScript  graphical ‘drag and drop’ and text-based programming, Microsoft Block Editor graphical, drag and drop code editor, Microsoft Touch Developer text-based programming language, and Python. I was unclear on how they’d use the rings, until I found this picture showing crocodile clips connected to the board, and Kitronic has made add-ons boards and kits using the 20-pin edge connector.

Micro-bit_crocodile_batteryThere’s currently now way to buy one of those yourself, but if you have kids in the UK, the BBC is giving the board directly to young students, i.e. they don’t belong to the schools, so you might be able to play with it at home. According to BBC News, some people have complained that the board can come to late for teachers to integrate them in the curriculum before the end of the school year, so we’ll have to see how it turns out. Some projects have already been showcased with a school sending a micro:bit at the edge of space.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
flojo
flojo
8 years ago

… and Espruino Java Script, including an IDE connected over Web Bluetooth:

http://www.espruino.com/MicroBit

baoboa
baoboa
8 years ago

@Zoobab
impressive that they can squeeze it in 16KB of RAM
but they have to flash the runtime and the python script each time (uflash).

nRF51822 have 128kB flash + 16kB RAM

deets
deets
8 years ago

Do banana plugs also fit in the holes? Oshw? Any clones? Are the ide licenses tied to a hardware id?

deets
deets
8 years ago

@baoboa
Why? Can’t you just send the script to the runtime and have it self-program reserved flash pages?

zoobab
8 years ago

This SOC has some breakout boards on Aliexpress for 6usd.

They are not the same as the microbit, but they could be a good start to make an open hardware clone of the microbit.

theguyuk
theguyuk
5 years ago

Seems popular “Farnell element.14 has begun to ship 65,000 micro:bit computers to schools in Denmark as part of an order from Boarding on behalf of the Danish Broadcasting Corporation.

The three-year ‘ultra:bit’ programme, will use the micro:bit in the classroom to help transform Danish Year 4 students from passive technology consumers to digital pioneers.”
