$99 MATRIX Creator Raspberry Pi Add-on Board Features Plenty of Sensors, a 2.4 GHz Radio, and More

MATRIX Creator is a round-shaped add-on board for Raspberry Pi boards with various sensors, a microphone array, an LED array, a Xilinx FPGA, an Atmel Cortex-M3 MCU, wireless connectivity via Z-Wave, ZigBee, Thread, and NFC, as well as various I/Os….

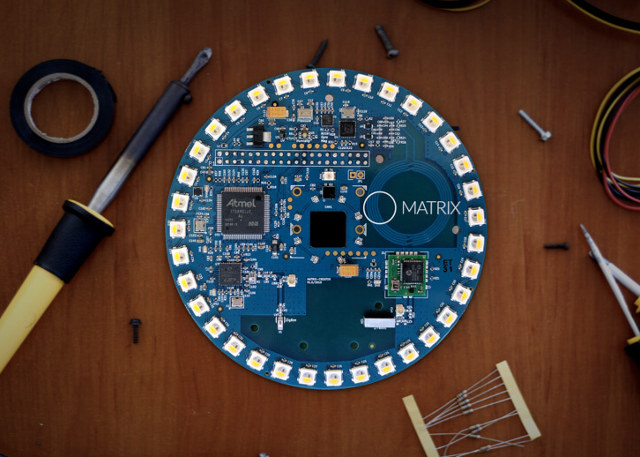

MATRIX_CreatorMATRIX Creator specifications:

  • FPGA – Xilinx Spartan 6 FPGA
  • MCU – Atmel ATSAM3S2C Cortex-M3 MCU
  • Connectivity – ZigBee, Thread, Z-Wave and NFC
  • Sensors – Ultraviolet, pressure, humidity, temperature, 3D accelerometer, 3D gyroscope, 3D magnetometer
  • Audio – 8x MEMs microphone array with Alexa support
  • Expansion – 2x ADC, 17x digital GPIOs, SPI, I2C, UART; 40-pin connector for Raspberry Pi 2/3
  • Misc – 35x RGBW LEDs array, IR Rx/Tx, infrared ring for the Raspberry Pi NoIR camera

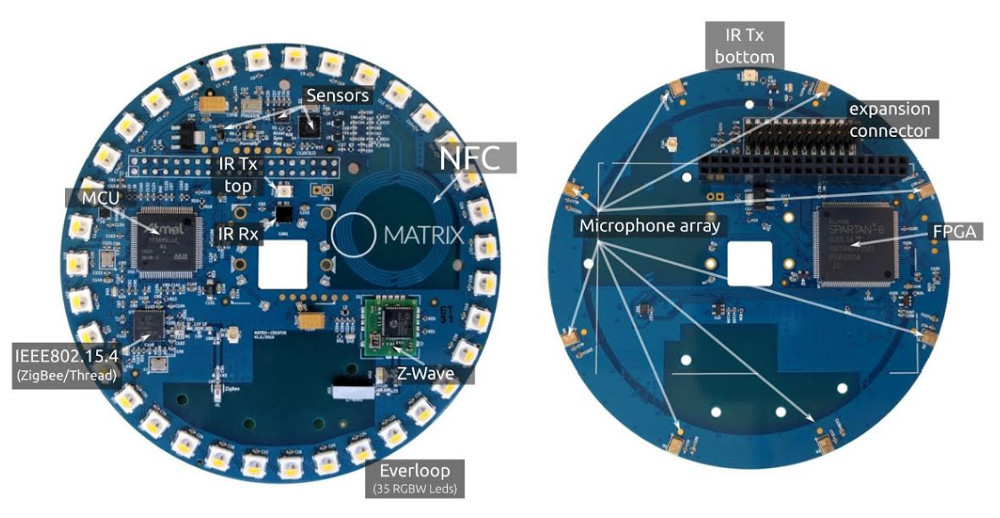

Click to Enlarge

Click to Enlarge

I can’t think of the single application that would make use of all features of this board, but the least we can say is that it’s extremely versatile. The developers are providing MATRIX OS based on Linux to run on the Raspberry Pi board including necessary drivers and some samples, as well as MATRIX CLI and MATRIX CV, to respectively manage multiple Raspberry Pi boards and develop computer vision applications.

Documentation has not been made public yet, but the Wiki is scheduled to be up and running on, or before, July 15th, the date when the board will start shipping. In the meantime, some Raspberry Pi 3 based demos are showcased on their website including including a self-balancing robot, a gesture triggered IR transmitter, a face tracking app, and one demo showing the compass driving LEDs.

The board can be pre-ordered for $99 plus shipping.

Via HackerBoards and Harley.
