Nuvoton NUC970 ARM9 Microprocessor Gets Mainline Linux Support

As I checked out the latest email on the ARM Linux kernel mailing list, one thread somehow caught my attention: “[PATCH v2 00/10] ARM: NUC900: Add NUC970 SoC support” with the following introduction:

This patch series added Nuvoton new SoC NUC970 development board support, this nuc970 belongs to nuc900 series, but many features are not compatible with old nuc900 SoCs like nuc910, nuc920.

I could not quite remember ever having heard about Nuvoton, and it turns out it’s a fairly recent Taiwan company, founded in 2008 as a spinoff and fully own subsidiary of the better known Winbond Electronics. Their website shows ARM Cortex M0/M4 & 8051 micro-controllers, as well as ARM7 and ARM9 micro-processors, and some other application specific audio and video SoCs. But when I checked for MUC970 I could not find anything on their website, even in NUC900 series page.

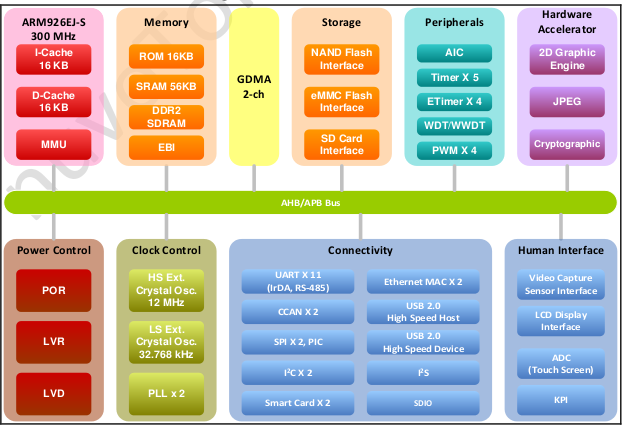

Nuvotron_NUC970_BLock_DiagramBut Google came to the rescue and I found NUC970 datasheet and hardware development guide providing more insights into the processor.

Nuvoton NUC970 key features and specifications:

  • Core – ARM ARM926EJ-STM processor core @ up to 300 MHz with 16 KB I-cache, 16 KB D-cache, MMU and JTAG interface
  • Embedded SRAM and ROM – Supports 56KB SRAM, 16KB Internal Boot ROM (IBR)
  • Memory & storage I/F
    • External Bus Interface (EBI) for 8/19-bit SRAM and external I/O devices
    • DDR SDRAM Controller supporting 16-bit DDR2 up to 150 MHz
    • Flash Memory Interface – 8-bit NAND flash, eMMC flash
  • Booting modes – USB, eMMC, NAND Flash, SPI Flash
  • Ethernet MAC Controller – Up to 2x 10/100M Ethernet MAC controllers with Wake-on-LAN, DMA support
  • USB 2.0 Controller – 1x USB 2.0 High-Speed (HS) device/host,  1x USB 2.0 HS host
  • I2S Controller – I2S and PCM interfaces
  • LCD display controller – 8/9/16/18/24-bit data to connect with 80/68 series MPU type LCD module up to 1024×768 resolution
  • Capture (CMOS Sensor Interface) – CCIR601 & CCIR656 interfaces up to 3 megapixels
  • 2D Graphic Engine
  • JPEG Codec
  • Security
    • Crypto Engine with PRNG, 64-bit, 128-bit, 192-bit and 256-bit key generation, DES, 3DES, AES, SHA/HMAC
    • MTP supporting 256-bit programmable memory for key of Crypto functionality
  • GDMA (General DMA) – 2x channels GDMA for memory-to-memory data transfer without CPU intervention
  • Peripherals
    • GPIOs
    • Up to 11x UART
    • CAN protocol version 2.0 part A and B up to 1Mbit/s
    • Up to 2x SPI controllers, up to 2x I2C controllers
    • Up to 8-ch 12-bit SAR ADC with 1M/200K SPS
    • KPI – Matrix keyboard interface
    • Smart Card Host (SC) compliant with ISO-7816-3 (up to 2x ports)
    • Up to 2x 16-bit PWM generators providing 4x PWM outputs
    • 5x sets of 32-bit timers with 24-bit up-timer and one 8-bit pre-scale counter
    • 4x sets of 32-bit “Enhanced” timers with 24-bit up-timer and one 8-bit pre-scale counter with external pin capture
    • Advanced Interrupt Controller – Support 58 interrupt sources, including 8 external interrupt sources
    • Watchdog Timer
    • Windowed-Watchdog Timer
    • Real Time Clock (RTC)
  • Power Management
    • Power Down, Deep Standby, CPU Standby and Normal Operating modes
    • Operating Voltage – 1.2V for core logic, 1.8V for DDR2 SDRAM I/O,  3.3V for normal I/O
  • Operating Temperature – -40°C~85°C
  • Packages – LQFP 216-pin, LQFP 128-pin

Nuvoton NUC970 is a family of general purpose micro-controllers, with exact part numbers starting with NUC972, NUC973, NUC976, and NUC977. Beside mainline support, which may or may not be complete at this stage, Nuvoton also released a Linux 3.10 + u-boot BSP on Github. Sadly I was not able to find any documentation or pictures about the development board itself.

Anyway, it was still interesting to find out about this company, their micro-controllers and micro-processors, and they might be an option if you have commercial projects in mind requiring this type of platform.

  1. RK
    July 11th, 2016 at 20:30 | #1

    Looks made specifically for the new crypro industrial touch-screen pin entry-panels.

  2. July 12th, 2016 at 03:20 | #2

    My first reaction is “2005 called, they want their CPU back”. Seriously, more recent cores offer lower power consumption, better performance, and richer peripherals. Even DDR2 RAM must be getting a bit hard to get hold of. What is the market for this sort of chip?

  3. sinister
    July 12th, 2016 at 04:58 | #3

    IMO the most interesting part about these chips is that they come with integrated RAM. This arguably makes this SoC the most cost-effective option in its market segment.

    evodbg.com has recently made SOM based on NUC972 in SODIMM form-factor:
    http://goo.gl/gmpbuo (sorry, the link is in Russian only)

    Bonus point: it looks like NUC97x is the most recent SoC you can solder by hand. The former holder of the title was Freescale i.mx233 which will only be produced till 2019
