Rockchip RV1108 Cortex A7 + DSP SoC is Made for Audio & Video Conference and Recording Applications

[Update May 2017: Rockchip has renamed RK1108 to RV1108.]

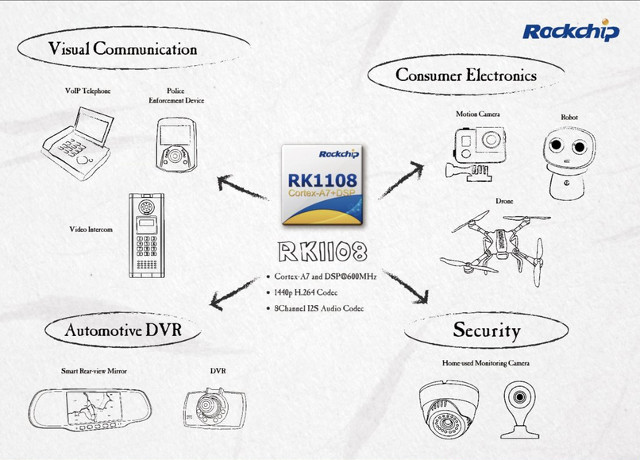

Rockchip has introduced RV1108 ARM Cortex A7 SoC with a 600 MHz DSP targeting visual communication, consumer electronics, automotive DVR, and security applications thanks to its 8-channel I2S audio codec and 1440p H.264 video encoder and decoder.

rockchip-rk1108Detailed specifications can be found on the official Rockchip Wiki:

  • CPU – Single-core ARM Cortex-A7 Core processor with NEON and FPU,  32KB/32KB L1 I-Cache/D-Cache, Unified 128KB L2 Cache, and Trustzone
  • Video/Image DSP – Up to 600 MHz, 32KB I-TCM and 32KB I-cache, 128KB D-TCM
  • Memory
    • 12KB internal SRAM
    • DDR3/DDR3L interface – 16 Bits data width, 1 ranks (chip selects), up to 512 MB RAM
    • NAND Flash Interface – 8-bit async NAND flash, 16-bit hardware ECC
    • eMMC Interface – Compatible with standard iNAND interface, eMMC 4.51 standard.
    • SD/MMC Interface – Compatible with SD 3.0, MMC 4.41
  • System Component
    • 2x 64-bit timers with interrupt-based operation
    • 8x PWMs with interrupt-based operation
    • WatchDog timer
  • Video
    • Video decoder of H.264 up to HP level 5.0; 1440p@30fps (2560×1440) max
    • Video encoder for H.264 up to HP level4.2
  • JPEG decoder and encoder up to respectively 8176×8176 and 8192×8192
  • Display
    • 10-bit DAC TV encoder up to 480i/576i (CVBS)
    • HDMI 1.4 up to 1080p60
    • 4-lane MIPI DSI interface up to 720p @ 60fps.
  • Camera interface – Up to 5M pixels, 8-bit BT656 (PAL/NTSC), 16-bit BT601, and 8-/10-/12-bit raw data interfaces
  • Audio
    • Codec – 24-bit DAC with Line-out, up to 96 KHz sampling rate, mono, stereo, and 5.1 audio support.
    • I2S0 with 8 channels – I2S0/I2S1 supports up to 8 channels (8xTX, 8xRX);
    • I2S1/I2S2 (PCM) with 2 channels – Up to 2 channels (2xTX, 2xRX) ; 16- to 32-bit audio resolution; up to 192KHz sample rate
  • Peripherals
    • SDIO 3.0 interface
    • GMAC 10/100M Ethernet Controller
    • 1x SPI Controller, 1x SFC, 3x UART controllers, 4x I2C controllers
    • 3x USB 2.0 host interfaces
    • 1x USB 2.0 OTG interface up to 480Mbps
  • Misc
    • Temperature Sensor (TS-ADC) – 10-bits ADC up to 50KS/s. -40~125C temperature range and 5C temperature resolution
    • SAR-ADC (Successive Approximation Register) – 10-bit ADC up to 1MS/s. 6 single-ended input channels. Current consumption: 0.5mA @ 1MS/s
    • eFuse –  2x 256-bit (32×8) high-density electrical fuses
Rockchip RK1108 Development Board (EVB)
Rockchip RK1108 Development Board (EVB)

There’s no much more information at this stage, and beside the evaluation board shown above, I could not find devices based on Rockchip RV1108 processor yet. Some code has been pushed to GeekboxZone Linux kernel repo in Github.

The company also unveiled Rockchip PX5 octa-core Cortex A53 processor for automotive applications with support for ADAS algorithms, and 4K60 video decoding, but there’s even less information than for RV1108 so far.

Via Rockchip Twitter account.
