Explore M3 Board based on NXP LPC1768 Cortex M3 MCU Comes with Lots of Tutorials (Crowdfunding)

September 12th, 2016 Leave a comment Go to comments

Explore M3 is an ARM Cortex M3 development board powered by a micro USB port, with plenty of I/Os, Arduino compatible, and the developers have also written many tutorials to help people getting started as fast and easily as possible. A starter kit with cables and sensors is also available with the board.

explore-m3

Specifications:

  • MCU – NXP LPC1768 ARM Cortex M3 @ up to 100MHz with 512KB flash, 64KB RAM,
  • USB – 1x micro USB 2.0 OTG port for programming and power
  • Expansion Headers – 2x 20-pin male headers + 8-pin unpopulated header with 38x GPIOs, 4x UARTs, 2x CAN, 2x SPI, 2x I2C, 6x PWM, 5x ADC, 1x DAC, 2x interrupt pins, I2S audio, and power signal
  • Debugging – JTAG/SWD Debug connector
  • Misc – USB boot and reset buttons
  • Dimensions – 55mm x 25mm

The hardware is somewhat similar to mbed LPC1768 board but with a few more I/Os. The breadboard friendly board can be programmed with the Arduino IDE, but you can also go “bare metal” using ARM-GCC and Ellipse, or other tool chains like Keil or Co-IDE. Alternatively, the board also support FreeRTOS real-time OS. You can find close to 50 tutorials for all three programming options on ExplorerEmbedded Wiki, and some source code is also available on Github.

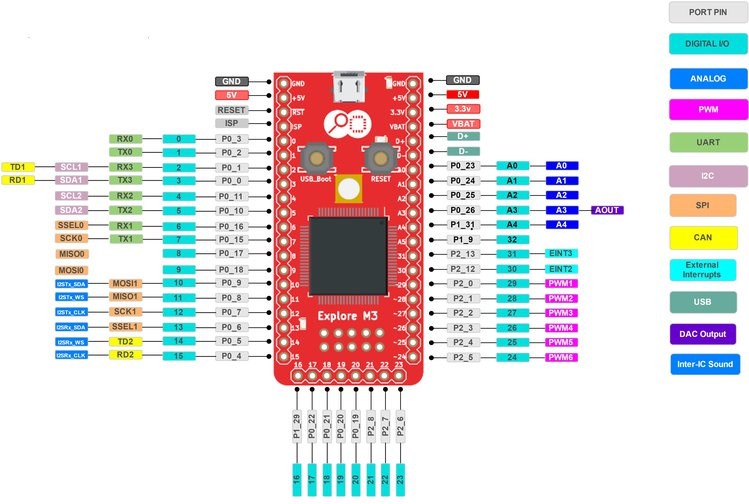

explore-m3-pinoutExplorer M3 developers are now raising funds via CrowdSupply to help reducing price for mass production. A $19 pledge should get your the board, but for bare metal programming you may want to add $20 for SODA SWD debug adapter, if you don’t already have your own programmer, and the starter kit goes for $49 with various other accessories. Shipping is free, and delivery is planned for mid November.
