SmartHomy Hybrid TV Box with DTV Tuner Triples as a Game Console & Home Automation Gateway (Crowdfunding)

December 26th, 2016 Leave a comment Go to comments

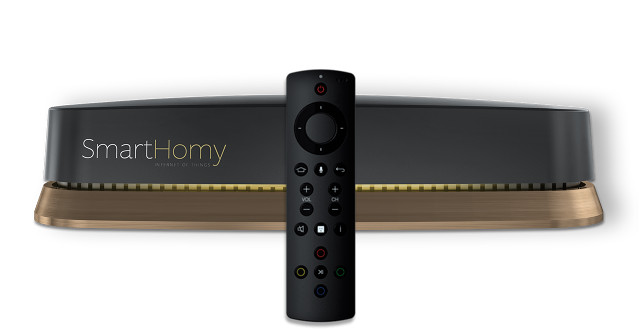

SmartHomy Homy Player is a TV box running Android TV that includes an ATSC, DVB-T2/C,DVB-S2, or ISDB-T tuner, is said to be powerful enough to be used as a 3D gaming platform, and serves as a security system and home automation gateway using Z-Wave, Bluetooth, WiFi and IR blaster to control your things.

smart-homyHomy player specifications [Updated on January 19th, 2017]:

  • SoC – Amlogic S912 octa-core Cortex A53 processor with Mali T820MP3 GPU
  • System Memory – 3 GB DDR3
  • Storage – 32 GB eMMC flash
  • Video Output – HDMI 2.0 up to 4K @ 60Hz with HDCP 2.2, HDR, CEC
  • Audio Output – HDMI and optical S/PDIF
  • Video / Audio Capabilities – 10-bit 4K H.265 @ 60 fps, HD audio pass-through, Dolby Digital & DTS licenses
  • DRM – Widevine Level 1, Microsoft PlayReader, Netflix license
  • Digital TV Tuner – DVB-S2 (satellite), DVB-C/T/T2 (Cable/Terrestrial), ATSC, and ISDB-T
  • Connectivity – Gigabit Ethernet, dual band 802.11 b/g/n/ac WiFi, Bluetooth 4.0, Z-Wave (Plus 500 series)
  • USB – 2x USB 2.0 ports
  • Dimensions – 200 x 143 x 40 mm
  • Weight – 530 grams

The device ships with Homy Remote, a backlit Bluetooth 4.0 LE remote control that includes gyroscope, and allows to control the player with voice commands. Smart Homy appears to mostly targets the US markets as seen in the comparison table with some home automation solution, media players. and game console.

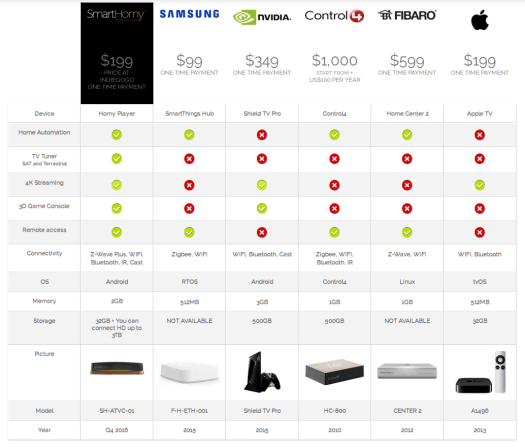

smart_homy_comparison

Click to Enlarge

It would have been a little more fair to include the non-pro version of NVIDIA Shield Android TV since the price without hard drive is also $199, and it still lacks home automation support and the tuners. While you can play games with Amlogic S912 SoC, the performance will be much lower than the NVIDIA box.

In order to maximize Z-Wave interoperability, Homy Player supports more than 50 command classes for Z-Wave devices, and the player/gateway also supports more than 70 Security Devices, including common security cameras. Configuration of home automation is allegedly simplified thanks to a “patent pending” Scene Recording System where you can easily record trigger and action using your physical devices.


SmartHomy has launched Homy Player on Indiegogo (flexible funding), where the company targets to raise $59,000 or more. A $199 pledge should get you Homy Player with the remote and an extra 64GB storage. Shipping adds $30, and delivery is scheduled for July 2017. You may also get more details on SmartHomy website.
