New 96Boards IoT Edition Boards Showcased at Linaro Connect 2017: BlueSky IE and WRTNode IE

Linaro Connect Budapest 2017 is taking place this week in Hungary, and during George Grey – Linaro CEO – keynote, he provided a status updates for the Linaro group, addressed some of Linaro’s criticisms from members and the community, and unveiled two upcoming boards compliant with 96Boards IoT edition both running Zephyr OS, and adding to BLE Carbon board announced last year.

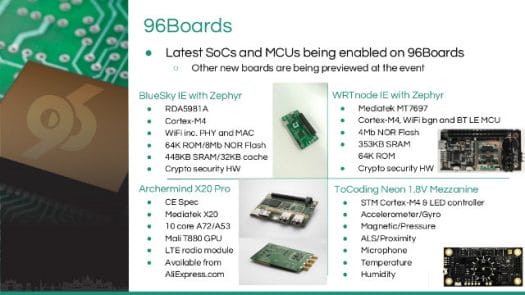

Click to Enlarge

The first board is BlueSky IE board with the following key specifications:

  • SoC – RDA Micro RDA5981A ARM Cortex-M4 Wireless MCU with 64KB ROM, and 32KB cache
  • System Memory – 485KB SRAM. It’s unclear if that’s only the on-chip SRAM, and there’s also some external PSRAM added.
  • Storage – 8Mb NOR flash 802.11 b / g / n HT20 / 40 mode
  • Connectivity – 802.11 b/g/n WiFi with support for  HT20 / 40 modes
  • Crypto security hardware

The second board is WRTnode IE:

  • SoC – Mediatek MT7697 ARM Cortex-M4 wireless MCU @ up to 192MHz with 64KB ROM, 353 KB SRAM
  • Storage – 4Mb NOR flash
  • Connectivity – 802.11 b/g/n WiFi and Bluetooth 4.2 LE
  • Crypto security hardware

Neither boards are available now, and Linaro and their members must still be working on them before the launch. There’s currently very little information about RDA5981(A) MCU except on some Chinese websites, but you’ll find many more resources for Mediatek MT7697. Mr Grey also demo’ed Orange Pi i96 board announced last year with an Ubuntu distribution developed by Shenzhen Xunlong Software.

Linaro also announced four new members with Acer joining the Linaro IoT and Embedded (LITE) Group, Guizhou Huaxintong Semiconductor Technology Co., Ltd (HXT Semiconductor) & Fujitsu Limited coming to the Linaro Enterprise Group (LEG), with the latter also joining as founding member of the LEG High Performance Computing Special Interest Group (HPC SIG), and Google joined as a Club member.

You might be interested in watching the keynote with all those announcements, and to be more up-to-date with Linaro’s progress.


If you are in a rush, you may prefer flicking through the keynote presentation slides instead.
