Le Potato Development Board Review – Part 1: Hardware and Accessories

Libre Computer launched AML-S905X-CC “Le Potato” board on Kickstarter last month, and since then there have been some updates such as worldwide shipping, so the board will now ship to most countries, not only in Europe or the US, and various designs of the case have been proposed. You can check the updates on Kickstarter for details.

Libre Computer Le Potato Kit Unboxing

The company also sent me a Le Potato board, but not only, as I received a complete kit…

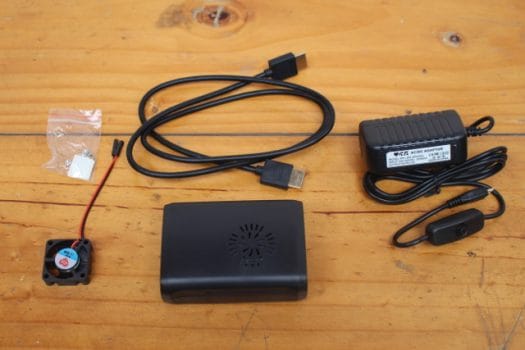

… similar to the $99 “2GB eMMC kit” reward on KS with a board with 2GB RAM, a 64GB eMMC flash module, a HDMI cable, and a 5V/2.5A power supply with on/off switch, but a different case, cooling fan, and corresponding rubber pad and screws.

Click to Enlarge

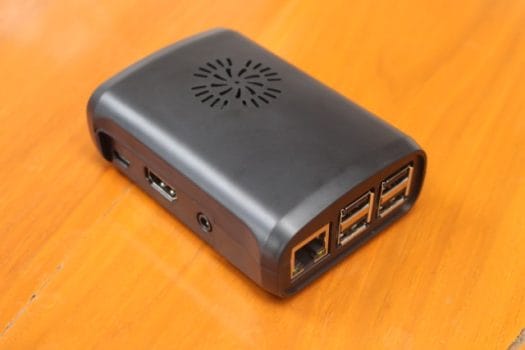

The case exposes all external ports, and has holes on top for the fan.

Click to Enlarge

The other side includes the micro SD slot, plenty of ventilations holes, and some opening for jumper wires connected to the debug port, or some other headers.
The side of the 40-pin “Raspberry Pi” GPIO headers also has the same opening, so you could keep the case close even if you connect external hardware.

The bottom of the plate has two openings to allow for wall mounting, and four circles for the rubber pads.

The case came loose, but for good reasons, since you have to setup your board the way you want to before tightening the case. So I took about the board to have a look. I’ve already listed the specifications in the announcement post so I won’t go through hit again.

Click to Enlarge

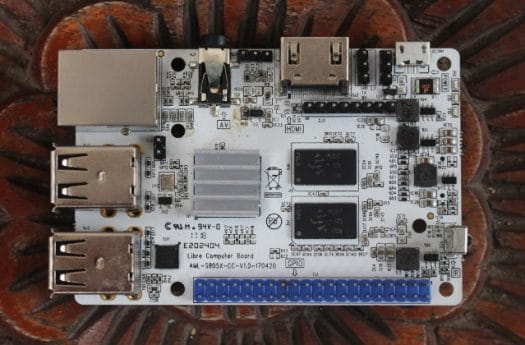

The main change here is that the board is fitted with a small heatsink on top of Amlogic S905X processor. Note that board-only rewards in Kickstarter may not include that heatsink.

Click to Enlarge

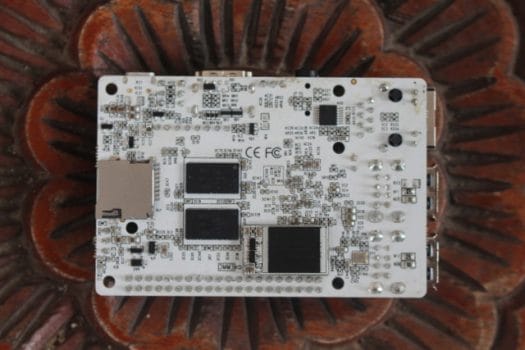

The bottom side of the board has the remaining DDR3 memory (for the 2GB RAM board), the micro SD card slot, and if you have ordered an eMMC kit, a 64GB eMMC flash module, which you can take away.

Click to Enlarge

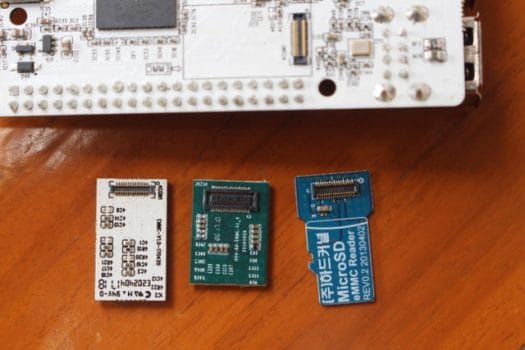

I visually compared it to ROCK64 flash module, and Hardkernel eMMC to micro SD card adapter, and the design is different with the two rows of pins closer on Libre Computer module.
The next step is to assemble the heatsink with four of the shorter screws, and add the rubber pads. A single longer screw will be used to keep the case tightened.

Click to Enlarge

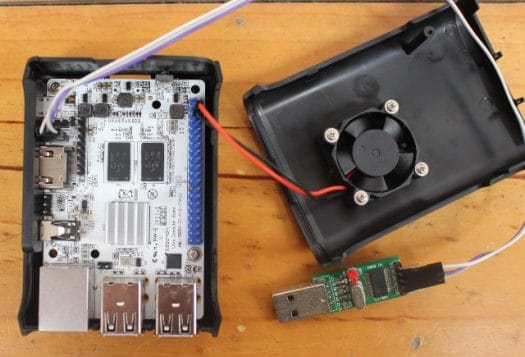

But before that I connected the fan to 5V and GND on the 40-pin header, as well as my own USB to TTL debug board to the 3-pin serial header.

I assembled the case, and tightened it with the single screw, and it fits well. The jumper wires from my USB debug board can easily pass through the openings, and I can still move the wires around, so it’s not tight here.

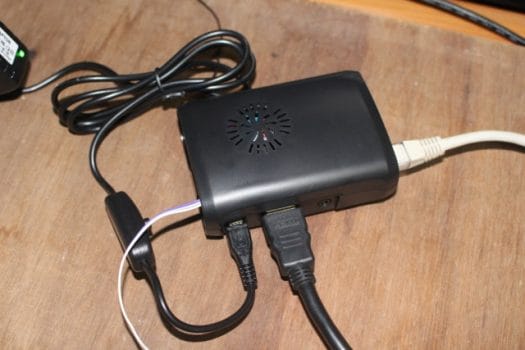

Since I have an eMMC flash module likely pre-installed with an operating systems, I connected the power, HDMI and Ethernet cables. The fan works, and while it’s not that noisy, it still makes a little more noise than what I’ve used to on actively cooled mini PCs or TV boxes. Personally, it does not disturbs me, but some people may be annoyed by the noise. The easily solution is not to connect the fan, as many use cases won’t require it.

Click to Enlarge

Within around 30 seconds, the board booted to a familiar TV box launched in Android 7.1.

I’m waiting for the latest Android or Linux images before completing the second part of the review. I’ll likely test the Linux images if they are ready, rather than the Android one, since I’ve tested several Android TV boxes based on Amlogic S905X previously.

If you are interested in the board, there are still 6 days before the campaign ends, with pricing started at $25 with the 1GB RAM version of the board. I understand that even if the crowdfunding campaign fails, the board will go ahead, but possibly at a slightly higher price, as they’ve committed half a million dollars to the project according to the latest update in Kickstarter.
