Running Ubuntu 16.04 on MeLE PCG03 Apo Mini PC

I completed my review of MeLE PCG03 Apo mini PC with Windows 10 about two weeks ago, and at the time when I tried Ubuntu, all I got was a black screen. MeLE said they would release an Ubuntu image for the board soon, so I did not investigate further. The company has now released Ubuntu 16.04 Desktop ISO via a link on Twitter together with (partial) instructions, and the company told me another company had worked on the image. I sent the link to Linuxium, as in the past MeLE or that other company used his work without asking. I turns out the ISO was identical to Ubuntu 16.04 Desktop ISO released in April last year.

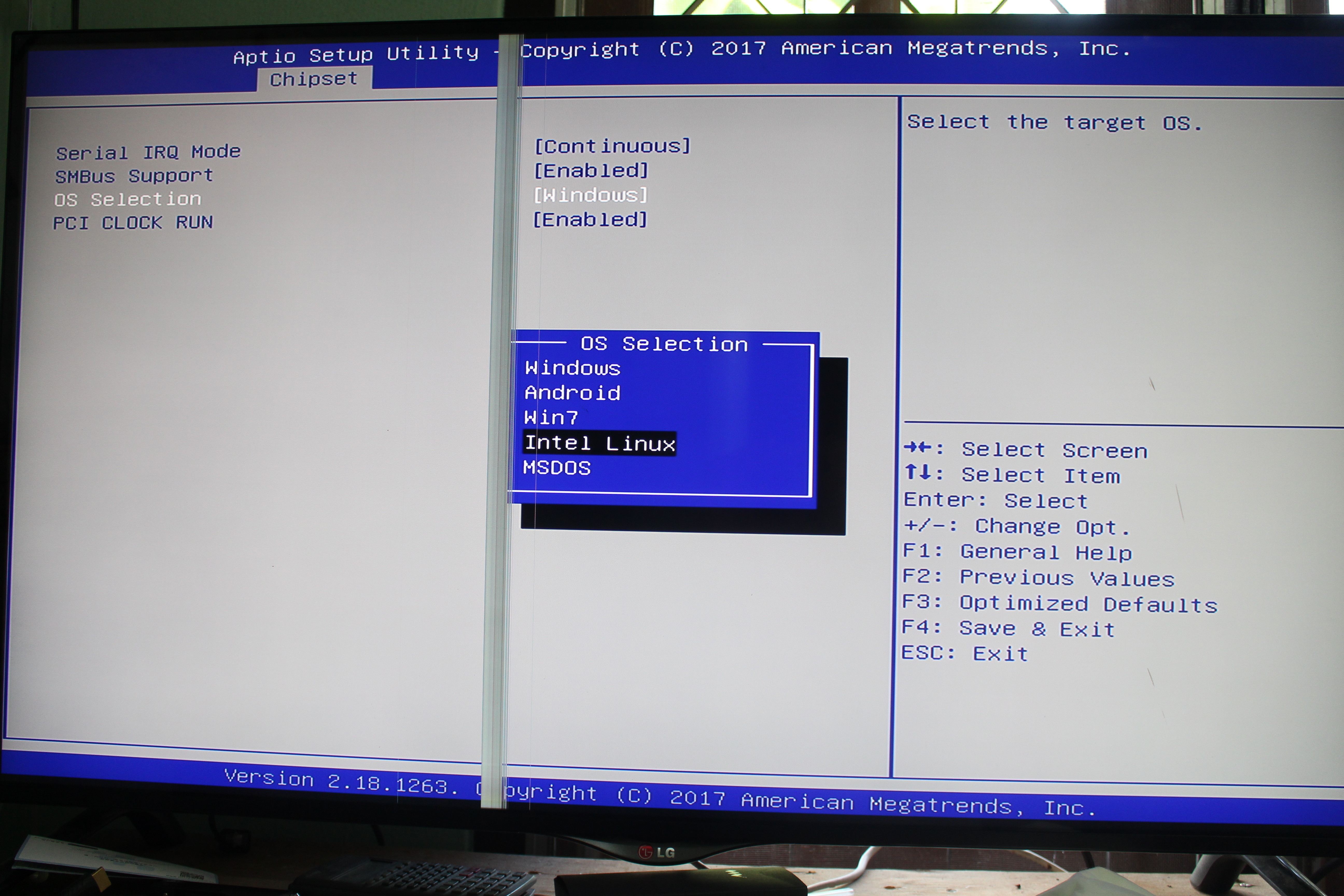

Anyway, I still got the black screen issue using that image, and that’s because I first failed to find the option in the BIOS to change boot to Linux. When the mini PC starts, press the Esc key to enter Aptio Setup Utility, go to Chipset->South Bridge, then OS Selection and select Intel Linux.

Click to Enlarge

Interestingly, you can also select Android, Windows 7 (I doubt it would work), and MSDOS, probably meaning FreeDOS in that case.

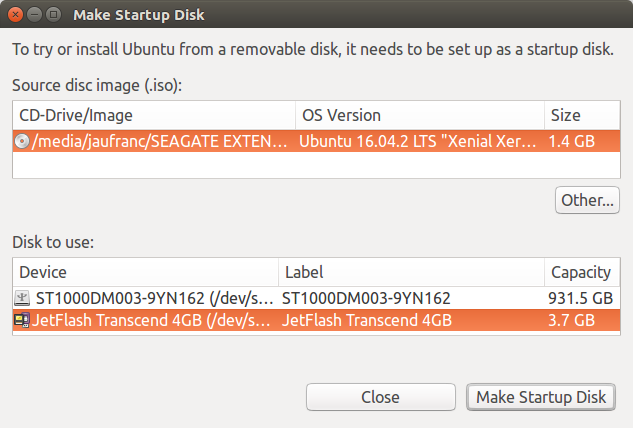

Since nobody made any work to specifically add support to MeLE PCG03 Apo to Ubuntu, I decided to use a more recent Ubuntu 16.04.2 Desktop image LTS instead, and flashed it to a USB drive using Startup Disk Creator in my Ubuntu computer. If you are using Windows, you could go with UltraISO as explained in MeLE’s instructions, or Rufus instead.

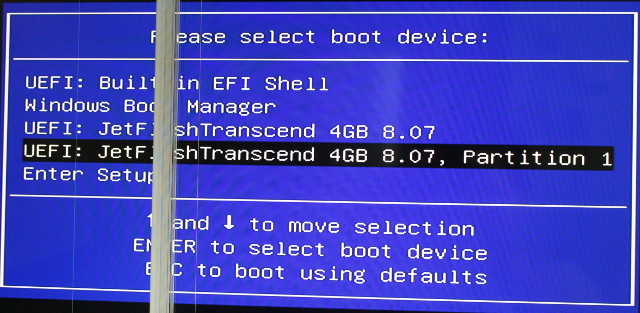

You can boot the drive either in Aptio Setup Utility, or by pressing F7 at boot time to enter boot device selection. In my case, I selected UEFI: JetFlashTranscend 4GB 8.07, Partition 1.

Shortly after I got the menu to try or install Ubuntu. I did not want to install it, as I would have probably had to reinstall Windows 10 after, since I won’t kept this mini PC, so I only tried it booting from the USB flash drive.

Click to Enlarge

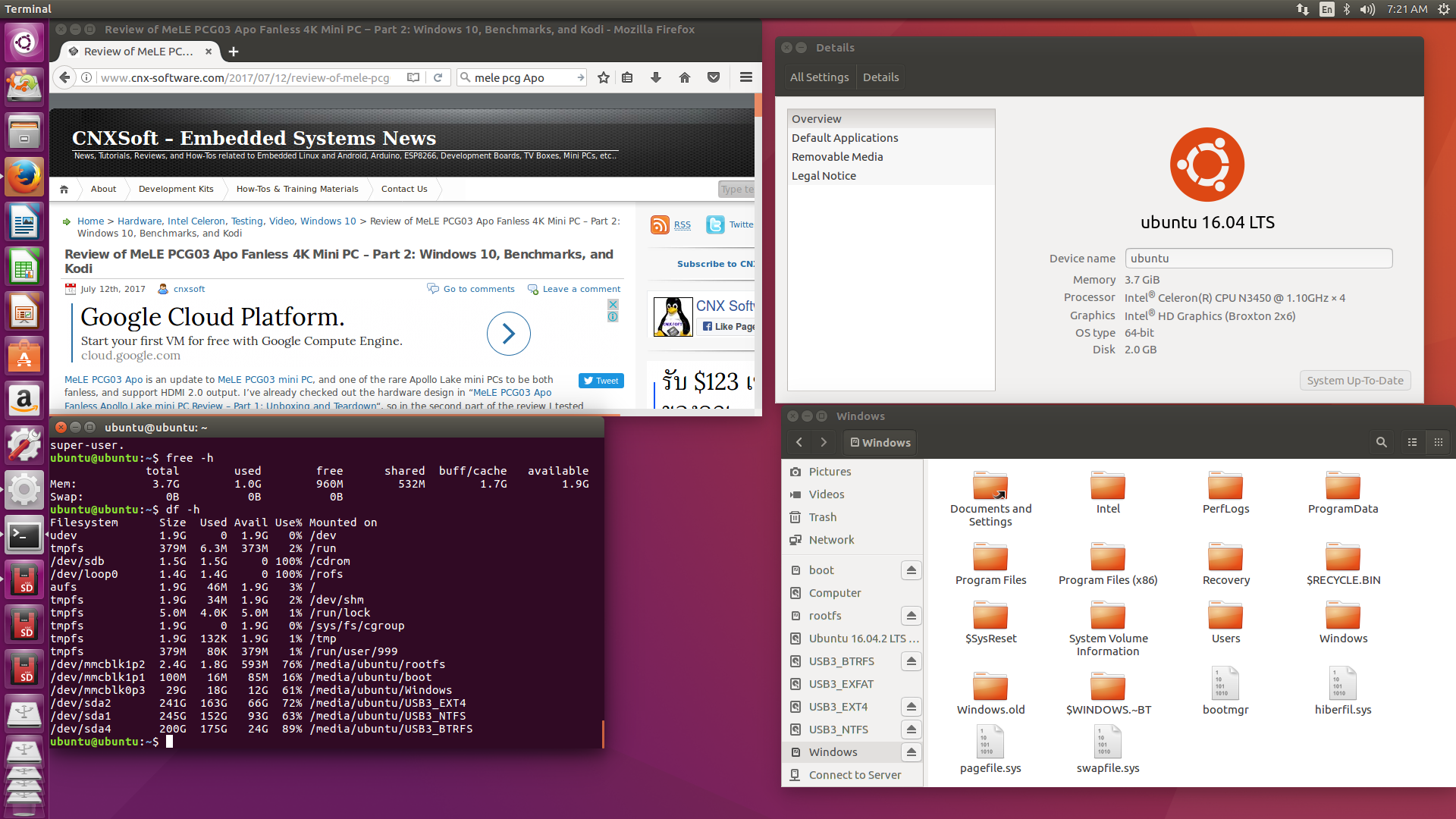

As you can see most features just work with the Ubuntu ISO released by Canonical. I tested audio with headphones and HDMI by playing YouTube videos in Firefox browser.

Features Results
HDMI video OK
HDMI audio OK
VGA OK
Ethernet OK
WiFi OK
Bluetooth Bluetooth headset OK
Smartphone: Pairing OK, but can’t send or receive files
USB 2.0 port OK
USB 3.0 ports OK
SD slot OK
eMMC flash OK
Headphone Jack OK

The file transfer problem with Bluetooth is likely a software or interoperability problem between my phone and Ubuntu, as I’ve had the same issue on other Ubuntu devices.

The eMMC flash is also recognized, so you should be able to install Ubuntu – and replace Windows – to the flash too.


MeLE PCG03 Apo is sold for $159.20 including shipping on Aliexpress.

  1. R00KIE
    July 27th, 2017 at 19:02 | #1

    It would be really nice if you included the output of the following commands:
    lspci -nnk
    lsusb
    lsusb -t

    With these anyone planning to use Linux could check for themselves for any possible troublesome hardware and get a basic idea of what is connected where.

  2. July 27th, 2017 at 19:24 | #2

    @R00KIE
    There you go

  3. R00KIE
    July 27th, 2017 at 20:30 | #3

    @cnxsoft

    That’s great, thank you.

    As a linux user the things I look/wonder about when I see these boxes are things like this:

    – It seems the soundcard is a pci device, which is good and should work out of the box.

    – The emmc might be connected to 00:1c.0 SD Host controller [0805]: Intel Corporation Device [8086:5acc] (rev 0b) but I have no experience with these boxes so it’s just a guess. It probably just works which is good.

    – The SD Card reader seems to be a usb device, it’s unfortunate as that might not allow passing mmc erase commands to the sd card but I have never used a realtek card reader like that one, it has a specific driver so maybe it’s possible. On the other hand if it is a usb device you might be able to boot from the sd card which is nice.

    – Your problem with bluetooth is probably a software issue, I have a very similar intel wifi+bt card in my laptop and it works fine. Mind you that the bluetooth part is a usb device.

    Yours:
    02:00.0 Network controller [0280]: Intel Corporation Wireless 3165 [8086:3165] (rev 91)
    Subsystem: Intel Corporation Wireless 3165 [8086:8010]
    Kernel driver in use: iwlwifi
    Kernel modules: iwlwifi
    Bus 001 Device 004: ID 8087:0a2a Intel Corp.

    Mine:
    01:00.0 Network controller [0280]: Intel Corporation Dual Band Wireless-AC 3165 Plus Bluetooth [8086:3166] (rev 99)
    Subsystem: Intel Corporation Device [8086:4210]
    Kernel driver in use: iwlwifi
    Kernel modules: iwlwifi
    Bus 001 Device 003: ID 8087:0a2a Intel Corp.

  4. Paul M
    July 28th, 2017 at 03:16 | #4

    this bodes well for all the Apollo Lake based devices to run linux reasonably well.

  5. PhilS
    July 29th, 2017 at 21:04 | #5

    For those that would be interested in going down the Linux route, when it comes to video playback, would it be fair to say that HD audio passthrough is unlikely to be available?

  6. July 30th, 2017 at 11:02 | #6

    @PhilS
    Dolby / DTS 5.1 pass-through is likely to work. It might be a better idea to use LibreELEC for that. Maybe the developers will comment on Apollo Lake support here.

  7. MH
    August 1st, 2017 at 20:55 | #7

    Is there anything in the BIOS about booting from the m2 i.e. allowing dual boot of windows from emmc and linux on m2 ssd

    MH

  8. August 2nd, 2017 at 10:54 | #8

    @MH
    I have not tried with PCG03 Apo, but I could do that with Voyo V1 VMac Mini with Windows 10 booting from the M.2 SSD, and LibreELEC from the eMMC flash: http://www.cnx-software.com/2017/01/30/how-to-install-libreelec-kodi-linux-on-voyo-v1-vmac-mini-apollo-lake-mini-pc/

    So it’s likely to work on PCG03 Apo too.
