Ingenic JZ4780 SoC Features a Dual Core MIPS CPU and PowerVR SGX540 GPU

MIPS and Ingenic Semiconductor have just introduced the JZ4780, a low cost dual core MIPS XBurst processor with a PowerVR SGX540 GPU. The companies will demonstrate their solution in a 10″ Android 4.1 Jelly Bean reference tablet during CES 2013, on January 8 – 12, 2013.

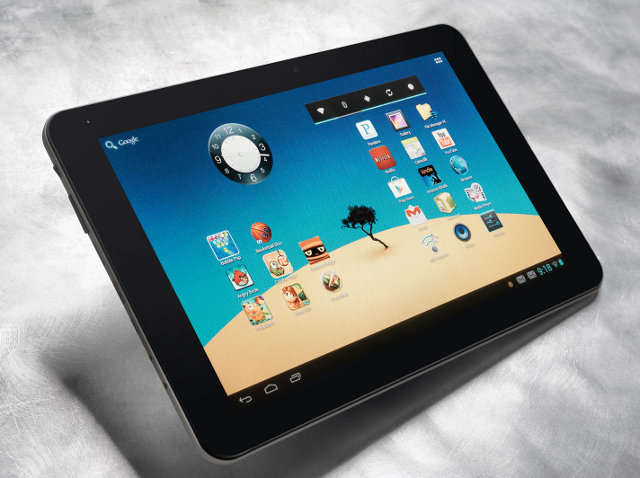

Ingenic JZ4780 Tablet

JZ4780 SoC Highlights:

  • SoC – Dual XBurst core up to 1.5GHz CPU + PowerVR SGX540 GPU supporting 2D Graphics, 3D Graphic, OpenGL ES2.0 and ES1.0, OpenVG1.1
  • VPU – 1080P Decoder,1080p encoder
  • Memory Interfaces – 8-bit SLC/MLC/TLC NAND Flash, 64 bit ECC |16/32-bit DDR3/DDR2/DDR/Mobile DDR SDRAM
  • Peripherals – AC97/I2S/SPDIF, Audio Codec, LCD-IF, LVDS, HDMI, Camera-IF, Touch ADC,PCM, I2C, SPI,UART, SD/MMC/SDIO, USB Host, USB OTG 2.0, TS-IF, GPIO, OTP
  • Power Consumption – Ingenic’s MIPS-Based XBurst processor is said to consumes approximately 140mW per GHz under full load.
  • Package – BGA390 17 x 17 x 1.1 mm, 0.8mm pitch
  • Process – 40nm CMOS

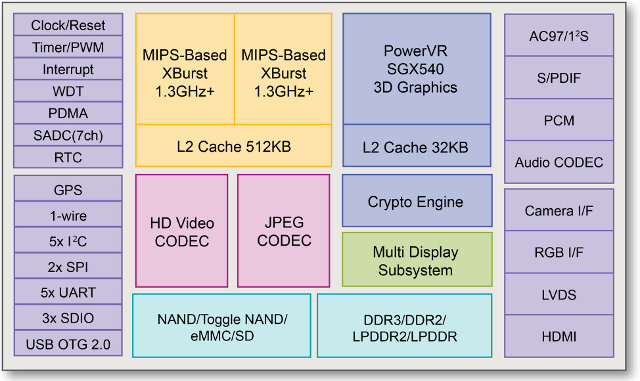

Ingenic JZ4780 Block Diagram

Ingenic will also demonstrate a version of the tablet that includes Altair’s MIPS-Based FourGee chipset bringing LTE networking to the device.

JZ4780 SoC is available now. For more information, including JZ4780 Datasheet, and RD4780_PISCES development board hardware manual and schematics, visit Ingenic JZ4780 page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
fred
fred
11 years ago

Disappointed by the GPU choice, much better than the previous Vivante one, but still outdated compared to what the competitors have to offer.

Then you’ll say, one of the advantage of ingenic are their prices, so from that point of view, this chip will do great in <99$ tablets/media players.

Final problem: Android MIPS support sucks, magiccode (app to use ARM based apps on MIPS) helps a little.

But still might do wonders on a dingooA320 successor with a proprietary OS (why not dual boot android/proprietary OS?).

Alex
Alex
11 years ago

Wow, stoped to check them couple of month ago…

Good chip… if it was a year ago…
They are 2 or 3 steps behind. =)

MIPS I like more then ARM … but the choice …
Allwinner seem to be faster and newer….

wycx
wycx
11 years ago

Ingenic does look like they offer some linux support though. Has anyone announced some Aptiv-based SoCs?
