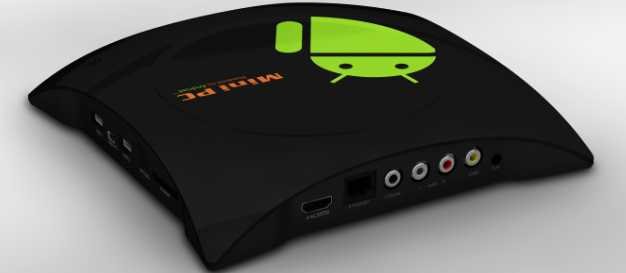

If you’re not simply watching movie streamed from the Internet, one way to store your media files is in a NAS, and another way is to store directly into your media player with an Hard drive. Unless you run a SAMBA or NFS server within your media player, you may lose the ability to access your files from several devices, but by playing directly from the hard drive, you are sure any video will be played smoothly. There are few low cost set-top box that support SATA, and the ones that do, such as Mele A1000 and its successors, simply offer an external SATA connector leaving your hard drive without protection from dust. I’ve just noticed there’s a low cost solution with an internal HDD enclosure thanks to an Android set-top box powered by Amlogic AML8726-M3 called either JW-11 or Slav, and maybe some other names I’ve missed.
Here are the specifications of the device:
- SoC – AMLogic AML8726-M3 CPU + Mali-400 GPU
- System Memory – 1GB DDR3
- Storage – 4GB NAND FLASH + SATA + micro SD card slot
- Video Output – HDMI 1.4 + AV
- Audio Output – HDMI, sterea RCA and coaxial SPDIF
- Video Codecs – HD MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
- Video Container Formats – Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
- Audio Codecs/Formats – MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
- USB – 4x High speed USB 2.0
- Connectivity – 10/100M Ethernet + Wi-Fi
- Power Supply – DC 5V/2A

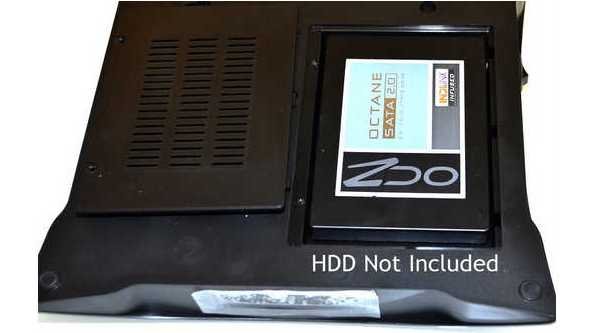

The device runs Android 4.0 or 4.1, or Linux depending on the version, and supports FAT16, FAT32, and NTFS file systems. You’d just insert the 2.5″ hard drive in the device just like you would do in a laptop.
