Ingenic Newton Platform for Wearables is Powered by MIPS Based JZ4775 SoC

Imagination Technologies has published a blog post about Newton, a tiny reference design for wearables based on Ingenic JZ4775 MIPS SoC found in some recent smartwatches such as SmartQ Z1 (The CPU not the module). This module targets wearables, IoT, healthcare, home appliances, security, industrial control, consumer electronics and more.

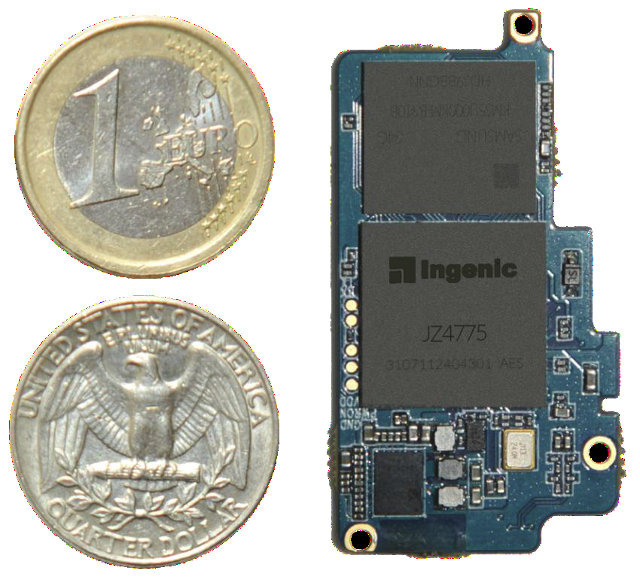

Ingenic_Newton

Newton Specifications:

  • SoC – Ingenic JZ4775 MIPS Xburst processor @ 1 GHz with 2D GPU, and VPU supporting [email protected] for MPEG-2, MPEG-4, VC-1, H.264, VP8, and RV9 codecs.
  • System Memory –  Up to 3GB mobile DDR3/DDR2/LPDDR1
  • Storage – Up to 32 GB eMCP eMMC flash
  • Display Support – LCD or EPD, with touch panel and  backlight
  • Audio – Digital MIC and Speaker
  • Connectivity – 4-in-1 combo with Wi-Fi (802.11 a/b/g/n at 2.4/5 GHz), Bluetooth 4.0 + EDR (including Bluetooth LE support), NFC, and FM
  • Sensors – 3-axis gyroscope, accelerometer magnetometer, pressure, humidity and temperature, bio-signal detection and processing
  • USB – USB OTG signals
  • Expansion ports – UART, I2C, USB, GPIO, and “motor” support (PWM?)
  • Power Supply – USB (5V) or Battery (3.7 to 4.2V) with PMU  and charger
  • Power Consumption – Standby power:  4mW,  MP3 playback: 100mW on average,  with peak power consumption at ~260mW.
  • Dimensions – 21.6mm x 38.4mm x 3.2mm (But hardware manual: Max size is 41.4mm x 21.6mm)

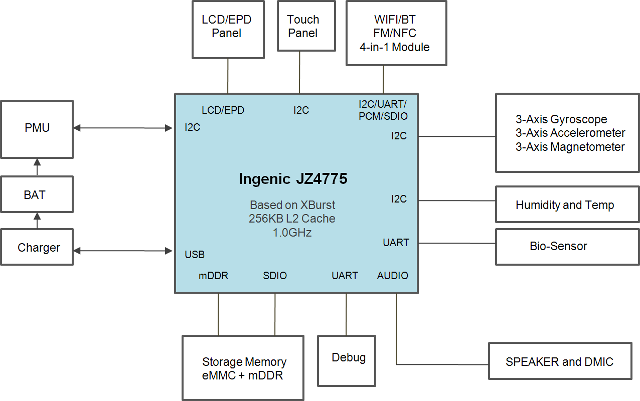

Ingenic_JZ4775_Newton

Linux 3.0.8, Android 4.4 KitKat and several real-time operating systems have already been ported to the Newton platform, and developers/customers can access the open source drivers. Ingenic can also provide software packages for voice or gesture control for user interfaces.

During Google recent Android Wear announcement, Google mentioned Broadcom, Intel, Mediatek and Qualcomm, as well as Imagination Technolgies as key SoC and IP partners, so this module might also be used in devices running Android Wear. This was strongly implied in Imagination’s blog post, but they never explicitly confirmed Ingenic Newton was an Android Wear platform.

PD_JZ4775_NEWTON Board Description (Click to Enlarge)
PD_JZ4775_NEWTON Board Description (Click to Enlarge)

Neither pricing and availability have been disclosed. Since they will only provide source code to “customers”, I doubt this type of module will be available to hobbyists. Further details about the module, including an hardware reference manual, are available on Ingenic Newton page.
