$37 Shenzhen Visson V5 Android TV Box Features AllWinner A20 SoC

If you’re looking for a low cost dual core Android or Linux TV box or mini server, it won’t get much cheaper than Shenzhen Visson V5 powered by AllWinner A20 dual Cortex A7 SoC with 512 MB RAM, 4GB flash, as well as various port such as HDMI, Ethernet, and USB.

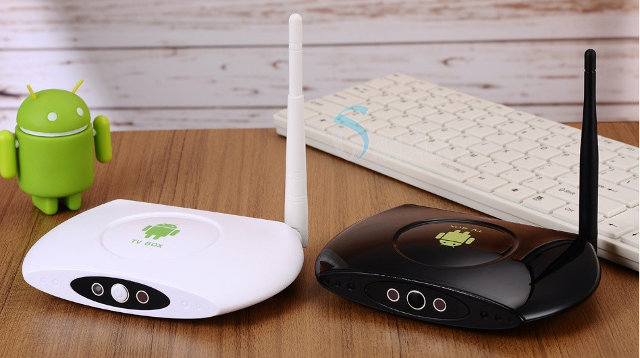

Visson_V5

Shenzhen Visson V5 specifications:

  • SoC – AllWinner A20 dual core ARM Cortex A7 @ 1 GHz + Mali-400MP2 GPU
  • System Memory – 512 MB
  • Storage – 4GB flash.
  • Video & Audio Output – HDMI and AV
  • Connectivity – 10/100M Ethernet, Wi-Fi 802.11 b/g/n
  • USB –  2x USB host ports
  • Misc – IR receiver, power button
  • Power Supply – 5V/2A

According to the specifications on Aliexpress, there’s also a (micro?) SD card, but I can’t find it on any of the pictures, so it’s safe to assume there isn’t any.

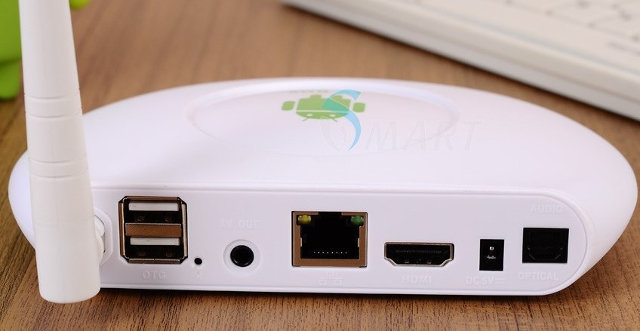

Visson_V5_rear_panel

This Android 4.2.2 box ships with a remote control, a 5V/2A power adapter, AV and HDMI cables, and a user’s manual in Chinese. For various pictures also show the model to be “i7” or “Y6”. Even though it’s running Android 4.2.2, you should be able to run your preferred Linux distributions if you wish too, possibly with Linux mainline (headless only, AFAIK).  I would not recommended this device for applications requiring lots of user interaction as the performance may not be optimal, but if all you want to do is to play a video in the background for a demo / digital signage player, or use it as a headless downloader, or simple NAS, it will certainly do.

Shenzhen Visson V5 can be purchased on Aliexpress for $36.99 including shipping.

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
miska
miska
9 years ago

And again no SD slot – no linux for now. Sunx nand is still very poorly supported.
