Fitlet H mini PC is Powered by AMD A10 Micro-6700T SoC

Orange Pi Development Boards

At the beginning of the year, Compulab announced several Fitlet mini PCs powered by AMD Mullins processors. Missing from the original offering was the top of the line A10 Micro-6700T quad core processor, but the company’s latest Fitlet H integrates the more powerful, yet still low power, processor.

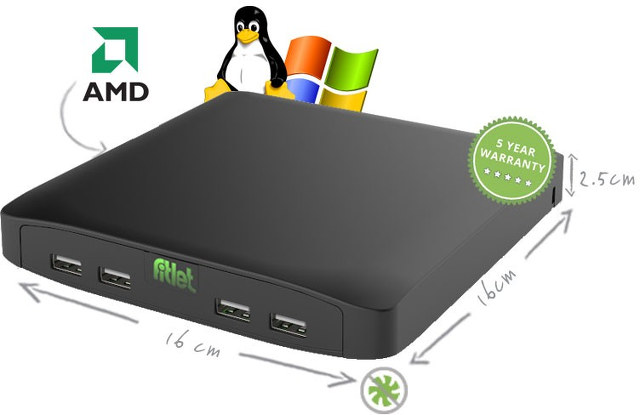

Fitlet_HFitlet H specifications:

  • SoC – AMD A10 Micro-6700T 64 bit quad-core processor @ up to 2.2 GHz with AMD Radeon R6 Graphics (4.5W TDP).
  • System Memory – 2x SODIMM slots for up to 16 GB DDR3L-1333
  • Storage – Internal 2.5” HDD/SSD (SATA 3.0) + mSATA 3.0 + micro-SD
  • Video Output – 2x HDMI 1.4a up to 1920 x 1200 @ 60Hz
  • Audio – Realtek ALC888-VC2 HD audio codec; S/PDIF 7.1 input/output + stereo line-out / MIC in
  • Connectivity
    • 2x Gigabit Ethernet (Intel i211 Ethernet controllers)
    • WLAN 802.11ac (2.4/5GHz dual band Intel 7260HMW) + Bluetooth 4.0 with two external antennas
    • Cellular – mini-PCIe for cellular modem + on-board micro SIM socket
  • USB – 2x USB3; 6x USB2; 1x micro USB port for serial connection
  • Expansion – Full-size miniPCIe with mSATA + half-size miniPCIe + CompuLab FACE Module interface
  • Power Supply – 10~15V unregulated DC input (Typical: 12V DC)
  • Power consumption – 4.5 to 10.5 Watts
  • Dimensions: 16cm x 16cm x 2.5cm (Enclosure: Passively cooled die-cast aluminum)

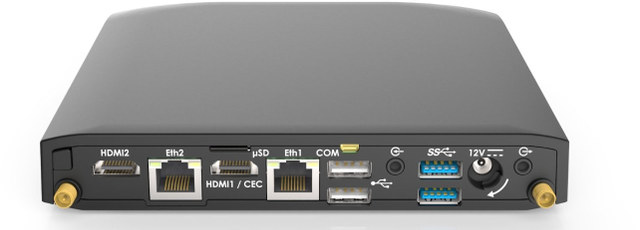

fitlet-h

Fitlet-H can run Windows 7/8 (32-bit or 64-bit),  Linux 32-bit and 64-bit including the official Linux Mint 17 MATE (64-bit) distribution for Fitlet mini PCs, as well as an unnamed embedded OS. The package includes Fitlet-H, a 12V/3A power supply, an HDMI to DVI adapter, a 3.5mm to RCA cable, WiFi antennas, and mini serial to DB9-female adapter cable. The company mentions Fitlet H “offers thermal headroom than fitlet B, I or X” based on low-end Mullins processors, and this is possible because Fitlet H is a larger computer (16x16cm) compared to the other fitlet mini PCs (0.8 cm x 8.3 cm).

Compulab Fitlet-H is not in stock right now, but should be available very soon, and is listed on TinyGreenPC.com for 330 GBP ($516) as well as Amazon US with the expected price being $436. The 5-year warranty may contribute to the relatively high price. You’ll also need to add RAM, storage, and an operating system to get a working system. Further details on the latest Fitlet H should soon be available on Compulab Fitlet product page.
