Spartixed is a $34 FPGA Board Based on Xilinx Spartan 6 (Crowdfunding)

Spartixed is another low cost FPGA board launched on Kickstarter, powered by Xilinx Spartan 6 LX4 FPGA, with a 7-segment display, some headers and buttons, and targeting people who want to learn VHDL/Verilog on the cheap.

Cheap_Spartan6_FPGA_BoardSpartixed board specifications:

  • FPGA – Xilinx Spartan 6 LX4 FPGA (exact part not disclosed)
  • Storage – 16 Mbit flash for program, I2C or SPI EEPROM
  • Display – 3 digit 7- Segment Display
  • USB – 1x micro USB port for power and debugging
  • Expansion – 26-pin unpopulated header, optional SPI Bus A/D Converter
  • Debugging – 14-pin JTAG connector, UARt port via USB connector
  • Misc – 3x push button switches, 8 slide switches for input, 2x user LEDs, 1x power LED, 1x config. ready LED.
  • Power – 5V via Micro USB Connector or 5 to 12 V via external power supply.
  • Dimensions – N/A

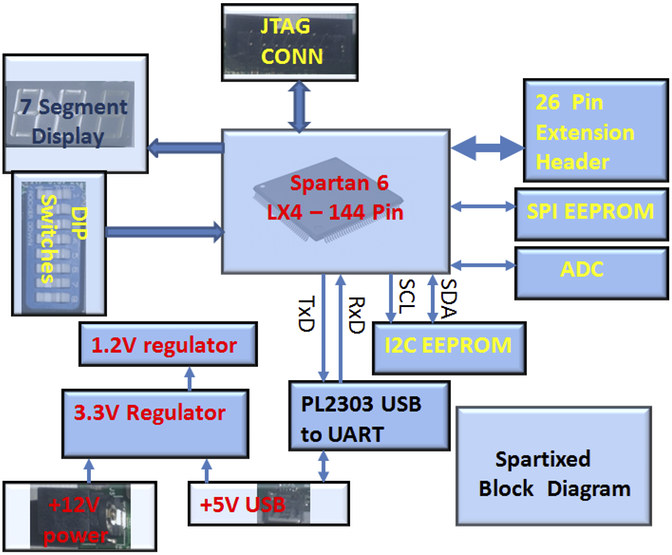

Spartifex_Block_Diagram

You can follow the project via its blog, and already access some tutorials on referencedesigner.com, including some YouTube videos.

An early bird pledge of $29 could get you Spartixed board and a 12V power supply, and after the first 25 pieces are gone the pledge is $34. Shipping is $6 to the US, and $20 to the rest of the world with delivery scheduled for February and March 2016. The target funding of $35,000 might however be optimistic for the type of board, as it might be challenging to get the 1,000+ boards required to achieve the goal.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
Nobody of Import
Nobody of Import
8 years ago

Heh… An LX4 is not a lot of gate fabric to do things with. The interesting part in this space is the LX9. More entertaining is that the quantity 1K price doesn’t leave a lot of room at the perk-prices or the claimed price-point. When you’re looking at $8-11 per pop on the FPGA, the BOM/fabrication costs almost don’t fit in there. $70-80 is going to be the price point for credible FPGA work using the slightly more expensive LX9 like the Mojo, Papillo Pro, etc. use.

Al
Al
8 years ago

yep LX4 is more for glue logic

Plus I think they are at least 3-6 months to short on their delivery schedule
especially if they haven’t verified all their design yet(I2C still to verify)
and no spare time for delivery delays etc

spartan 7 is on the way (though no dates yet)
http://press.xilinx.com/2015-11-19-Xilinx-Announces-the-Spartan-7-FPGA-Family

Vikas Shukla
Vikas Shukla
8 years ago

@Al
Hi Al,

We appreciate your feedback. The I2C Bus on the Spartixed has been verified. Please check the video and tutorial on referencedesigner tutorial mentioned in the post or the kickstarter site where the updates are going to be posted.

The board is on schedule to be delivered in Feb end for the initial backers and in March of rest.

Spartan 7 is certainly promising and I promise to bring out inexpensive evaluation board as soon as it comes out.
