KS2 Android SoundBar Features Amlogic S905 Processor, a DVB-T2 Tuner

Orange Pi Development Boards

I’ve tested several Android TV boxes with digital TV tuners this year, including K1 Plus S2 T2 and U4 Quad Hybrid, but the manufacturers of K1 Plus have decided to design an Android 5.1 soundbar powered by Amlogic S905 processor and including a DVB-T2 tuner to catch live TV channels.

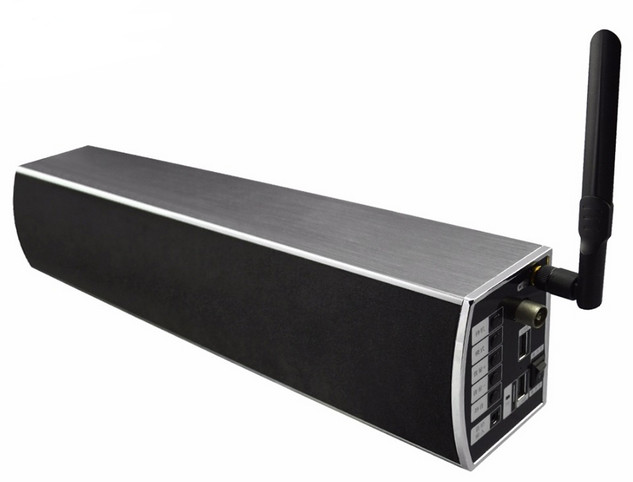

KS2_SoundbarKS2 specifications:

  • SoC –  Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with  penta-core Mali-450MP GPU @ 750 MHz
  • System Memory – 1GB DDR3
  • Storage – 8GB flash + micro SD card slot up to 32GB
  • Video Output – HDMI 2.0 up to 4K @ 60Hz; composite video output (RCA)
  • Audio
    • HDMI, Line IN, digital audio input
    • Speakers
      • 2x 15W 2.5″ speakers
      • 1x 20W 3″ subwoofer
      • 1x bass diagram
      • Audio Range – 20 to 20 kHz
      • Signal to noise ratio – >= 85 dB
      • Effective output power: 50 watts
  • Video Codecs – 10-bit H.265 up to 4K60, MPEG/VC-1/AVS+/H.265 up to 4K30
  • Tuner – DVB-T/T2 tuner with RF coaxial input; input freq. range: 54 to 860MHz
  • Connectivity – Gigabit Ethernet, 802.11 b/g/n Wi-Fi, and Bluetooth 2.1 with external antenna
  • USB – 2x USB 2.0 host ports
  • Misc
    • Power, mode, volume,  and mute buttons
    • On/off switch
    • IR receiver
    • Update pinhole
  • Power Supply –  DC 19V/2.5A
  • Dimensions – 510 x 70 x 95 (Aluminum alloy)
  • Weight – 1520 grams

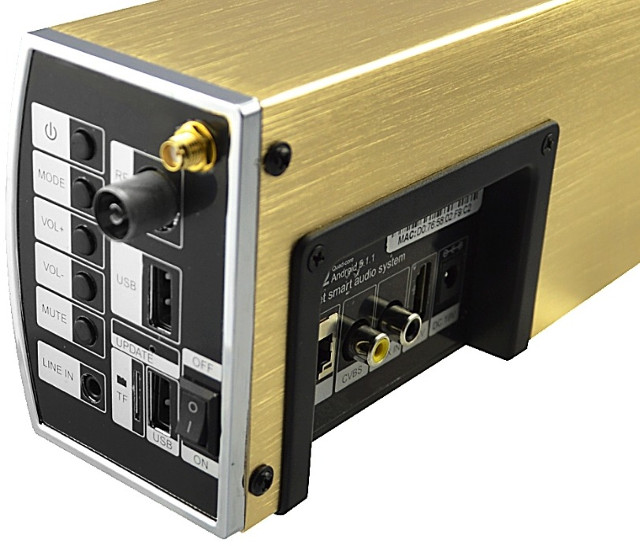

Android_DVB_SoundbarThe soundbar, also called “Internet smart audio system”, runs Android 5.1.1 with Kodi 16, and ships with a remote control, a power adapter, and user’s manual.

It sells for $107.99 on Aliexpress, with shipping adding a further $40 to Thailand, and probably more to Europe or America.

Via AndroidPC.es
