ECS Introduces GLKD-I DC Powered Gemini Lake Motherboard Family

Orange Pi Development Boards

Except for the odd industrial motherboard, most Gemini Lake motherboards launched so far rely on an ATX connector and power supply, but if you prefer a DC powered Gemini Lake motherboard, ECS now provides several options thanks to their GLKD-I series mini-ITX motherboards equipped with Gemini Lake processor.

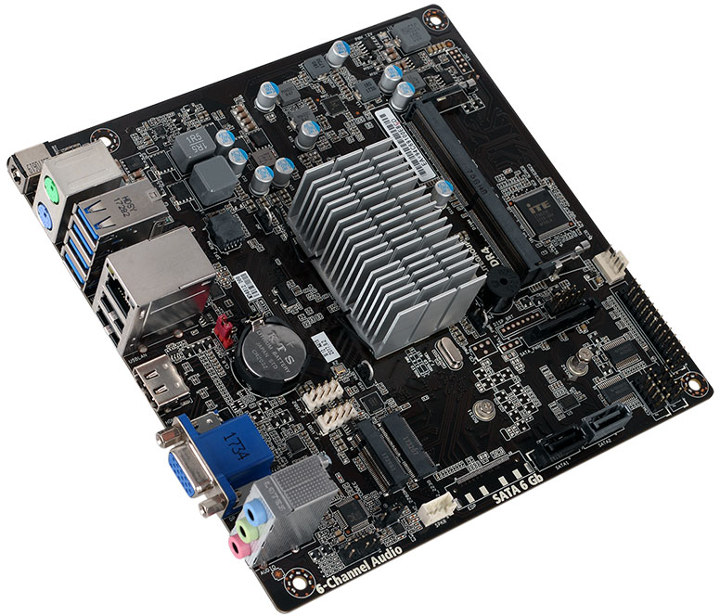

DC Powered Gemini Lake Motherboard

ECS GLKD-I motherboard specifications:

  • SoC – Intel Gemini Lake processor with Intel UHD graphics; 10W TDP (Celeron J4005, J4105 or Pentium J5005)
  • System Memory – 1x DDR4 SO-DIMM socket up to 8GB RAM; supports DDR4 2400 non-ECC, un-buffered SDRAM Memory
  • Storage – 2x SATA III ports, 1x M.2 slot for SSD, 128 MB SPI Flash ROM for AMI BIOS
  • Video Output – HDMI port, optional D-Sub/VGA port, optional DisplayPort, optional eDP header
  • Audio
    • Realtek ALC662 6-Channel HD audio CODEC
    • 16/20/24-bit PCM format for 5.1 channel audio solution
    • Line Out/Line In/Mic In jacks
    • Front panel MIC/Speaker out header
  • Connectivity – Gigabit Ethernet via Realtek RTL8111H, optional WiFi + Bluetooth via M.2 slot (CNVi supported)
  • USB – 4x USB3.0 ports up to 5Gb/s (either rear I/O or front header), 6x USB2.0 ports (2x back panel, 4x on-board)
  • Misc – PS/2 Keyboard & PS/2 mouse connectors,  4-pin SYS_FAN connector, front panel switch/LED header, CLR_CMOS header,  2x serial port headers (COM), parallel port header (LPT)
  • Power Supply – 19V power barrel connector
  • Dimensions – 170 x 170 mm (mini-ITX form factor)

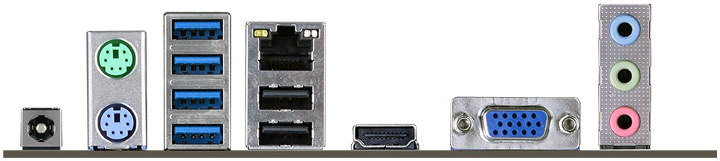

ECS GLKD-I Motherboard Ports

The company support Windows 10 64-bit /32-bit, and provides Windows drivers via the product page. Linux distributions should be supported, but as usual this should be tested. No price, nor availability information yet.

Via FanlessTech

Support CNX Software - Donate via PayPal or become a Patron on Patreon

4
Leave a Reply

avatar
2 Comment threads
2 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
Sandertkaiseritchy n scratchy Recent comment authors
  Subscribe
newest oldest most voted
Notify of
itchy n scratchy
Guest
itchy n scratchy

Sounds like a candidate for a kodi/NAS whatever box or maybe I better go with a pi 😛

Sander
Guest
Sander

An Intel NUC NUC7CJYH with Celeron J4005, including power supply and housing, is 110 euro (incl VAT).
So this ECS motherboard must be … 50 euro to be interesting?

tkaiser
Guest
tkaiser

Since products like Syba’s SD-ADA40118 are available (M.2 card with a 4 port Marvell SATA controller attached via 2 PCIe lanes) you could build a fanless NAS with up to 6 disks by combining this board with an appropriate enclosure. Makes not that much sense of course. 🙂

Sander
Guest
Sander

A M.2 to 4 Port SATA III RAID Adapter … cool. Pity it’s 75 USD.
