KitDuino Proto – An Arduino Compatible Board with a Built-in Prototyping Area

At the initial stage of development, many people would connect their Arduino board to a circuit build on a breadboard, and once this is done, some may either want to design their own board or for simpler circuits, simply move from the breadboard to a perfboard with components soldered to it.

With Microchip ATMega32U4 based KitDuino Proto you could do that directly on the Arduino board itself since it comes with a small prototyping area.

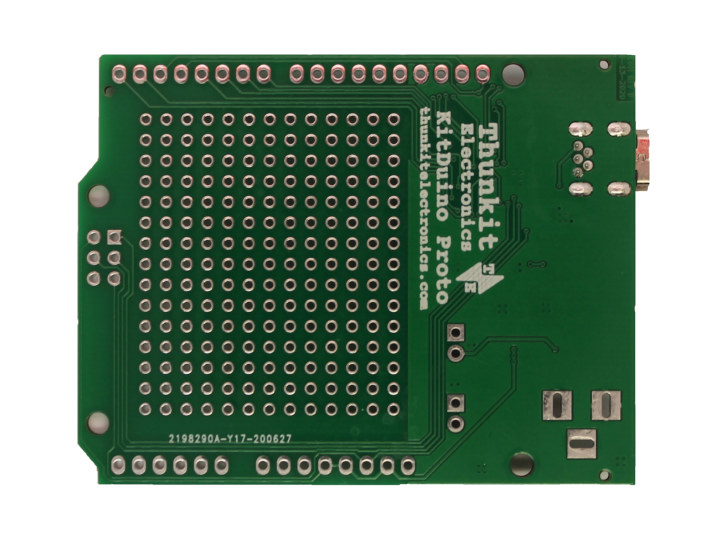

KitDuino Proto
Click to Enlarge

KitDuino Proto specifications:

  • MCU – Microchip ATMega32u4 8-bit AVR MCU @ 8 MHz with 32 KB flash program memory, 2.5 KB SRAM, 1 KB EEPROM
  • Expansion
    • Arduino Leonardo compatible headers
    • 6-pin SPI header
    • Built-in 15 x 13 prototyping area.
    • 3.3V or 5V I/Os
  • Misc – Power LED, Tx/Rx LEDs, 1x user LED
  • Power Supply
    • 5V via Micro USB port (3.8V after regulation)
    • 7+V via DC barrel jack or Vin pin for stable 5V rail
    • 3.3V or 5V operation selectable by jumper
  • Dimensions – Arduino Uno / Leonardo compatible

Arduino board built-in perfboardKitDuino Proto can be programmed with the Arduino IDE using the Thunkit Arduino Core available on Github. Thunkit Electronics also provides KiCad design files and some basic documentation in another Github repository.

The board can be purchased on Tindie for $12.49 with headers not soldered by default for more flexibility
