$6 RAK3172 WisDuo LoRaWAN module features STMicro STM32WL LoRa SoC

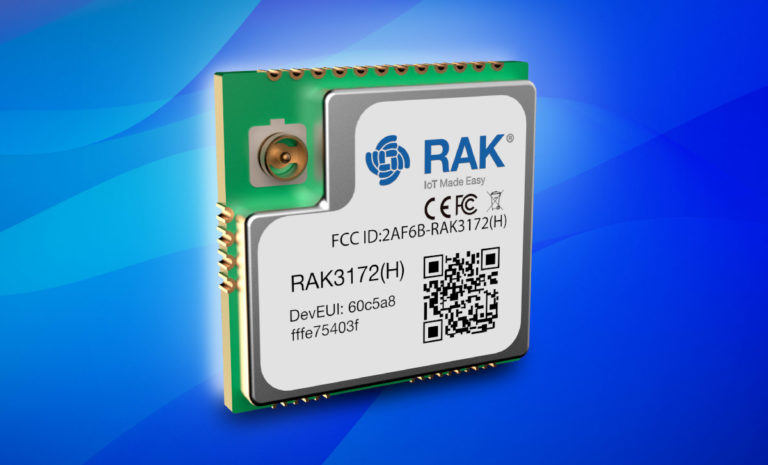

RAK3172 WisDuo is a LoRaWAN module smaller than most coins with 15.5×15 mm dimensions made possible thanks to STMicro STM32WL Cortex-M4 LoRa SoC, which we previously found in Seeed Studio’s $10 LoRa-E5 module and corresponding development boards. But while Seeed Studio relies on STM32WLE5JC SoC with 256KB flash and 64KB RAM in a 73-pin UFBGA package, RAKwireless RAK3172 Wisduo is powered by STM32WLE5CC with the same amount of memory or storage, but in a  48-pin UFQFPN package, and an even lower price at just $5.99 in single units. RAK3172 Wisduo specifications: SoC – STMicro STM32WLE5CC55 Arm Cortex‐M4 MCU @ 48 MHz with 256 KB flash memory with ECC, 64 KB RAM, and a sub-GHz radio based on Semtech SX126x LoRaWAN 1.0.3 specification compliant Supported bands – EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923 LoRaWAN Activation by OTAA/ABP LoRa Point to Point (P2P) communication Range – Greater than […]
