Banana Pi launches $30 WiFi 6 router with Triductor TR6560 SoC running a fork of OpenWrt

When Banana Pi started to sell the low-cost Banana Pi BPI-WiFi 6 router board powered by Triductor TR6560 dual-core SoC and TR5220 WiFi 6 chipset, I mentioned they should probably offer a complete system with enclosure and antennas for this to become more popular.

It took a while, or about nine months to be precise, but the Banana Pi BPI-WiFi 6 router is now available with a plastic enclosure, four external antennas, an Ethernet cable, and a power supply for $30.90 plus shipping on Aliexpress.

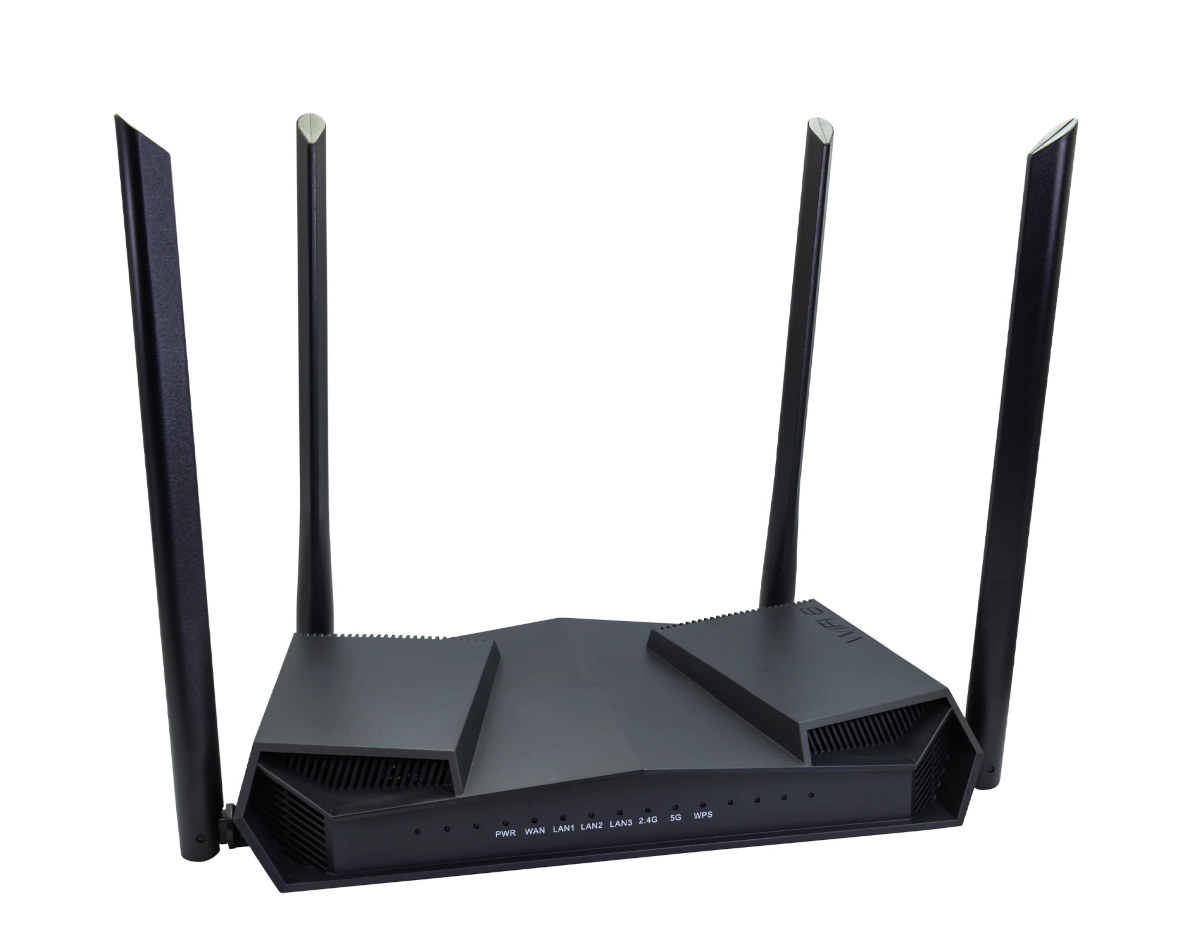

Banana Pi BPI-Wifi 6 Router

Banana Pi BPI-WiFi 6 router specifications:

  • SoC – Triductor TR6560 dual-core Arm Cortex-A9 processor @ 1.2 GHz with LSW (Line-Card Switching) and hardware NAT up to 5 Gbps
  • WiFi chipset – Triductor TR5220 WiFi 6 chipset
  • System Memory – 512 MB DDR3
  • Storage – 128MB SPI NAND flash
  • Networking
    • 1x Gigabit Ethernet WAN port with optional PoE support
    • 3x Gigabit Ethernet LAN ports
    • 2.4 GHz WiFi 6 (802.11ax) 2×2 MIMO up to 573.5 Mbps
    • 5 GHz WiFi 6 (802.11ax) 2×2 MIMO up to 2401.9 Mbps
    • 4x external antennas
    • WiFi supports AP and STA modules, WPA, WPA2, WPA3 security
  • Debugging – 6-pin debug UART header
  • Misc – Power button, Reset button, WPS button, 9x LEDs
  • Power Supply – 12V DC via power barrel jack
  • Dimensions – SBC: 137 x 107 mm; router: TBD

Triductor TR6560 OpenWrt WiFi 6 router

The hardware is mostly the same, but the company decided to remove one of the LAN ports, so the Banana Pi BPI-WiFi 6 router comes with three LAN ports instead of four. The router runs a fork of OpenWrt with Linux 5.10, and they released the OpenWrt source code about six months ago and further updated it two months ago to the latest “RC8 SDK” which must be an internal version for Triductor SoCs. You’ll find the code and instructions to build it on an Ubuntu 22.04 machine on GitHub. The Wiki has a few more details about the hardware and binary images.

Banana Pi BPI-WiFi 6 router motherboard 2024
One RJ45 connector has been removed

You may also want to check out the issues there with one thread asking for upstreaming support, which is unlikely to happen since unless I’ve missed it we’ve not seen any code for Triductor SoCs in mainline. The second issue talks about a limitation of the router with WDS mode and Monitor mode not being supported.

Putting aside software support, $30 is a pretty good deal for a WiFi 6 AX3000 router, but it’s also possible to go lower with something like the Xiaomi Router AX1500 selling for $25 at half the maximum link speed.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
11 Comments
oldest
newest
Willy
8 months ago

The way they removed this port is odd, it’s still routed and still has on-board capacitors, and even the activity LED at the front is present. I’m wondering if they did a mistake when designing the rear hole in the enclosure, such as counting 4 connectors total instead of 4+1 resulting is the loss of the opening for this one.

Anyway it’s pretty cheap for such specs.

Cyk
Cyk
8 months ago

Could be due to supply chain issues. Some components are still hard to get.

Cyk
Cyk
8 months ago

Unfortunately, although offering a version with EU power supply, they don’t ship to Germany.

Ray Knight
Ray Knight
8 months ago

A quick glance at the GitHub repository history shows a large number of binary files. Highly unlikely this will ever get up-streamed.

fenom
fenom
8 months ago

It will not. It is a product for the bin – like most stuff which is produced by sinovoip

itchy n scratchy
itchy n scratchy
8 months ago

Will you do a teardown? 😼

fenom
fenom
8 months ago

It’s this company selling half ripe half broken hardware which is in charge of the first openwrt router.

Thoughts and prayers everyone

T-C
T-C
8 months ago

ugly af but nice specs

giani
giani
8 months ago

if you want to have openwrt el cheepo go for ax3000T (xiaomi) – about 40$ shipped

Tim
Tim
8 months ago

I would go with the Belkin RT3200 over the xiaomi, it can be had for around $50.
