UP Squared Pro 710H Edge mini PC combines Processor N97 or Core i3-N305 CPU with 26 TOPS Hailo-8 AI accelerator

AAEON UP Squared Pro 710H Edge is a mini PC with an onboard Hailo-8 edge 26 TOPS AI accelerator and an Intel Processor N97 or Core i3-N305 Alder Lake-N CPU designed for edge AI applications.

The fanless Edge AI mini PC comes up to 16GB LPDDR5 soldered-on RAM, up to 128GB eMMC flash, and offers dual 4K video output through HDMI and DisplayPort connector, dual 2.5GbE, optional WiFi and cellular connectivity, two USB 3.2 ports, an RS232/RS422/RS485 COM port, a 40-pin female GPIO header, and a wide 12 to 36V DC input.

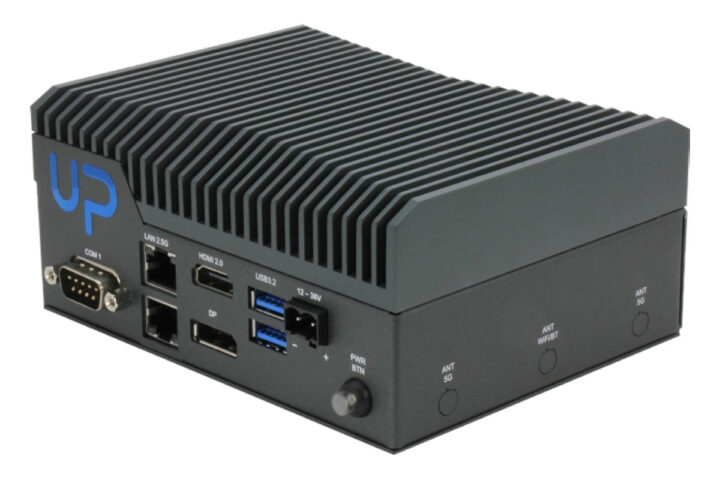

UP Squared Pro 710H Edge mini PC

UP Squared Pro 710H Edge specifications:

  • Alder Lake N-series SoC (one or the other)
    • Intel Processor N97 quad-core processor up to 3.6 GHz with 6MB cache, 24EU Intel UHD Graphics Gen 12 @ 1.2 GHz; TDP: 12W
    • Intel Core i3-N305 octa-core processor up to 3.8 GHz with 6MB cache, 32EU Intel UHD Graphics Gen 12 @ 1.25 GHz; TDP: 15W
  • AI accelerator – Onboard Hailo-8 edge AI processor with up to 26 TOPS for AI inferencing, data analytics, and multimedia processing. CNXSoft: “onboard” implies the chip is soldered on the motherboard instead of on an M.2 module as usual
  • System Memory – Up to 16GB onboard LPDDR5
  • Storage – Up to 128GB onboard eMMC
  • Video Output – HDMI 2.0b and DP 1.2
  • Networking
    • 2x 2.5GbE RJ45 ports via Intel I226-IT controllers
    • Optional M.2 2230 WiFi and Bluetooth module
    • Optional M.2 3052 4G LTE/5G cellular module + Nano SIM slot
  • USB – 2x USB 3.2 Gen 2 Type-A ports
  • Serial – 2x RS-232/422/485 COM ports
  • Expansion
    • M.2 2230 E-Key (CNVI, PCIe Gen 3 [x1], USB 2.0) socket
    • M.2 2280 M-Key (PCIe Gen 3 [x2]) socket
    • Optional M.2 3052 B-Key with Nano SIM slot (USB 3.0)
    • 40-pin GPIO header accessible from the outside
  • Security – Onboard TPM 2.0
  • Power Supply
    • 12V to 36V DC-in Phoenix connector (optional: Lockable plug)
    • Type – AT/ATX (AT as default)
  • Power Consumption (Typical) – 50 to 55W
  • Dimensions – 134 x 105 x 60mm
  • Weight – 690 grams
  • Temperature Range – Operating : 0°C to 60°C with 0.5m/s airflow; storage: -20°C to 70°C
  • Humidity – 0% ~ 90% relative humidity, non-condensing
  • MTBF – 422,053 Hours
  • Certifications – CE/FCC Class A, RoHS Compliant, REACH

UP Squared Pro 710H Edge mini PC GPIO header

The company provides optional VESA, Mount, and DIN Rail mounting with the mini PC, and the UP Squared Pro 710H Edge supports Windows 10 IoT Enterprise, Ubuntu 22.04 LTS, and Yocto 4.0. AAEON previously launched the UP Xtreme 7100 robotics SBC and mini PC with the same choice of processors, but different features and form factor. The 40-pin GPIO header aims to facilitate the installation of cameras, sensors, and industrial communication solutions. Target applications include identity management, AMR (autonomous mobile robots), healthcare imaging solutions, digital signage, and retail kiosks.

AAEON is taking pre-orders for samples of the UP Squared Pro 710H Edge mini PC on its eShop for $568 for the Intel Processor N97 SKU with 8GB/64GB configuration, and $739 for the Intel Core i3-N305 model with 16GB/128GB configuration. The lead time is said to be three weeks. More details may be found on the product page and in the press release.
