LILYGO T-Camera-Plus-S3 – An ESP32-S3 powered dev board with night vision camera and touchscreen display

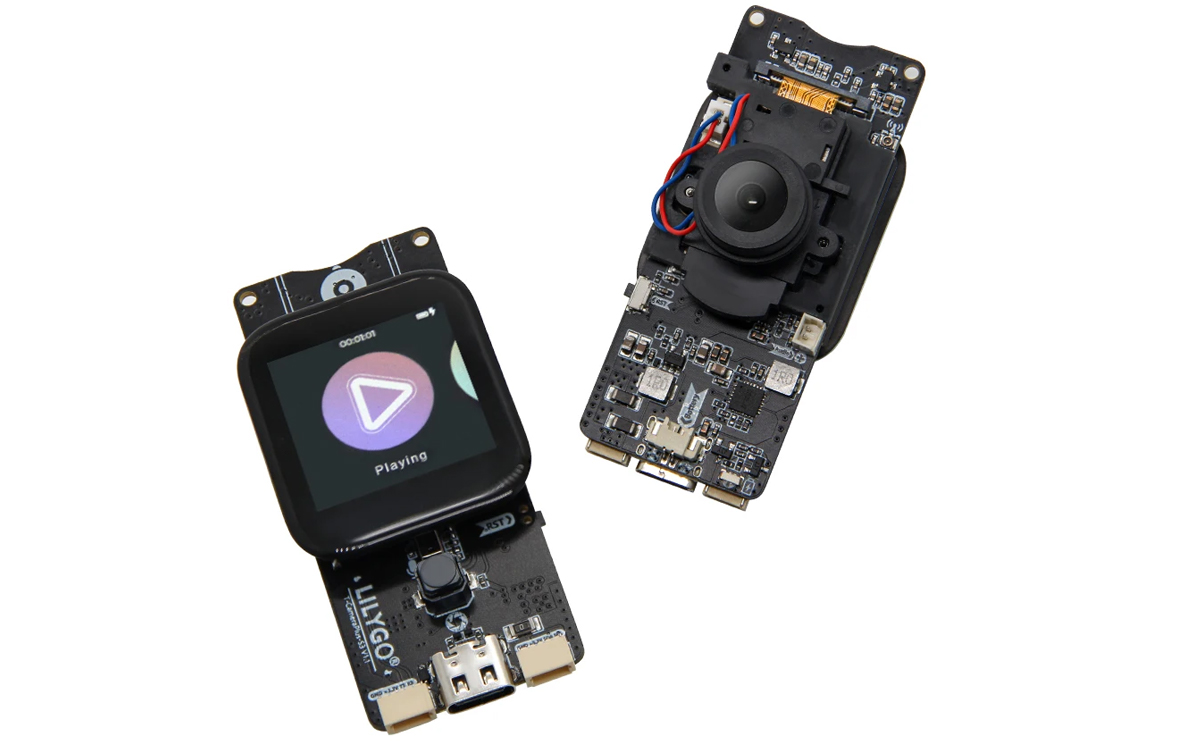

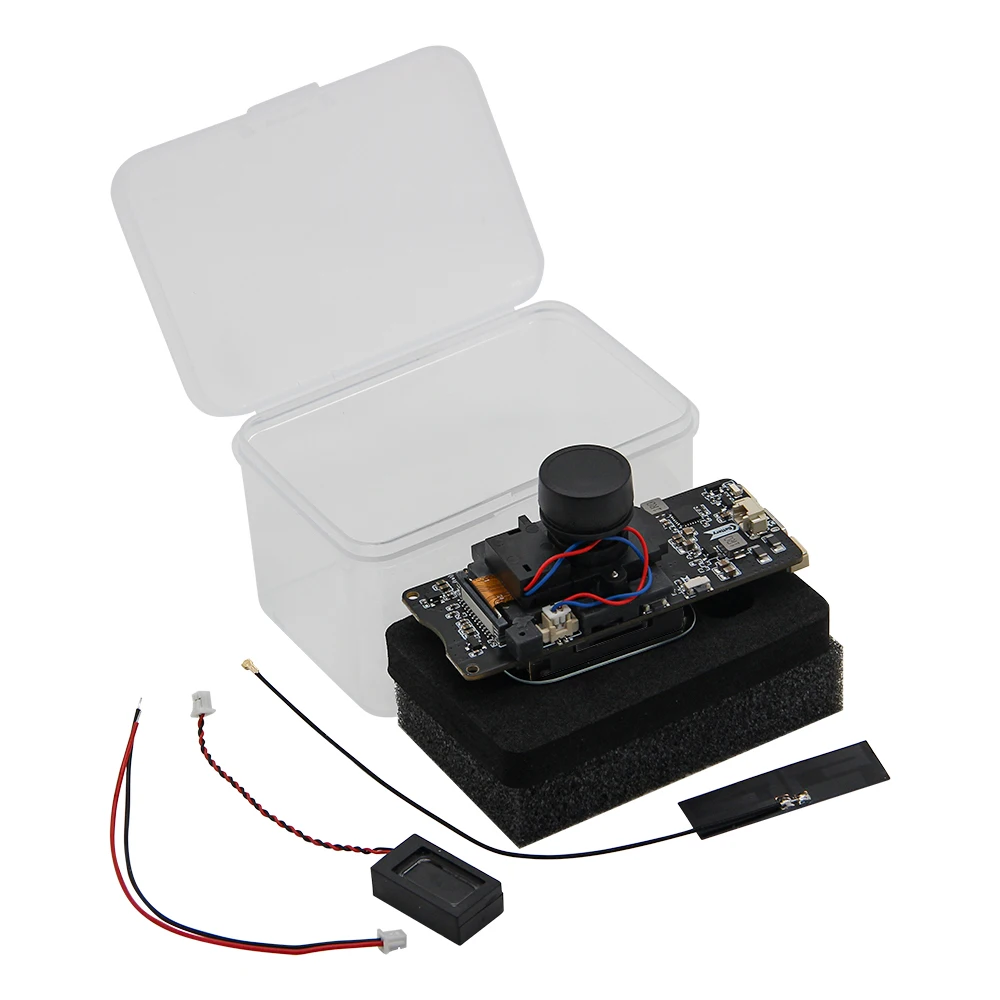

The LILYGO T-Camera-Plus-S3 is an ESP32-S3 development board designed for building smart home devices, monitoring systems, and other connected projects. The board features a 1.3-inch TFT LCD and the option to choose from OV2640 or OV5640 camera modules.

The T-Camera-Plus-S3 can be considered an upgrade from the T-Camera S3, which was introduced in 2022. The upgraded features include a 1.3″ SPI TFT LCD (240×240), a microphone with MAX98357A codec and external speaker support, support for a micro SD card, a battery connector, and many other features.

Previously we have written many different types of ESP32-S3-based boards like the Waveshare ESP32-S3-Matrix, ESP32-S3-Tiny board, and Unexpected Maker NANOS3 feel free to check those out if you are looking for unique ESP32 boards.

LILYGO T Camera Plus S3 ESP32 S3 Camera Development

LILYGO T-Camera-Plus-S3 specification

  • ESP32-S3-WROOM-1 wireless module
    • SoC –  ESP32-S3R8 dual-core Tensilica LX7 microcontroller @ 240 MHz (Note: this SKU is not listed in the official ESP32-S3 datasheet) with
      • 2.4 GHz 802.11n WiFI 4 and Bluetooth 5.0 LE connectivity
      • Memory – 8MB PSRAM
    • Storage – 16MB SPI flash
  • Storage – MicroSD card socket
  • Camera – 2MP OV2640 camera (Optional 5MP OV5640) with IR-Cut for enhanced low-light performance
  • Display
    • 1.3″ 240 x 240  fp-133h0M1d TFT display with ST7789V driver chip controlled via SPI
    • Touch – CST816S chip controlled via I2C
  • Speaker – 3.2W 14×7.1×3.9cm FS2011NB0807x speakers driver via I2S with MAX98357A driver chip
  • Microphone – Standard microphone driven via MSM261S4030H0R driver chipo
  • USB – 1x USB Type-C port for power and programming
  • Expansion – 2x QWIIC connectors
  • Misc – Boot button (under the camera), Power and reset buttons
  • Power Supply
    • 5V via USB Type-C port
    • 2-pin 1.25mm JST-GH connector for battery
  • Dimensions
    • Board only: 69 x 28 x 18.5 mm (including PIR dome)
    • Shell: 75 x 35 x 12 mm

Sc4600d080a6e477f9056ce843ac5e28cq

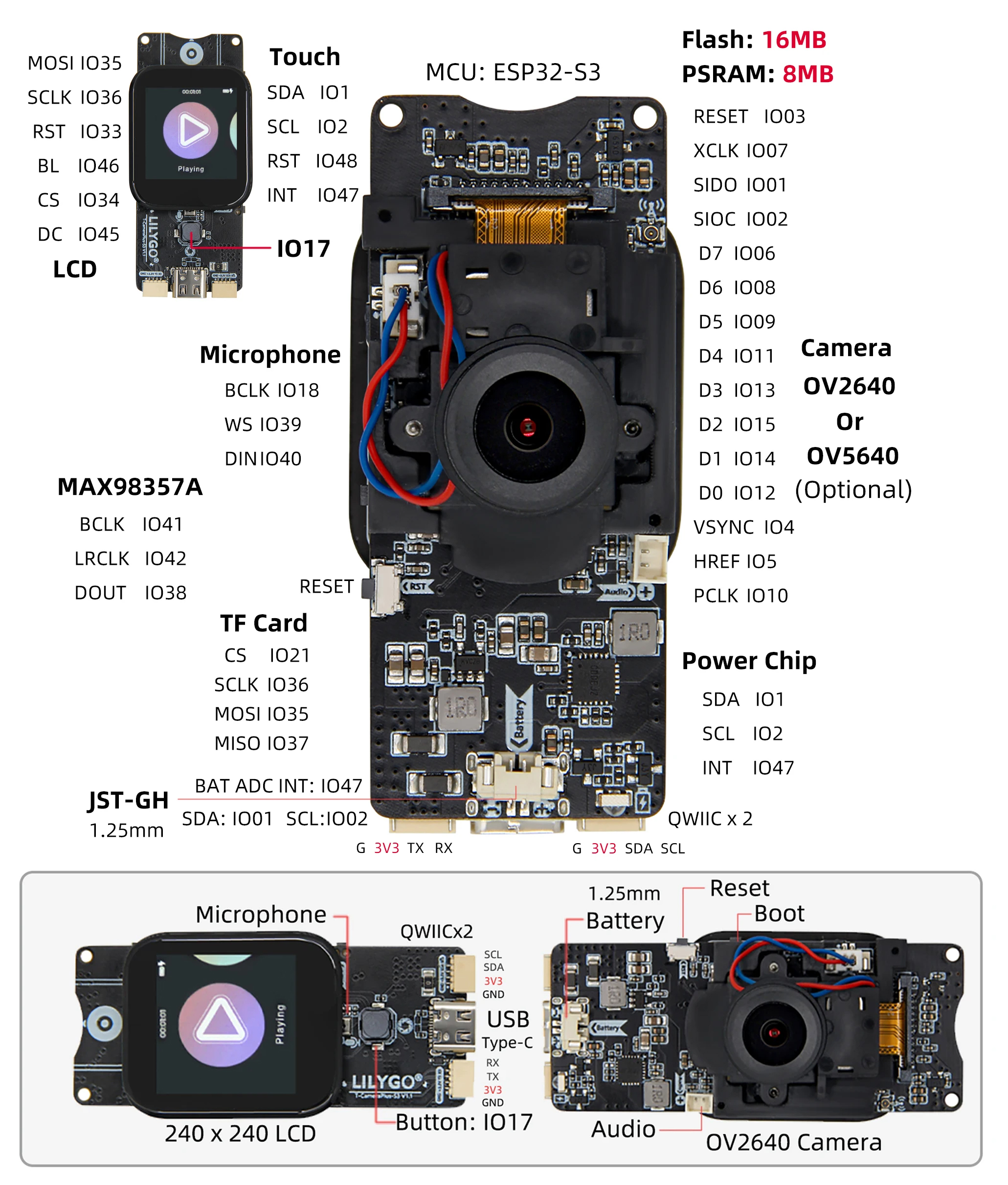

The board features two Qwiic connectors and multiple exposed GPIO pins on the board to support protocols like I2C, SPI, and serial connections.

LILYGO T Camera Plus S3 ESP32 S3 Camera Development Board Specifications

In terms of software and programming the board supports programming with the Arduino IDE, VS code, and platform IO. Usually, the company provides links to resources but this time it was a little hard to find, upon looking I found a GitHub repository with examples of the camera, SD music, touchscreen, and more.

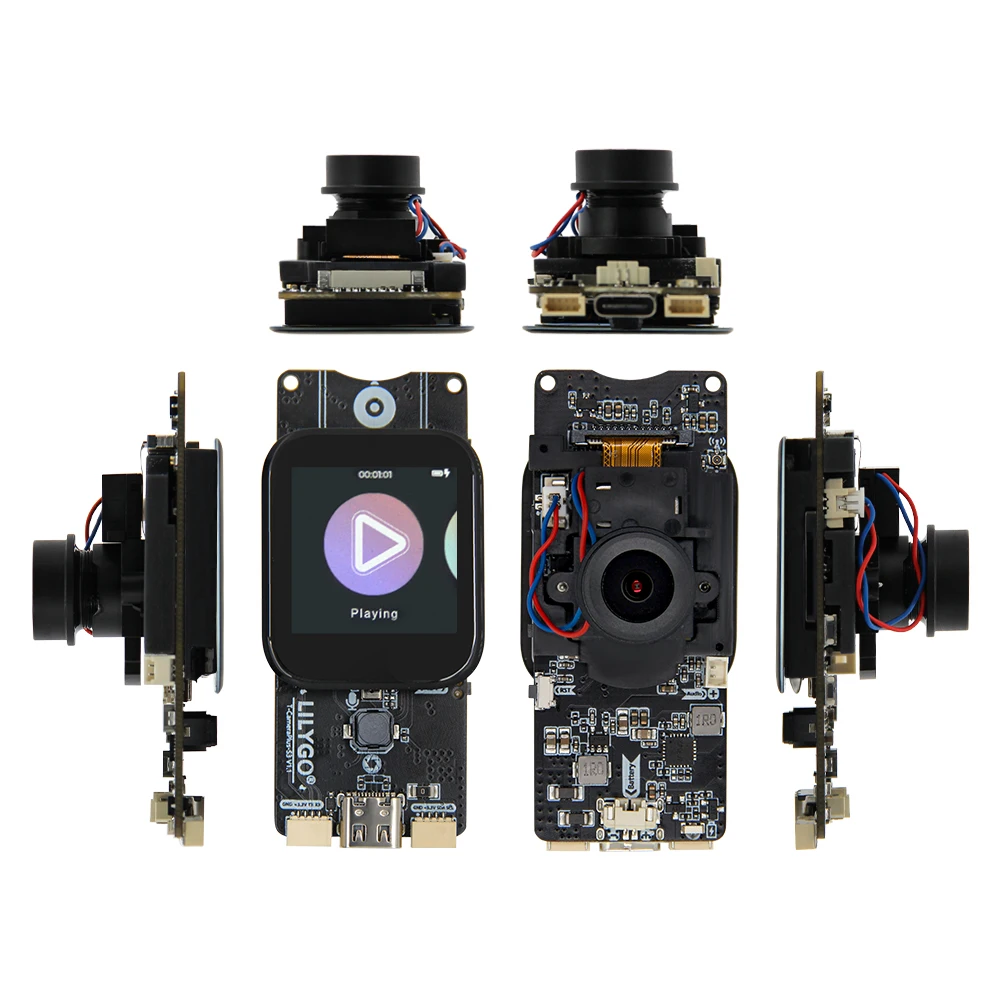

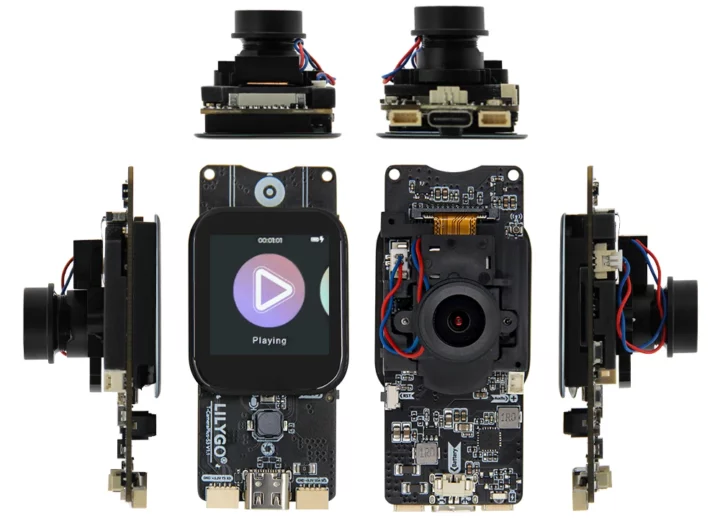

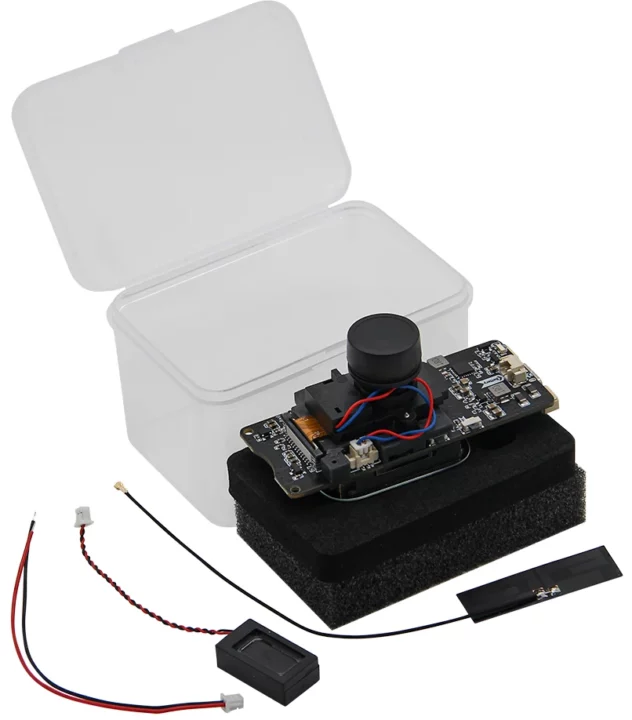

LILYGO T Camera Plus S3 ESP32 S3 Camera Development Board with encloser



The LILYGO T-Camera-Plus-S3 is available for purchase through LILYGO’s official AliExpress store with a price tag of $37.98 including shipping. The company also posted a live demonstration video on its X account.
