Dual Micro HDMI to HDMI adapter supports Raspberry Pi 5/4B, offers multiple power options

Waveshare Pi5 Connector Adapter is a compact dual Micro HDMI to HDMI adapter for the Raspberry Pi 5 or Pi 4B that connects to the micro HDMI and USB-C ports simultaneously and provides access to two full-sized HDMI ports. The PCB also features a USB-C port and a screw terminal for power.

Previously, we have written about many unique waveshare products, including Waveshare 2-CH CAN MiniPCIe, the Waveshare UGV Rover, the Waveshare ESP32-C6-Pico and Pico-M boards and many others, feel free to check those out if you are interested in the topic.

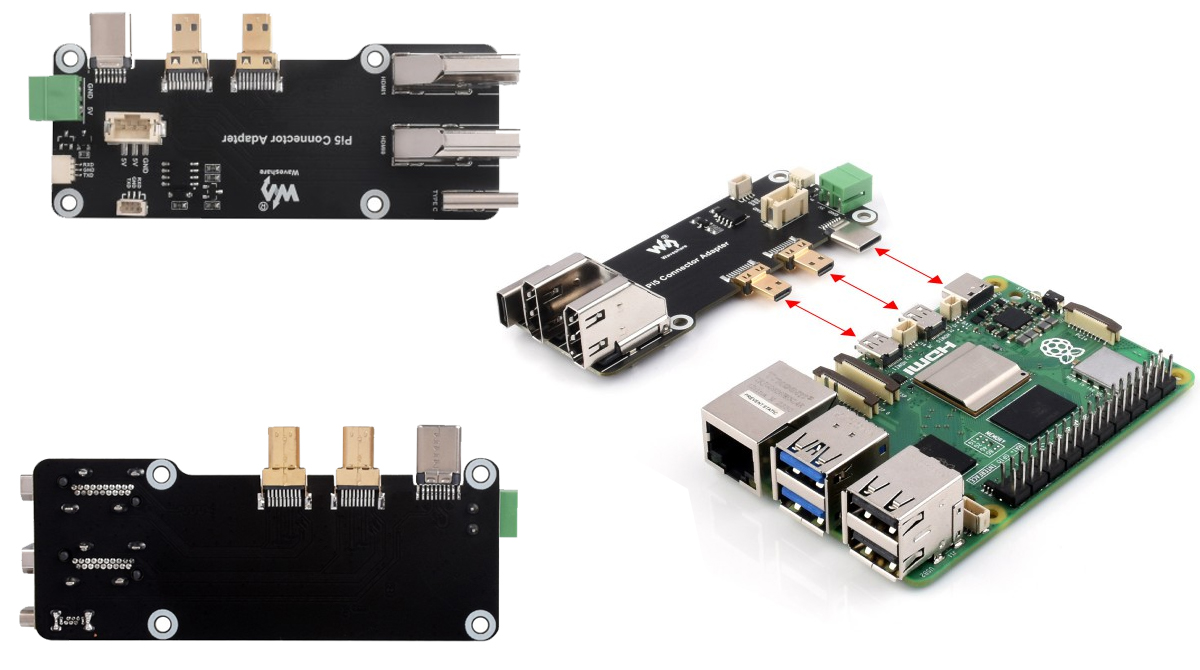

Micro HDMI to HDMI Multifunctional Adapter for Raspberry Pi 5 or Pi 4B

Waveshare Micro HDMI to HDMI adapter specifications

  • Supported Pi – Raspberry Pi 5 / Pi 4B
  • Display Interfaces
    • 2x micro-HDMI inputs
    • 2x HDMI outputs
  • Misc – 2x 3-pin UART connectors
  • Power
    • Power input
      • 1x USB-C female port (Power In)
      • 5 mm box-type screw terminal
      • JST connector for battery
    • Power Output – 1x USB-C male port (Power out)
  • Dimensions – 85.00 mm x 33.5 mm

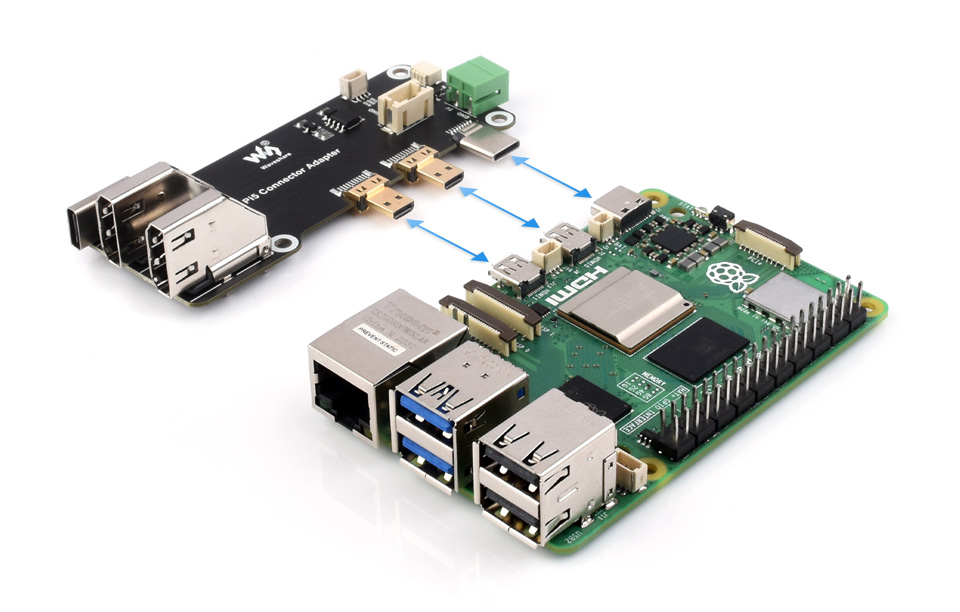

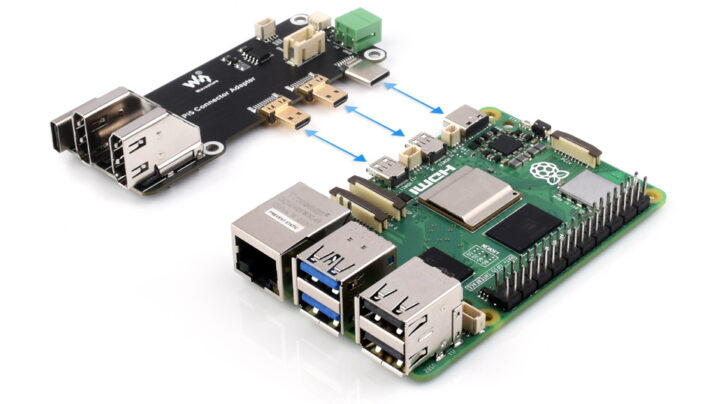

Pi5 Connector Adapter details 3

The Micro HDMI to HDMI adapter features a PCB with two male micro-HDMI ports and a male USB-C port that enables a direct, cable-free connection to both the micro-HDMI and USB-C ports on the Raspberry Pi 5 board.

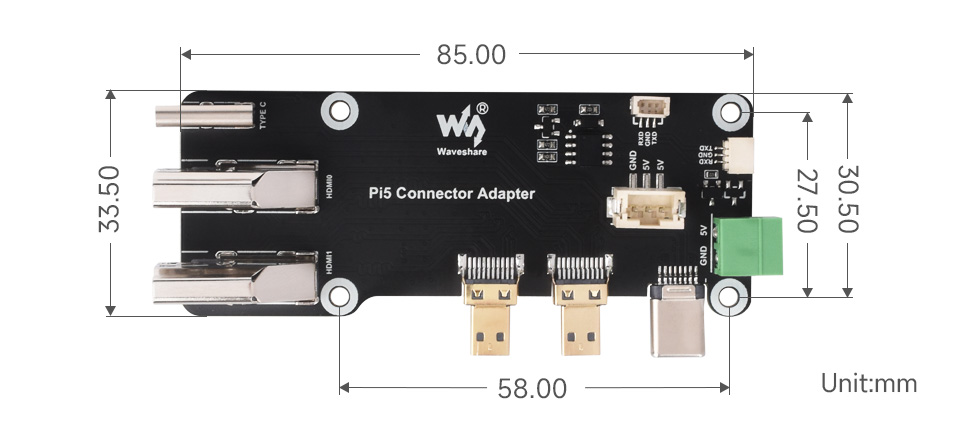

Pi5 Connector Adapter details size

The Waveshare Micro HDMI to HDMI Multifunctional Adapter package includes a Pi5 Connector Adapter, a 100mm 3-pin cable, and a 100mm 3-pin squid cable. These components enable seamless connectivity and versatility for enhanced multimedia experiences. In the board, we also find two additional box-type JST connectors that are the breakout for the UART from the Raspberry Pi.

The Waveshare Pi5 Connector Adapter board can be purchased on Aliexpress for $5.88 shipped , on Amazon for $12.99. and on Waveshare’s official store.
