How to repair/replace a WiFi antenna in a mini PC

In this short tutorial, we’ll show how to repair/replace a WiFi antenna in a mini PC. We’ll use GEEKOM A8 Mini PC as a test device because one of its WiFi antennas is attached to the top plastic cover, and it may potentially get damaged when the user opens the case to change or upgrade the SSD or memory sticks.

GEEKOM A8 mini PC teardown

This happened to us during the teardown of the GEEKOM A8 mini PC as shown in the image below.  While WiFi still works with one antenna, the performance is quite better when two antennas are connected so we decided to repair the mini PC.

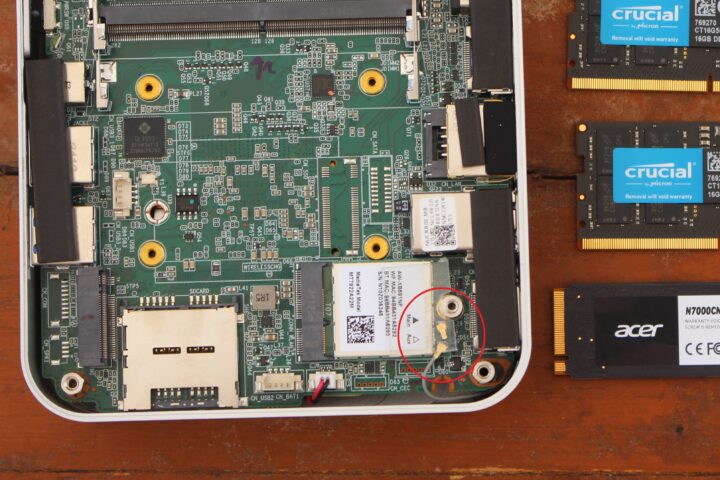

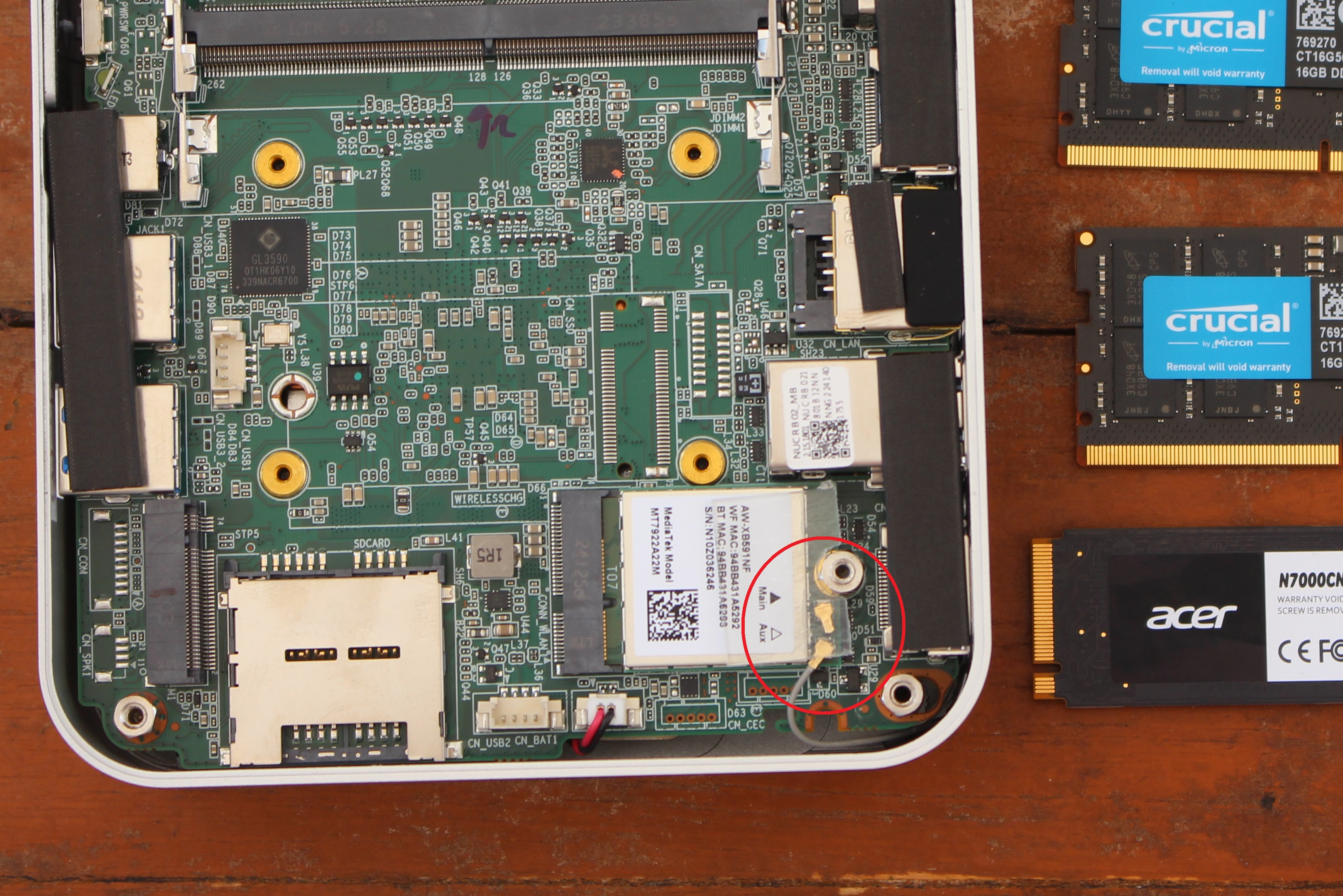

Broken wifi antenna mini PC

We asked a few local shops, but they would only sell WiFi modules with antennas and none would just sell the antennas themselves. But luckily, such WiFi antennas can easily be purchased online in pairs.

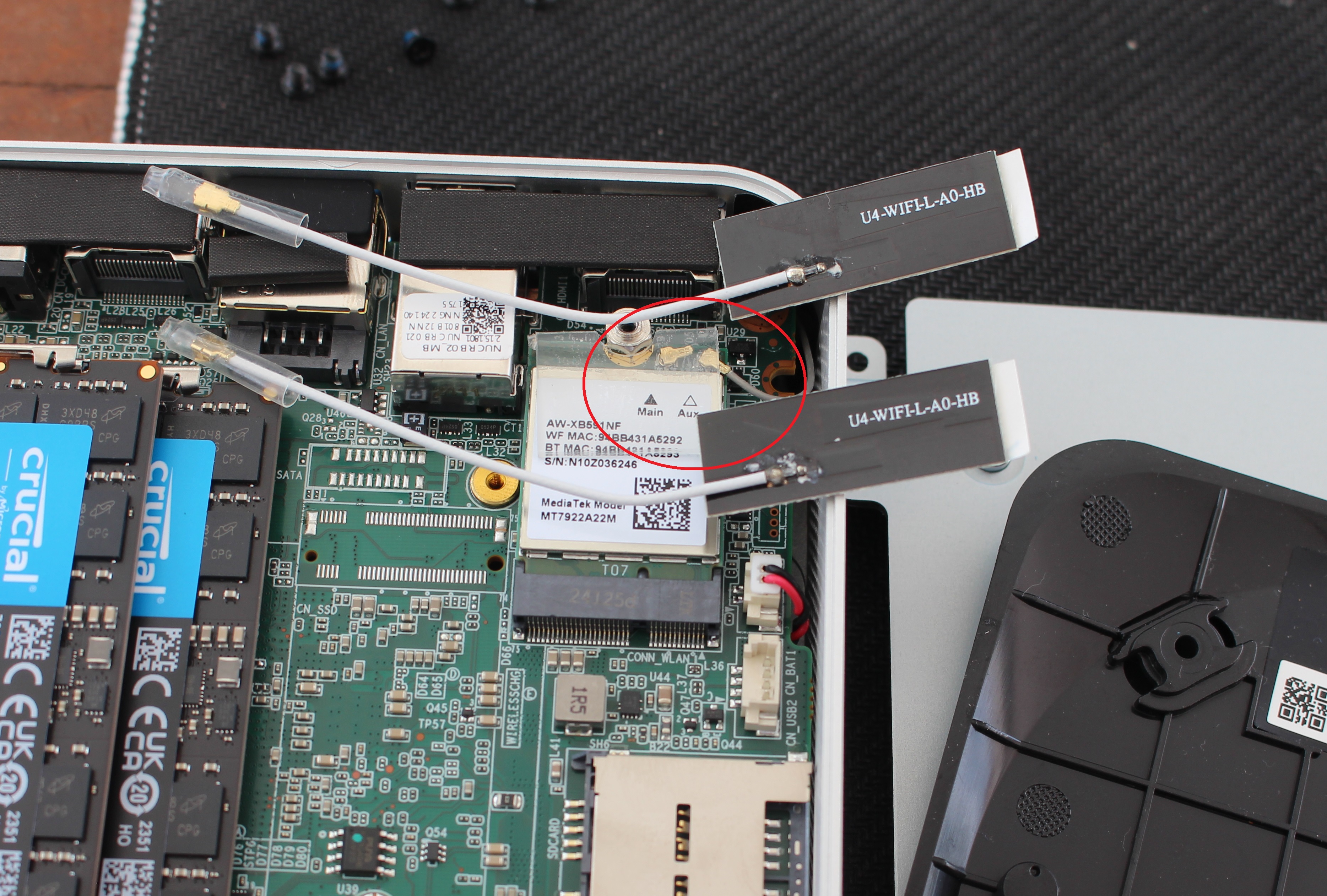

IPEX1 WiFi Antennas

The first time, we purchased a WiFi antenna pair from Shopee (an Aliexpress equivalent in Thailand) seeing it would work with WiFi modules installed in mini PCs and laptops. But the antenna we purchased comes with an IPEX1 connector which is not compatible with the MediaTek module found in the GEEKOM A8, and require an antenna with a smaller IPX4/MHF4 connector as shown below.

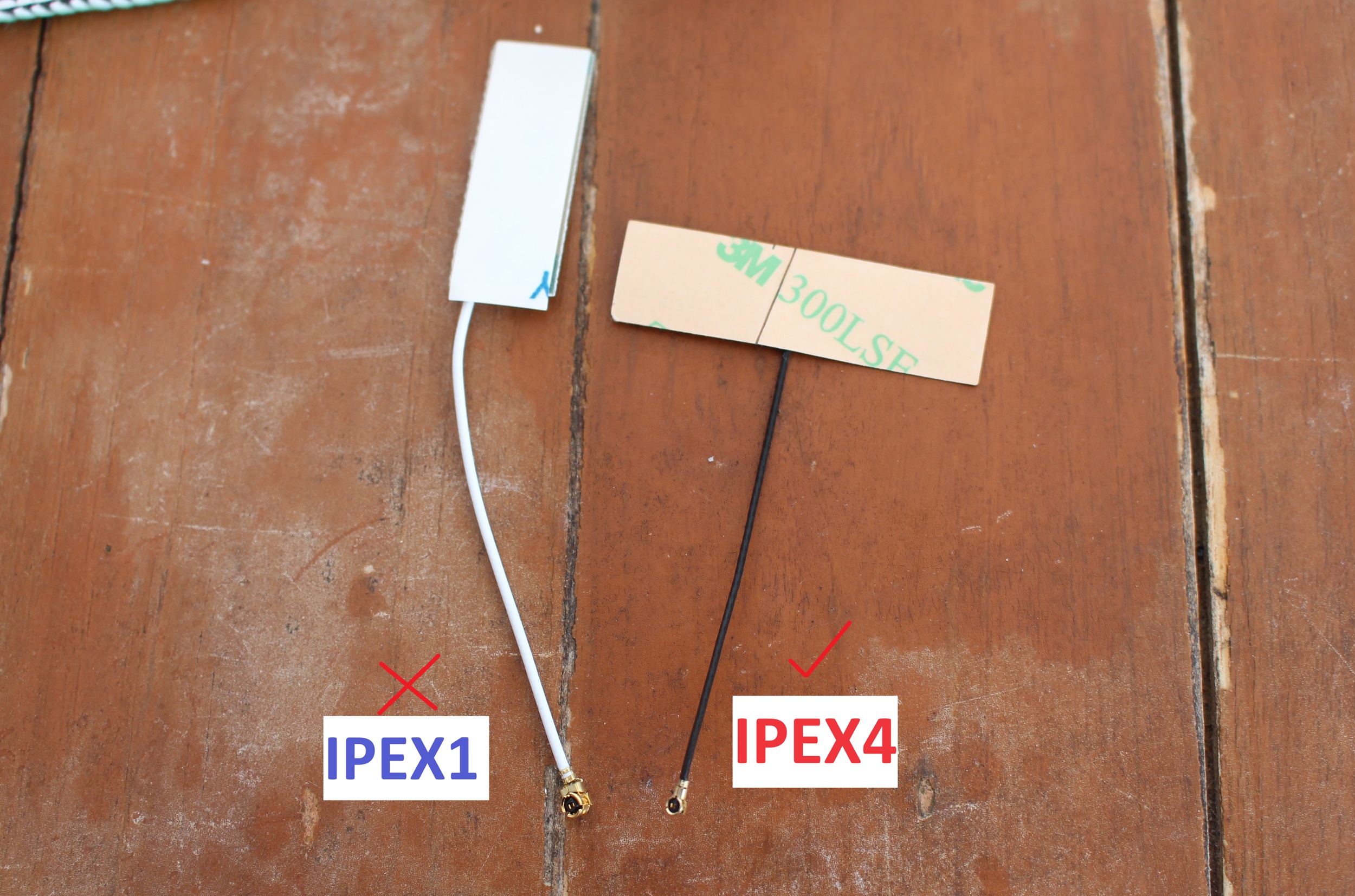

WiFi Antenna IPEX1 vs IPEX4

So readers should first find out which model of antenna they need for their specific model.

Now that we have an IPEX4 antenna, let’s install it. We’ll first need to remove the protective transparent plastic bit that covers the antenna connectors before inserting the IPEX4/MHF4 antenna using a pencil with an eraser to help push it in. We are using a pencil with an eraser because it allows us to gently insert the connector as I previously damaged a few antenna connectors using other methods (using a screwdriver to push it in).

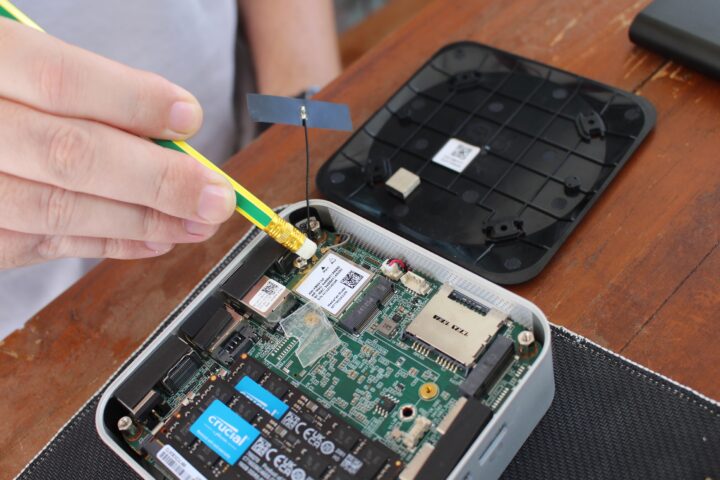

Insert WiFi Antenna Mini PC

Now that the new antenna is installed, we can put the plastic cover back in place.

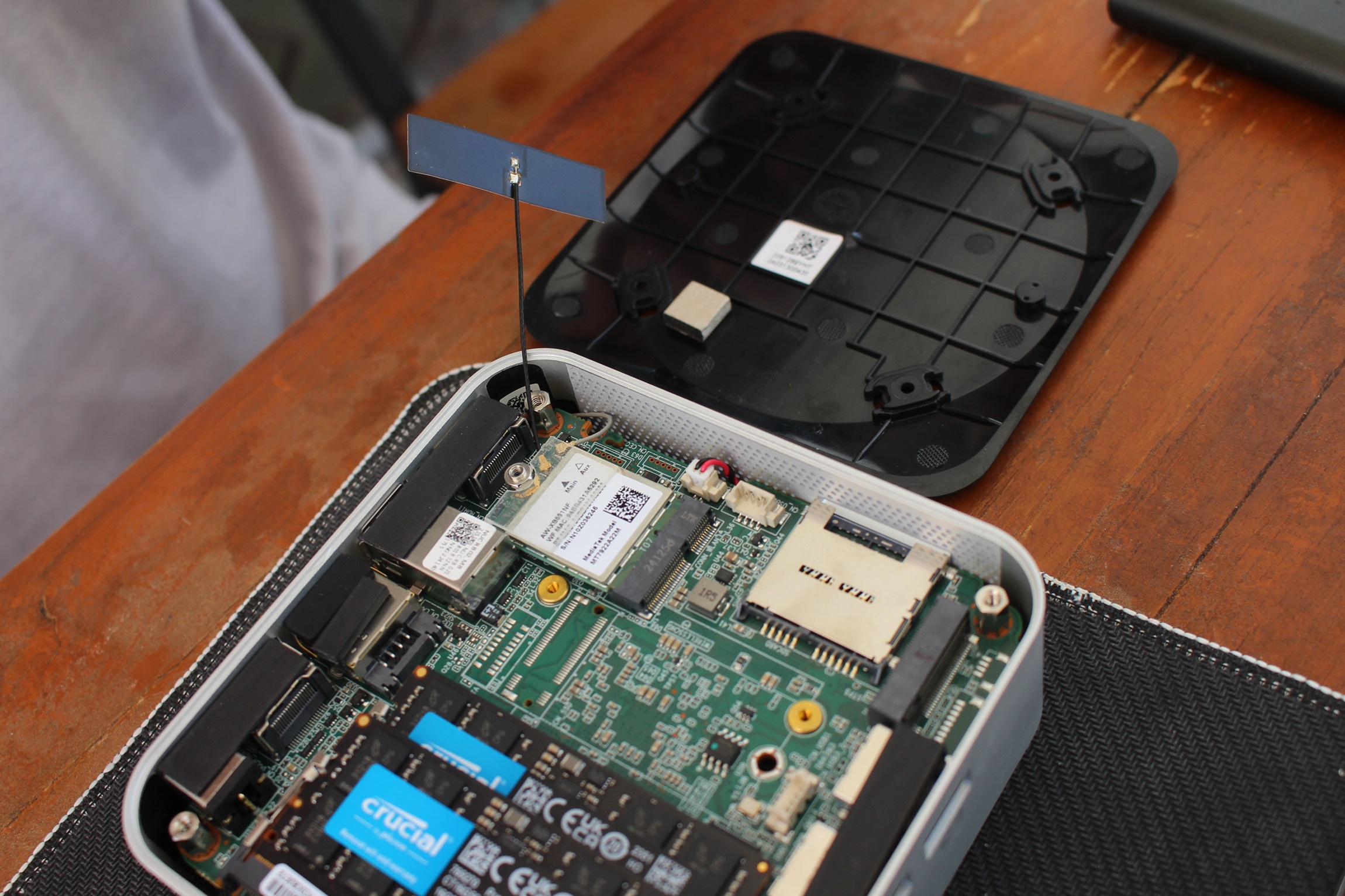

WiFi Antenna repair mini PC

We now need to attach the antenna to the case. We won’t attach it back to the bottom cover due to the risk of breaking it again. We’ll first peel off the 3M protective film from the antenna and place it on one of the sides of the mini PC’s enclosure. Note that it works because the case is made of plastic, and if we had a metal case it could potentially block the signal.

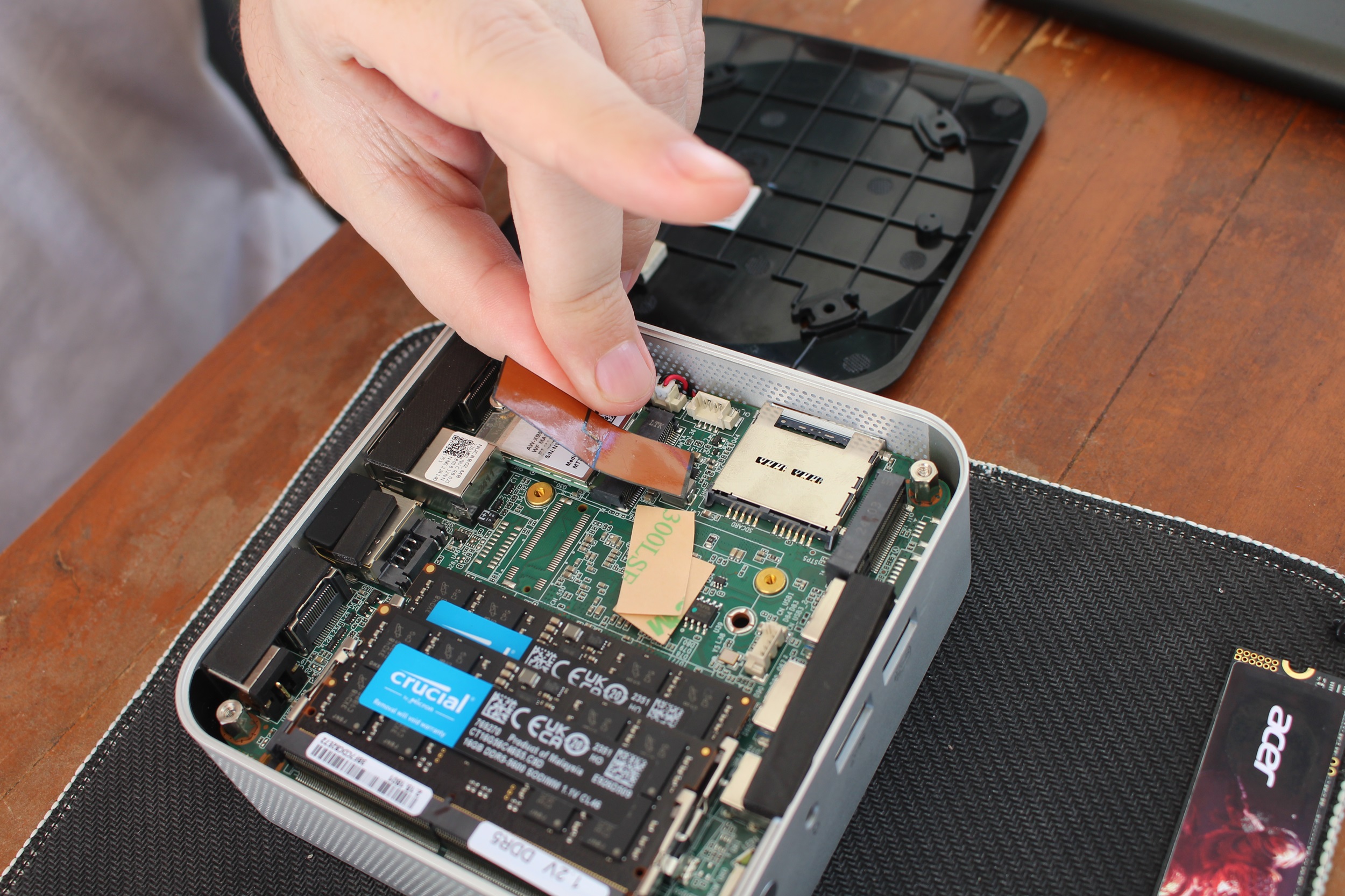

Peel sticker on WiFi Antenna IPEX4
The photo below shows the new antenna attached to the side of the mini PC.

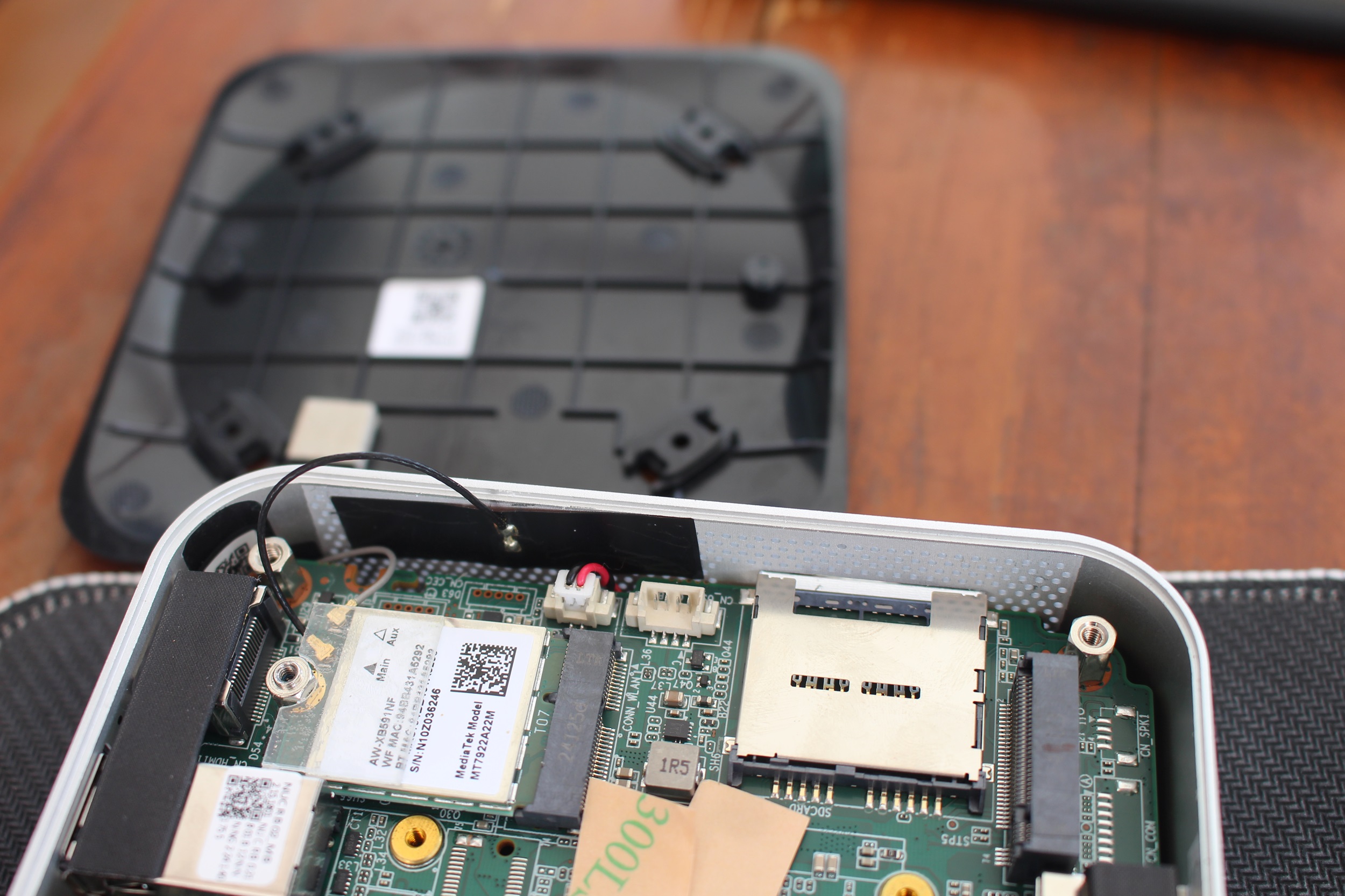

Stick WiFi Antenna GEEKOM A8 mini PC

That’s all. We fixed the GEEKOM A8 mini PC and we now have 2 antennas connected to the WiFi module for optimal wireless performance.

CNXSoft: This tutorial is a translation – with a few additional insights – of the original article on CNX Software Thailand by Suthinee Kerdkaew.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
oldest
newest
willmore
willmore
3 months ago

I don’t know if this is part of the standard, but it has been my experience that mPCI-E wireless cards have IPEX1 conectors while M.2 wireless cards use IPEX4.
