Ninkear N9 mini PC with Intel Processor N95 CPU, 8GB RAM, 256GB SSD goes for $123 / 149 Euros

Ninkear N9 is an inexpensive mini PC powered by an Intel Processor N95 quad-core Alder Lake-N processor that sells for just around $123 shipped on AliExpress with 8GB RAM and a 256GB SSD. European readers will also find it on GeekBuying for 149 Euros shipping from the company’s European warehouse.

The mini PC supports three independent displays through HDMI, DP, and USB-C connectors, comes with a 3.5mm audio jack, offers gigabit Ethernet and WiFi 5 connectivity,  and four USB 3.0 ports for expansion.

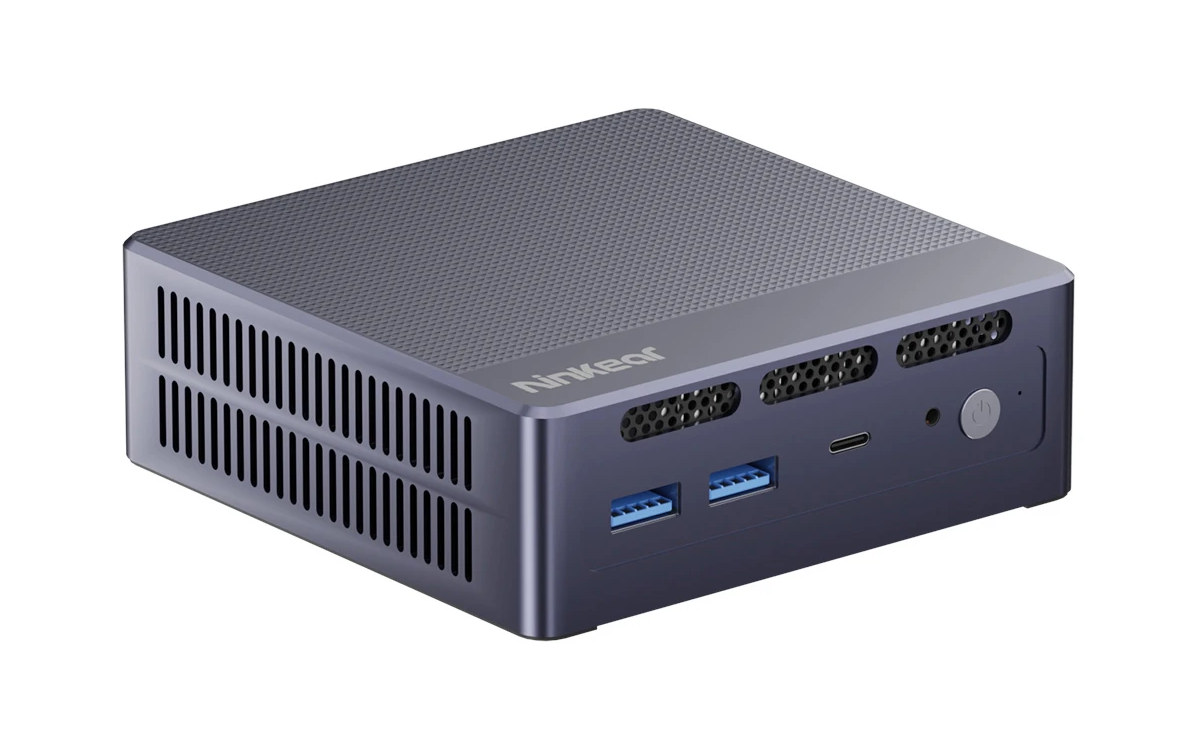

Ninkear N9 Mini PC

Ninkear N9 specifications:

  • SoC – Intel Processor N95 quad-core Alder Lake N-series processor @ up to 1.10 GHz / 3.4 GHz (Turbo) with 6MB cache, 16EU Intel HD graphics @ 1.20 GHz; TDP: 12W
  • System Memory – 8GB DDR4
  • Storage – 256GB M.2 SSD (Unclear whether SATA or NVMe)
  • Video Output
    • HDMI port up to 4Kp60
    • DisplayPort connector up to 8Kp60
    • USB-C via DisplayPort Alt mode up to 8Kp60
    • Triple independent display support
  • Audio – 3.5mm headphone+mic jack, digital audio output via HDMI and DP ports
  • Networking
    • Gigabit Ethernet RJ45 port
    • Dual-band Wi-Fi 5 and Bluetooth 4.2
  • USB – 4x USB 3.0 ports, 1x USB Type-C port
  • Misc
    • Power button
    • Kensington lock slot
  • Power Supply – 12V/2A via DC jack
  • Dimensions – 12.8 x 12.8 x 4.5 cm
  • Weight – 370 grams

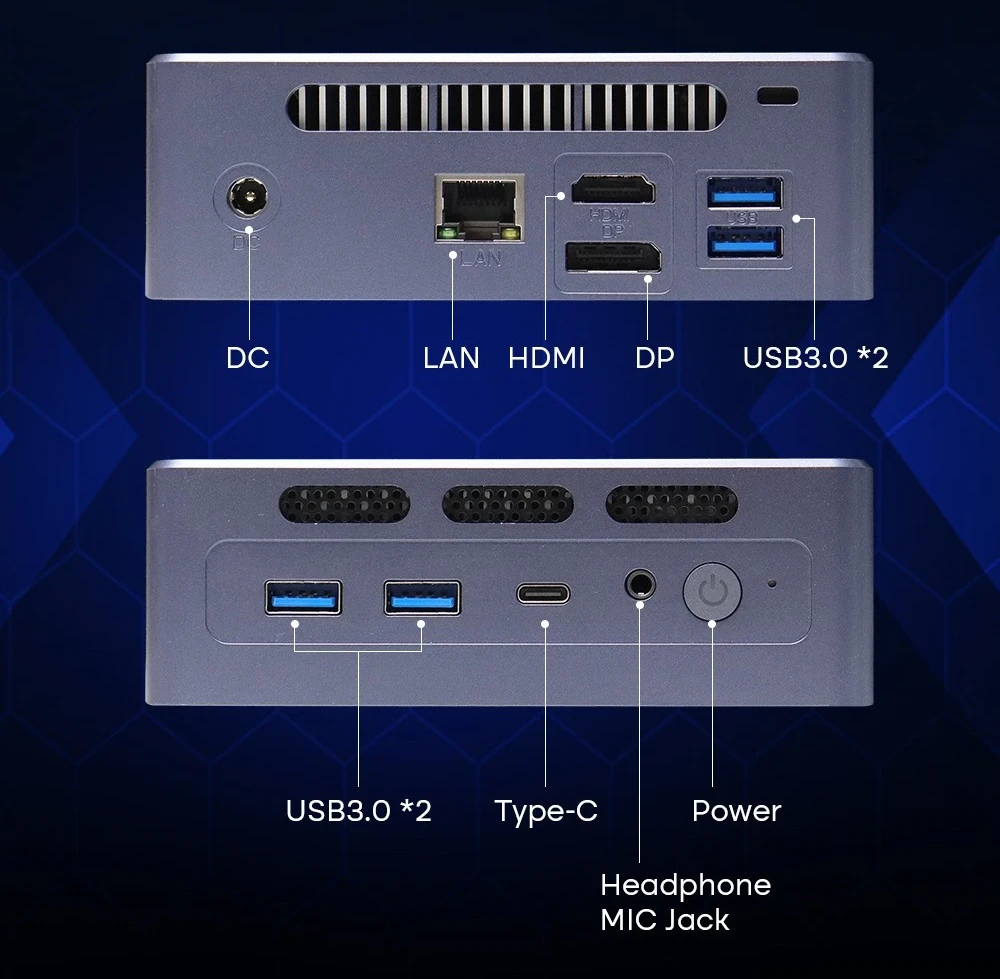

Ninkear N9 Intel Processor N95 mini PC ports

The mini PC ships with Windows 11, but the company claims Ubuntu/Linux is supported. The mini PC is said to ship with a SATA cable, a screw pack, and a user manual. The SATA cable would imply it’s possible to add a 2.5-inch drive, but it’s not listed in the specs, and I don’t see any illustrations or photos to confirm that. There should also be a power adapter, but only with an EU plug from whatever shop it is purchased.

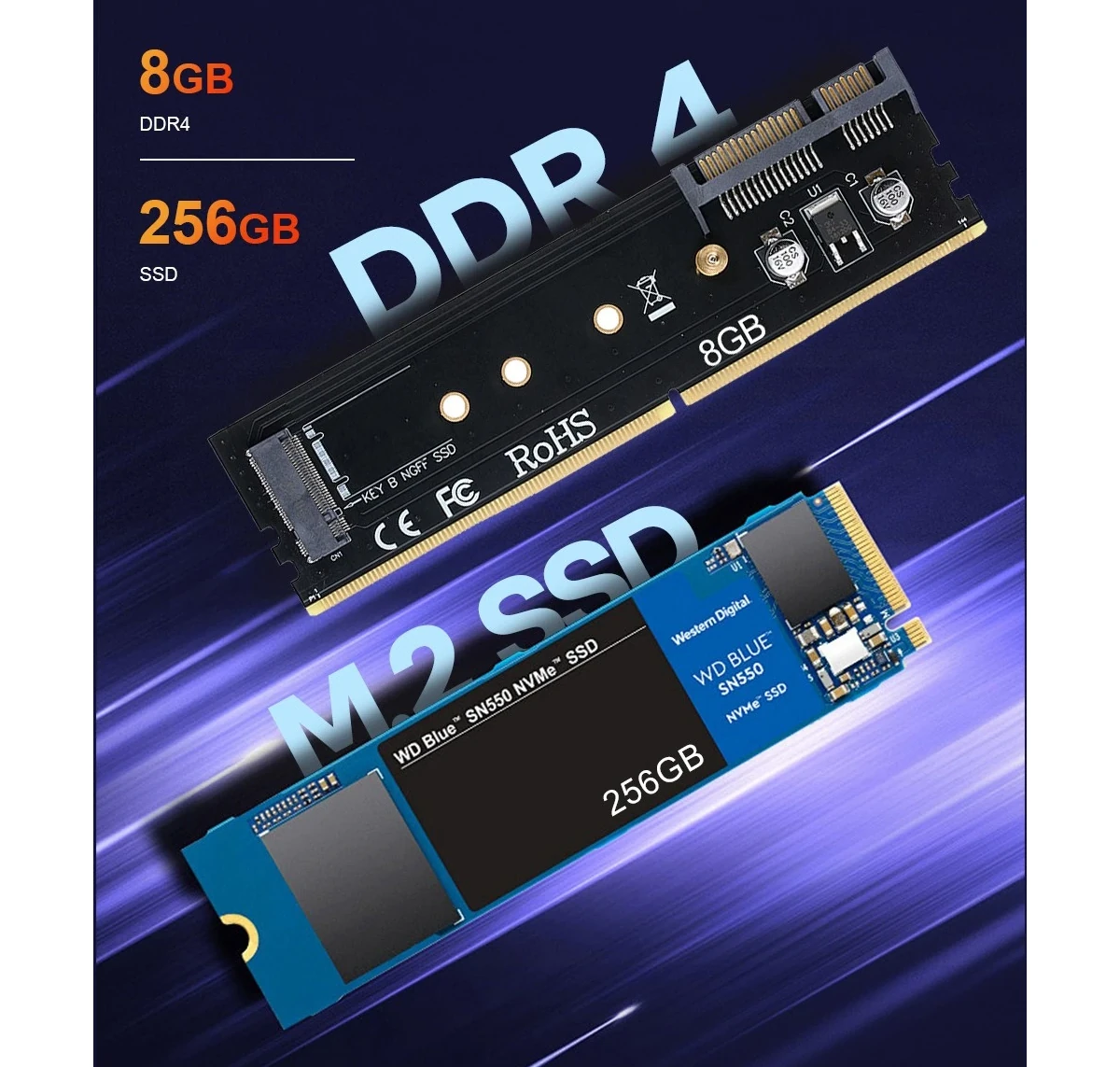

The type of M.2 SSD used is also unclear as the GeekBuying page mentions “256GB SSD SATA storage”, but at the same time we are shown a funny illustration with a weird “8GB DDR4 RAM stick” with and M.2 Key-B connector and a SATA port and a 256GB M.2 Key-M NVMe SSD, namely WD Blue SN550. So at this point, I’d expect no 2.5-inch SATA support and a 256GB M.2 SATA drive to be on the safe side.

8GB DDR5 SATA NVMe SSD
What is that!?

If you are sensitive to fan noise, you may want to avoid it, as one customer left feedback on AliExpress as follows:

Its so loud fan noise and, I have no idea how to change fan speed. I did change all cmos setting but, there was no different. So I just put a resistor of 100 ohm on the fan. Now its quiet enough.

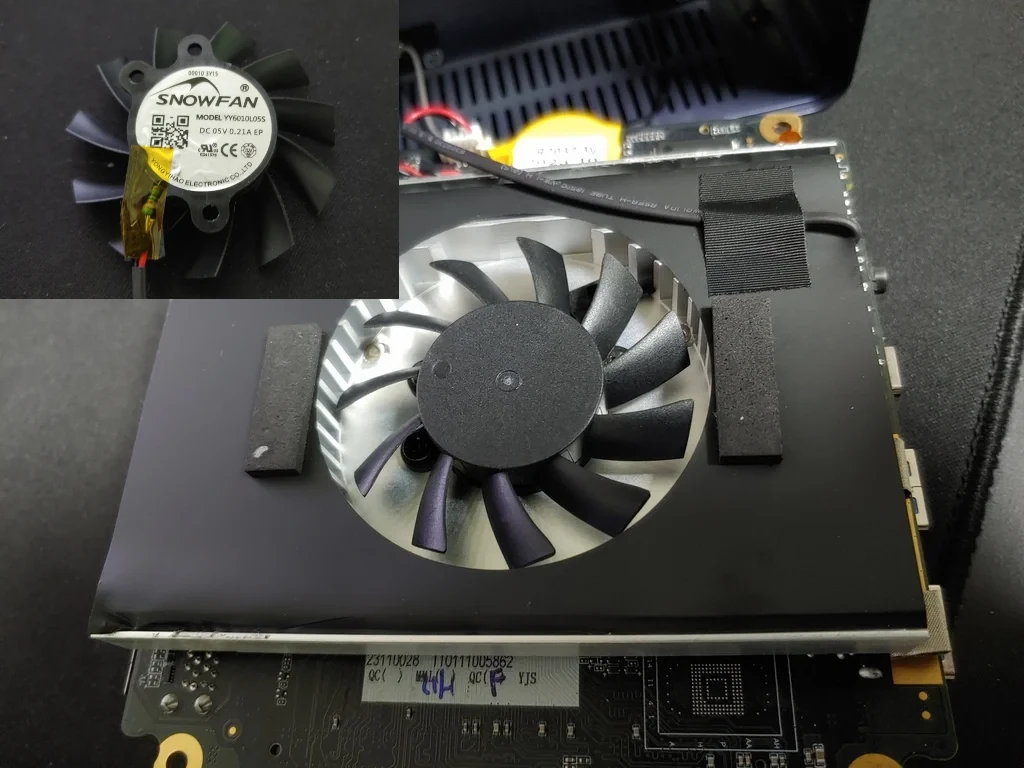

Mini PC cooling Fan resistor hack
Resistor hack (top left)

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
Dan
Dan
28 days ago

I’m going with “AI generated” for that monstrosity

willmore
willmore
28 days ago

“What is that?” Indeed, that’s bizarre. You’ve got a SATA M.2 socket with a SATA+power plug on it and what appear like an SO-DIMM header. While they show an NVME M.2 SSD next to it.

tkaiser
tkaiser
28 days ago

It’s this thing https://www.amazon.com/dp/B09CN9WL5W with ‘8GB’ photoshopped onto it.

willmore
willmore
27 days ago

That makes it even more cursed!

Brian Thomas
26 days ago

This PC is priced in such a way that it competes directly with the raspberry pi and other SBC’s like it. Not so much the maker community of the Pi, but those that are using SBC’s as desktop devices or even headless servers. The N95 is much faster, its x86, so running software, and keeping it up to date won’t be a pain. This makes it more compelling to purchase a PC like over an SBC of my use case was a server or a desktop replacement.
