Zigbee Coordinator CC2652P7 1.0 runs open-source firmware, works with Zigbee2MQTT, Home Assistant, and ioBroker

The cod.m Zigbee Coordinator 1.0 (CZC 1.0) is a hybrid ZigBee coordinator that can be used to connect devices over a network (Ethernet/Wi-Fi) and USB.

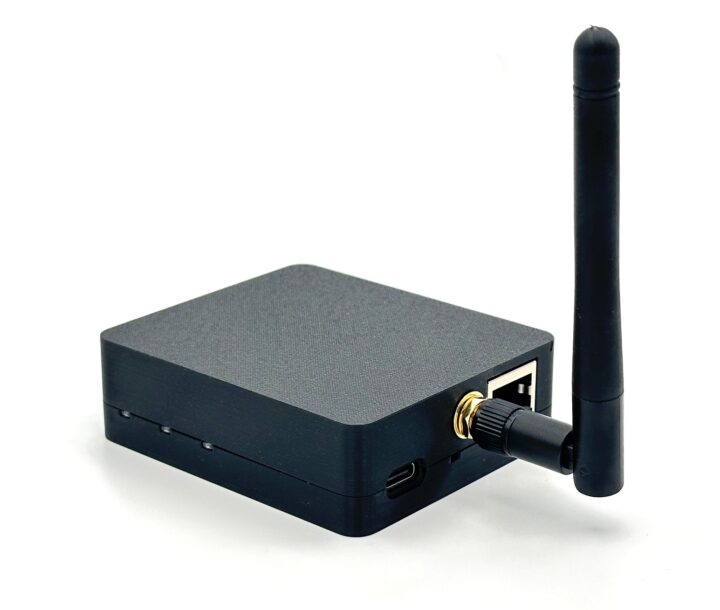

cod.m zigbee coordinator

The ZigBee Coordinator version 1.0 is an upgrade of version 0.2 released in 2022. The CZC 1.0 replaces the Texas Instruments CC2652P2 chip with the much more powerful CC2652P7 chip, uses an ESP32-WROOM-32E module instead of the USR-K6 chip, and adds compatibility with Home Assistant (ZHA integration).

It can create a Zigbee network and pair Zigbee devices over Ethernet, WiFi, or Serial (USB). It features the same Texas Instruments CC2652P7 chip as the SMLIGHT line of Zigbee Ethernet/WiFi/USB coordinators and USB dongles. There are two models of the CZC 1.0: a Power over Ethernet model and a model that can only be powered via USB-C.

cod.m Zigbee Coordinator specifications:

  • Zigbee SoC – Texas Instruments CC2652P7 Arm Cortex-M4F microcontroller @ 48 MHz with 704 KB flash, 256KB ROM for protocol and library functions, 8KB of SRAM, integrated +20 dB power amplifier, Bluetooth 5.2 Low Energy, Matter, Thread, Zigbee 3.0
  • Main Module – ESP32-WROOM-32E, Xtensa dual-core 32-bit LX6 microprocessor, supports 2.4 GHz Wi-Fi, Bluetooth, and Bluetooth LE, integrated flash up to 16MB, 26 GPIOs, and onboard PCB antenna, with support for an external antenna connector
  • Connectivity
    • Ethernet RJ45 port with PoE support
    • 2.4GHz WI-Fi
    • Zigbee 3.0
    • USB-C port
  • Misc – 3x status LEDs, external SMA antenna, 3D printed housing (CC-BY-NC-SA)
  • Power
    • Supply – PoE or USB-C
    • Consumption – <1W
  • Compatible with Home Assistant (ZHA), Zigbee2MQTT (Z2M), and ioBroker.
  • CE, RoHS, WEEE certifications

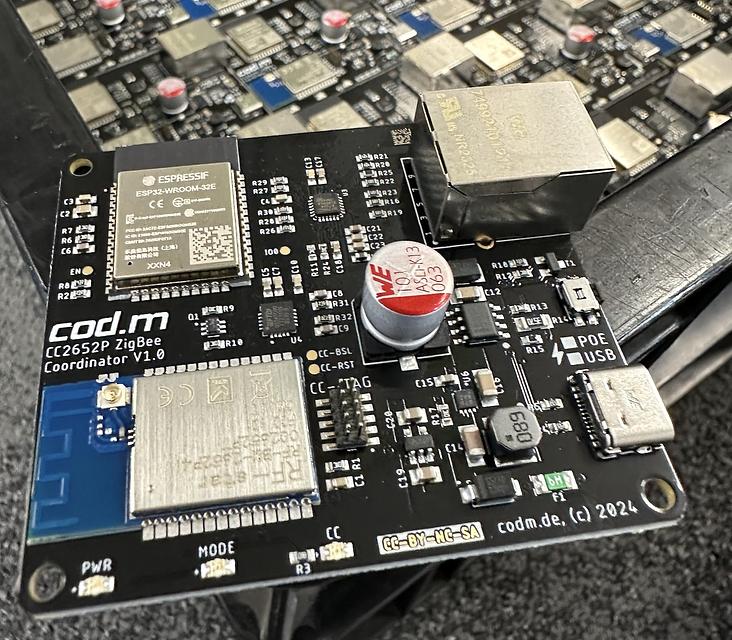

cod.m zigbee coordinator board

The firmware for the ESP32 module is forked from the repository for ZigStar UZG-01 Zigbee Gateway. The Texas Instruments CC2652P7 microcontroller runs the open-source Z-stack firmware for Texas Instruments Zigbee devices. The Zigbee firmware can be updated via network, and new  ESP32 firmware can be flashed via the web interface or USB-C (Auto-BSL), removing the need for an external programmer. The schematics and design files for CZC v0.2 are available for download but have not been released for the new model. The STL files for the device’s housing can be downloaded from Printables. Documentation for the device, with detailed installation and setup instructions, is hosted at the cod.m Knowledge Base.

The cod.m Zigbee Coordinator PoE and non-PoE models are priced at $53 and $63, respectively, and can be bought from Lectronz and the company’s website.
