GL.iNet GL-B3000 “Marble” WiFi 6 router ships with a photo frame

GL.iNet GL-B3000 “Marble” is a typical WiFi 6 AX6000 router that ships with a photo frame acting as a stand for the router and makes it look like an office or home decoration item rather than another bland white box on the desk.

The Marble router is powered by a Qualcomm IPQ5018 dual-core Cortex-A53 networking SoC coupled with 512MB RAM and 128MB NAND flash. Like other GL.iNet routers, it runs an OpenWrt fork with GL.iNet Admin Panel, OpenVPN and Wireguard VPN client/server support, Adguard Home, parental control, and other features.

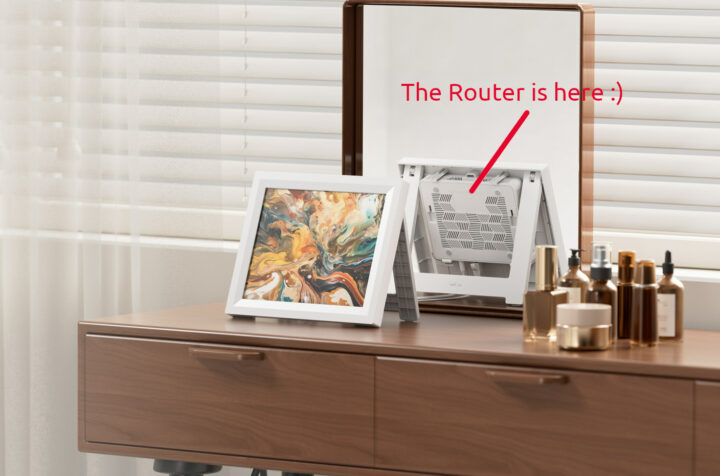

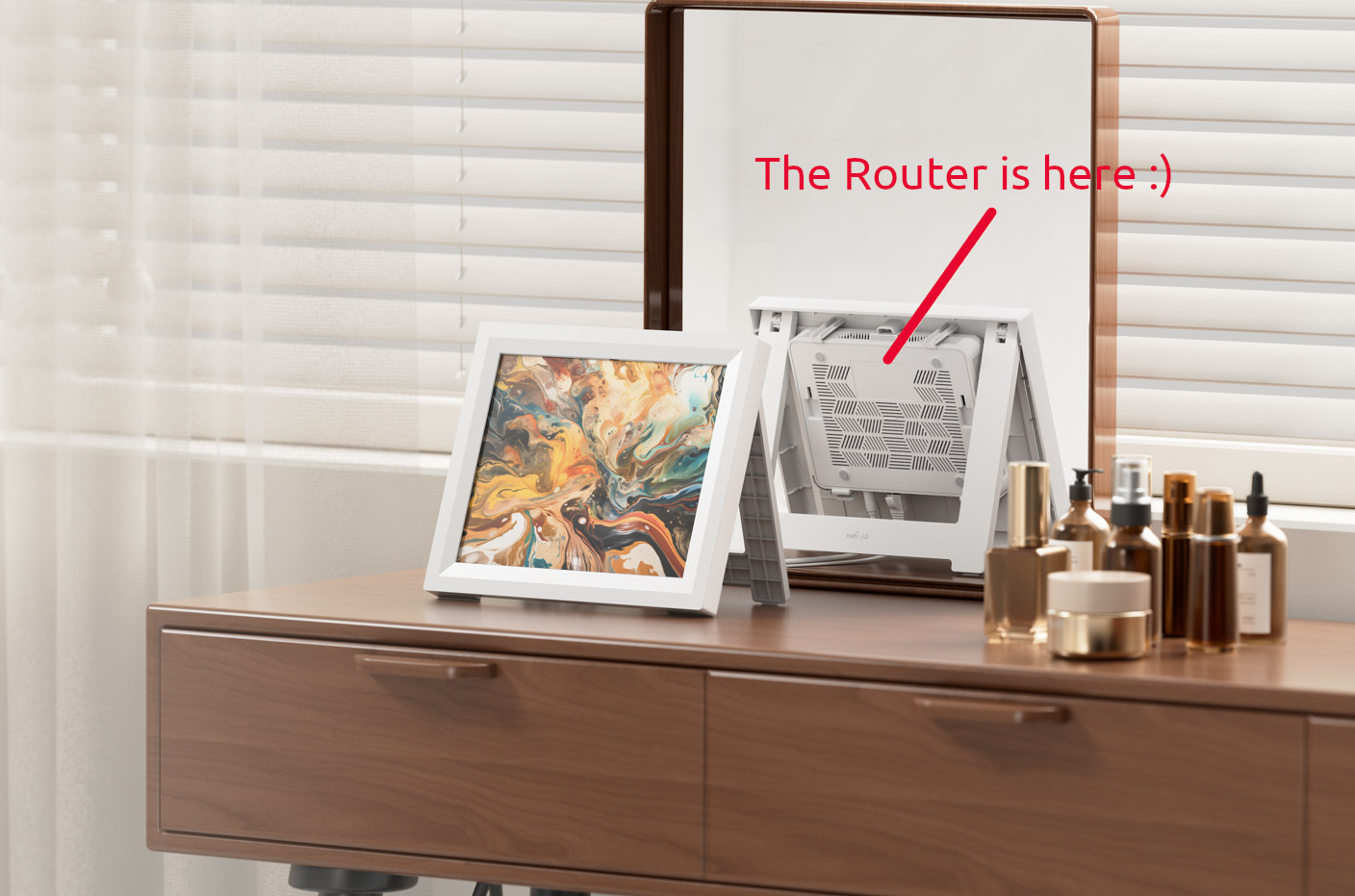

router photo frame

GL.iNet GL-B3000 specifications:

  • SoC – Qualcomm IPQ5018 dual-core Cortex-A53 processor @ 1 GHz
  • System Memory – 512MB DDR3L
  • Storage – 128MB NAND flash
  • Networking
    • 1x Gigabit Ethernet WAN port
    • 2x Gigabit Ethernet LAN ports
    • Dual-band IEEE 802.11a/b/g/n/ac/ax WiFi 6 up to 574Mbps (2.4GHz) and 2402Mbps (5GHz)
    • 4x internal antennas
  • Misc – Reset button
  • Power Supply – 12V/1.5A DC Input via 5.5/2.1mm power barrel jack
  • Power Consumption – <13 Watts
  • Dimensions & Weight
    • Router – 155 x 120 x 23mm |  275 grams
    • Photo Frame – 235 x 197 x 32mm (fits an 8-inch photo)
  • Temperature Range – Operating: 0 ~ 40°C; storage: -20 ~ 70°C

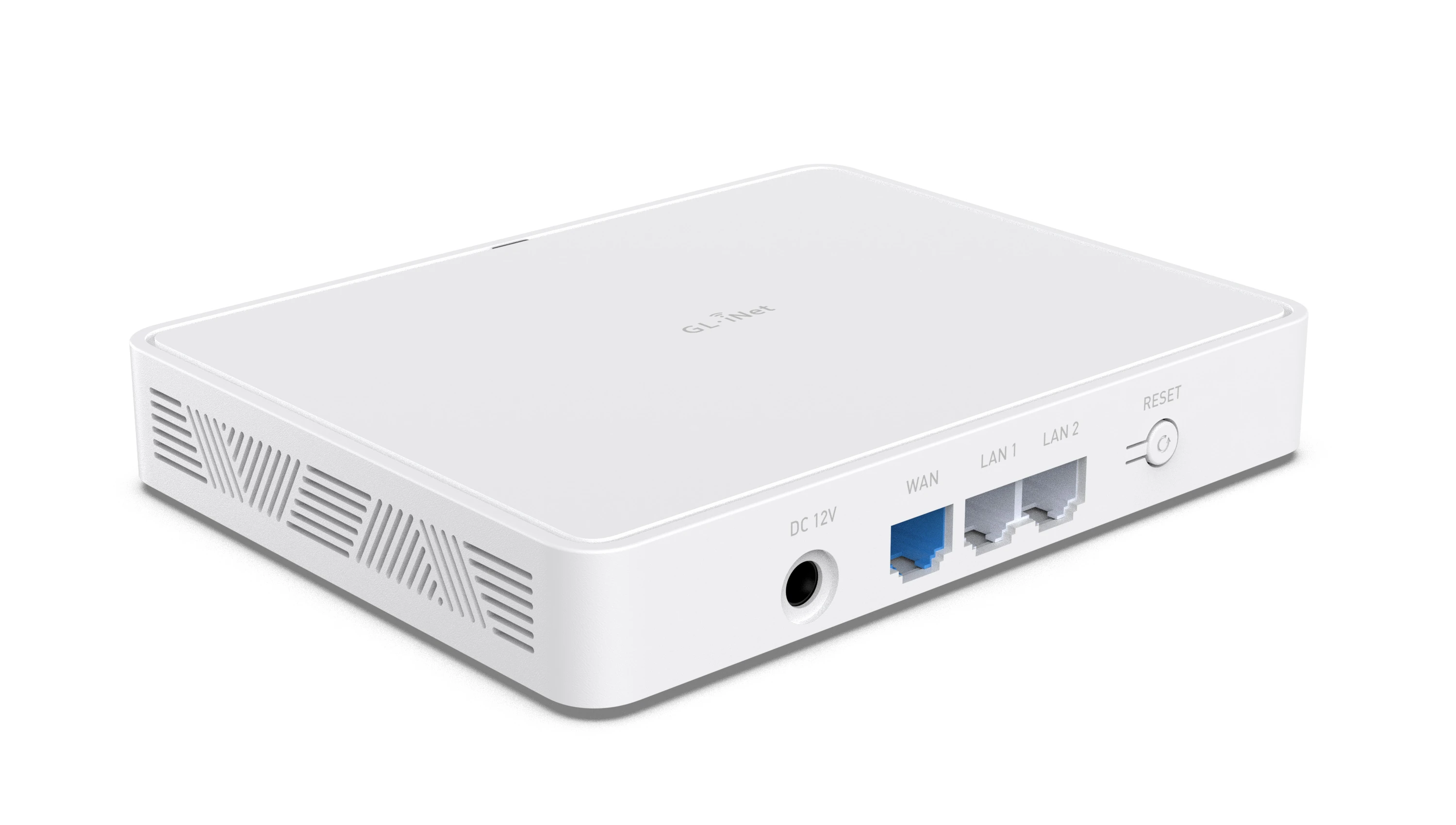

GL.iNet GL-B3000 Marble routerThe router supports four “mounting” options: attached behind the photo frame, placed on a desk or table, mounted on a wall, and mounted vertically through the provided stand. Note the photo frame is not a digital photo frame, but a traditional photo frame taking an 8-inch printed-out photo. You’ll find all the accessories that ship with the router in the photo below.

GL.iNet GL-B3000 Marble package content accessories
The photo frame is shown as optional, but I understand it’s included in the package, and it’s just up to the user to use it or not.

Adding a digital photo frame might be an interesting project, and some people may even consider making their own digital photo frame stand for their current router, especially since the Marble lacks features such as 2.5GbE networking and a USB port.

The GL.iNet Marble (GL-B3000) Wi-Fi 6 router is available for pre-order for $56 on the company’s online store. Further details may also be found on the product page.
