MSI MS-C918 is a palm-sized pocket PC with Intel Processor N100 CPU, Windows 11 IoT Enterprise

MSI MS-C918 industrial palm-sized pocket PC is powered by an Intel Processor N100 CPU with up to 4GB LPDDR5 memory and a 128GB eMMC flash preloaded with Windows 11 IoT Enterprise.

The mini PC also comes with two HDMI 2.0 ports including one with HDMI CEC support, gigabit Ethernet, WiFI 6E, and Bluetooth 5.2 connectivity, and three USB 3.2/2.0 ports. The company says it’s best suited for small office environments, digital signage, meeting systems, and other compact setups.

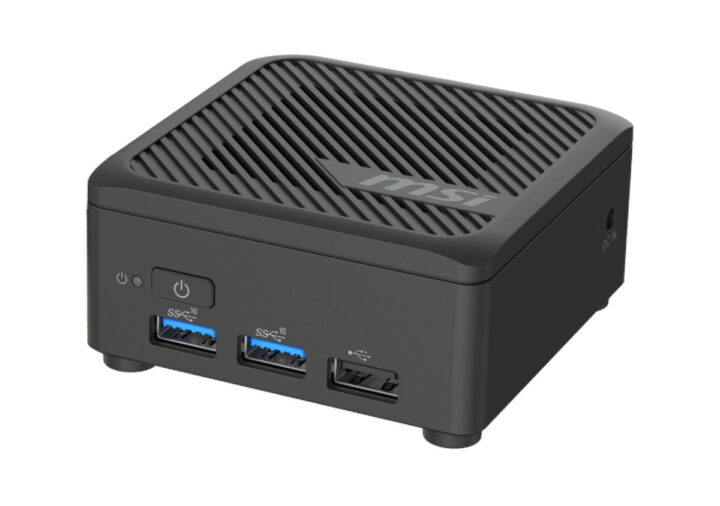

MSI MS-C918 industrial palm-sized PC

MSI MS-C918 specifications:

  • SoC – Intel Processor N100 Alder Lake-N quad-core processor @ up to 3.4 GHz (Turbo) with 6MB cache, 24 EU Intel HD graphics @ up to 750 MHz; TDP: 6W
  • System Memory – Up to 4GB LPDDR5 @ 4800 MHz
  • Storage
    • 128GB eMMC flash
    • MicroSD card slot
  • Video Output – 2x HDMI 2.0 ports up to 4Kp60 with one supporting HDMI CEC Power On/Off
  • Audio – 3.5mm audio jack, digital audio via HDMI
  • Networking
    • Gigabit Ethernet RJ45 port via Realtek RTL8111H-CG controller
    • Dual-band WiFi 6E and Bluetooth 5.2
  • USB – 2x USB 3.2 10Gbps ports, 1x USB 2.0 port
  • Security – fTPM 2.0
  • Misc – Power button, Power LED, Kensington lock slot, watchdog timer
  • Power Supply – 19V via DC jack
  • Dimensions – 80 x 80 x 36mm (height is 40.7mm once rubber feet are taken into account)
  • Weight – 290 grams
  • Temperature Range – Operating: 0 to 40°C; storage: 0 to 60°C
  • Humidity – 10 ~ 90%, non-condensing
  • Vibration – Operating: 0.25 Grms, 5-300Hz, 3axes
  • Shock – Operating: 3G, half sine 11 ms duration
  • Certifications
    • EMC – CE, FCC Class B, CCC, UL, PSE (adapter), VCCI
    • Safety – CB, UL & CUL, BSMI

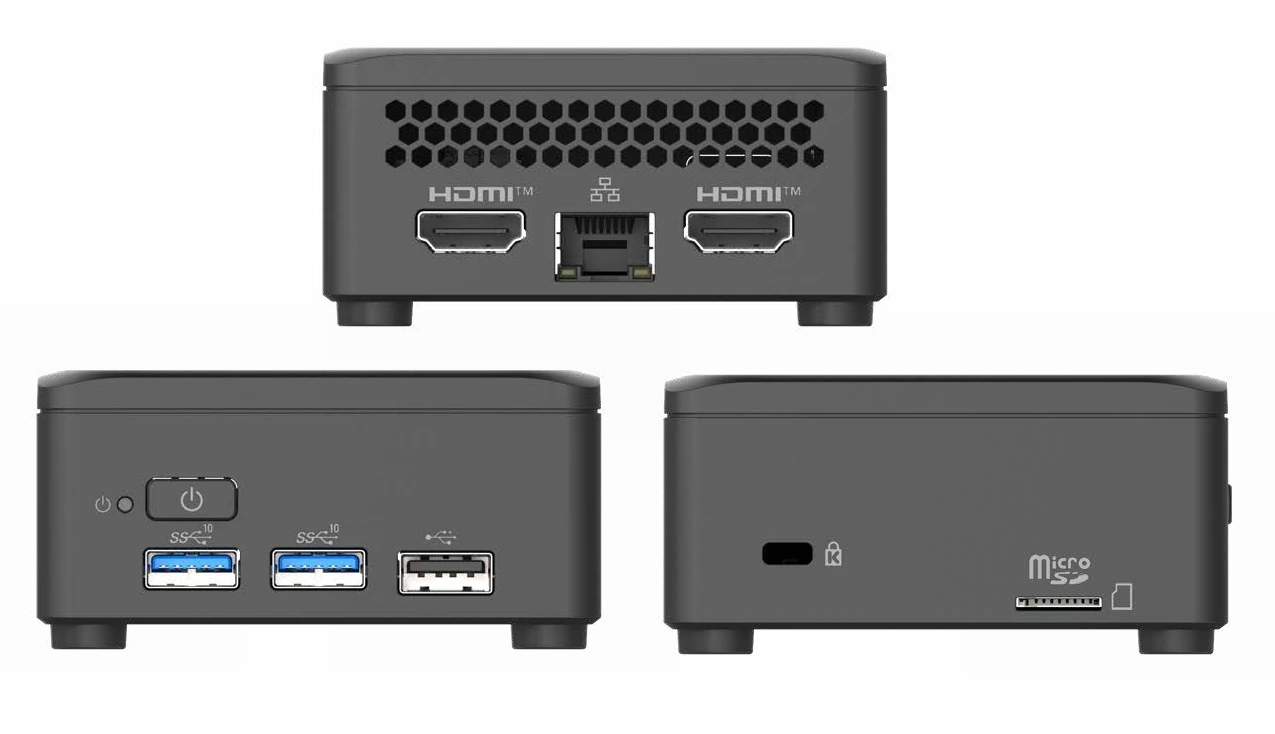

MSI Alder Lake-N N100 industrial Mini PC with Windows 11 IoT Enterprise

While it can be used on a desktop, a VESA mount can also be provided. The tiny computer runs Windows 11 IoT Enterprise 64-bit 22H2, and the main advantage over a regular Windows 11 installation, is that it is supported for at least 10 years which may be important for commercial applications. The company brands it as an “industrial lite box” because it’s designed for indoor business use cases, and it’s not designed to run in harsh industrial environments.

Other Windows 11 Home/Pro palm-sized Alder Lake-N mini PCs we covered or reviewed in the past include the Blackview MP80 (N97) mini PC, the iKOOLCORE R2 for networking with four 2.5GbE ports, and the T9 Plus mini PC among others.

Since the MSI MS-C918 is not a consumer device, it might never become available for purchase online, and the company tells interested parties to contact its sales team to place an order. Additional information may be found on the product page and in the press release.

Thanks to TLS for the tip.
