Rockchip RK3568 fanless industrial PC offers Ethernet, 4G LTE, WiFi, BLE connectivity, RS485, RS232, and CAN Bus interfaces

MYiR MYD-LR3568-GK-B is a fanless industrial PC Box powered by Rockchip RK3568 quad-core Cortex-A55 Ai SoC with up to 4GB RAM,  32GB GB eMMC flash, support for M.2 NVMe storage, and communication interfaces such as RS232, RS485, and CAN Bus.

The device also offers dual gigabit Ethernet and optional WiFI, BLE, and 4G LTE connectivity, two video outputs, and five USB ports with a set of features and capabilities that makes it suitable for edge AI, video analytics, industrial control, protocol conversion, communication management, and more.

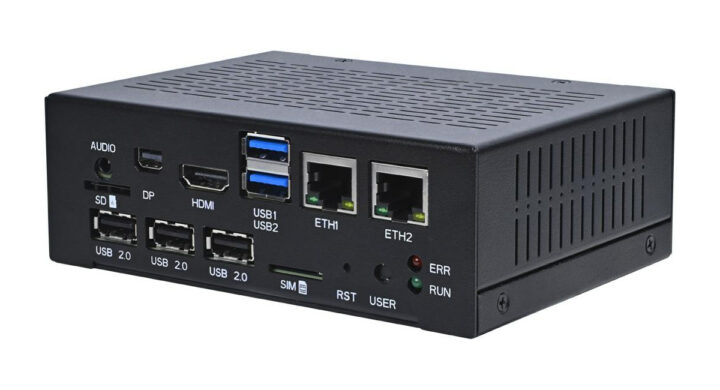

Rockchip RK3568 fanless industrial PC

MYiR MYD-LR3568-GK-B specifications:

  • SoC – Rockchip RK3568J
    • CPU – Quad-core Cortex-A55 processor at up to 1.4 GHz (An “overdrive” version at 1.8 GHz is available upon request)
    • GPU – Mali G52 2EE GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
    • VPU
      • 4Kp60 H.264, H.265, VP9, 1080p60 MPEG-4/-2/-1, VP8, and VC1 video decoder
      • 1080p60 H.264/H.265 video encoder
    • AI accelerator – Up to 1 TOPS NPU
  • System Memory – 2GB or 4GB LPDDR4
  • Storage
    • 16GB or 32GB eMMC flash
    • 32KB EEPROM
    • M.2 NVMe SSD PCIe slot (2280)
    • MicroSD card socket
  • Video Output
    • HDMI 2.0 up to 1080p60 (by default)
    • Mini DisplayPort (DP) up to 1080p60 (by default)
  • Audio – 3.5mm microphone/earphone jack
  • Networking and Wireless
    • 2x Gigabit Ethernet RJ45 ports
    • WiFi 5 and Bluetooth 5.2 module with WiFi/BT antenna interface
    • Optional 4G LTE module via  M.2 (USB) socket and externally accessible SIM card holder
  • USB
    • 2x USB 3.0 host ports
    • 3x USB 2.0 Type-A ports
  • Serial
    • 1x RS232 via terminal block
    • 2x RS485 via terminal block
    • 2x CAN Bus via terminal block
  • Debugging – USB-UART USB Type-C debug interface
  • Misc
    • Reset button, user button
    • RUN status LED, ERR user LED
  • Power Supply – +12V/2A via 3-pole Phoenix terminal
  • Dimensions
    • 130 x 93.5 x 44mm without mounting bracket
    • 160 x 93.5 x 44mm with mounting bracket
  • Weight – TBD
  • Temperature Range – -40°C to 85°C (-30°C to 85°C with wireless module)
  • Operating Humidity – 5 to 95%, non-condensing

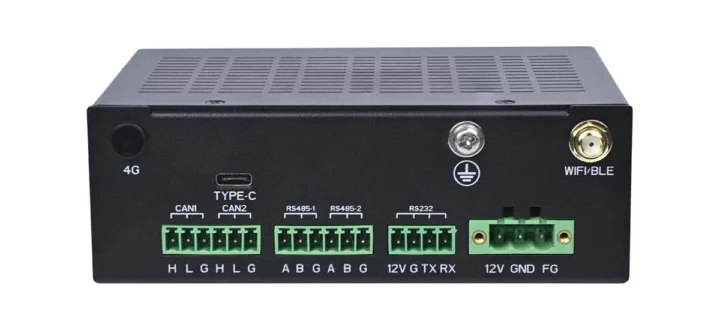

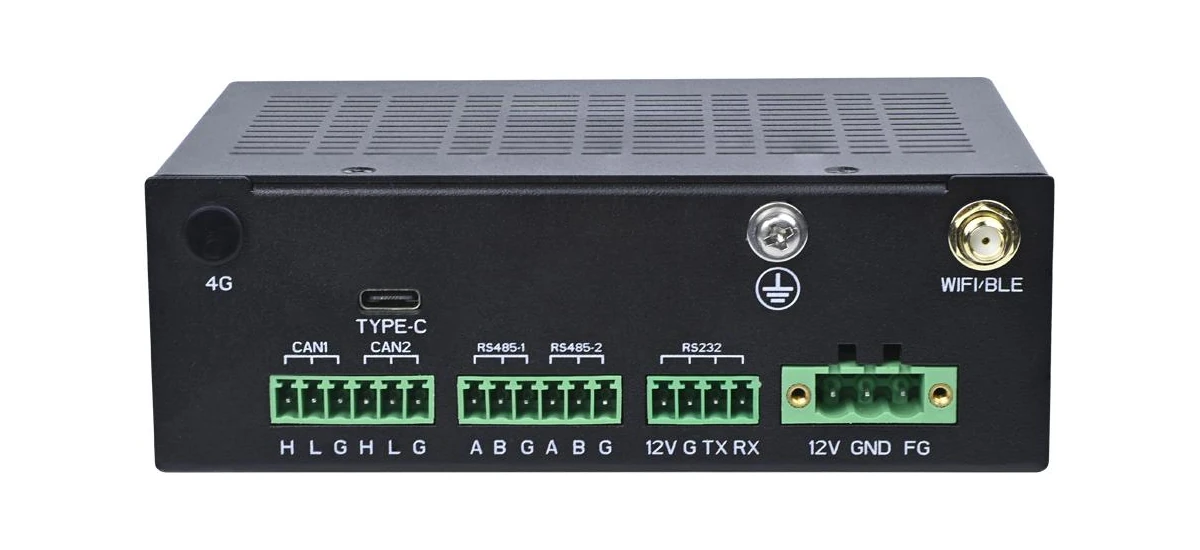

Fanless Edge AI Box 4G WiFi BLE CAN Bus RS485 RS232

MYIR provides SDKs for both Linux and Debian operating systems that boot, kernel, driver source code, and related development tools, along with “detailed documentation” to ease the development process. As usual with MYiR, none of that documentation is available publicly, and the company only shares it with paying customers.

The top layer of the front panel exposes the interfaces from the MYIR MYD-LR3568 development board we covered last month, and the other interfaces are made available through the company’s MY-ICEB001 expansion board.

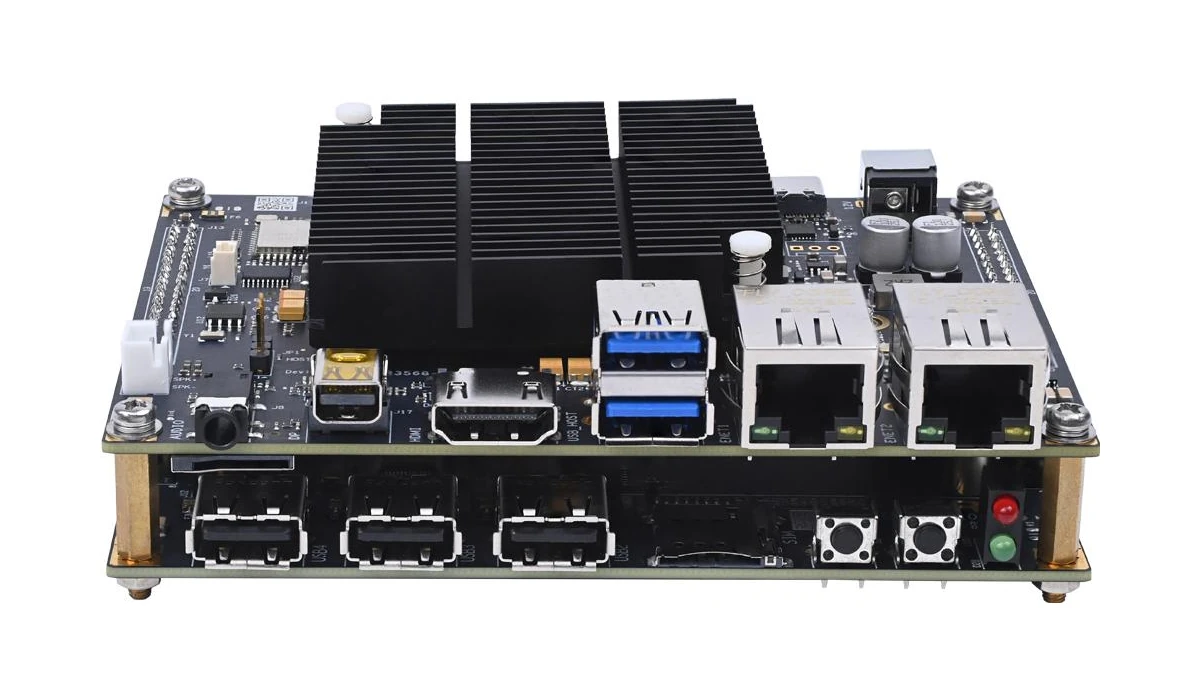

MYiR MYD LR3568 GK B internal design
Internal design

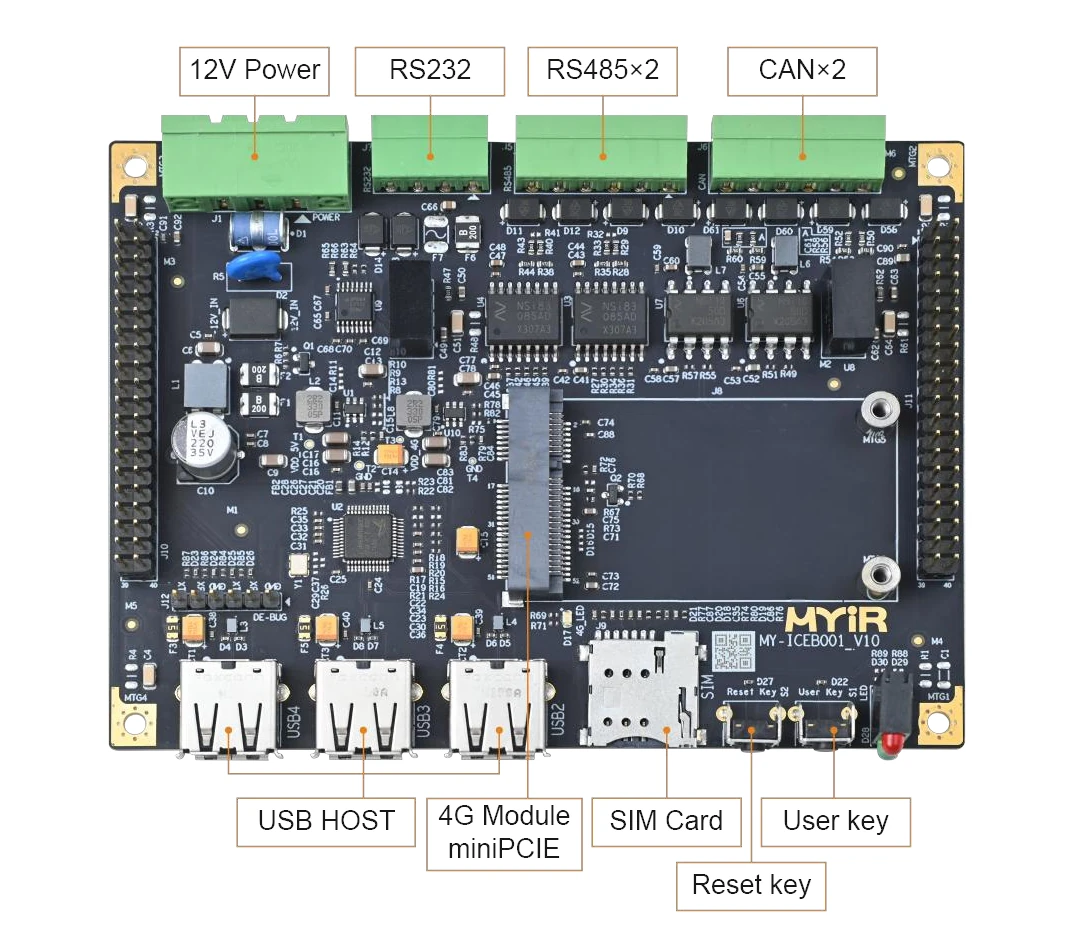

RS232 RS485 CAN Bus 4G LTE USB expansion board
MY-ICEB001 expansion board

It’s far from the first Rockchip RK3568-powered fanless embedded system we’ve covered. Others include the Mixtile Edge 2 Kit (a review with Home Assistant using Zigbee and Z-Wave modules is coming soon), AAEON ACP-1108 panel PC, Firefly Station P2S, etc…

A good thing with MYiR Tech is that they provide pricing publicly and allow customers to buy samples online, something that cannot be said of many B2B companies. The MYD-LR3568-GK-B RK3568 industrial PC is offered for $159 in 2GB/16GB configuration and $189 in 4GB/32GB configuration, while a kit without case goes for $139  More details and purchase links can be found on the product page. Additional information may also be available in the short announcement.
