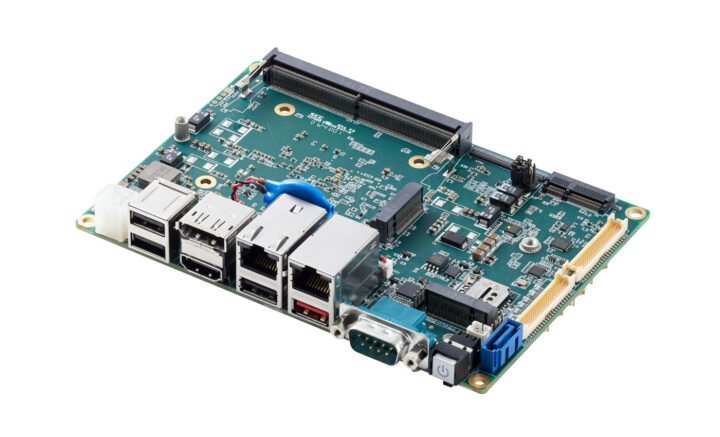

ADLINK SBC35-ALN 3.5-inch Intel N97 SBC features SBC-FM expansion connector with PCIe, USB, SMBus

ADLINK SBC35-ALN is a 3.5-inch Intel N97 SBC with up to 16GB DDR5, an M.2 socket for M.2 storage, and a custom SBC-FM expansion connector with PCIe Gen3 x1, USB 2.0, and SMBus interfaces.

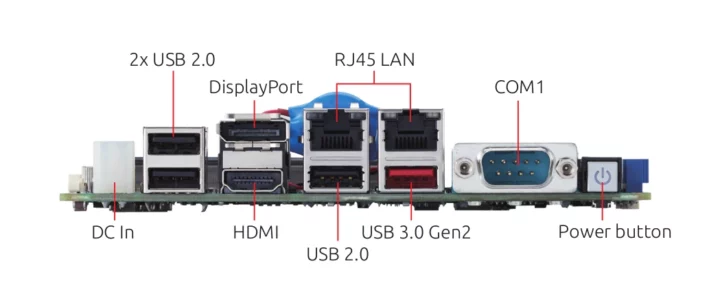

The 3.5-inch board also features two gigabit Ethernet ports, three display interfaces with HDMI, DisplayPort, and LVDS or eDP, several USB ports and RS232/RS422/RS485 serial interfaces, 40-pin box headers, and M.2 E-Key and B-Key sockets for wireless expansion.

ADLINK SBC35-ALN specifications:

• SoC – Intel Processor N97 quad-core Alder Lake-N processor @ up to 3.6 GHz with 6MB Cache, Intel UHD Graphics; 12W TDP
• System Memory – Up to 16GB DDR5 4800 MHz via SODIMM slot
• Storage
  • 1x SATA III + SATA power connector
  • 256 Mbit SPI flash for BIOS
• Display
  • 1x DisplayPort 1.4
  • 1x HDMI 2.0 through DP to HDMI Redriver
  • LVDS/eDP (default: LVDS)
  • Supports 3 independent displays
• Audio
  • Realtek ALC888S audio codec
  • 1x Line-in, 1x Line-out, MIC-in through 40-pin box header
• Networking
  • 2x Gigabit Ethernet RJ45 ports using Intel i210IT controllers
  • Optional WiFi and Bluetooth via M.2 socket (see Expansion section)
  • Optional 4G LTE via M.2 socket and SIM card slot (see Expansion section)
• USB
  • 1x USB 3.2 Gen2 (10Gbps) Type-A port
  • 3x USB 2.0 Type-A ports
• Serial
  • COM1: RS-232/422/485 DB9 connector
  • COM2: RS-232/422/485 DB9 connector or 40-pin box header (default) by BoM option
  • COM4: 2x RS-232 via 40-pin box header
• Expansion
  • M.2 M-Key 2280 socket (PCIe x2)
  • M.2 E-Key 2230 socket (CNVi Support, PCIe x1 for WiFi + USB 2.0 for BT)
  • M.2 B-Key 3042 socket (USB 3.0/2.0) with SIM card slot (USB 3.0/2.0)
  • SCB-FM board expansion with PCIe Gen3 x1, USB 2.0, and SMBus/LPC
  • 40-pin box header with 8x DI, 8x DO, UART, audio, etc…
• Security – Optional TPM 2.0
• Misc – Power button; RTC battery
• Power Supply – 12V to 24V DC via 4-pin connector or DC jack (option)
• Dimensions – 146 x 102mm (3.5-inch SBC)
• Weight – N/A
• Temperature Range – Operating: 0°C to +60°C; storage: -40°C to +85°C
• Certifications
  • EMC – CE, FCC Class B
  • ESD – Contact +/-4 KV, Air +/-8 KV

ADLINK provides support for Windows 10/11 IoT Enterprise 64-bit by default, and can also support Ubuntu 22.04 upon request.

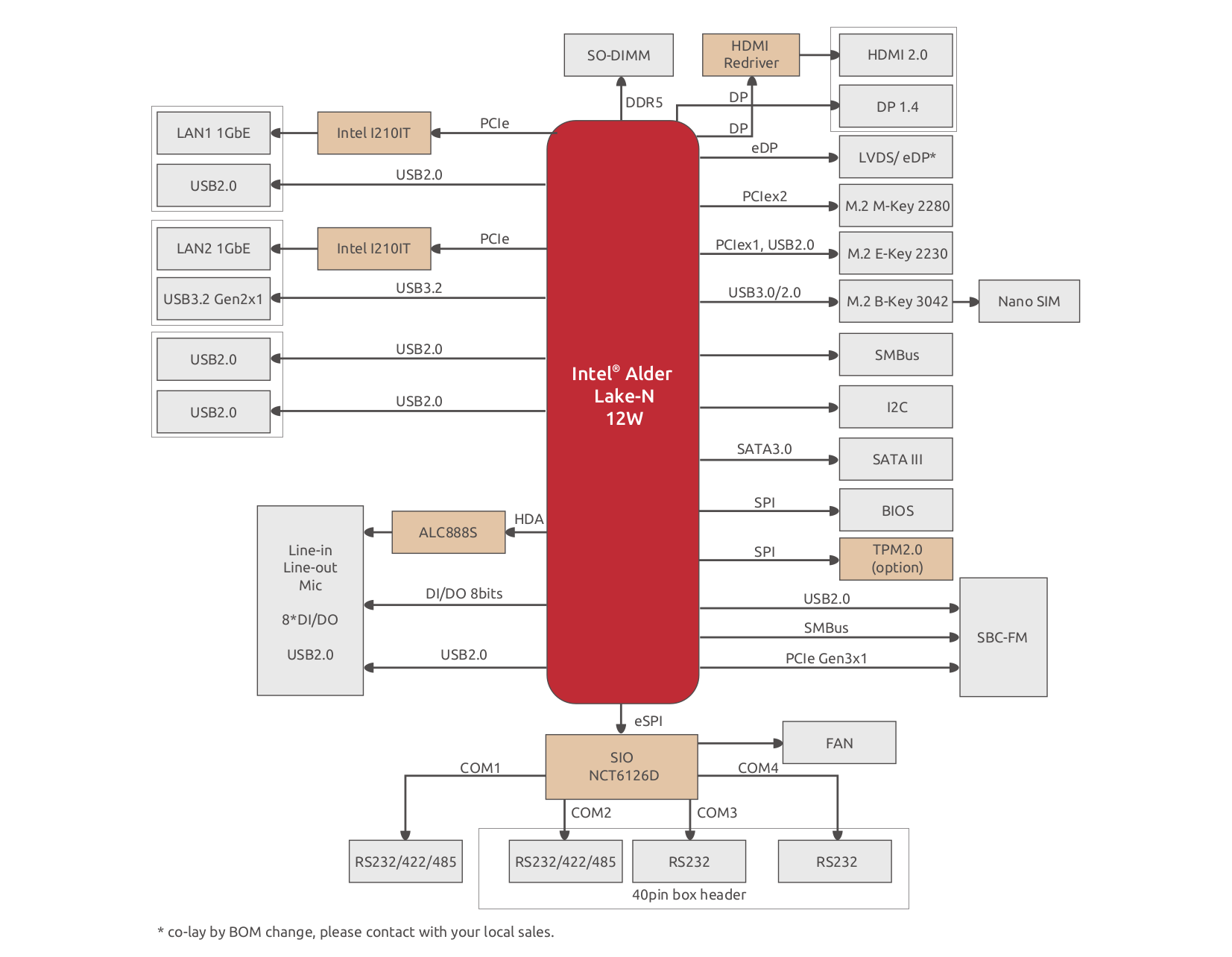

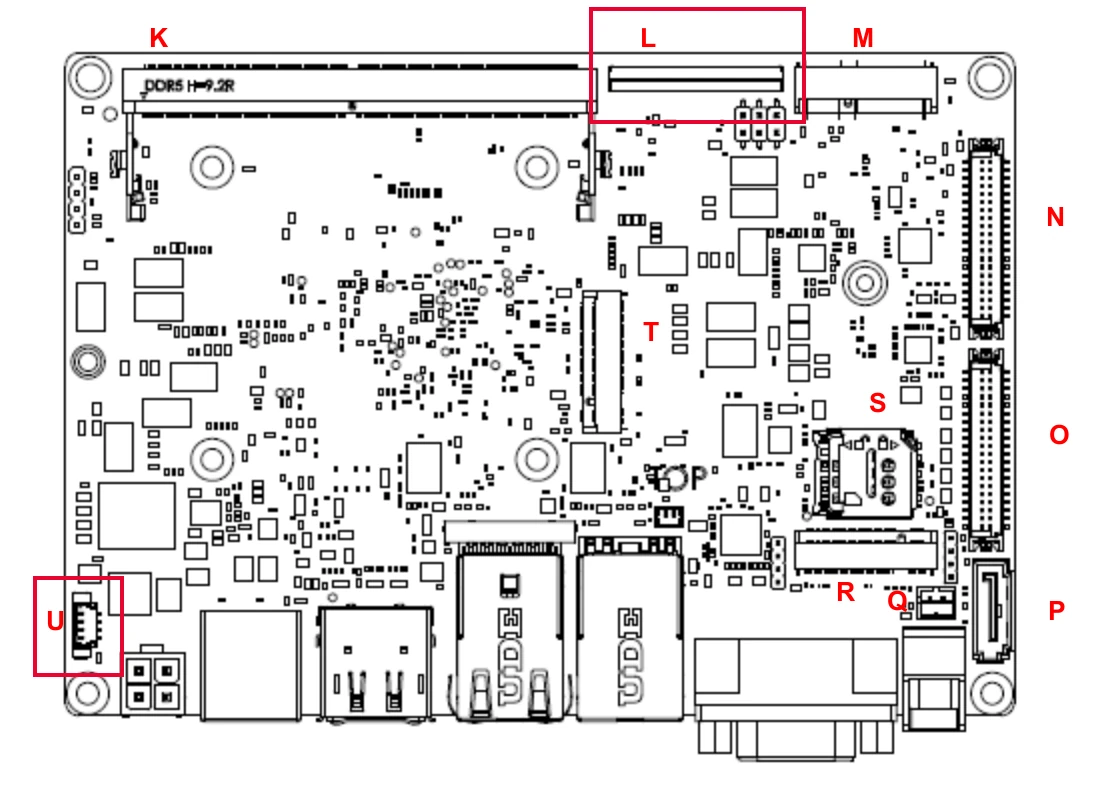

Let’s have a look at the SBC-FM expansion connector. It’s comprised of two connectors a 50-pin Hirose FH34SRJ-50S-0.5SH(50) connector (position M below) and a 6-pin MOLEX 53398-0471 connector (position U) that are placed at opposite ends of the SBC35-ALN board. While the Alder Lake-N SBC supports PCIe Gen3 x1, USB 2.0, and SMBus, the SBC-FM connector also features PCIe Gen4 x4 and USB 3.0 for more powerful boards of the SBC35 series such as a SBC35-RPL powered by a choice of 13th Gen Raptor Lake processors.

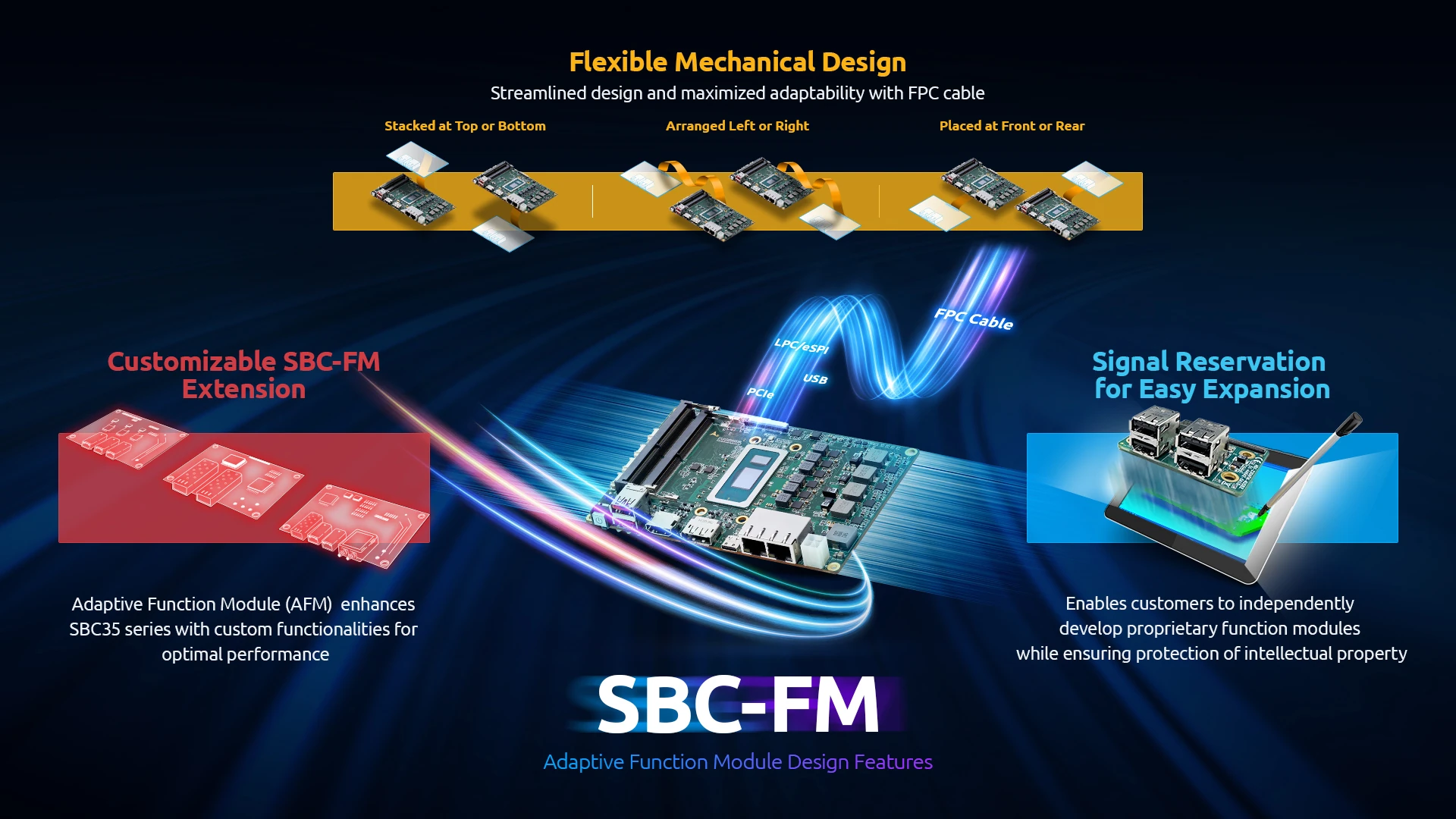

FM stands for “Flexible Mechanical” and it’s designed to connect custom AFM (Adaptive Function Modules) with high-speed networking interfaces, additional USB ports, etc… through an FPC cable.

The expansion board can be placed on top or bottom of the SBC, as well as on the side as needed.

ADLINK does not provide pre-built SBC-FM-compliant Adaptive Function Modules for now, so it looks to be only for custom-designed boards for now, although I’d expect some SBC-FM modules to become available over time.

The company says the SBC35 series single board computers are suitable for a range of applications in automation, transportation, medical fields, and smart city projects, including Autonomous Mobile Robots (AMRs), Electric Vehicle (EV) charging stations, and self-service kiosks.

Pricing has not been made available publicly. More details may be found on the product page for the SBC35 series and in the press release.

Thanks to TLS for the tip.
